DCM04S0A0S12PFA
FEATURES
High efficiency: 95% @ 5.0Vin, 3.3V/12A out
Small size and low profile:
20.3x 11.4x 8.5mm (0.8”x 0.45”x 0.33”)
Surface mount packaging
Standard footprint
Voltage and resistor-based trim
Pre-bias startup
Output voltage tracking
No minimum load required
Output voltage programmable from
0.6Vdc to 3.3Vdc via external resistor
Fixed frequency operation
Input UVLO, output OCP
Remote on/off
ISO 9001, TL 9000, ISO 14001, QS9000,
OHSAS18001 certified manufacturing facility
UL/cUL 60950-1 (US & Canada) to be
recognized.
Delphi DCM, Non-Isolated Point of Load
DC/DC Power Modules: 2.4-5.5Vin,
0.6-3.3V/12Aout
The Delphi Series DCM, 2.4-5.5V input, single output,
non-isolated Point of Load DC/DC converters are the
latest offering from a world leader in power systems
technology and manufacturing -- Delta Electronics, Inc.
The DCM series provides a programmable output voltage
from 0.6V to 3.3V using an external resistor and has
flexible and programmable tracking features to enable a
variety of startup voltages as well as tracking between
power modules. This product family is available in surface
mount and provides up to 12A of output current in an
industry
standard
footprint.
With
creative
design
technology and optimization of component placement,
these converters possess outstanding electrical and
thermal performance, as well as extremely high reliability
under highly stressful operating conditions.
OPTIONS
Negative on/off logic
Tracking feature
APPLICATIONS
Telecom / DataCom
Distributed power architectures
Servers and workstations
LAN / WAN applications
Data processing applications
DS_ DCM04S0A0S12PFA _06092014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P1
TECHNICAL SPECIFICATIONS
PARAMETER
ABSOLUTE MAXIMUM RATINGS
Input Voltage (Continuous)
Tracking Voltage
Operating Ambient Temperature
Storage Temperature
INPUT CHARACTERISTICS
Operating Input Voltage
Input Under-Voltage Lockout
Turn-On Voltage Threshold
Turn-Off Voltage Threshold
Maximum Input Current
No-Load Input Current
Off Converter Input Current
Inrush Transient
Input Reflected Ripple Current,
peak-to-peak
Input Ripple Rejection (120Hz)
OUTPUT CHARACTERISTICS
Output Voltage Set Point
Output Voltage Adjustable Range
Output Voltage Regulation
Over Line
Over Load
Over Temperature
Total Output Voltage Range
Output Voltage Ripple and Noise
Peak-to-Peak
RMS
Output Current Range
Output Voltage Over-shoot at Start-up
Output DC Current-Limit Inception
Output Short-Circuit Current (Hiccup Mode)
DYNAMIC CHARACTERISTICS
Dynamic Load Response
Positive Step Change in Output Current
Negative Step Change in Output
Current Time to 10% of Peak Deviation
Settling
Turn-On Transient
Start-Up Time, From On/Off Control
Start-Up Time, From Input
Output Voltage Rise Time
Output Capacitive Load
EFFICIENCY
Vo=3.3V
Vo=2.5V
Vo=1.8V
Vo=1.5V
Vo=1.2V
Vo=0.6V
FEATURE CHARACTERISTICS
Switching Frequency
ON/OFF Control, (Negative logic)
Logic Low Voltage
Logic High Voltage
Logic Low Current
Logic High Current
ON/OFF Control, (Positive Logic)
Logic High Voltage
Logic Low Voltage
Logic Low Current
Logic High Current
Tracking Slew Rate Capability
Tracking Delay Time
Tracking Accuracy
GENERAL SPECIFICATIONS
MTBF
Weight
For Vo>=2.5V
For Vo<2.5V
For Vo>=2.5V
For Vo<2.5V
Ta=-40℃ to 85℃
Over sample load, line and temperature
5Hz to 20MHz bandwidth
Full Load, 0.1µF ceramic, 10µF ceramic
Full Load, 0.1µF ceramic, 10µF ceramic
Vout=3.3V
Hiccup mode
Io,s/c
10µF Ceramic & 0.1µF Ceramic load cap,
2.5A/µs,Co=47u,Vin=5V,Vo=1.8V
0-50% Iomax
50% Iomax-0
Io=Io.max
Von/off, Vo=10% of Vo,set
Vin=Vin,min, Vo=10% of Vo,set
Time for Vo to rise from 10% to 90% of Vo,set
Full load; ESR
≧0.15mΩ
Vin=5V, 100% Load
Vin=5V, 100% Load
Vin=5V, 100% Load
Vin=5V, 100% Load
Vin=5V, 100% Load
Vin=5V, 100% Load
NOTES and CONDITIONS
DCM04S0A0S12PFA
Min.
-0.3
-0.3
-40
-55
Typ.
Max.
6
Vin,max
85
125
5.5
2.2
2.0
Units
Vdc
Vdc
℃
°C
V
V
V
A
mA
mA
A2S
mAp-p
dB
+1.5
3.3
0.4
10
15
10
0.4
+3.0
25
10
0
250
2.4
35
15
12
3
% Vo,set
V
% Vo,set
mV
mV
mV
% Vo,set
% Vo,set
mV
mV
A
% Vo,set
% Iomax
Adc
Vo
≦
Vin –0.6
2.4
Vin=2.4V to 5.5V, Io=Io,max
Vin=5V
Vin=5V
(5Hz to 20MHz, 1μH source impedance; VIN =0 to 5.5V, Io=
Iomax ;
11
50
5
1
49
-30
with 0.5% tolerance for
external resistor used to set output voltage)
-1.5
0.6
Vo,set
-3.0
200
200
20
3
3
3
47
95.0
94.0
91.5
90.0
89.0
81.0
600
mV
mV
µs
ms
ms
ms
µF
%
%
%
%
%
%
kHz
Vin-1.6
Vin,max
200
1
Vin,max
0.3
1
10
2
100
100
V
V
µA
mA
V
V
mA
µA
V/msec
ms
mV
mV
M hours
grams
5
800
Module On, Von/off
Module Off, Von/off
Module On, Ion/off
Module Off, Ion/off
Module On, Von/off
Module Off, Von/off
Module On, Ion/off
Module Off, Ion/off
Delay from Vin.min to application of tracking voltage
Power-up
2V/mS
Power-down 1V/mS
Io=80% of Io, max; Ta=25°C
-0.2
Vin-0.8
1.6
-0.3
0.1
10
1
4.8
(T
A
= 25°C, airflow rate = 300 LFM, V
in
=2.4Vdc to 5.5Vdc, nominal Vout unless otherwise noted.)
DS_ DCM04S0A0S12PFA_06092014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P2

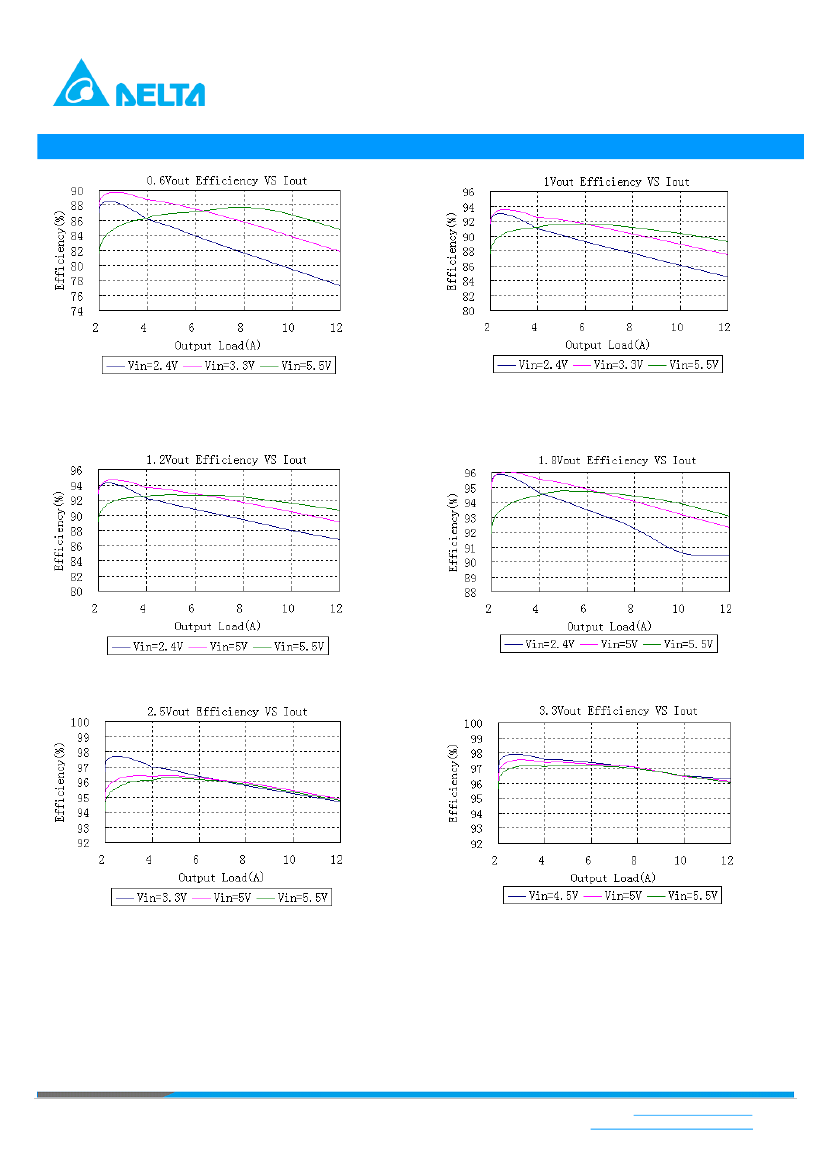

ELECTRICAL CHARACTERISTICS CURVES
Figure 1:
Converter efficiency vs. output current (0.6V out)
Figure 2:
Converter efficiency vs. output current (1.0V out)
Figure 3:
Converter efficiency vs. output current (1.2V out)
Figure 4:
Converter efficiency vs. output current (1.8V out)
Figure 5:
Converter efficiency vs. output current (2.5V out)
Figure 6:
Converter efficiency vs. output current (3.3V out)
DS_ DCM04S0A0S12PFA_06092014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P3
ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 7:
Output ripple & noise at 5Vin, 0.6V/12A out.
(2us/div and 2mV/div)
Figure 8:
Output ripple & noise at 5Vin, 1.2V/12A out.
(2us/div and 2mV/div)
Figure 9:
Output ripple & noise at 5Vin, 1.8V/12A out.
(2us/div and 2mV/div)
Figure 10:
Output ripple & noise at 5Vin, 3.3V/12A out.
(2us/div and 2mV/div)
Figure 11:
Turn on delay time at 5Vin, 0.6V/12A out(2mS/div),Top
trace:Vout 0.2V/div; bottom trace:Vin,5V/div
Figure 12:
Turn on delay time at 5Vin, 1.2V/12A out(2mS/div),Top
trace:Vout 0.5V/div; bottom trace:Vin,5V/div
DS_ DCM04S0A0S12PFA_06092014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P4
ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 13:
Turn on delay time at 5Vin, 1.8V/12A out(2mS/div),Top
trace:Vout 1V/div; bottom trace:Vin,5V/div
Figure 14:
Turn on delay time at 5Vin, 3.3V/12A out(2mS/div),Top
trace:Vout 2V/div; bottom trace:Vin,5V/div
Figure 15:
Turn on delay time at remote on/off, 0.6V/12A
out(1mS/div),Top trace:Vout 0.2V/div; bottom trace: on/off,2V/div
Figure 16:
Turn on delay time at remote on/off, 3.3V/12A
out(1mS/div),Top trace:Vout 2V/div; bottom trace: on/off,2V/div
Figure 17:
Turn on delay time at remote turn on with external
capacitors (Co= 800 µF) 5Vin, 0.6V/12A out(4mS/div)
，
Top
trace:Vout 0.2V/div; bottom trace:Vin,5V/div
Figure 18:
Turn on delay time at remote turn on with external
capacitors (Co=800 µF) 5Vin, 3.3V/12A out(2mS/div)
，
Top
trace:Vout 2V/div; bottom trace:Vin,5V/div
DS_ DCM04S0A0S12PFA_06092014
E-mail: DCDC@delta.com.tw
http://www.deltaww.com/dcdc
P5
