ZMS100-48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> ZMS100-48

ZMS100-48: CategoryPower/power management; File Size1MB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

ZMS100-48 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZMS100-48	-	-	View	Buy Now

ZMS100-48 Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	48 V
Number of Outputs	1 Output
Output Power	80.2 W, 100.8 W
Open Frame/Enclosed	Open Frame
Input Voltage	85 VAC to 264 VAC
Output Current-Channel 1	1.67 A, 2.1 A
Commercial/Medical	Commercial, Medical
Isolation Voltage	4 kV
Mounting Style	Chassis
Length	4 in
Width	2 in
Height	1.25 in
Input Frequency	47 Hz to 63 Hz
Load Regulation	Regulated
Power - Convection	80.2 W
Power - Forced Air	100.8 W
Factory Pack Quantity	1
Unit Weight	5.291094 oz

Preview

Download Datasheet

View All

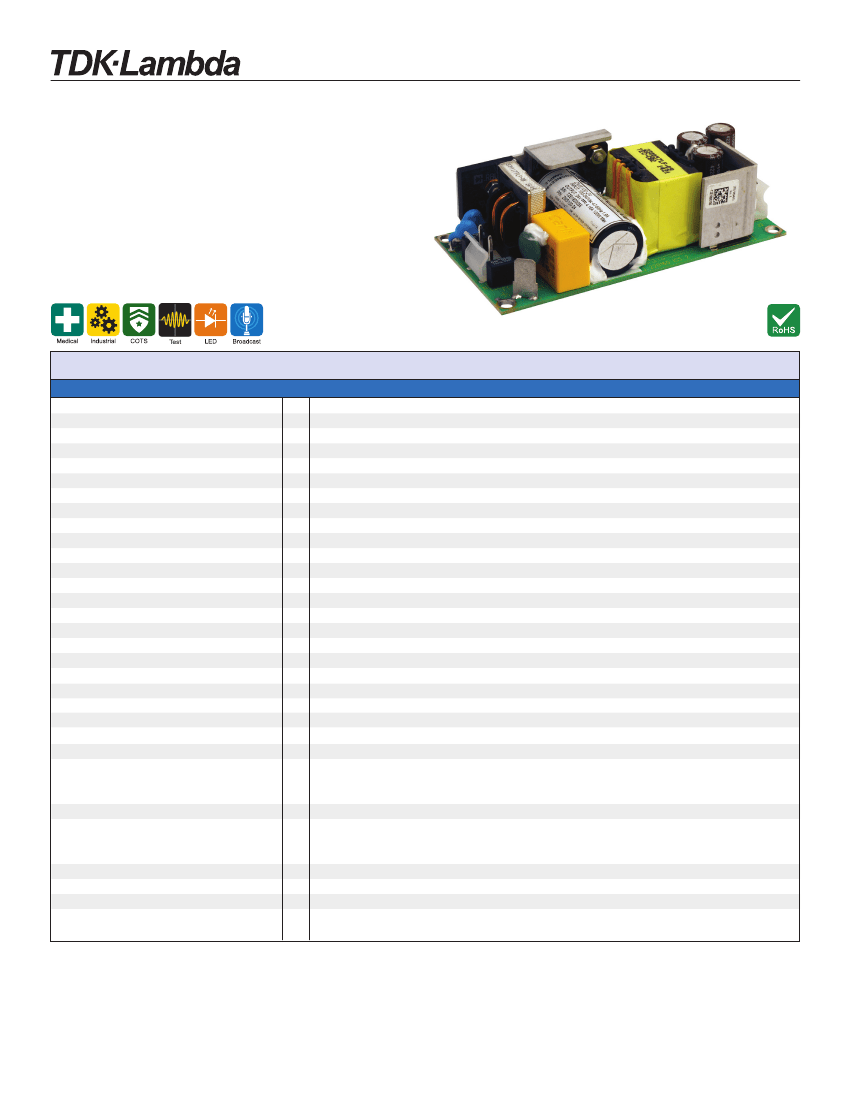

ZMS100 Series

100W, 2 x 4” AC-DC Power Supplies

Features



80W Convection, 100W with Forced Air



Long e-cap lifetime



Compact 2 x 4 inch footprint



Medical approval with 2 x MoPP isolation



Suitable for Class I and Class II installations



Ceramic start-up cap

Key Market Segments & Applications

Speciﬁcations

(1)

Model

AC Input Voltage range (2) (4)

Input Fusing

Input Current (Typ) (230V/115VAC)

Inrush Current - cold start

Harmonic Compliance

Typical Hold Up Time at 80W load,115/230VAC

Typical Hold Up Time at 100W load,115/230VAC

Leakage Current

Touch Current (enclosure leakage)

Cooling

Efﬁciency

Operating Temperature

Storage Temperature

Operational Altitude

Overcurrent Protection

Overvoltage Protection

No Load Input Power at 230VAC

Average Active Efﬁciency

Humidity (non condensing)

Withstand Voltage

Isolation Resistance

Isolation Class (3)

Vibration

Shock

Approvals

Conducted & Radiated EMI

Immunity (5)

Weight (Typ)

Size (W x L x H)

Warranty

Connectivity

yrs

μA

°C

ZMS100

85 - 264VAC (47-63Hz) 120 - 350VDC

Line and neutral

1.0 / 2.0

<40 (max at 264Vac input)

Compliant to EN/IEC61000-3-2 class A Temperature Coefﬁcient - <0.02% / °C

22 / 108

16 / 84 (see graphs for more detail)

<100μA at 100V 60Hz input, <250μA at 230V 50Hz

<100

μA

80W with convection cooling, 100W max. with forced air cooling (see airﬂow rate graphs)

Up to 90% (see efﬁciency curves)

-20°C to +70°C, derate linearly to 50% load from 50°C to 70°C

-40°C to +85°C

5000m

hiccup (auto recovery)

Latching (unit shutdown, recycle mains to restart)

<0.5

>87

Operating and storage : 5 - 95% (non-condensing)

Input to output 4kVac 2x MoPP, 1.5kVac input to ground 1x MoPP, 1.5kVac output to ground 1 x MoPP

>100MΩ at 25°C & 70%RH

Construction suitable for Class II installations

10 to 500Hz at 2G, EN60068-2-6 19,6m/s² Constant, X, Y, Z 1 hour each.

30G EN60068-2-27, -47, MIL-STD-810E

IEC/EN/UL 60950-1, CSA22.2 No. 60950-1, IEC/EN 60601-1 (2nd & 3rd editions)

CE mark Designed to meet IEC/EN/UL/CSA 61010-1, ANSI/AAMI ES60601-1:2005 (r)

2012 CQC safety standard GB4943.1-2011 (pending) ZMS100-12, 15 and 24 type tested to EN60335-1

EN55011 / EN55022 level B conducted, level A radiated

EN 61000-4-2 (Level 3 criteria A) -3 (Level 3 criteria A) -4 (Level 3 criteria A),

-5 (Level 3 criteria A), -6 (Level 3 criteria A), -8 (Level 3 criteria A), -11(class 3), -12(level 3)

Meets the requirements of EN60601-1-2:2007 (as applicable to a component power supply)

150

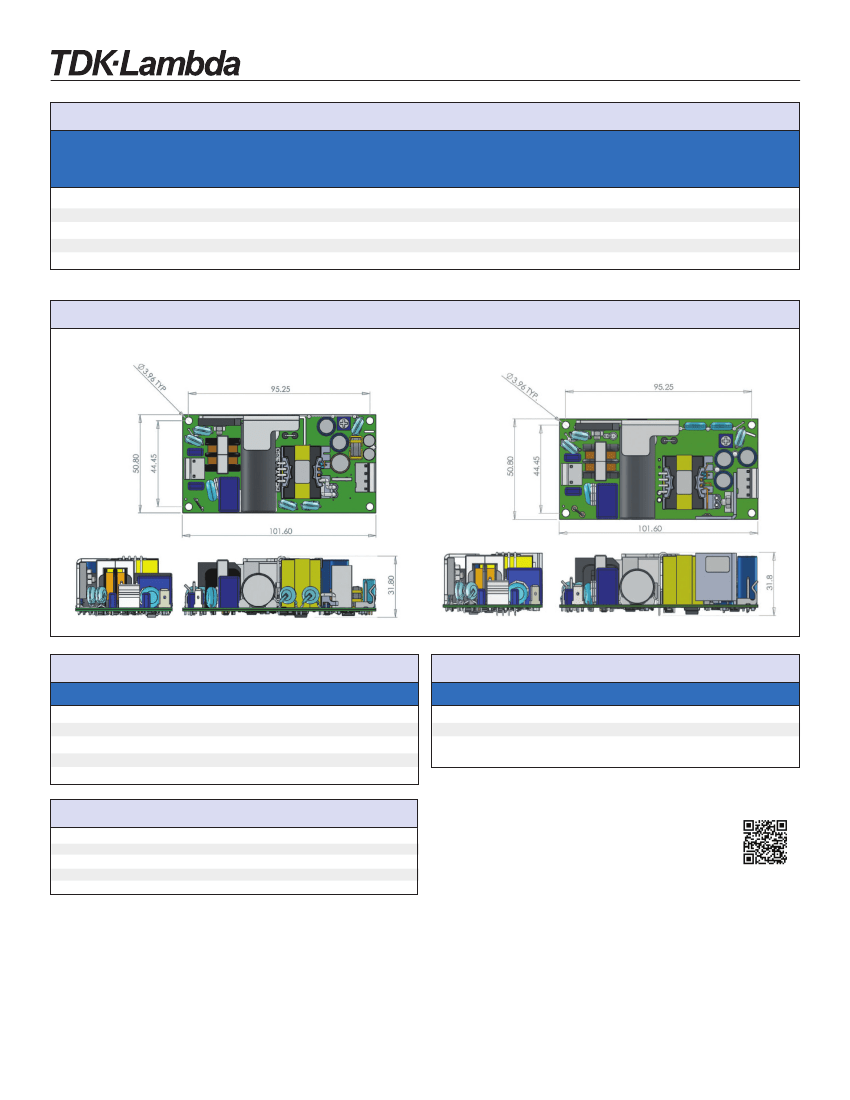

50.8 x 101.6 x 31.9 (2” x 4” x 1.25”)

Molex as standard with separate ground faston

Input Molex 10-63-4027, output Molex 09-65-2048

Note: 1. Speciﬁcation parameters apply at 25°C ambient temperature unless stated otherwise.

2. For 12V & 15V unit derate from 100% at 100V to 90% at 90V and to 80% at 85V, for 24V, 36V, & 48V unit derate from 100% at 90V to 90%

at 85V. (convection and forced air ratings) .

3. ZMS100 uses Y1 capacitors to earth.

4. Consult Sales Ofﬁce for use under DC Input conditions

5. Criteria B for dips and interruptions, contact technical support for full details.

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm

ZMS100-48 Related Products

	ZMS100-48	ZMS100-24	ZMS100-12	ZMS100-36
Description		EMI Filter Circuits 50V 15A EMI BLK FILT	Ferrite Clamp On Cores High Freq 61Material 420Ohm @250MHz Round
Product Category	Switching Power Supplies	Switching Power Supplies	Switching Power Supplies	Switching Power Supplies
Manufacturer	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation
RoHS	Details	Details	Details	Details
Product	Switching Supplies	Switching Supplies	Switching Supplies	Switching Supplies
Output Voltage-Channel 1	48 V	24 V	12 V	36 V
Number of Outputs	1 Output	1 Output	1 Output	1 Output
Output Power	80.2 W, 100.8 W	81.6 W, 100.8 W	80.4 W, 100.8 W	81 W, 100.8 W
Open Frame/Enclosed	Open Frame	Open Frame	Open Frame	Open Frame
Input Voltage	85 VAC to 264 VAC	85 VAC to 264 VAC	85 VAC to 264 VAC	85 VAC to 264 VAC
Output Current-Channel 1	1.67 A, 2.1 A	3.4 A, 4.2 A	6.7 A, 8.4 A	2.25 A, 2.8 A
Commercial/Medical	Commercial, Medical	Commercial, Medical	Commercial, Medical	Commercial, Medical
Isolation Voltage	4 kV	4 kV	4 kV	4 kV
Mounting Style	Chassis	Chassis	Chassis	Chassis
Length	4 in	4 in	4 in	4 in
Width	2 in	2 in	2 in	2 in
Height	1.25 in	1.25 in	1.25 in	1.25 in
Input Frequency	47 Hz to 63 Hz	47 Hz to 63 Hz	47 Hz to 63 Hz	47 Hz to 63 Hz
Load Regulation	Regulated	Regulated	Regulated	Regulated
Power - Convection	80.2 W	81.6 W	80.4 W	81 W
Power - Forced Air	100.8 W	100.8 W	100.8 W	100.8 W
Factory Pack Quantity	1	1	1	1
Unit Weight	5.291094 oz	5.291094 oz	5.291094 oz	5.291094 oz
