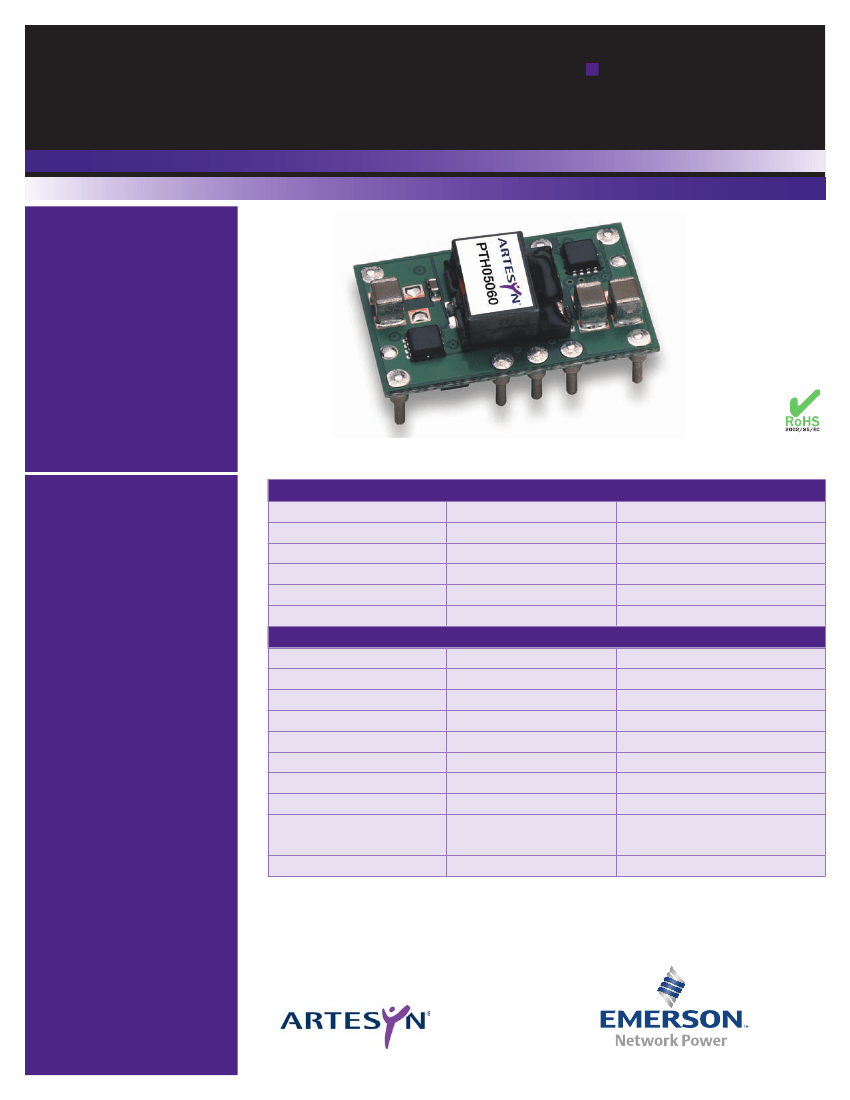

Embedded Power for
Business-Critical Continuity
PTH05060
5 Vin
Total Power:
# of Outputs:
36 Watts
Single
Rev. 3.23.09_71
PTH05060 Series
1 of 5
Specifications
Special Features
•
•
•
•
•
•
•
•
•
•
10 A output current
5 V input voltage
Wide-output voltage adjust
0.8 Vdc to 3.6 Vdc
Auto-track™ sequencing*
Margin up/down controls
Pre-bias start-up capability
Efficiencies up to 94%
Output ON/OFF inhibit
Output voltage sense
Point-of-Load-Alliance (POLA)
compatible
• Available RoHS compliant
• 2 Year Warranty
Input
Input voltage range:
Input current:
Remote ON/OFF:
Start-up time:
Undervoltage lockout:
Track input voltage:
Pin 8 (See Note 6 & 7, page 3)
(See Note 4, page 3)
(See Note 3, page 3)
No load
(See Note 1, page 3)
4.5 - 5.5 Vdc
10 mA typ.
Positive logic
1 V/ms
3.7 - 4.3 V typ.
± 0.3 Vin
0.8 - 3.6 Vdc
± 2.0% Vo
± 10 mV typ.
± 12 mV typ.
± 3.0% Vo
0 A
20 MHz bandwidth
-40 °C to +85 °C
25 mV pk-pk
± 0.5% Vo
70 µs recovery time
Overshoot/undershoot 100 mV
± 5.0% Vo
Output
Voltage adjustability:
Setpoint accuracy:
Line regulation:
Load regulation:
Total regulation:
Minimum load:
Ripple and noise:
Temperature co-efficient:
Transient response:
(See Note 5, page 3)
Margin adjustment:
Safety
• UL/cUL CAN/CSA-C22.2
No. 60950-1-03/UL 60950-1,
File No. E174104
• TÜV Product Service
B 04 06 38572 044
(EN60950) Certificate No.
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
Cin
= 330 µF, C
out
= 0 µF
*Auto-track™ is a trade mark of
Texas Instruments
• CB Report and Certificate
to IEC60950, Certificate No.
US/8292/UL
Embedded Power for
Business-Critical Continuity
Specifications Continued
EMC Characteristics
Electrostatic discharge:
Conducted immunity:
Radiated immunity:
EN61000-4-2, IEC801-2
EN61000-4-6
EN61000-4-3
Rev. 3.23.09_71
PTH05060 Series
2 of 5
General Specifications
Efficiency:
Insulation voltage:
Switching frequency:
Approvals and standards:
Material flammability:
Dimensions:
Weight:
MTBF:
Telcordia SR-332
(L x W x H)
See efficiency table on page 3
94% max
Non-Isolated
300 kHz typ. ±25 kHz
EN60950, UL/cUL60950
UL94V-0
25.27 x 15.75 x 9.00 mm
0.995 x 0.620 x 0.354 in
3.7g (0.13 oz)
7,092,000 hours
Environmental Specifications
Thermal performance:
(See Note 2, page 3)
MSL (‘Z’ suffix only):
Operating ambient, temperature
Non-operating
JEDEC J-STD-020C
-40° C to +85 °C
-40° C to +125 °C
Level 3
Protection
Short circuit:
Auto reset
20 A typ.
Embedded Power for
Business-Critical Continuity
Rev. 3.23.09_71
PTH05060 Series
3 of 5
Ordering Information
Output Power
(max)
36 W
Input
Voltage
4.5 - 5.5 Vdc
Output
Voltage
0.8 - 3.6 Vdc
Output Currents
Min
0 A
Max
10 A
Efficiency
(max)
94%
Regulation
Line
± 10 mV
Load
± 12 mV
PTH05060
Model Numbers
(9, 10)
odel
Part Number System with Options
PTH05060WAST
Packaging Options
No Suffix = Trays
T = Tape and Reel
(8)
Mounting Option
(9)
D = Horizontal Through-Hole (RoHS 6/6)
H = Horizontal Through-Hole (RoHS 5/6)
S = Surface-Mount Solder Ball (RoHS 5/6)
Z = Surface-Mount Solder Ball (RoHS 6/6)
Product Family
Point of Load Alliance
Compatible
Input Voltage
05 = 5 V
Output Current
06 = 10 A
Mechanical Package
Always 0
Pin Option
A = Through-Hole Std. Pin Length (0.140”)
A = Surface-Mount Tin/Lead Solder Ball
Output Voltage Code
W = Wide
Output Voltage Adjustment of the PTH05060 Series
The ultra-wide output voltage trim range offers major advantages to users who
select the PTH05060. It is no longer necessary to purchase a variety of modules in
order to cover different output voltages. The output voltage can be trimmed in a
range of 0.8 Vdc to 3.6 Vdc. When the PTH05060 converter leaves the factory the
output has been adjusted to the default voltage of 0.8 V.
Efficiency Table
(IO = 7 A)
Output Voltage
Vo = 1.0 V
Vo = 1.2 V
Vo = 1.5 V
Vo = 1.8 V
Vo = 2.0 V
Vo = 2.5 V
Vo = 3.3 V
Efficiency
85%
86%
89%
90%
91%
92%
94%
Notes
1
2
3
4
5
6
7
Remote ON/OFF. Positive Logic
ON:
Pin 3 open; or V > Vin - 0.5 V
OFF: Pin 3 GND; or V < 0.8 V (min - 0.2 V).
See Figures 1and 2 for safe operating curves.
A 330 µF electrolytic input capacitor is required for proper operation. The
capacitor must be rated for a minimum of 500 mA rms of ripple current.
An external output capacitor is not required for basic operation. Adding 330
µF of distributed capacitance at the load will improve the transient response.
1 A/µs load step, 50 to 100% I
omax
, C
out
= 330 µF.
If utilized Vout will track applied voltage by ±0.3 V (up to Vo set point).
The pre-bias start-up feature is not compatible with Auto-Track™. This is
because when the module is under Auto-Track™ control, it is fully active and
will sink current if the ouput voltage is below that of a back-feeding source.
Therefore to ensure a pre-bias hold-off, one of the following two techniques
must be followed when input power is first applied to the mdoule. The Auto-
Track™ function must either be disabled, or the module’s output held off
using the inhibit pin. Refer to Application Note 159 for more details.
Tape and reel packaging only available on the surface-mount versions.
To order Pb-free (RoHS compatible) surface-mount parts replace the
mounting option ‘S’ with ‘Z’, e.g. PTH05060WAZ. To order Pb-free (RoHS
compatible) through-hole parts replace the mounting option ‘H’ with ‘D’, e.g.
PTH05060WAD.
NOTICE: Some models do not support all options. Please contact your local
Emerson Network Power representative or use the on-line model number search
tool at http://www.PowerConversion.com to find a suitable alternative.
8
9
9
Embedded Power for
Business-Critical Continuity
Characteristic Data
90
TEMPERATURE (ºC)
TEMPERATURE (ºC)
80
70
60
50
40
30
20
0
2
4
6
8
10
Nat conv
100LFM
200LFM
400LFM
Rev. 3.23.09_71
PTH05060 Series
4 of 5
90
80
70
60
50
40
30
20
0
2
4
6
8
10
Nat conv
100LFM
200LFM
400LFM
OUTPUT CURRENT (A)
Figure 1 - Safe Operating Area
Vin = 5 V, Output Voltage = 3.3 V (See Note A)
OUTPUT CURRENT (A)
Figure 2 - Safe Operating Area
Vin = 5 V, Output Voltage = 1.0 V (See Note A)
Track
Margin Down
Margin Up
100
90
1
10
9
8
7
EFFICIENCY (%)
80
70
60
50
40
Vout
3.3V
2.5V
1.8V
1.2V
0.8V
PTH05060
(Top View)
V
in
2
3
4
5
6
V
out
Inhibit
V
o
Sense
L
O
A
D
+
C
in
330F
(Required)
R
SET
1%, 0.1W
(Required)
+
C
out
330F
(Optional)
0
2
4
6
8
10
GND
GND
Figure 3 - Efficiency vs Load Current
Vin = 5 V (See Note B)
Figure 4 - Standard Application
Notes
A SOA curves represent the conditions at which internal components are within
the Emerson Network Power derating guidelines.
B
Characteristic data has been developed from actual products tested at 25 °C.
This data is considered typical data for the converter.
Embedded Power for
Business-Critical Continuity
Mechanical Drawings
0.995 (25.27)
0.125 (3.18)
0.125 (3.18)
0.060
(1.52)
1
0.375
(9.52)
10
9
8
0.250
(6.35)
7
0.620
0.500 (15.75)
(12.70)
0.070 (1.78)
(Standoff Shoulder)
Lowest Component
0.010 min. (0.25)
Bottom side Clearance
Americas
0.140
(3.55)
0.060
(1.52)
ø
0.040 (1.02)
5 Places.
Rev. 3.23.09_71
PTH05060 Series
5 of 5
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Europe (UK)
2
3
4
TOP VIEW
5
6
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
Host Board
0.354 (9.00)
MAX.
SIDE VIEW
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places 0.030 (0.76)
3 Places 0.010 (0.25)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
Figure 5 - Plated Through-Hole
For global contact, visit:
www.PowerConversion.com
techsupport.embeddedpower
@emerson.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
0.995 (25.27)
0.125 (3.18)
0.125 (3.18)
0.375
(9.52)
1
10
9
8
0.060
(1.52)
0.354 (9.00)
max.*
*After solder reflow
on customer board
0.060
(1.52)
0.250
(6.35)
7
0.500 0.620
(12.70) (15.75)
Solder Ball
0.040 (1.02)
10 Places
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power
Connectivity
DC Power
2
3
4
5
6
SIDE VIEW
TOP VIEW
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places 0.030 (0.76)
3 Places 0.010 (0.25)
Embedded Computing
Embedded Power
Monitoring
Outside Plant
Power Switching & Controls
Precision Cooling
Racks & Integrated Cabinets
Services
Surge Protection
EmersonNetworkPower.com
* Denotes negative logic:
Open = Normal operation
Ground = Function active
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2008 Emerson Electric Co.
Figure 6 - Surface-Mount
Pin Connections
Pin No.
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin Connections cont.
Pin No.
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
Function
Ground
Vin
Inhibit*
Vo adjust
Vo sense
Function
Vout
Ground
Track
Margin down*
Margin up*
