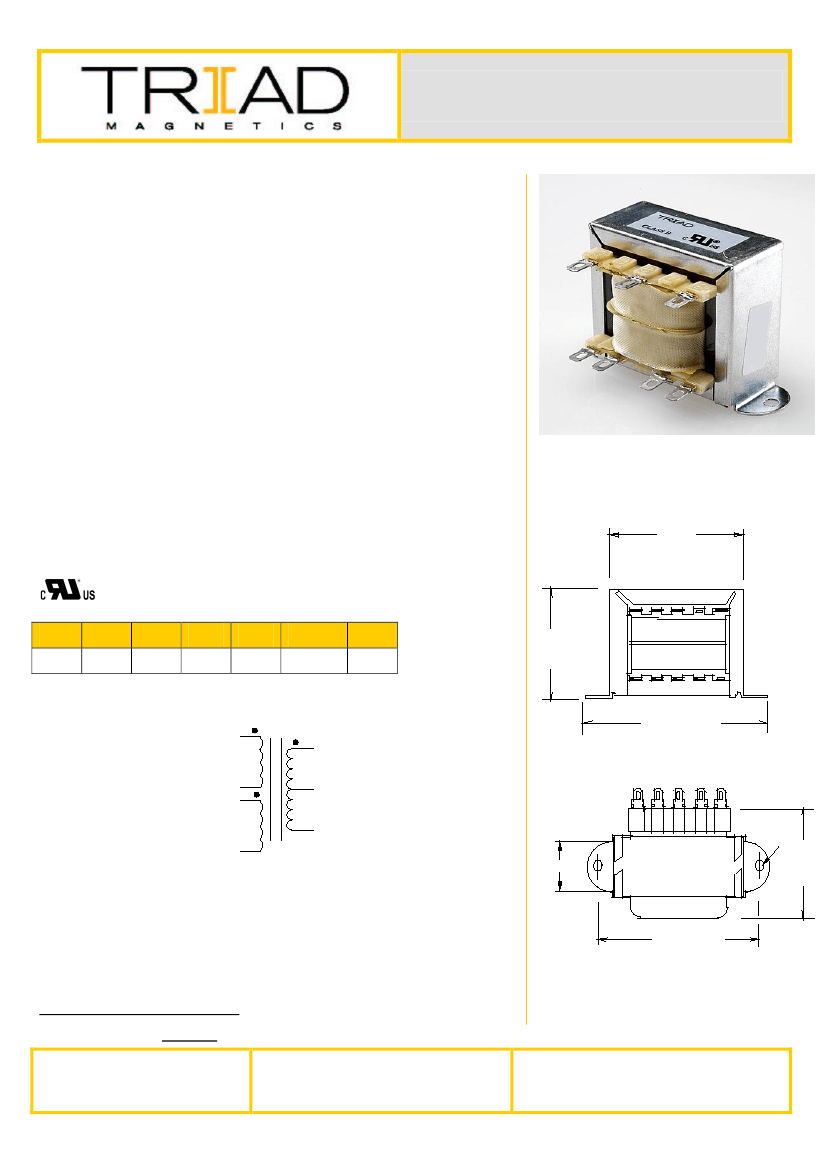

Power Transformer

Chassis Mount: Quick Pack

FD6-28

Description:

The FD6-28 Quick Pack small power transformer offers a significant reduction

in size and weight over a standard transformer. This transformer can be used

for a wide variety of applications. It is bobbin wound for reduced size and small

operating space.

Electrical Specifications (@25C):

Maximum Power:

30.0VA

Input Voltage:

Series:

230VAC@50/60Hz

Parallel:

115VAC@50/60Hz

1

Output Voltage:

28.0VCT@1.1A

Recommended Fuse:

UL listed 250VAC, 1.25A, Slo-Blo

Hipot:

2500VAC primary to secondary; 1500VAC windings to core.

Construction:

Split bobbin non concentric winding eliminates costly electrostatic shielding.

Termination is suitable for quick connects or soldering.

Built with UL Class B Insulation System.

Safety:

UL: File E53148, UL 5085-1 and 2 (formerly UL 506), General Purpose.

UL: File E65390, UL5085-1 and 3, Class 3

10

E

8

6

Dimensions:

A

1.937

B

2.812

C

3.250

D

1.687

E

2.312

F

.187 Dia

G

A

1.062

Notes:

1. Units: inches.

2. Terminal size: .187” X 0.021”.

3. Weight: 1.10 lbs

Schematic:

C

6

1

2

4

8

10

5

Input (115V):

Input 1 & 2

Connect 1&4, 2&5

Input (230V):

Input 1 & 5

Connect 2&4

Output:

6 & 10

G

RoHS Compliance:

As of manufacturing date February 2005, all standard products

meet the requirements of 2011/65/EU, known as the RoHS initiative..

* Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’

website for the most current version.

B

1

Fuse must be used on

secondary

as conditions of acceptability for UL Class 2/3 operation

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: July 8, 2016

1

F

D

2

3

4

5
