1-Phase Line Filters
https://www.schurter.com /PG84
FMEC

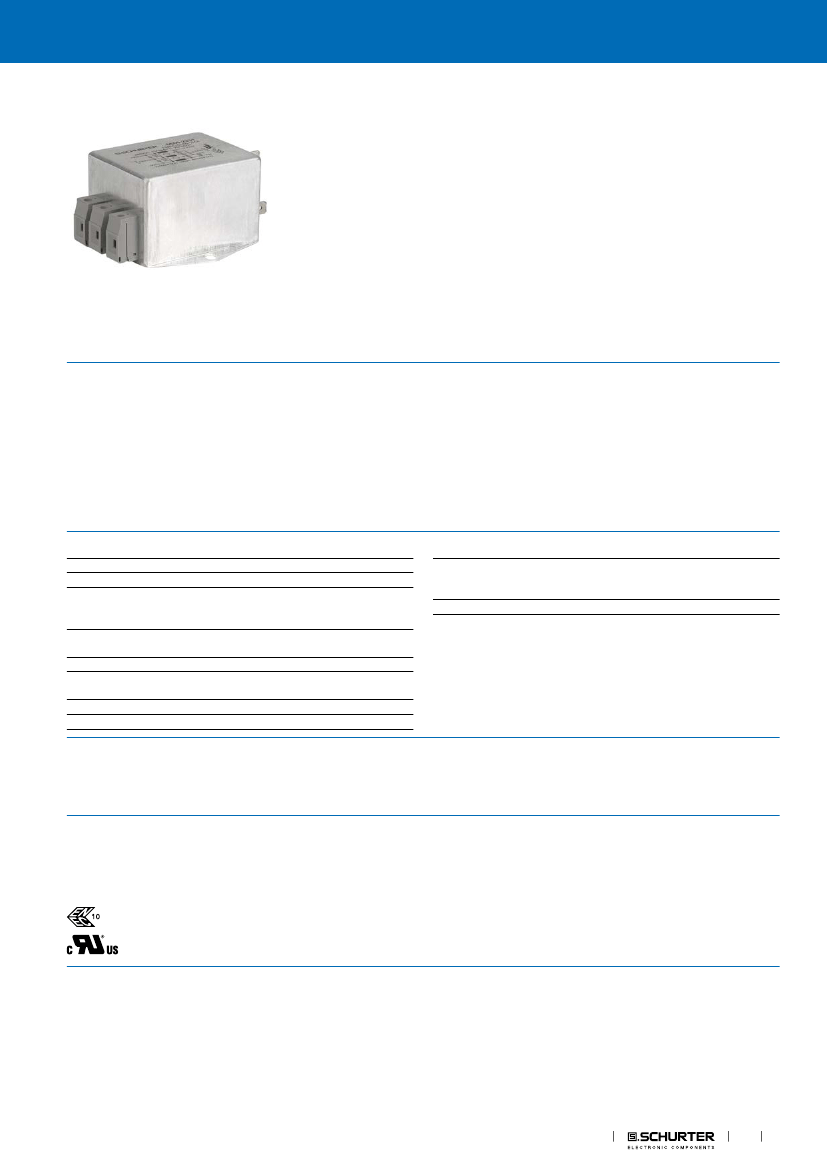

DC-Filter, dual pole
Approvals and Compliances
Description
- Line-filter in standard version
- 1-stage
- standard attenuation
Characteristics
- Optimized for DC supplied applications
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- Other terminal combinations
- Version with wire connection
References
Weblinks
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
5 - 30 A @ Ta 40 °C / ±80 VDC
5 - 30 A @ Ta 40 °C / ±80 VDC
> 1.7 kVDC between Vss-GND
> 2.7 kVDC between Vss/GND-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect and screw terminals
Aluminum, UL 94V-0
Line Filter
Industrial Version, IEC 60939, UL 1283,
CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMEC
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40020247
UL File Number: E72928
EMC Products
1
FMEC
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

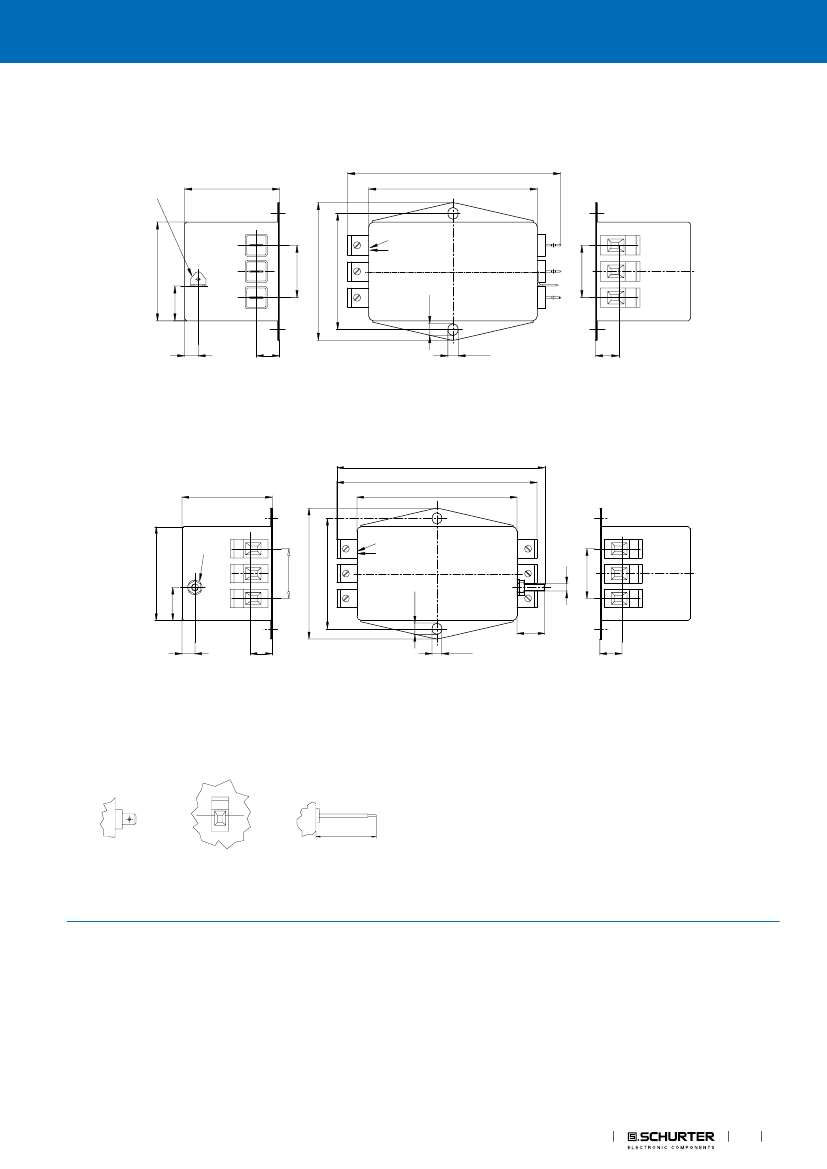

Dimension [mm]
Case 86-3
89 max.
43 max.
6.3x0.8
(7)
66 max.
4 mm
2
3)
51 max.
(27)
(27)
1)
2)
71 max.
60
±0.8
(12)
6.3
±0.2
(18)
5.3
±0.2
(12)
1) Line
2) Load
3) I/O connections torque 0.6...0.8 Nm
2
EMC Products
1-Phase Line Filters
https://www.schurter.com /PG84
FMEC
Case 87-3
110 max.
49 max.
6.3x0.8
87 max.
51 max.
71 max.
4 mm
2
3)
60
±0.8
(27)
1)
2)
(27)
(7)
(12)
6.3
±0.2
(18)
5.3
±0.2
(12)
1) Line
2) Load
3) I/O connections torque 0.6...0.8 Nm
Case 87-7
113 max.
109 max.
49 max.
87 max.
4)
51 max.
71 max.
60
±0.8
(27)
1)
4 mm
2
3)
(27)
M4
(15)
2)
(7)
(12)
6.3
±0.2
(18)
5.3
±0.2
(12)
1) Line
2) Load
3) Tightening torque 0.6...0.8 Nm
4) Tightening torque 1.2...1.4 Nm
Terminal options
6.3x0.8
4 mm
2
L
3)
1)
2)
1) Quick connect terminals 6.3x0.8 (only up to 24A)
2) Screw clamp 4mm²
3) Flexible wires
EMC Products
3
FMEC

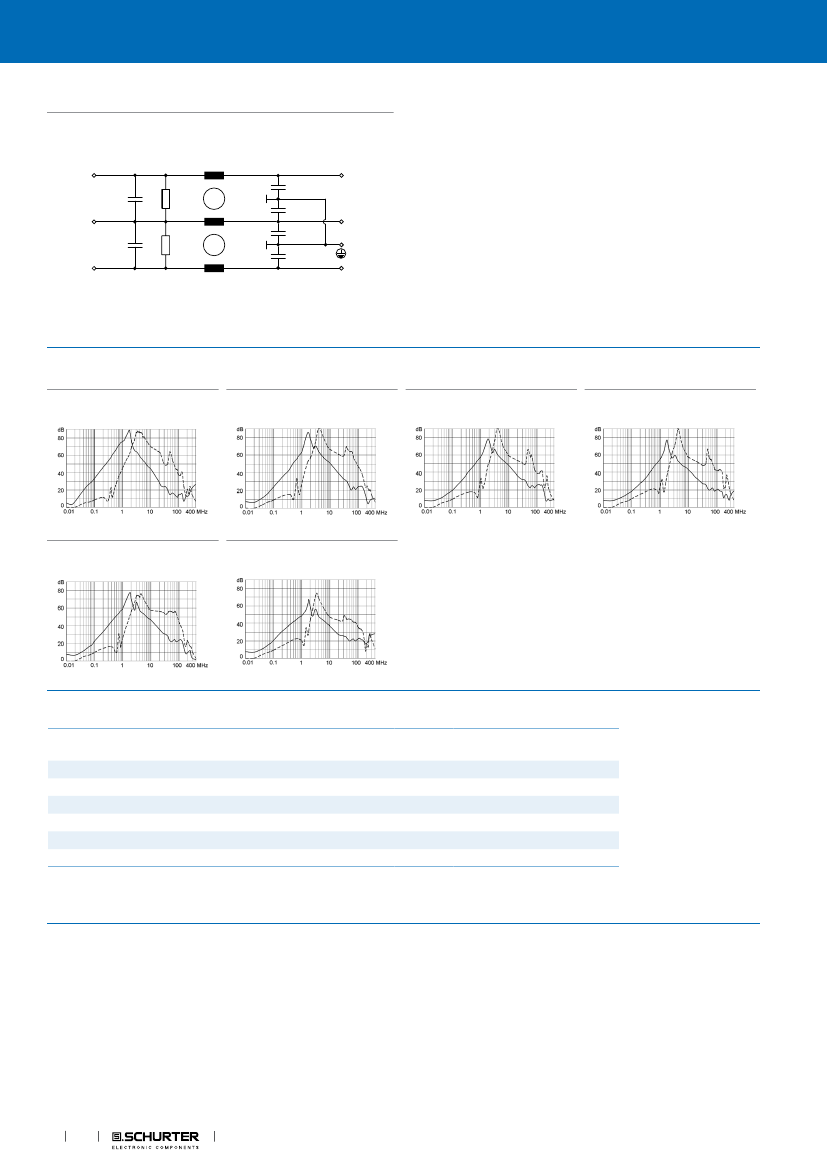

Diagrams
https://www.schurter.com /PG84
1-Phase Line Filters
+ Vss
Cx
R
L
Cy
Cy
Cy
Cy
+ Vss'
1)
GND
Cx
- Vss
R
GND'
PE
- Vss'
2)
1) Line
2) Load
Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
5A
10 A
15 A
20 A
24 A
30 A
All Variants
Rated Current
[A]
5
10
15
20
24
30
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
L [mH]
3 x 0.75
3 x 0.2
3 x 0.1
3 x 0.07
3 x 0.14
3 x 0.08
Cx (X2) [nF]
100
100
100
100
100
100
Cy (Y2) [nF]
100
100
100
100
100
100
R [MΩ]
1
1
1
1
1
1
Weight
[g]
245 g
245 g
250 g
260 g
400 g
425 g
Housings
86-3
86-3
86-3
86-3
87-3
87-7
Packaging unit
10
10
10
10
4
4
Order Number
5500.2229
5500.2230
5500.2231
5500.2232
5500.2233
5500.2234
█
4
