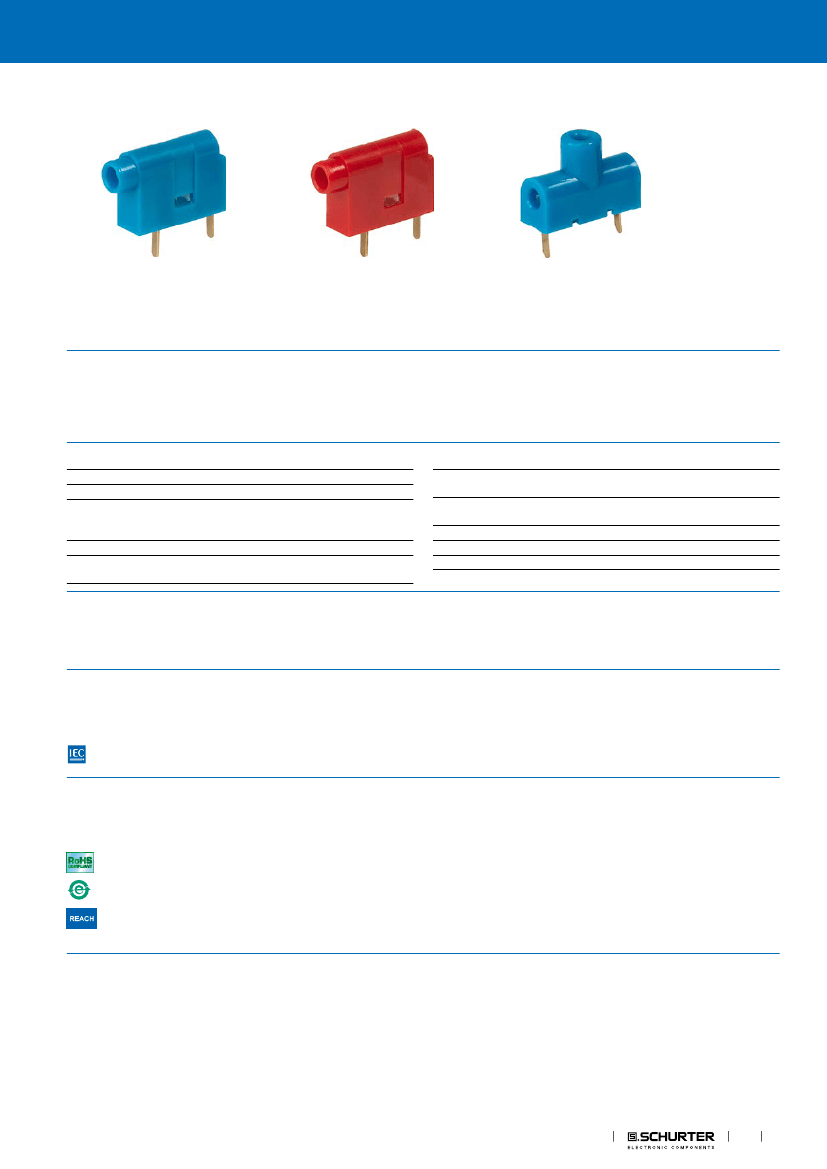

PB 1011 Test Jack, PCB Mounting, Ø 2 mm, 10 A
Approvals and Compliances
Description
-
-
-
-
-
PCB Mounting
Test Jack , diameter 2.0 mm
measuring and testing during operation
Continuous electrical connection
Resilient contacts, gold plated
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Diameter
Rated current
Admissible switching power
2 mm
10 A
220 W / max. 5 A or 75 VDC
440 W / max. 5 A or 50 VAC
< 7 mΩ at 20 mV
-25 °C to 70 °C
Solderability
Resistance to Soldering Heat
Weight
Material: Housing
Surface of contacts
235 °C / 2 sec acc. to IEC 60068-2-
20 , Test Ta, method 1
260 °C / 5 sec acc. to IEC 60068-2-
20 , Test Tb, method 1A
0.5 g
Thermoplastic (PC), UL 94V-2
gold plated , Thickness 0.5 µm
Contact resistance
Allowable Operation Tempe-
rature
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
RoHS
China RoHS
REACH
Initiator
SCHURTER AG
SCHURTER AG
SCHURTER AG
Description
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Appliance inlet
1
PB 1011
Dimensions [mm]
4
15
2.4
+0.1
0
+0.1
0
https://www.schurter.com /PG08
Test Jacks & Probes
7
+0.1
0
9.5
2.5
4
7.6
±0.1
1.1
+0.1
0
Diagrams
All Variants
Product group
Test Jack
Test Jack
Test Jack
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.
com/en/Stock-Check/Stock-Check-SCHURTER
Color
black
red
blue
Order Number
0040.1011
0040.1012
0040.1014
█
█
Packaging unit
Mating Inlets/Plugs
100 Pcs
Category / Description
Test Jacks & Probes Overview complete
PS 1061 Test Probe, Ø 2 mm, 10 A
Test Jacks & Probes further types to PB 1011
PS 1061
4
7.6
±0.1
1.3
2
Appliance inlet
