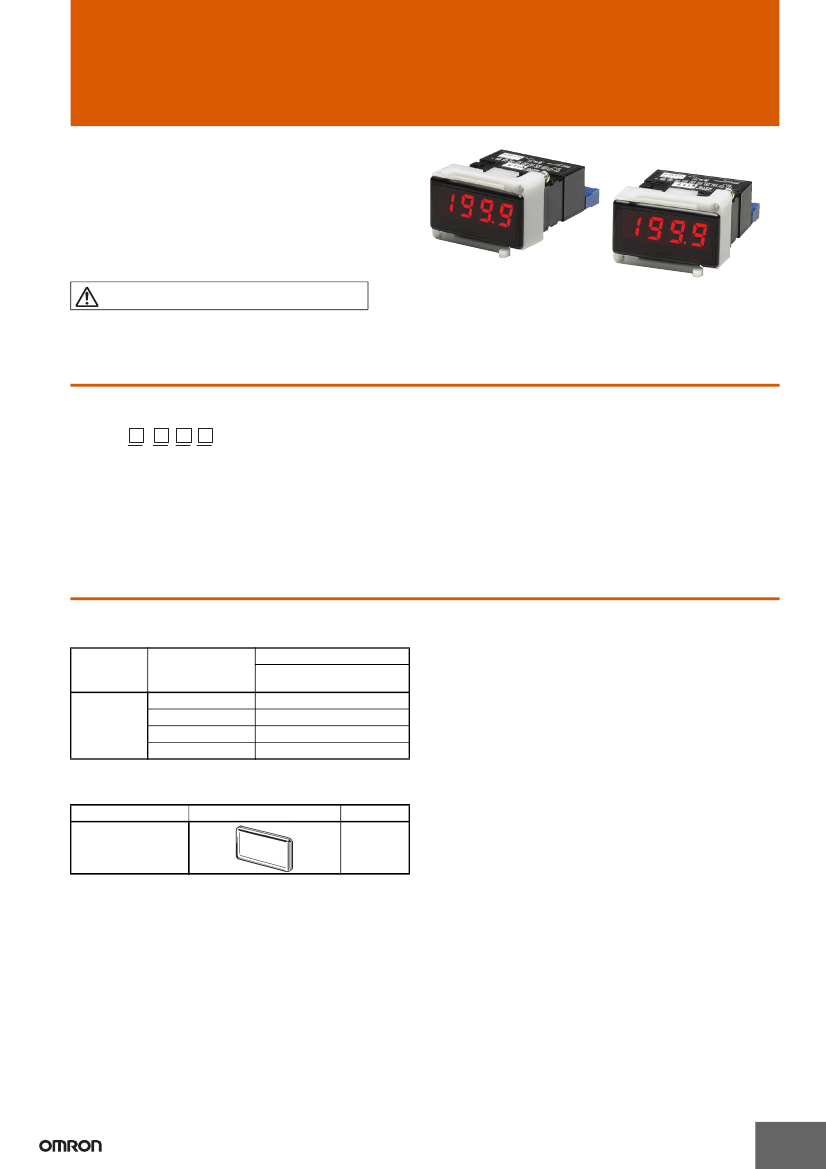

10 MΩ min. (at 500 VDC) between external terminal and case
2,000 VAC min. for 1 min between external terminal and case
±200
V on power supply terminals in normal mode
±500
V on power supply terminals in common mode
Malfunction: 10 to 55 Hz, 0.5-mm single amplitude for 10 min each in X, Y, and Z directions
Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 2 hrs each in X, Y, and Z directions
Malfunction: 98 m/s
2
for 3 times each in 6 directions
Destruction: 294 m/s
2
for 3 times each in 6 directions
Operating:
−10°
to 55°C (with no icing)
Storage:
−20°
to 65°C (with no icing)
Operating: 35% to 85% (with no condensation)
No corrosive gas
EN61326+A1
Industry
CISPR 11 Group 1 class A: CISRP16-1/-2
CISPR 11 Group 1 class A: CISRP16-1/-2
EN61326+A1
Industry
EN61000-4-2:
4 kV contact discharge (level 2)
8 kV air discharge (level 3)
Immunity RF-interference:
EN61000-4-3:
10 V/m (amplitude-modulated, 80 MHz to
1 GHz) (level 3)
Immunity Fast Transient Noise: EN61000-4-4:
2 kV (power line) (level 3)
Immunity Burst Noise:
1 kV line to line (I/O signal line)
Immunity Surge:
EN61000-4-5:
1 kV line to line
2 kV line to ground (power line)
Immunity Conducted Disturbance EN61000-4-6:
3 V (0.15 to 80 MHz) (level 2)
Immunity Voltage Dip/Interrupting EN61000-4-11:
0.5 cycles, 0, 180°, 100% (rated voltage)
(EMI)
Emission Enclosure:
Emission AC Mains:
(EMS)
Immunity ESD:
■
Characteristics
Input signal
A/D conversion method
Sampling period
Display refresh period
Max. displayed digits
Display
Decimal point display position
Sign display
Overflow/underflow display
Zero suppression
External control
Degree of protection
DC voltage
Double integral method
2.5 times/s
2.5 times/s
3 1/2 digits (+1999)
7-segment red LED
By short-circuiting terminals
“−” is displayed automatically with a negative input signal.
Overflow:
1@@@
Underflow:
−1@@@
Not supported.
Process value hold (terminals on rear panel short-circuited)
Front panel: IEC IP51 (see note)
Case:
IEC IP20
Terminals: IEC IP00
Note:
IP51 is maintained when the water-resistive soft cover and bracket are used. IP50 will be, however, maintained without these water-resistive
accessories.
■
Measuring Ranges
Input range
DC voltage
Measuring range
±199.9
mV
±1.999
V
±19.99
V
±199.9
V
Max. resolution
100
µV
1 mV
10 mV
100 mV
Input impedance
100 MΩ
100 MΩ
10 MΩ
10 MΩ
Accuracy
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
Max. permissible load
±250
V
±250
V
±250
V
±350
V
Note:
The above accuracy is at an ambient temperature of 23±5°C.
2
K3TG
Connections
■
External Connections
External Connection (Connector and connector screws are provided with the model.)
1
2
3
4
5
6
7
8
9
10
Conformance to EN/IEC Standards
To ensure conformance to EN/IEC
standards in machinery that incorporates
the K3TG, ensure that input signal lines
are less than 30 m.
Unused
+
−
COM HOLD 10
3
10
2
10
1
DC power supply
Signal input
Decimal position
Note: 1.
Terminals 2 and 3 and 10 are not internally insulated. Connect a relay with high contact reliability and insulation (with a minimum
load current of 0.3 mA) or a photocoupler with high insulation (with a residual voltage of 1 V max. and a current leakage of 0.1 mA
max.) to these terminals for external control. The use of an independent power supply is recommended for the Digital Panel Meter.
2.
Terminal 8 is not used. Do not use this terminal for transmission of signals.
Nomenclature
Select the decimal position with terminal 5, 6, or 7 on the rear panel.
PV display
10
3
10
2
10
1

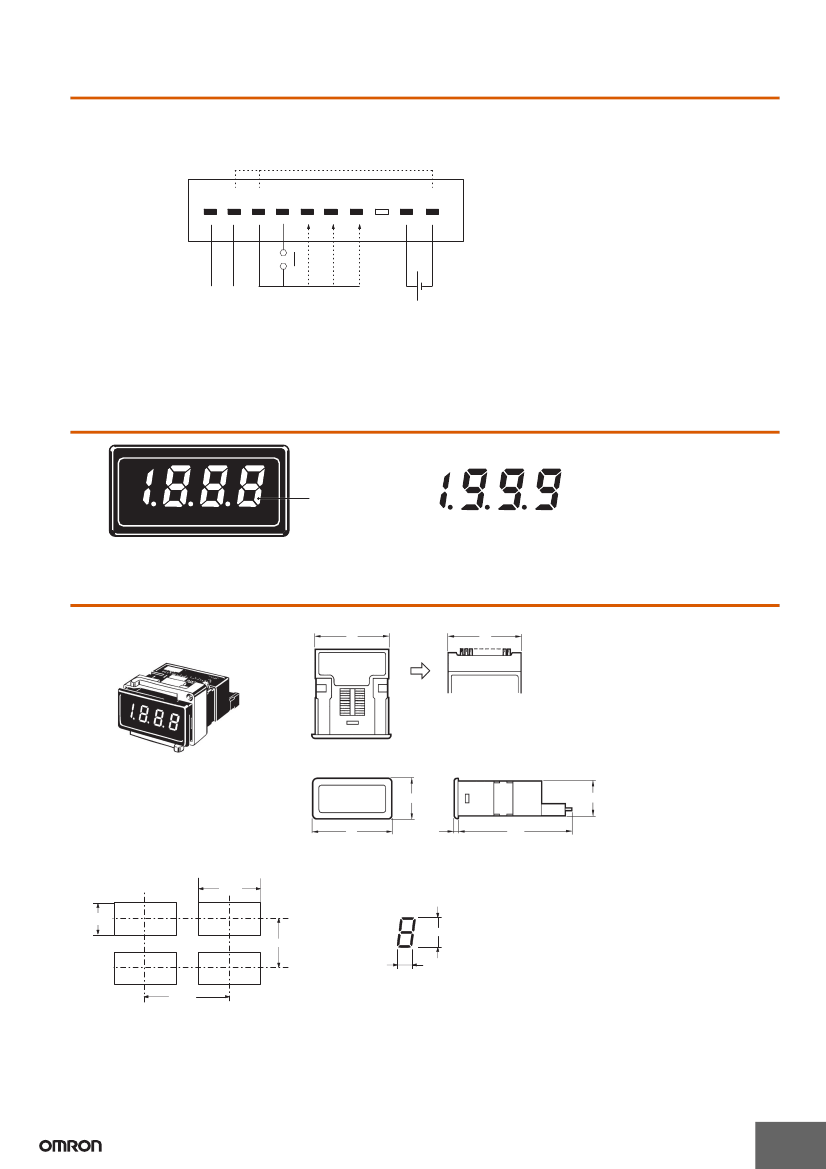

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
43
43
24
21
48
2
70
Panel Cutouts
45
+0.6
−0
22.2
+0.3
−0
10.2 mm
38 min.
LED Indicator Size
5.6 mm
60 min.
Note:
The values above are recommended
values. Do not group-mount the meters
at intervals less than the
recommended ones.
3
K3TG
Application Examples
High DC Voltage Measurement
When voltage exceeding the maximum voltage in the standard range is measured
(for example: more than 200 V), a divider is connected externally.
Divider
R
1
Input
E
1
R
2
Hi
Digital
panel
meter
DC (V)
E
2
E
2
= R
2
E
1
R
1
+ R
2
Lo
Lo
Safety Precautions
■
Precautions for Correct Use
Refer to
Safety Precautions for All Digital Panel Meters.
Accessories (Order Separately)
Water-resistive Soft Front Cover
Before mounting the Digital Panel Meter to a panel, attach the water-
resistive soft front cover and mounting bracket to the Digital Panel
Meter properly so that the Digital Panel Meter will maintain IP51
water-resistive standards.
Mounting
Recommended panel thickness is 1 to 3.2 mm.
Mount the Digital Panel Meter by attaching the mounting bracket sup-
plied as an accessory from the rear of the Digital Panel Meter and
hooking the mounting bracket to the Digital Panel Meter securely.
Tighten the mounting screws by turning them clockwise with a tight-
ening torque of 4 kgf·cm (0.39 N·m).
To dismount the Digital Panel Meter, loosen the screws and widen
the hooks.
Mount the Digital Panel Meter as horizontally as possible.
Mounting
Adapter
Soft Cover
Calibration
Calibrate the Digital Panel Meter regularly so that the Digital Panel
Meter can maintain processing accuracy.
Use a standard signal generator with an accuracy of 99.99% min. for
calibration.
For the precise calibration methods, refer to the Instruction Sheet for
the Digital Panel Meter.
Note:
Be sure to use the Water-resistive Soft Front Cover and
mounting bracket together.
Control Power Supply
Use a control power supply with a ripple rate of 10% max.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
In the interest of product improvement, specifications are subject to change without notice.
4
Read and Understand This Catalog
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or
comments.
Warranty and Limitations of Liability
WARRANTY
OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified)
from date of sale by OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR
FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS
IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY.
In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS
OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT
SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
Application Considerations
SUITABILITY FOR USE
OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's
application or use of the products.
At the customer's request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the
products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product,
machine, system, or other application or use.
The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible
uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:
•
Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this catalog.
•
Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles,
safety equipment, and installations subject to separate industry or government regulations.
•
Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE
SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PROGRAMMABLE PRODUCTS
OMRON shall not be responsible for the user's programming of a programmable product, or any consequence thereof.
Disclaimers
CHANGE IN SPECIFICATIONS
Product specifications and accessories may be changed at any time based on improvements and other reasons.
It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made.
However, some specifications of the products may be changed without any notice. When in doubt, special model numbers may be assigned to fix or
establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual
specifications of purchased products.
DIMENSIONS AND WEIGHTS
Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.
PERFORMANCE DATA
Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the
result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON
Warranty and Limitations of Liability.
ERRORS AND OMISSIONS
The information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical,
typographical, or proofreading errors, or omissions.
2008.11
In the interest of product improvement, specifications are subject to change without notice.
Industrial Automation Company
http://www.ia.omron.com/
OMRON Corporation
(c)Copyright OMRON Corporation 2008 All Right Reserved.
