Logic Pulser
PSP-110030
17.50
172
16.88
17.50
172
18

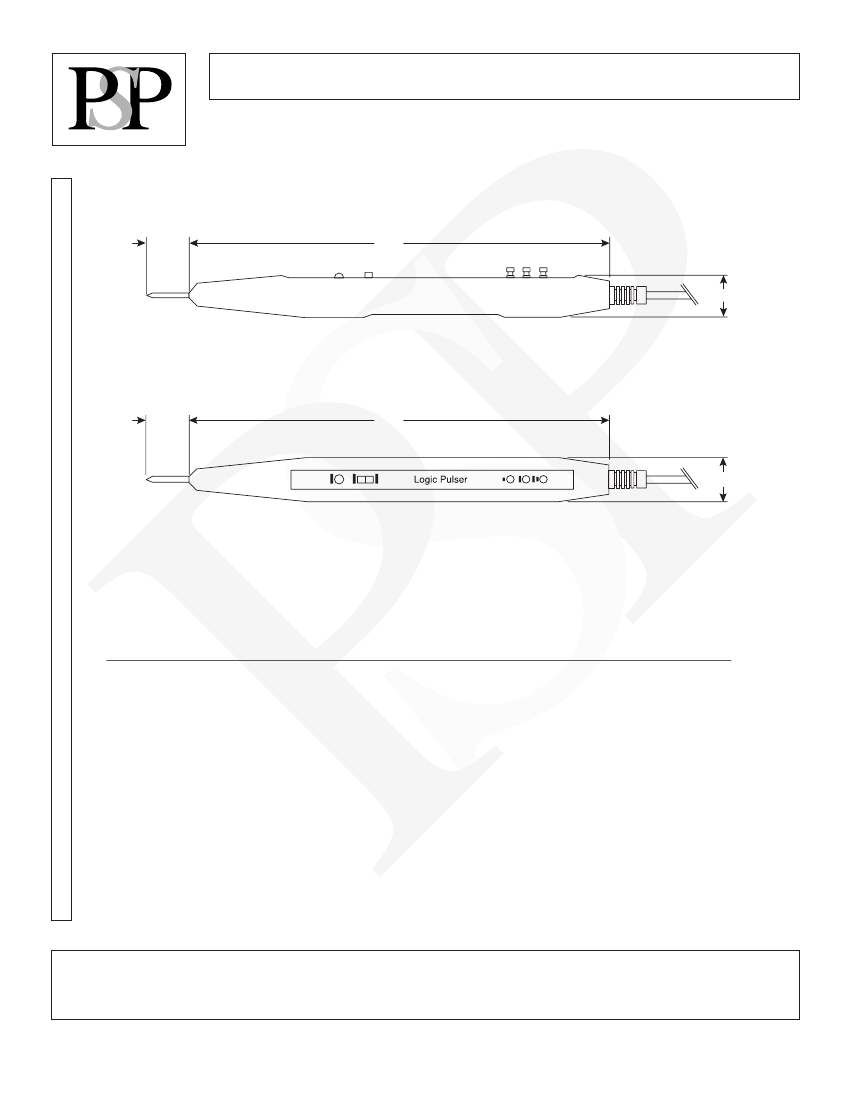

Dimensions: mm
Specifications :
•
Tests TTL, DTL, RTL, HTL, CMOS, and MOS
•
•
•
•
•
•
•
•
•
Produces 10 μsec pulse signal
Maximum allowable supply voltage: ±25 V
Operating voltage range: +3 V to + 18 V
Maximum output allowable connection voltage: ±25 V
Maximum sync input voltage: ±120 V/15 sec
Sync Input impedance: 100 kΩ minimum
Pulse repetition rate: 0.5 Hz/500 Hz
Pulse width at pulser output pin: 10 μsec typical, 100 mA load
Output current:
Pulse mode: 100 mA sink/source
50% pulse mode: 4 mA sink/source
•
Power supply protection: ±25 V/15 sec
