DA1855A
High-performance
100 MHz Differential
Amplifier
Key Features
•
Full control from oscilloscope
through ProBus interface

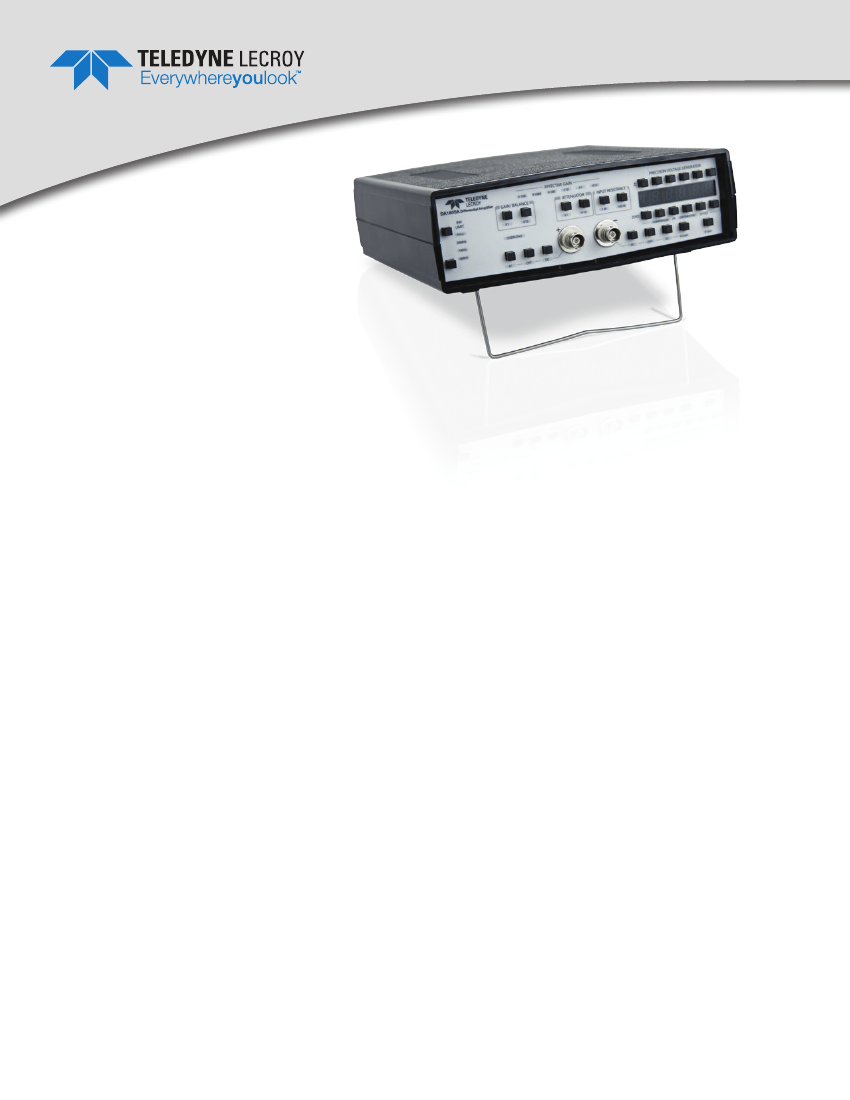

The DA1855A is a stand-alone, high-performance differential amplifier providing the
fastest overdrive recovery of any commercially available product. This unique capability
allows the amplifier to make measurements that would normally be limited by oscilloscope
overdrive recovery.
•
DC to 100 MHz bandwidth
•
Outstanding 100,000: 1 Common
Mode Rejection Ratio (CMRR)
The DA1855A is a stand-alone,
high-performance 100 MHz differential
amplifier. It is intended to act as a
signal conditioning preamplifier for
oscilloscopes, digitizers and spectrum
analyzers, providing differential
measurement capability to instru-
ments having only a single-ended
input. When used with a DA1855A,
oscilloscopes can obtain Common
Mode Rejection Ratio (CMRR) and
overdrive recovery performance levels
previously unobtainable.
Amplifier gain can be set to 1 or 10.
A built-in input attenuator can
be separately set to attenuate
signals by a factor of 10, providing
gains of 10, 1, or 0.1 and common
mode dynamic range of ±15.5 V (÷1)
or ±155 V (÷10). Optional probes
increase the maximum input signal
and common mode ranges in
proportion to their attenuation ratio but
do not exceed their maximum input
voltage rating. Effective gain of the
DA1855A, including probe attenuation,
amplifier gain and attenuator settings,
is automatically displayed.
The DA1855A has a bandwidth of
100 MHz, but any one of the three
3-pole bandwidth limit filters can be
selected to reduce bandwidth to
20 MHz, 1 MHz or 100 kHz to limit
noise above the frequency of interest.
The DA1855A output is carefully
limited to ±500 mV, so that the
oscilloscope is not overdriven by large
inputs. This allows many oscilloscopes
to directly measure the settling of
D/A converters with 14-bit (60 ppm)
precision, better than any other
differential comparator.
The DA1855A features a built-in
Precision Voltage Generator (PVG)
that can be set to any voltage between
±15.5 V (±10 V in Differential Offset)
with up to 100 µV resolution. The PVGs
output can be selected as an input to
the inverting (-) input of the amplifier
•
Gain of X1 or X10
•
Industry-leading overdrive recovery
•
Low noise
•
Selectable BW limiting
•
Two gain control modes when
connected to a Teledyne LeCroy
oscilloscope
•
Built-in Precision Voltage
Generator (PVG)
•
Comparator and true
differential offset modes
SPECIFICATIONS AND ORDERING INFORMATION
for operation as a differential comparator or applied
internally as a true differential offset voltage.
The PVG is also available for external use through a
rear panel connector.
The DA1855A operates from 90 to 250 VAC line
without line switching. High-performance differential
probes such as the DXC100 ÷10/÷100 high CMRR
probes are recommended.
more accurate than the oscilloscope is capable of by itself.
The output of the PVG is available for external use via a
rear panel connector.
True Differential Offset Mode
The DA1855A has built-in Precision Voltage Generator
can be used to generate a true differential offset while still
allowing both inputs to be used as differential inputs. The
offset range can be as high as ±50,000 divisions and the
generator has 5 1/2 digit resolution. This mode facilitates
making measurements such as changes to a transistor’s
base to emitter voltage caused by variations in temperature
and/or current. Used in this mode, the voltage generator
can be set to a value that will zero out the static value
of the junction’s on voltage. The DA1855A’s differential
measurement capability will reject any dynamic signal
common to both sides of the junction, and the oscilloscope
is left to measure only the changes in the junction voltage.
Overdrive Recovery
With a ÷100 probe, the DA1855A settles to within
100 mV referred to input, from a 400 V input signal
within 100 ns. With attenuating probes, this allows
the in circuit measurement of dynamic saturation in switch
mode power converter switching devices.
Comparator Mode
The DA1855A becomes a differential comparator when the
internal PVG output is selected as the amplifier’s inverting
(-) input. In this mode, the DA1855A can be used to very
accurately measure relatively small signals that are riding
on large AC or DC components. Due to the precision of
the voltage generator, an oscilloscope, when used with the
DA1855A, can make voltage measurements that are much
Autobalance
Each time either gain setting button is pressed, the
DA1855A automatically adjusts the amplifier’s DC balance.
Specifications
Main Specifications
Bandwidth
> 100 MHz
< 3.5 ns
Ordering Information (cont’d)
Product Description
÷10 1 M
Ω
Passive Attenuator for DXC Series Probes
2 Ch,100 MHz Differential Amplifier
with Precision Voltage Source
DA1855A with Rackmount
DA1855A with Rackmount
(must be ordered at time of purchase, no retrofit)
*Must be used with DA Series Differential Amplifiers
Product Code
DA101*
DA1855A-PR2
DA1855A-RM
DA1855A-PR2-RM
Electrical Characteristics
Rise time (typical)
Ordering Information
Product Description
Product Code
DA1855A
DXC100A*
DXC200*
DXC-5100*
Differential Amplifiers
1 Ch, 100 MHz Differential Amplifier
with Precision Voltage Source
÷100 or ÷10 Selectable, 250 MHz
Passive Differential Probe Pair
÷1, 50 MHz Passive Differential Probe Pair
÷100, 250 MHz 2.5kv, High Voltage Probe Pair
(requires DA101 for full performance)
Customer Service
Teledyne LeCroy oscilloscopes and probes are designed, built, and tested
to ensure high reliability. In the unlikely event you experience difficulties,
our digital oscilloscopes are fully warranted for three years and our probes
are warranted for one year.
This warranty includes:
•
No charge for return shipping
•
Long-term 7-year support
•
Upgrade to latest software at no charge
1-800-5-LeCroy
teledynelecroy.com
Local sales offices are located throughout the world.
Visit our website to find the most convenient location.
DA1855A-DS-01nov13
