Model 3784
Minigrabber® Test Clip To
Stacking Miniature Banana Plug
FEATURES:
•
Provides a Minigrabber output from a miniature Banana Jack.
•
Mates to Model #2192 or any miniature Banana Jack.
•
Miniature Banana plug is vertically stackable.
MATERIALS:
Conn: 1
st
end - Minigrabber®
Material: Contact - Beryllium Copper
Spring – Stainless steel
Finish: Contact – Gold plated
Insulation: Glass filled nylon. Color matches color of wire.
Marking: “MINIGRABBER® “POMONA ELECTRONICS.”
Wire: 20 AWG, stranding 41 x 36 t.c., PVC insulated, 2.21 (.087) O.D.
Color: See Ordering Information
Marking: “POMONA 3784-*.”
Conn: 2
nd
end – Miniature Banana Plug
Material: Spring - Beryllium Copper
Plug Body – Brass
Finish: Gold plated over electroless nickel
Insulation: Polypropylene molded to plug body and wire.
RATINGS:
Operating Temperature: +50ºC. (+122ºF.) Max
Operating Voltage: 300 VRMS/DC
Current: 5 Amperes
ORDERING INFORMATION:
Model 3784-XX-*
XX = Cable Lengths, Standard Lengths: 12” (305), 24” (610), 36” (914), 48” (1219) & 60” (1524). Additional
lengths can be quoted upon request.
*= Color, -0 Black, -1 Brown, -2 Red, -3 Orange, -4 Yellow, -5 Green, -6 Blue, -7 Violet, -8 Gray, -9 White
Ordering Example: 3784-60-2 Indicates 60” in length, color is Red

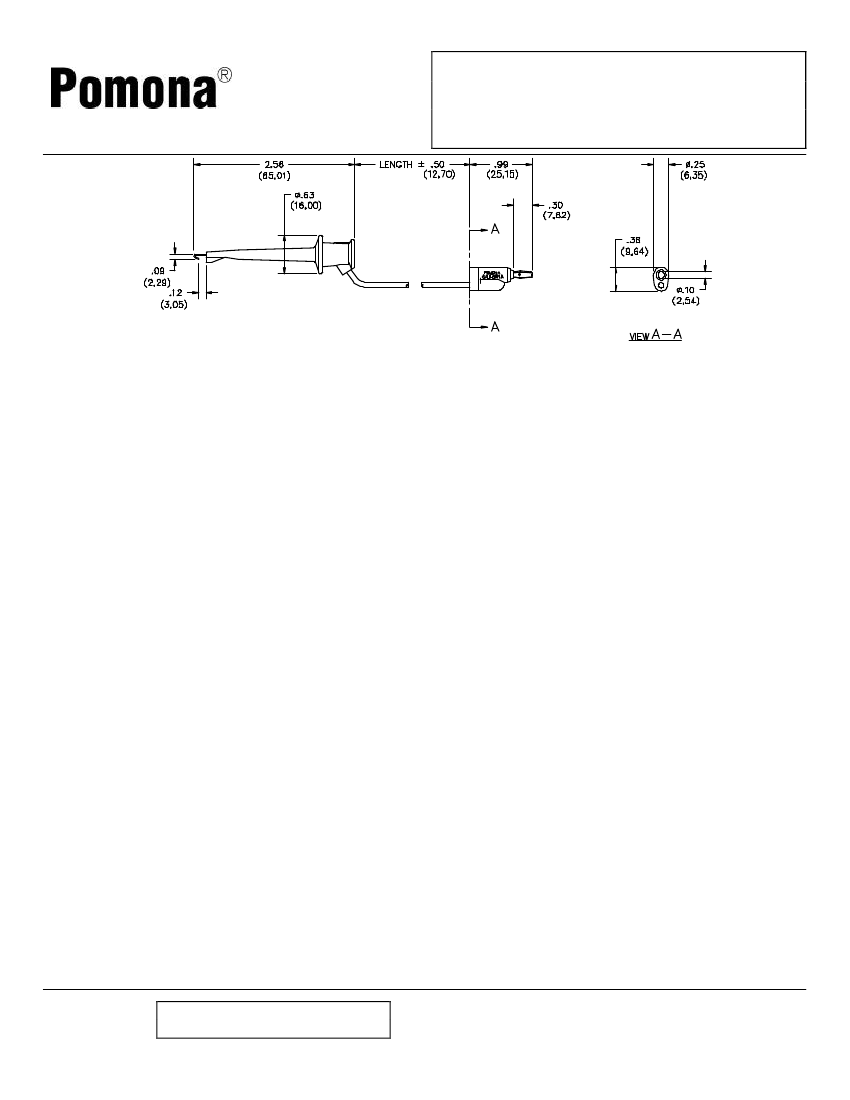

All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
5/30/02 SY/EH/LS
Last saved by PN
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90583
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
