RNU1E181MDN1KX datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> RNU1E181MDN1KX

Preview

RNU1E181MDN1KX: DescriptionNon-Isolated DC/DC Converters ADJ SWITCHING REGULATOR; CategoryPassive components; File Size311KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

RNU1E181MDN1KX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RNU1E181MDN1KX	-	-	View	Buy Now

RNU1E181MDN1KX Overview

Non-Isolated DC/DC Converters ADJ SWITCHING REGULATOR

RNU1E181MDN1KX Parametric

Parameter Name	Attribute value
Product Category	Aluminum Organic Polymer Capacitors
Manufacturer	Nichicon
RoHS	Details
Product	Can
Termination Style	Radial
Capacitance	180 uF
Voltage Rating DC	25 VDC
Tolerance	20 %
ESR	16 mOhms
Ripple Current	4.65 A
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	8 mm
Length	11.5 mm
Lead Spacing	3.5 mm
Life	5000 Hour
Packaging	Cut Tape
Packaging	Reel
Dissipation Factor DF	0.12
Leakage Current	900 uA
Factory Pack Quantity	1000
Type	Polymer Aluminum Capacitors

Preview

Download Datasheet

View All

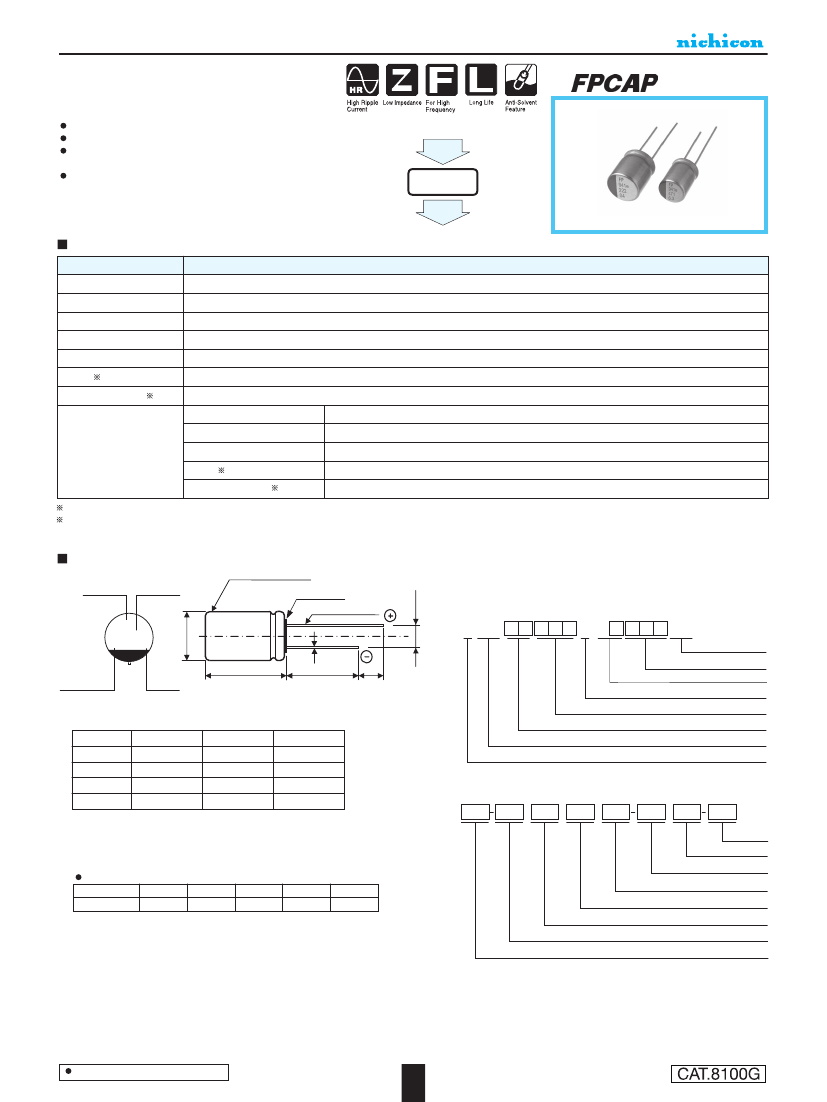

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

RNU

High Capacitance

Low ESR, High Capacitance, High ripple current.

Load life of 2000/5000 hours at 105°C.

Radial lead type : Lead free flow soldering condition

correspondence.

Compliant to the RoHS directive (2011/65/EU).

RNS

Higher

Capacitance

RNU

Higher

Capacitance

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Tangent of loss angle (tan

δ)

ESR ( 1)

Leakage Current ( 2)

–55 to

+105°C

2.5 to 63V

10 to 2700µF

±20% at 120Hz, 20°C

RNE

Performance Characteristics

Less than or equal to the specified value at 120Hz, 20°C

Less than or equal to the specified value at 100kHz, 20°C

Less than or equal to the specified value.

Test condition

Capacitance change

After 2 minutes' application of rated voltage at 20°C

105°C, rated voltage 2000 / 5000Hrs.

Within ±20% of initial value before test

150% or less than the initial specified value

Less than or equal to the initial specified value

Endurance

tan

δ

ESR( 1)

Leakage current ( 2)

1 ESR should be measured at both of the terminal ends closest to the capacitor body.

2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120

minutes at 105°C.

Dimensions

Lot No.

Capacitance

Aluminum case

P

±0.5

φD

±0.5

MAX.

Stand off

Wire(Lead free)

Type numbering system (Example : 25V 390µF)

Nichicon part number

R NU 1 E 3 9 1 M D N A S Q CG

Lead Forming

Control code

1

2

3

4

5

6

7

8

9

10 11 12 13 14 15 16

FP5K

62Ae

391

25

φ

d

L+α

MAX.

15

MIN.

4

MIN.

Product Logo

Voltage

Configuration

Capacitance tolerance (±20%)

Rated capacitance (390µF)

Rated voltage (25V)

Series name

Type

(mm)

φD×L

4×5

6.3×10

8×11.5

10×12.5

φd

0.45

0.5

0.6

P

1.5

2.5

3.5

5.0

α

1.0

1.5

FPCAP part number

FP

025

RE

391

M

NU

CG

5K

Control code

Lead Forming

Frequency coefficient of rated ripple current

Frequency

Coefficient

120 Hz

0.10

1 kHz

0.45

10 kHz

0.50

100 kHz

1.00

300 kHz

1.00

Series name

Capacitance tolerance (±20%)

Capacitance (390µF)

Configuration

Voltage(25V)

Type

Dimension table in next page.

92

RNU1E181MDN1KX Related Products

	RNU1E181MDN1KX	RNU0J102MDN1	RNU1C101MDS1JX	RNU0E152MDN1	RNU1J560MDN1PH	RNU1J330MDN1KX	RNU1J330MDN1	RNU0J681MDN1
Description	Non-Isolated DC/DC Converters ADJ SWITCHING REGULATOR	Operational Amplifiers - Op Amps	High Speed Operational Amplifiers DUAL HI-SPD LO-PWR LO-DIST VOL FDBK AMP	Aluminum Organic Polymer Capacitors 2.5 Volt 1500uF 20%			Aluminum Organic Polymer Capacitors 33uF 63 Volts 20%	Aluminum Organic Polymer Capacitors 6.3 Volt 680uF 20%
Product Category	Aluminum Organic Polymer Capacitors	Aluminum Organic Polymer Capacitors	-	Aluminum Organic Polymer Capacitors	Aluminum Organic Polymer Capacitors	Aluminum Organic Polymer Capacitors	Aluminum Organic Polymer Capacitors	Aluminum Organic Polymer Capacitors
Manufacturer	Nichicon	Nichicon	-	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon
RoHS	Details	Details	-	Details	Details	Details	Details	Details
Product	Can	Can	-	Can	Can	Can	-	Can
Termination Style	Radial	Radial	-	Radial	Radial	Radial	-	Radial
Capacitance	180 uF	1000 uF	-	1500 uF	56 uF	33 uF	33 uF	680 uF
Voltage Rating DC	25 VDC	6.3 VDC	-	2.5 VDC	63 VDC	63 VDC	-	6.3 VDC
Tolerance	20 %	20 %	-	20 %	20 %	20 %	-	20 %
ESR	16 mOhms	7 mOhms	25 mΩ	7 mOhms	25 mOhms	26 mOhms	-	7 mOhms
Ripple Current	4.65 A	5.7 A	-	5.7 A	2.6 A	2.3 A	-	5.7 A
Minimum Operating Temperature	- 55 C	- 55 C	-	- 55 C	- 55 C	- 55 C	-	- 55 C
Maximum Operating Temperature	+ 105 C	+ 105 C	-	+ 105 C	+ 105 C	+ 105 C	-	+ 105 C
Diameter	8 mm	8 mm	-	8 mm	10 mm	8 mm	-	8 mm
Length	11.5 mm	11.5 mm	-	11.5 mm	12.5 mm	11.5 mm	-	11.5 mm
Lead Spacing	3.5 mm	3.5 mm	-	3.5 mm	5 mm	-	-	3.5 mm
Life	5000 Hour	5000 Hour	-	5000 Hour	5000 Hour	5000 Hour	-	5000 Hour
Packaging	Reel	Bulk	-	Bulk	Reel	Cut Tape	Bulk	Bulk
Dissipation Factor DF	0.12	0.08	-	0.08	0.12	0.12	-	0.08
Leakage Current	900 uA	1.26 mA	-	937.5 uA	706 uA	416 uA	-	856.8 uA
Factory Pack Quantity	1000	200	-	100	500	1000	100	-
Type	Polymer Aluminum Capacitors	Polymer Aluminum Capacitors	-	Polymer Aluminum Capacitors	Polymer Aluminum Capacitors	Polymer Aluminum Capacitors	-	Polymer Aluminum Capacitors
