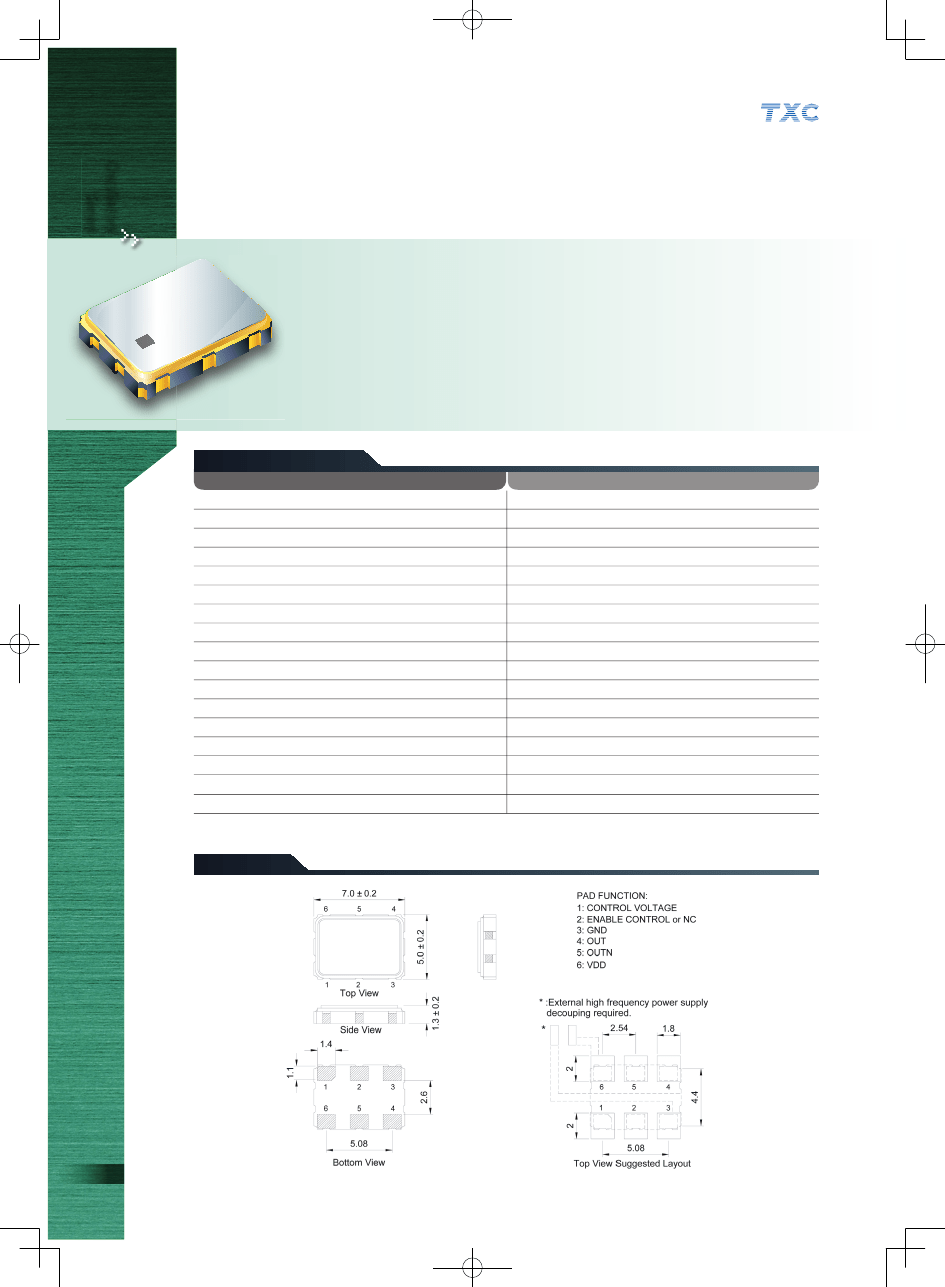

SMD LVPECL VCXO -
Differential Output
7.0 x 5.0 x 1.3 mm BJ Series
Features
1H
CY 5 0 0
J
C B 6.2
TX 1 5
．
Voltage Controlled Crystal Oscillator (VCXO).
．
Fundamental solution.
Think of Frequency Think of
come visit our site http://www.txccorp.com
Oscillators
Series
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
．
LVPECL output, output frequencies 50 MHz to 200 MHz.
．
Excellent low phase noise and jitter.
．
Tri-State function available.
．
Applications : SDH/ SONET, Ethernet, Base Stations.
．
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Output Type
Output Load
Oscillation Mode
Supply Voltage (VDD)
Frequency Range
Operating Temperature Range
Storage Temperature Range
Voltage Vol ( Max. ) / Voh ( Min. )
Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )
Supply Current
Symmetry
Start-up Time
Absolute Pulling Range ( APR ) *
Nominal Control Voltage
Control Voltage Range
Linearity
Phase Jitter ( 12 KHz ~ 20 MHz )
BJ
LVPECL
50
Ω
Fundamental
3.3 V
50 ~ 200 MHz
-10 ~ + 70
℃
, - 40 ~ + 85
℃
, or specify
- 55 ~ + 125
℃
VDD - 1.62 V / VDD - 1.025 V
1 nS Max.
80 mA
45 ~ 55 %
10 mS Max.
±
50 ppm Min. , or specify
0.5 VDD
0 ~ VDD
10 % Max.
1 pS Max.
* APR=(Pull Range) - (Frequency tolerance at 25
℃
, variation over temperature, supply voltage variation, and aging.)
Dimensions
Units: mm
82
