PM1008S-100M-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PM1008S-100M-RC

PM1008S-100M-RC: DescriptionAluminum Organic Polymer Capacitors 330uf 35volts OS-CON Polymer; CategoryPassive components inductor; File Size153KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM1008S-100M-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM1008S-100M-RC	-	-	View	Buy Now

PM1008S-100M-RC Overview

Aluminum Organic Polymer Capacitors 330uf 35volts OS-CON Polymer

PM1008S-100M-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	1515
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	1515
structure	Rectangular
core material	Ferrite
DC Resistance	1 Ω
Nominal inductance(L)	10 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	2.74 mm
Package length	3.81 mm
Package form	SMT
Package width	3.81 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	38
Maximum rated current	0.78 A
self resonant frequency	105 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	Q IS MEASURED AT 1 MHZ
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

Magnetic shielding

■

High Q characteristic

■

High current rating

■

RoHS compliant*

Applications

model

■

Prevention of electromagnetic interference

to signals on the secondary side of

electronic equipment

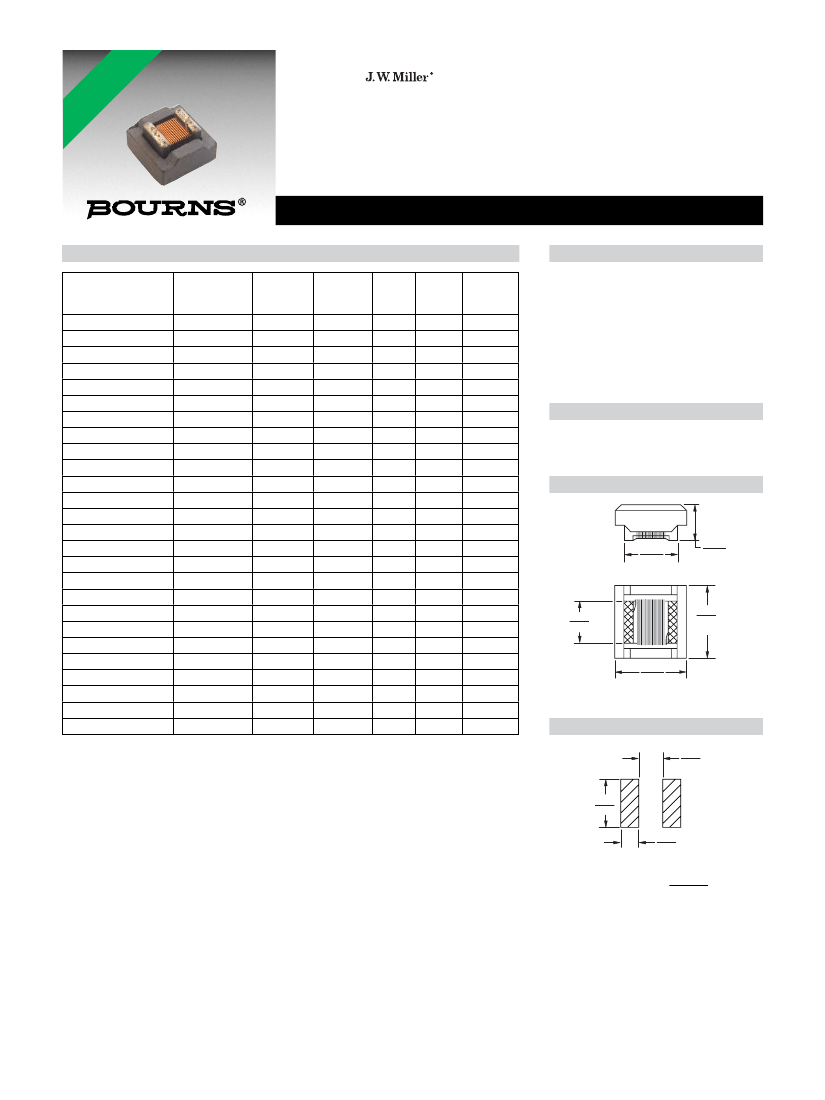

PM1008S Series - Shielded Wirewound Chip Inductors

Electrical Speciﬁcations

Inductance

μH

(@100 KHz)

1.0

1.5

1.8

2.7

3.9

4.7

5.6

6.8

100

120

150

220

330

470

560

680

820

1000

Tolerance

±20

Q min.

(@ 1 MHz)

SRF

MHz

min.

344

260

225

185

175

160

150

120

105

5.6

4.5

3.8

3.0

2.8

2.5

1.5

1.3

DCR

max.

0.05

0.06

0.09

0.14

0.26

0.35

0.40

0.60

1.0

1.2

1.4

1.6

1.9

2.5

3.8

4.2

5.8

6.2

7.5

10.0

11.5

16.5

18.0

24.0

26.0

30.0

Idc

max.

3000

2800

2000

1300

1200

1000

850

780

700

650

500

450

400

300

280

260

250

220

210

200

160

130

120

100

3.81

(.150)

MAX.

2.11

MAX.

(.083)

3.81

(.150)

MAX.

2.54

(.100)

MAX.

2.74

(.108)

MAX.

Bourns Part No.

PM1008S-1R0M-RC

PM1008S-1R5M-RC

PM1008S-1R8M-RC

PM1008S-2R7M-RC

PM1008S-3R9M-RC

PM1008S-4R7M-RC

PM1008S-5R6M-RC

PM1008S-6R8M-RC

PM1008S-100M-RC

PM1008S-150M-RC

PM1008S-220M-RC

PM1008S-330M-RC

PM1008S-390M-RC

PM1008S-470M-RC

PM1008S-680M-RC

PM1008S-820M-RC

PM1008S-101M-RC

PM1008S-121M-RC

PM1008S-151M-RC

PM1008S-221M-RC

PM1008S-331M-RC

PM1008S-471M-RC

PM1008S-561M-RC

PM1008S-681M-RC

PM1008S-821M-RC

PM1008S-102M-RC

General Speciﬁcations

Current Rating

............10 % drop in inductance at Idc

Temperature Rise

................. 15 °C max. at rated current

Operating Temperature

.................................. -40 °C to +85 °C

Storage Temperature .....-40 °C to +85 °C

Reﬂow Soldering ....230 °C; 50 sec max.

Resistance to Soldering Heat

.............................260 °C, 5 sec. max.

Materials

Core Material ................................ Ferrite

Terminal Electrode ..........................Sn/Ni

Packaging .....................750 pcs. per reel

Product Dimensions

Recommended Pad Layout

1.27

REF.

(.050)

REF.

2.54

(.100)

1.02

REF.

(.040)

DIMENSIONS:

(INCHES)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

PM1008S-100M-RC Related Products

	PM1008S-100M-RC	PM1008S-470M-RC	PM1008S-101M-RC	PM1008S-220M-RC	PM1008S-221M-RC	PM1008S-1R0M-RC	PM1008S-2R7M-RC	PM1008S-680M-RC	PM1008S-6R8M-RC
Description	Aluminum Organic Polymer Capacitors 330uf 35volts OS-CON Polymer	Fixed Inductors 47uH 20%	8-bit Microcontrollers - MCU 256B EEPROM 10b ADC 2x(SPI/I2C)	Fixed Inductors 22uH 20%	Fixed Inductors	Soldering Irons Cartridge Chisel 1mm(0.04 in) 30Deg	Thin Film Resistors - SMD 1watt 270ohms 1% 50ppm	Fixed Inductors 68uH 20%	Flat Cables .050 26 COND. 28AWG ROUND 1PC=1FT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	1515	1515	1515	1515	1515	1515	1515	1515	1515
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	1515	1515	1515	1515	1515	1515	1515	1515	1515
structure	Rectangular	Rectangular	Wirewound Chip	Rectangular	Wirewound Chip	Rectangular	Rectangular	Rectangular	Wirewound Chip
core material	Ferrite	Ferrite	FERRITE	Ferrite	FERRITE	Ferrite	Ferrite	Ferrite	FERRITE
DC Resistance	1 Ω	2.5 Ω	5.8 Ω	1.4 Ω	10 Ω	0.05 Ω	0.14 Ω	3.8 Ω	0.6 Ω
Nominal inductance(L)	10 µH	47 µH	100 µH	22 µH	220 µH	1 µH	2.7 µH	68 µH	6.8 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	2.74 mm	2.74 mm	2.74 mm	2.74 mm	2.74 mm	2.74 mm	2.74 mm	2.74 mm	2.74 mm
Package length	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
method of packing	TR, 7 Inch	TR, 7 Inch	TR	TR, 7 Inch	TR	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch	TR
Minimum quality factor (at nominal inductance)	38	45	45	40	55	35	38	45	38
Maximum rated current	0.78 A	0.4 A	0.26 A	0.65 A	0.21 A	3 A	1.3 A	0.3 A	0.85 A
self resonant frequency	105 MHz	14 MHz	7 MHz	26 MHz	4.5 MHz	344 MHz	185 MHz	12 MHz	120 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
special characteristics	Q IS MEASURED AT 1 MHZ	Q IS MEASURED AT 1 MHZ	Q MEASURED AT 1 MHZ	Q IS MEASURED AT 1 MHZ	Q MEASURED AT 1 MHZ	Q IS MEASURED AT 1 MHZ	Q IS MEASURED AT 1 MHZ	Q IS MEASURED AT 1 MHZ	Q MEASURED AT 1 MHZ
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	WRAPAROUND	ONE SURFACE	WRAPAROUND	ONE SURFACE	ONE SURFACE	ONE SURFACE	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Maker	Bourns	Bourns	-	Bourns	-	Bourns	Bourns	Bourns	-
Factory Lead Time	12 weeks	19 weeks 2 days	-	14 weeks	14 weeks	12 weeks	12 weeks	12 weeks	-
