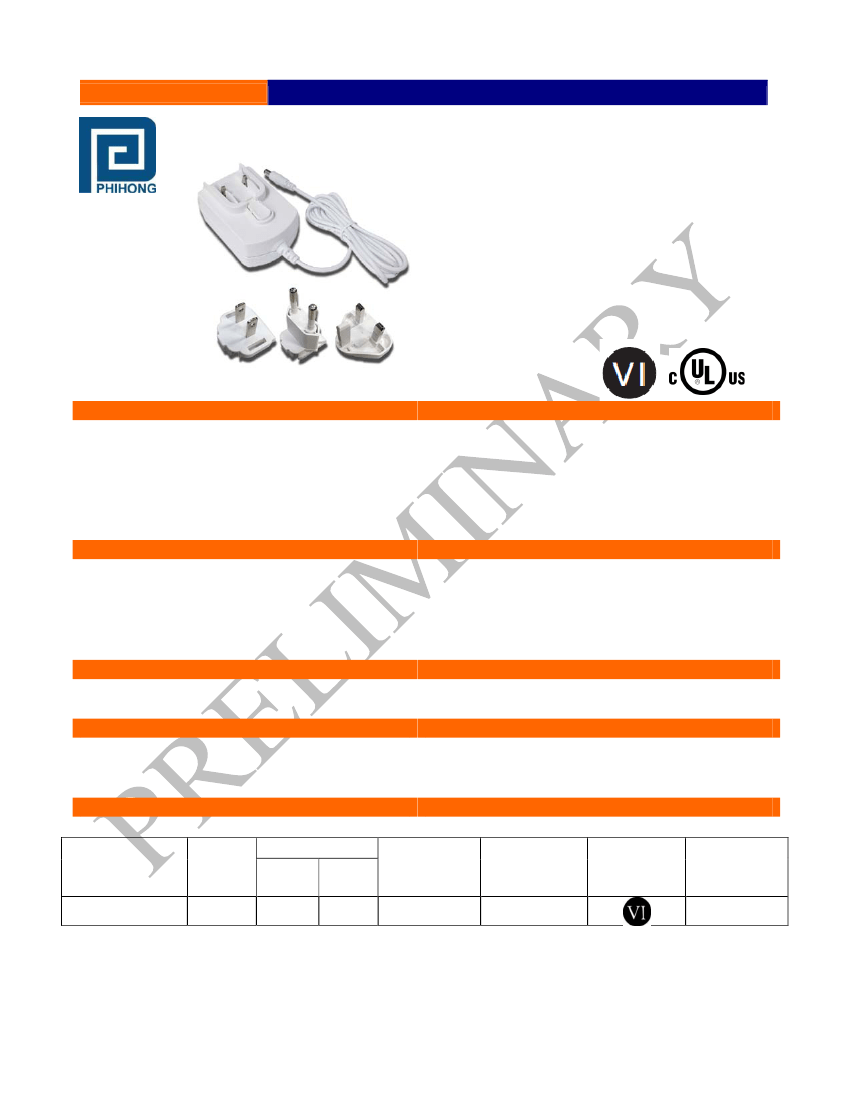

10W Medical Grade Adapter with Interchangeable Plugs*
*Plugs sold separately
Features
•
Meets DoE Level VI and CoC V Tier 2
•
Field Changeable AC Plugs
•
IEC60601-1:2005+a:2012 2xMOPP
approved
•
IEC60601-1-2 Ed4 2014 compliant
Applications
•
Home healthcare equipment
•
Patient monitor
•
Blood pressure system
•
Portable medical devices
Safety Approvals
•
UL 60601-1

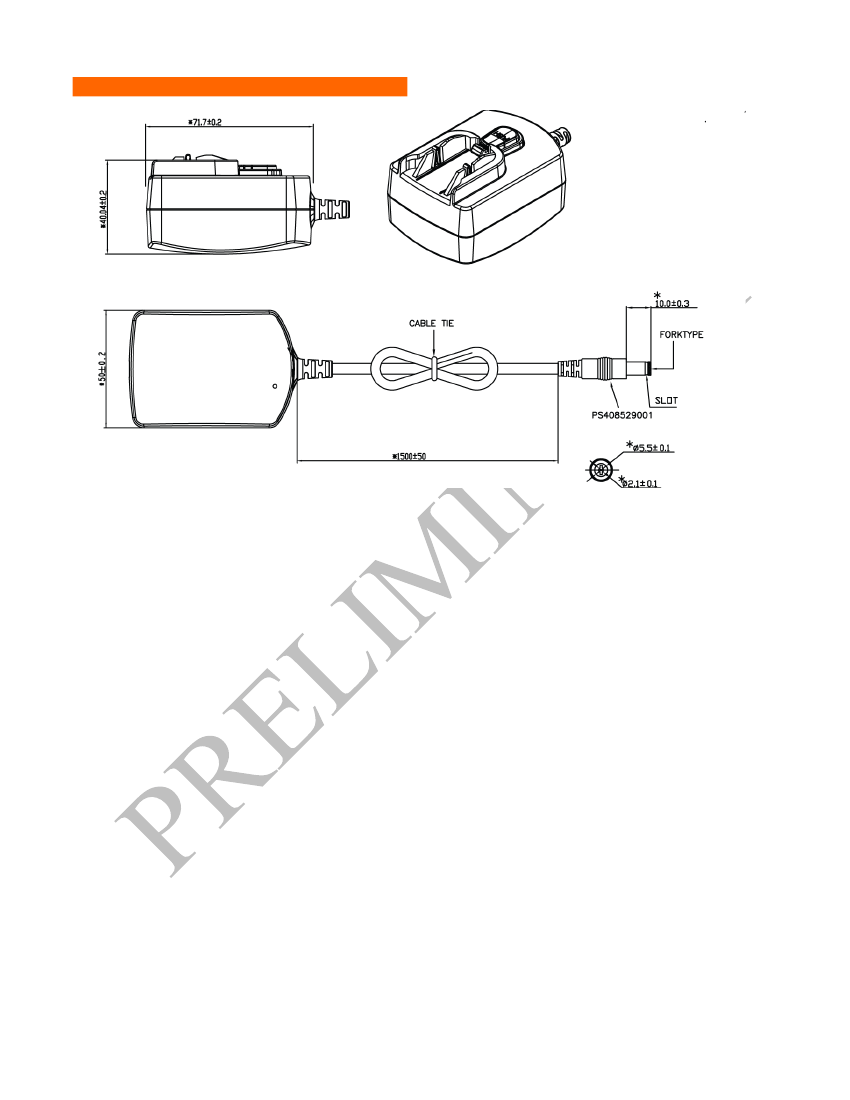

Mechanical Characteristics
•
Length: 50mm (1.97in)
•
Width: 71.7mm (2.82in)
Output Specifications
DC
Model
Output
Voltage
PMA10R-050AW
5V
Load
Min.
0A
Max.
2A
•
•
•
Meets type BF requirements
LPS compliant
OVP, OCP, SCP, OTP, brown-in and
brown-out protections
•
•
•
ECG machine
Respirator
Beauty care electronics
•
•
IEC 60601-1
Height: 40mm (1.57in)
Ripple
(1)
P-P (max.)
100mV
Regulation
Line & Load
±5%
Efficiency
Level
Case
Color
White
(1) Test by 20Mhz bandwidth mode hi resolution with 10uF and 0.1uF capacitor
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the most
up-to-date specifications and contact information.
Revised 11/9/2016
PMA10R-050AW Characteristics
Input:
AC Input Voltage Rating
115 to 230V AC
WWW.PHIHONG.COM
Over-Voltage Protection
9V maximum
AC Input Voltage Range
90 to 264V AC
Short-Circuit Protection
The power supply shall be protected when operating any
output in overload condition, or when operating any output
in a short. The power supply shall be self-recovering when
the fault condition is removed circuit condition.
AC Input Frequency
47 to 63Hz
Input Current
0.3A max at 100VAC
Over-Current Protection
The power supply will be protected when output power at
2.3A(RMS) of all rated dc output
Leakage Current
<100uA at 264VAC/50Hz
Over-Temperature Protection
Over-temperature protection sensor
Inrush Current
60A maximum at 240V AC
(Cold start & at input rated voltage +/-10%
Dielectric Withstand (Hi-pot) Test
Pri. to Sec. >4000VAC 10mA for 1 Minute
Output:
Efficiency
DOE Level VI and CoC V5 tier 2
DC Output Connector
DC plug type 5.5 x 2.1 x 10mm (fork & groove)
DC plug pin assignment: Inner (+V), Outer GND(-)
Environmental:
Temperature
Operation
Non-operation
Relative Humidity
5°C to +40°C
-25°C to +70°C
93% RH Max
Medical AC Input Clips (sold separately)
Part no:
RPA-MAB1W
RPB- MAB1W
RPE- MAB1W
RPH- MAB1W
RPK- MAB1W
RPN-MAT1W
RPS- MAB1W
Description:
US – white
Brazil – white
Euro – white
Korea – white
UK – white
Argentina – white
AU – white
Emissions
FCC Class B
EN55022 Class B
Immunity
ESD:
EN 61000-4-2
RS :
EN61000-4-3
EFT/Burst :
EN61000-4-4
Surge:
EN 61000-4-5
CS :
EN61000-4-6
Power Frequency Magnetic Field: EN61000-4-8
Voltage Dips :
EN61000-4-11
Power technology
