390AS057NF1004TA3 datasheet, PDF

Datasheet> All Categories > The connector> 390AS057NF1004TA3

390AS057NF1004TA3: DescriptionCircular MIL Spec Backshells SUB CBL SEAL RLF DC LOW 2RING STRT MED; CategoryThe connector; File Size400KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

390AS057NF1004TA3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	390AS057NF1004TA3	-	-	View	Buy Now

390AS057NF1004TA3 Overview

Circular MIL Spec Backshells SUB CBL SEAL RLF DC LOW 2RING STRT MED

390AS057NF1004TA3 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
RoHS	No
MIL Type	MIL-DTL-5015, MIL-DTL-26482 II, MIL-DTL-83723 I, II
Factory Pack Quantity	1

Preview

Download Datasheet

View All

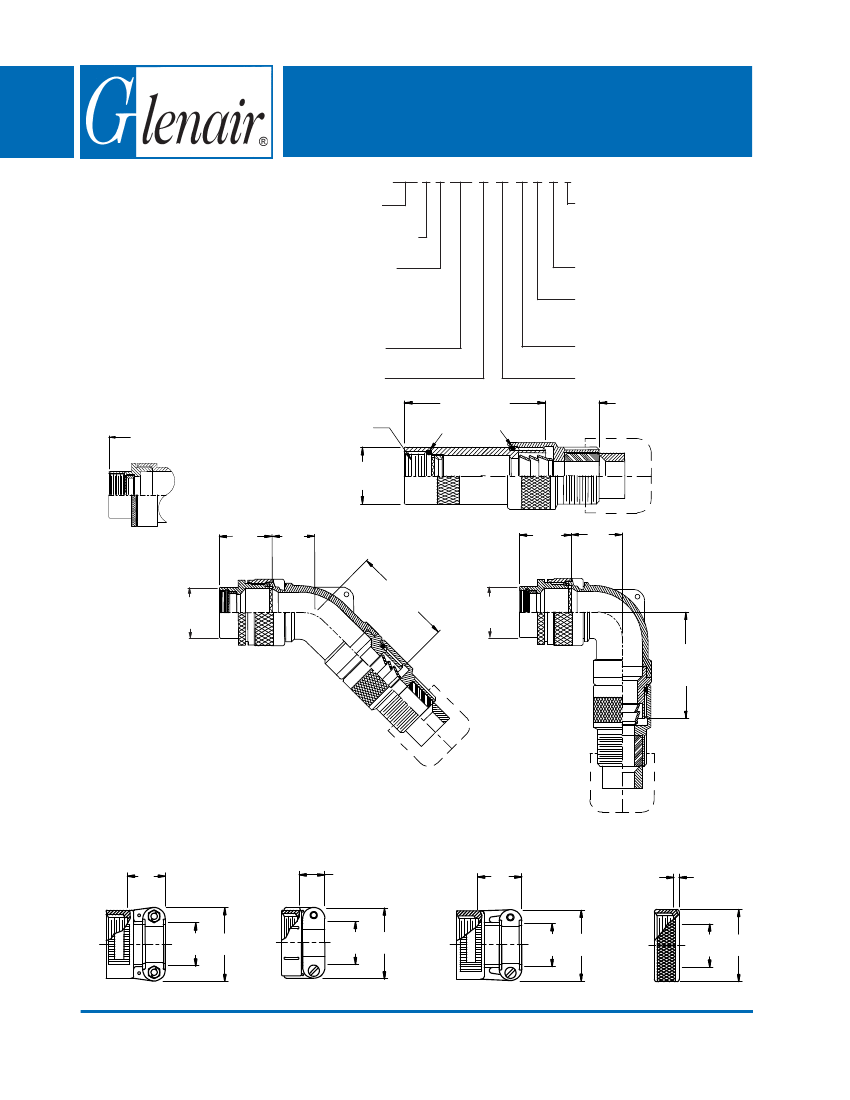

390-057

Submersible EMI/RFI Cable Sealing Backshell

with Strain Relief

Type E - Direct Coupling - Low Profile

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

390 F S 057 M 16 10 D M 6

Product Series

Connector Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (H, A, M, D)

Termination (Note 3)

D = 2 Rings, T = 3 Rings

Cable Entry (Tables X, XI)

Shell Size (Table I)

Length *

O-Rings

1.281

(32.5)

Ref. Typ.

DIRECT COUPLING

TYPE E INDIVIDUAL

AND/OR OVERALL

Finish (Table II)

SHIELD TERMINATION

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

A Thread

(Table I)

B (Table I)

* Length

± .060 (1.52)

Minimum Order

Length 1.5 Inch

(See Note 4)

STYLE 2

(STRAIGHT

See Note 1)

(Table I)

(Table III) (Table

IV)

F (Table IV)

(Table I)

(Table III) (Table IV)

(Table IV)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 52
