5-146505-2 datasheet, PDF - EEWORLD Datasheet

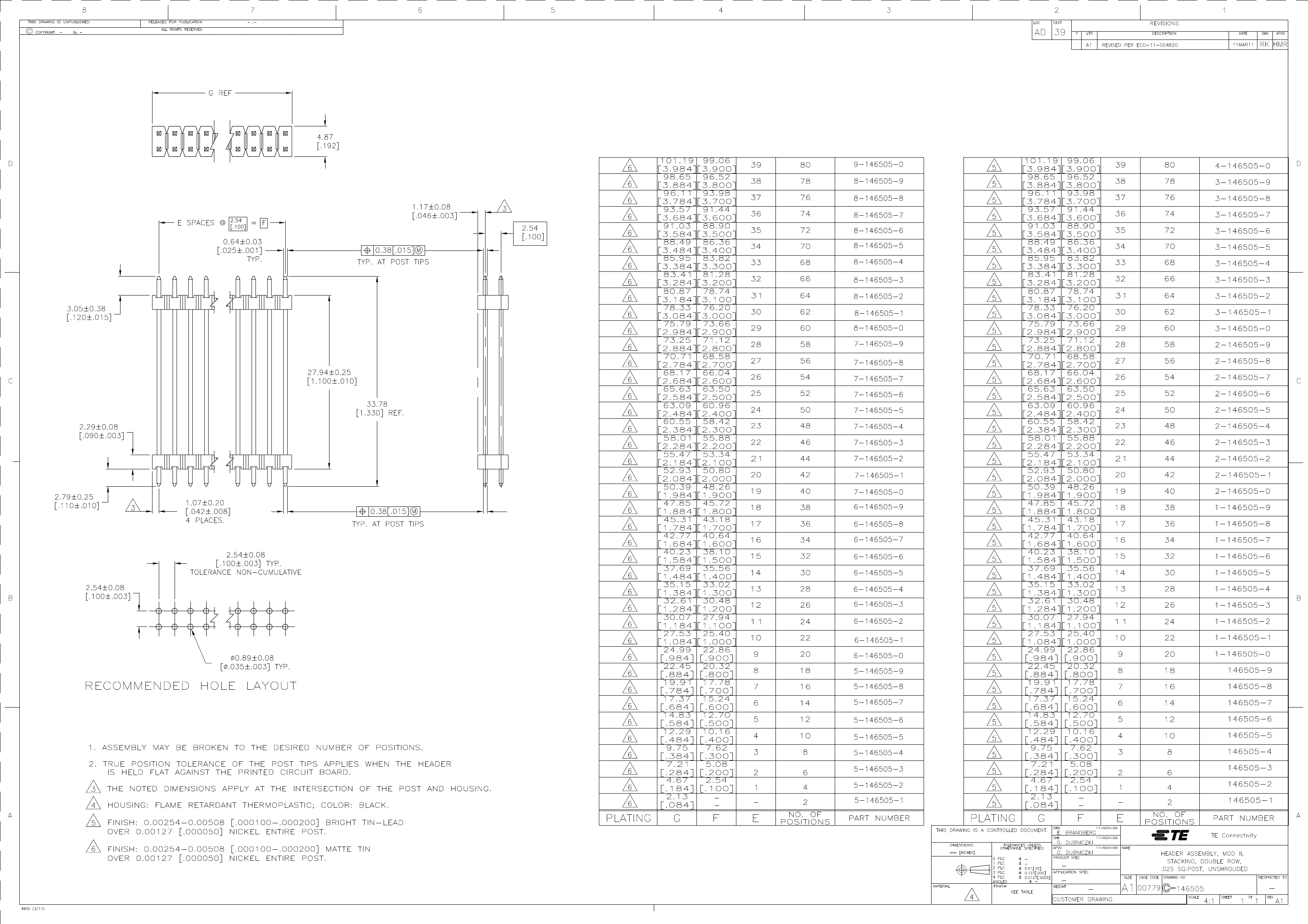

5-146505-2: Description04 MODII HDR DRST UNSHRD STKG; CategoryThe connector; File Size237KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-146505-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146505-2	-	-	View	Buy Now

04 MODII HDR DRST UNSHRD STKG

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Line spacing	2.54 mm [ .1 in ]
Connectors and terminals terminate to	A printed circuit board
series	AMPMODU
lugs	no
Stackable	yes
PCB mounting direction	vertical
Number of Positions	4
Rows	2
Insulation resistance (MΩ)	5000
Terminal base material	brass
PCB terminal termination area plating materials	tin
Solder tail terminal plating material surface coating	Tin: matte
Terminal shape	square
Terminal contact plating material	tin
Terminal Contact Plating Thickness (µin)	100 – 200
Terminal type	Pin
Contact Current Rating (Max) (A)	3
Terminal contact part plating material surface coating	matte
PCB Terminal Termination Area Plating Thickness (µin)	100 – 200
PCB Termination Methods	Through hole
Termination cylinder length	33.78 mm [ 1.33 in ]
PCB installation and fixation	Without
Centerline (Pitch)	2.54 mm [ .1 in ]
Shell color	black
Shell material	thermoplastic
stacking height	27.94 mm [ 1.1 in ]
Joint post length	2.79 mm [ .109 in ]
tail length	3.05 mm [ .12 in ]
Working group temperature range (°C)	-65 – 125
Assembly process characteristics	none
pick and place cover	Without
Applicable to	Female components
approved standards	CSA LR7189, UL E28476
UL flammability rating	UL 94V-0
Encapsulation method	carton
Package quantity	100
