M28840-3JW: DescriptionCircular MIL Spec Strain Reliefs u0026 Adapters STRAIN RELIEF; CategoryThe connector; File Size87KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

M28840-3JW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M28840-3JW	-	-	View	Buy Now

M28840-3JW Overview

Circular MIL Spec Strain Reliefs u0026 Adapters STRAIN RELIEF

M28840-3JW Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Strain Reliefs & Adapters
Manufacturer	Glenair
RoHS	No
Product	Strain Reliefs
Factory Pack Quantity	1

Preview

Download Datasheet

View All

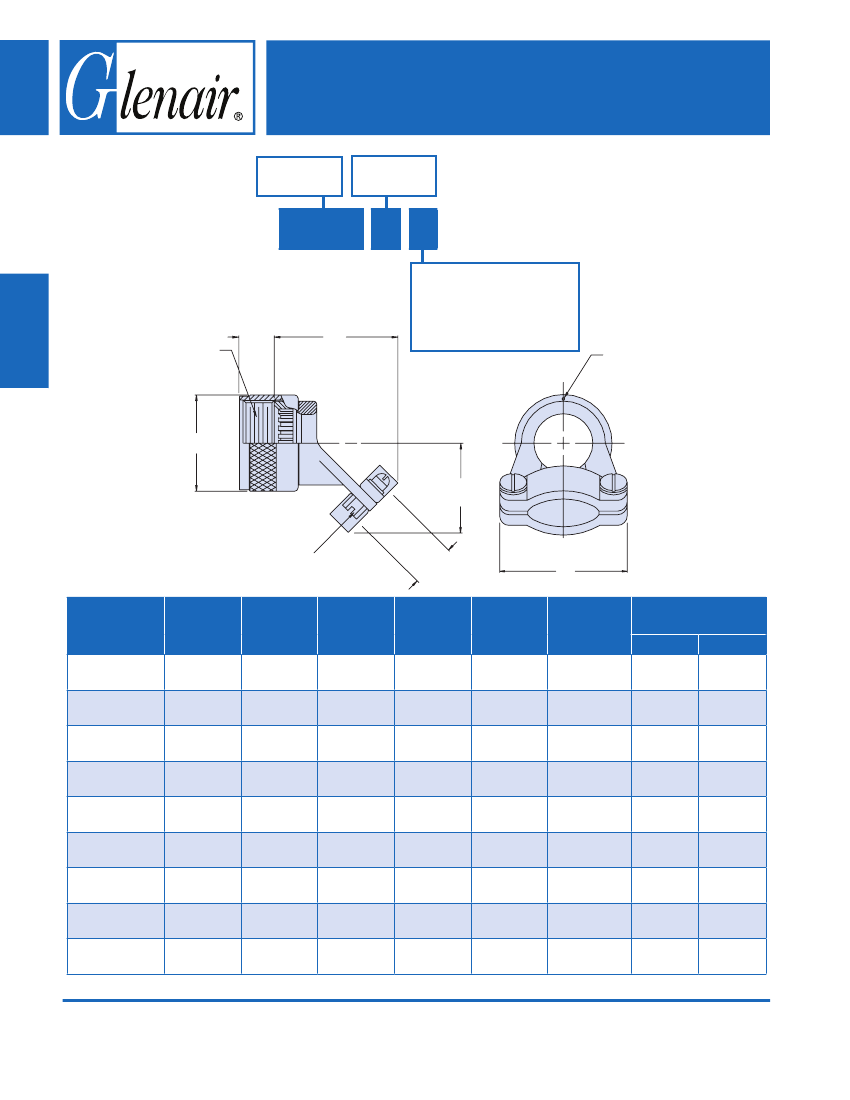

MIL-DTL

28840

Military

Designator

Shell Size

Designator

M28840/3

45° Strain Relief

M28840/3

J

W

Material Type

W

- Aluminum, Cadmium Plate,

O.D. over Electroless Nickel

D

- Corrosion Resistant Steel,

Cadmium Plate, Black

Wire

Holes

(3

Equally

Spaced)

B

A Thread

.228

(5.79)

Ref.

C

B

D

Telescoping Screw

and

Lockwasher

Cable

Entry

E

Designator

A (11)

B (13)

C (15)

D (17)

E (19)

F (23)

G (25)

H (29)

J (33)

A Thread

Class 2B

.750-20

UNEF

.875-20

UNEF

1.000-20

UNEF

1.125-18

UNEF

1.250-18

UNEF

1.438-18

UNEF

1.562-18

UNEF

1.875-16

UN

2.062-16

UNS

B Max.

Diameter

1.028

(26.11)

1.141

(28.98)

1.263

(32.08)

1.387

(35.23)

1.513

(38.43)

1.703

(43.26)

1.825

(46.36)

2.143

(54.43)

2.329

(59.16)

C Max.

1.091

(27.71)

1.091

(27.71)

1.091

(27.71)

1.206

(30.63)

1.320

(33.53)

1.445

(36.70)

1.570

(39.88)

1.721

(43.71)

1.908

(48.46)

D Max.

.929

(23.60)

.929

(23.60)

1.056

(26.82)

1.233

(31.32)

1.296

(32.92)

1.358

(34.49)

1.420

(36.07)

1.634

(41.50)

1.859

(47.22)

E Max.

.903

(22.94)

.977

(24.82)

1.151

(29.24)

1.281

(32.54)

1.406

(35.71)

1.576

(40.03)

1.666

(42.32)

2.046

(51.97)

2.209

(56.11)

Screw Size

Ref.

.114-40

.134-32

.162-32

Cable Entry

Min.

.177

(4.50)

.177

(4.50)

.250

(6.35)

.291

(7.39)

.348

(8.84)

.429

(10.90)

.523

(13.28)

.643

(16.33)

.704

(17.88)

Max.

.286

(7.26)

.286

(7.26)

.416

(10.57)

.476

(12.09)

.626

(15.90)

.831

(21.11)

.956

(24.28)

1.081

(27.46)

1.187

(30.15)

Printed in U.S.A.

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

B-14
