390HS002NF1310M5 datasheet, PDF

Datasheet> All Categories > The connector> 390HS002NF1310M5

390HS002NF1310M5: DescriptionCircular MIL Spec Backshells SUB CBL SEAL RLF DC LOW STRT MEDIUM DTY; CategoryThe connector; File Size122KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

390HS002NF1310M5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	390HS002NF1310M5	-	-	View	Buy Now

390HS002NF1310M5 Overview

Circular MIL Spec Backshells SUB CBL SEAL RLF DC LOW STRT MEDIUM DTY

390HS002NF1310M5 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
RoHS	No
MIL Type	MIL-DTL-38999 III, IV
Factory Pack Quantity	1

Preview

Download Datasheet

View All

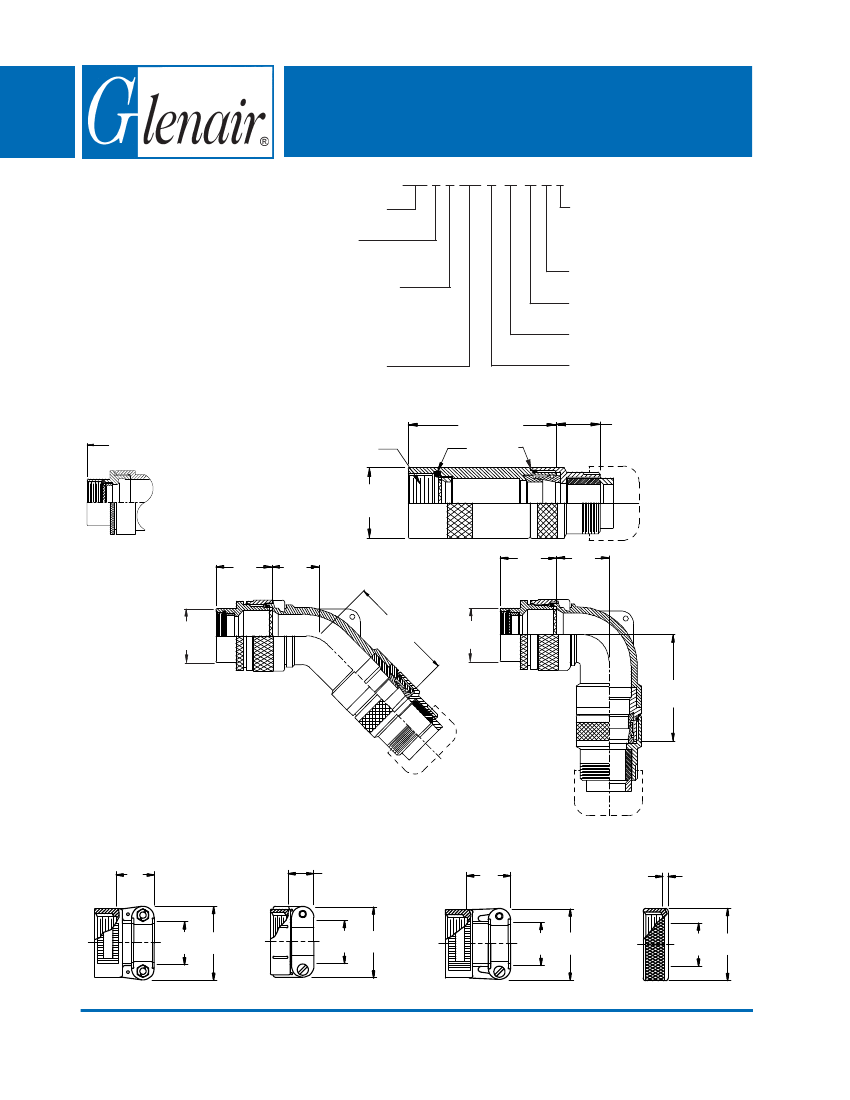

390-002

Submersible EMI/RFI Cable Sealing Backshell

with Strain Relief

Type A - Direct Coupling - Low Profile

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

390 F S 002 M 16 10 A 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (H, A, M, D)

Cable Entry (Tables X, XI)

Shell Size (Table I)

Finish (Table II)

DIRECT COUPLING

TYPE A OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Min. Order Length 2.5 Inch

(See Note 4)

A Thread

(Table I)

Length *

O-Rings

1.125 (28.6)

Approx.

* Length

± .060 (1.52)

Min. Order

Length 2.0 Inch

(See Note 4)

STYLE 2

(STRAIGHT

See Note 1)

(Table III)

(Table

IV)

(Table III) (Table IV)

(Table I)

F (Table IV)

(Table I)

H (Table IV)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 16
