3M
TM

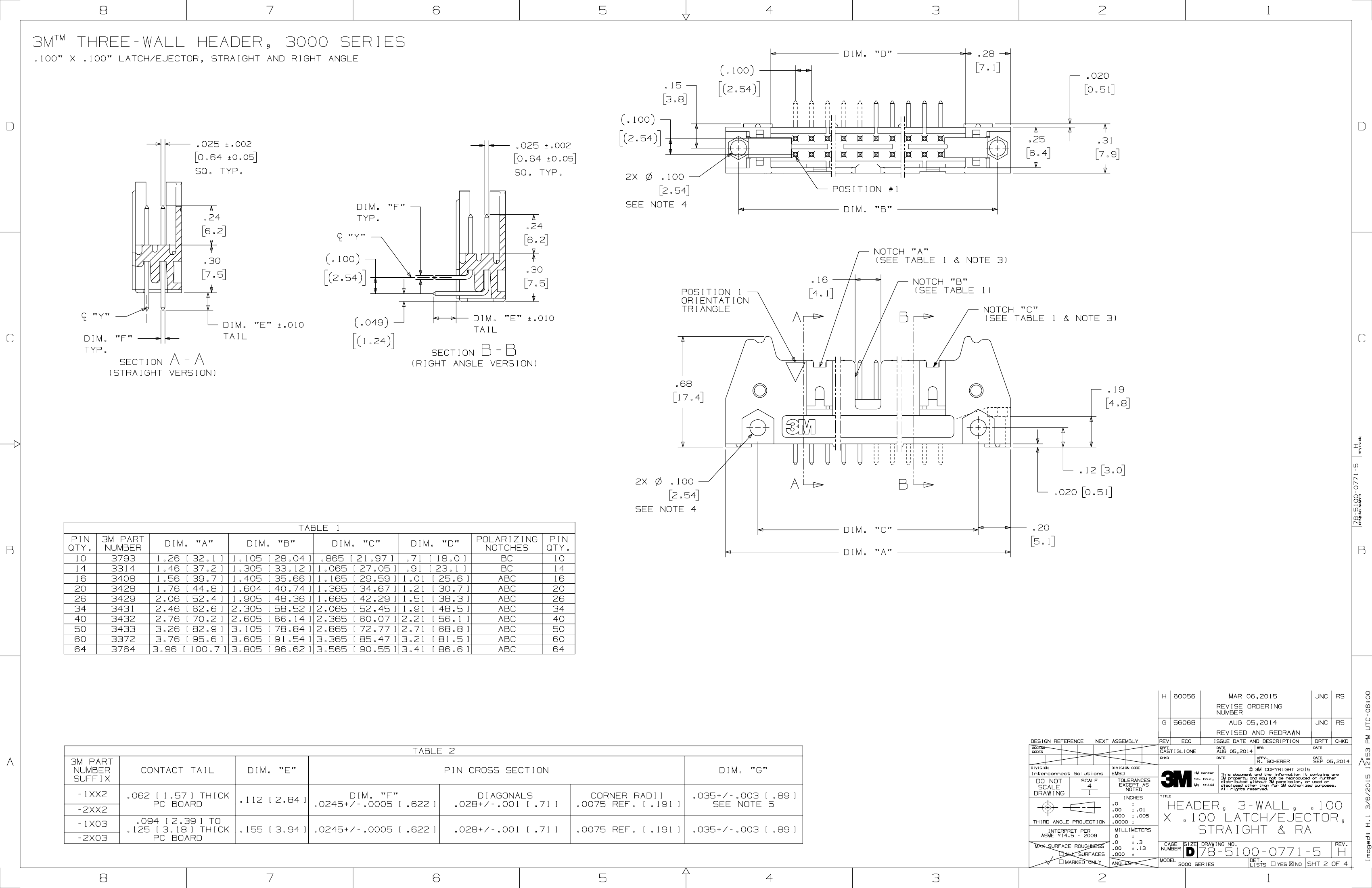

THREE-WALL HEADER, 3000 SERIES
DIM. "A"
.100" X .100" LATCH/EJECTOR, STRAIGHT AND RIGHT ANGLE
D
.68
17.4
* MILITARY (WITH 3M'S N3518 POLARIZING KEY)
AND CENTERBUMP POLARIZATION.
* LOW PROFILE.
* OPTIONAL EJECTOR LATCHES.
* MOUNTING HOLES FOR SECURING HEADER TO BOARD.
* THREE WALL SHROUD PROVIDES DESIGN FLEXIBILITY.
* SOLDER TAIL AND WRAP TAIL OPTIONS.
* OPTIONAL POLARIZING POSTS AVAILABLE.
* HIGH TERMERATURE INSULATOR SUITABLE FOR "NO LEAD"
SOLDERING OPERATIONS.
* SUITABLE FOR REFLOW SOLDERING USING "PASTE IN HOLE"
TECHNIQUES.
D
-X0XX
HEADER WITHOUT LATCH EJECTOR
2
PHYSICAL:
INSULATOR:
MATERIAL:
FLAMMABILITY:
COLOR:
CONTACT:
MATERIAL:
PLATING:
UNDER PLATING:
WIPING AREA:
SOLDER TAILS:
MARKINGS:
GLASS FILLED POLYESTER (PCT)
UL94V-0
BLACK
COPPER ALLOY
100 " [2.54 m] NICKEL-OVERALL
30 " [0.76 m] AVG. GOLD
200 " [5.08 m] TIN LEAD OR MATTE TIN (SEE ORDERING INFORMATION)
3M LOGO, PART IDENTIFICATION NUMBER AND ORIENTATION TRIANGLE
4
.424
10.77
.010
0.25
.08
2.0
.97
24.7
2
5 THE RECOMMENDED PCB HOLE SIZE
FOR THE KINKED TAIL POSITIONS
ON
THE .112 SOLDER TAIL
CONNECTOR IS
.035 .002.
(SEE K2 VERSION).
ELECTRICAL:
C
C
.37
9.5
-X2XX
HEADER WITH SHORT LATCH EJECTOR
FOR 3M SOCKETS WITHOUT STRAIN RELIEF
CURRENT RATING: 5.00A, 1 CONTACT POWERED
3.00A, 6 CONTACTS POWERED
1.75A, ALL CONTACTS POWERED
RATING CONDITIONS: EIA-364-070 METHOD 2, 30 C MAXIMUM
TEMPERATURE RISE, 20% DERATED. REFERENCE APPROPRIATE
3M PRODUCT SPECIFICATION FOR DETAILED CURRENT DERATING
CURVES.
INSULATION RESISTANCE: >1 X 10
9
AT 500 V
DC
WITHSTANDING VOLTAGE: 1,000V
RMS
AT SEA LEVEL
2
14.55
0.25
.08
2.0
1.07
27.2
B
.46
11.7
-X3XX
HEADER WITH LONG LATCH EJECTOR
FOR 3M SOCKETS WITH STRAIN RELIEF
ORDERING INFORMATION
X3XXX-XXXXXX
H
60056
MAR
06,2015
78-5100-0771-5
JNC
RS
B
DRAWING NUMBER
H
.573
.010
TEMPERATURE RATING: -55 C TO 105 C
PROCESS RATING: 260 C, PER J-STD-020C, SINGLE PASS
MOISTURE SENSITIVITY LEVEL: 1 (PER J-STD-020C)
REVISION
ENVIRONMENTAL:
N= HIGH TEMP BLACK (PCT)/(RB PLATING REQ'D)
BLANK= (UB PLATING)
3M PART NUMBER:
(SEE TABLE 1)
PLATING:
RB = 30 " [0.76 m] GOLD AND 200 " [5.08 m] MATTE TIN
(APP. E1 & C1 APPLY)
UB = 30 " [0.76 m] GOLD AND 200 " [5.08 m]
TIN LEAD (APP. E3 & C2 APPLY)
TAIL:
02 = FOR .062 [1.57] THICK BOARD
03 = FOR .094 TO .125 [2.39 TO 3.18] THICK BOARD
K2 = KINKED FOR .062 [1.57] THICK BOARD
LATCH/EJECTOR SYSTEM:
0 = NO LATCH/EJECTOR INSTALLED
2 = SHORT ROLL PIN LATCH/EJECTORS
3 = LONG ROLL PIN LATCH/EJECTORS
DIMENSIONS: INCHES [MM]
[MM] IS REF. ONLY
DESIGN REFERENCE
ACCESS
CODES
REVISE ORDERING
NUMBER
G
REV
DRFT
56068
ECO
AUG 05,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
NEXT ASSEMBLY
A
PIN CONFIGURATION:
1 = RIGHT ANGLE SOLDER TAILS
2 = STRAIGHT SOLDER TAILS
3M ELECTRONIC MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
CASTIGLIONE
CHKD
AUG 05,2014
DATE
APPVL
R. SCHERER
DIVISION
DIVISION CODE
SEP 05,2014
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
2
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
R
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
UL FILE NO: E68080
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 3-WALL, .100
X .100 LATCH/EJECTOR,
STRAIGHT & RA
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0771-5
DET.
LISTS
YES
NO
H
3000 SERIES
SHT 1 OF 4
8
7
6
5
4
3
2
1
