FC7AQCBNC40.000 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FC7AQCBNC40.000

FC7AQCBNC40.000: DescriptionParallel - Fundamental Quartz Crystal, 40MHz Nom, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size189KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FC7AQCBNC40.000 Overview

Parallel - Fundamental Quartz Crystal, 40MHz Nom, SMD, 2 PIN

FC7AQCBNC40.000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SMD, 2 PIN
Reach Compliance Code	unknown
Other features	TR, 7 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	22 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

SMD Crystal

•

Tolerances down to 20 PPM

•

Stabilities down to 20 PPM

•

Operating Temperature Range up to -40ºC

~ +85ºC

(former FQ7050A)

C7AQ

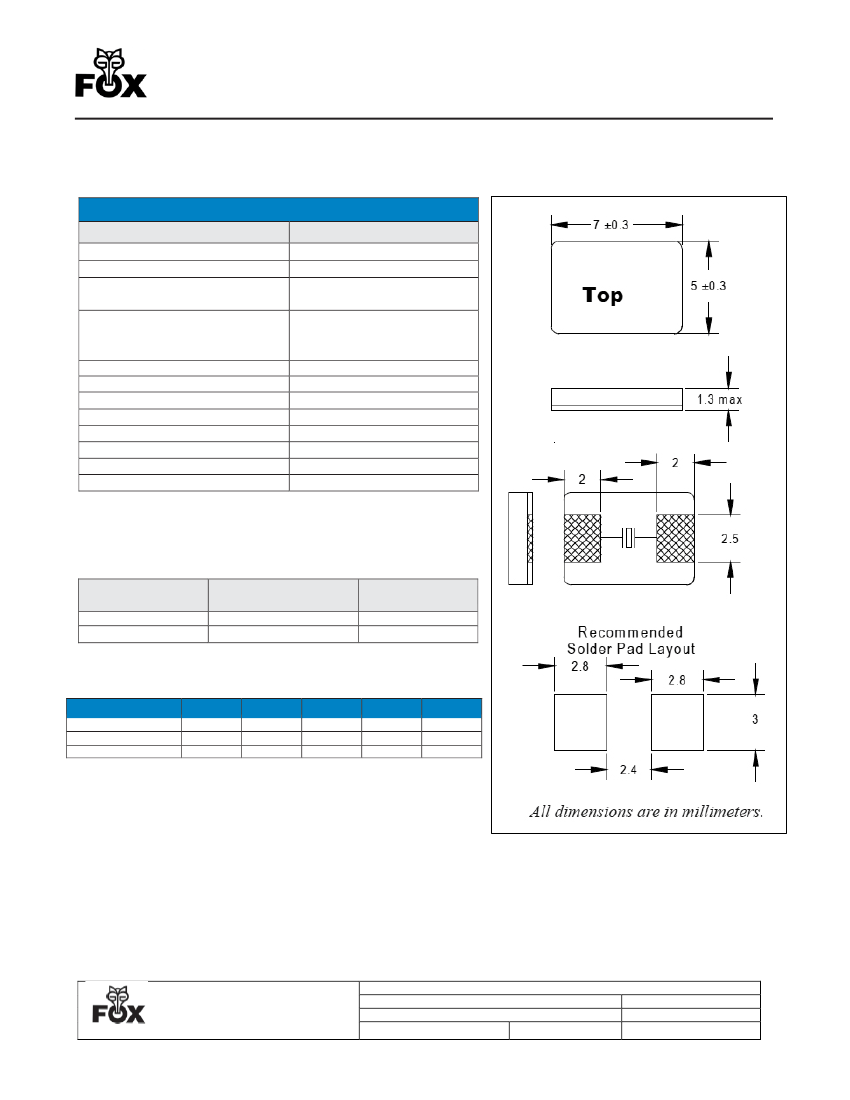

DATASHEET

• C7AQ STANDARD SPECIFICATIONS

PARAMETERS

MAX (unless otherwise noted)

Frequency Range (Fo)

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (C

)

Load Capacitance (C

)

Drive Level

Aging per year

Termination Finish

Seam Method

Lead (Pb) Free

RoHS/REACHComplaint

6.000 ~ 40.000 MHz

(See options on page 2)

(See options below)

(See options on page 2)

-40ºC ~ +85ºC

5 pF

(See options on page 2)

0.5 mW

±5 PPM

Resin Sealed

Yes

* Up to 40.000 MHz is available if this device is replacing an existing 5 x 7mm package. For

new designs, above 12.000MHz, we recommend the smaller (FQ6035 & FQ5032) packages.

Small quantities above 12MHz are only available in the smaller sizes. If you have any

questions, please call Customer Support at 1-888-GET-2-FOX.

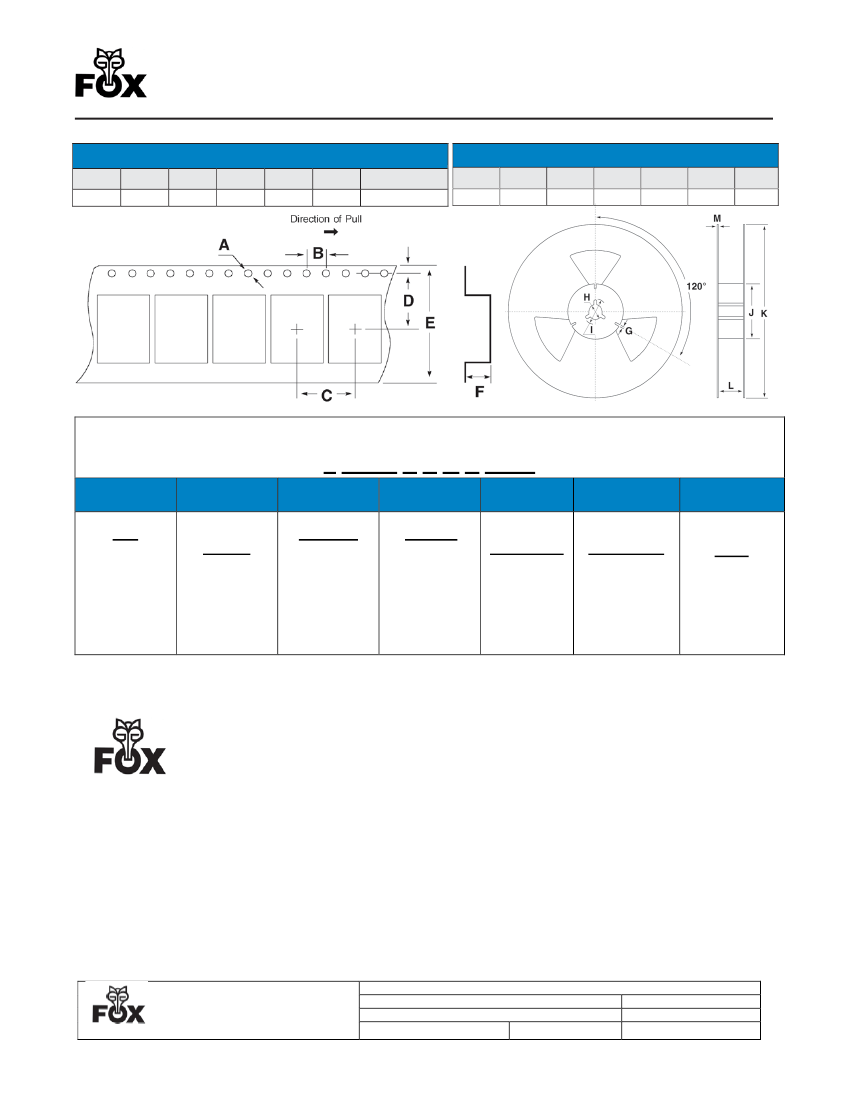

Frequency Range

(MHz)

6.000 ~ 16.000

16.000+ ~ 40.000

Operating Mode

Fundamental

Max ESR

Ω

•Available Operating Temperatures and Stabilities

±25 PPM ±30 PPM ±50 PPM

∆

0 ~+70ºC

-20 ~+70ºC

∆

-40 ~+85ºC

∆

Key: O=Available, X=Not Available, ∆=Consult Fox Technical Support

±15 PPM

±20 PPM

Stability Temperature

Note: Dimensional drawing is for reference to critical specifications defined by size

measurements. Certain non-critical visual attributes, such as side castellations,

etc. may vary.

Title / Description:

C7AQ STANDARD SPECIFICATIONS

Drawing Number:

101155

Size: A

Cage:

61429

Part Number:

Draftsperson:

CMR

Approved:

Revision Date:

03/20/2017

FC7AQCBNC40.000 Related Products

	FC7AQCBNC40.000	FC7AQCDNF16.000	FC7AQCDNF6.000	FC7AQBDKC6.000	FC7AQBDNF16.000	FC7AQBDNF40.000
Description	Parallel - Fundamental Quartz Crystal, 40MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 6MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 6MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 40MHz Nom, SMD, 2 PIN
package instruction	SMD, 2 PIN	SMD, 2 PIN	SMD, 2 PIN	SMD, 2 PIN	SMD, 2 PIN	SMD, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	compliant
Other features	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH
Ageing	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW
frequency stability	0.005%	0.0025%	0.0025%	0.0025%	0.0025%	0.0025%
frequency tolerance	30 ppm	30 ppm	30 ppm	50 ppm	50 ppm	50 ppm
load capacitance	22 pF	22 pF	22 pF	16 pF	22 pF	22 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	40 MHz	16 MHz	6 MHz	6 MHz	16 MHz	40 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-	-20 °C	-20 °C	-	-20 °C	-20 °C
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	50 Ω	80 Ω	80 Ω	80 Ω	80 Ω	50 Ω
surface mount	YES	YES	YES	YES	YES	YES
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to
JESD-609 code	e4	-	-	e4	e4	e4
Terminal surface	Gold (Au)	-	-	Gold (Au)	Gold (Au)	Gold (Au)
