2-223610-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-223610-4

2-223610-4: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL; CategoryThe connector The connector; File Size355KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-223610-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-223610-4	-	-	View	Buy Now

2-223610-4 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL

2-223610-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
body width	0.622 inch
subject depth	0.669 inch
body length	0.468 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
maximum insertion force	.695 N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223610
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	4.5 A
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	24
Evacuation force-minimum value	.1112 N
Base Number Matches	1

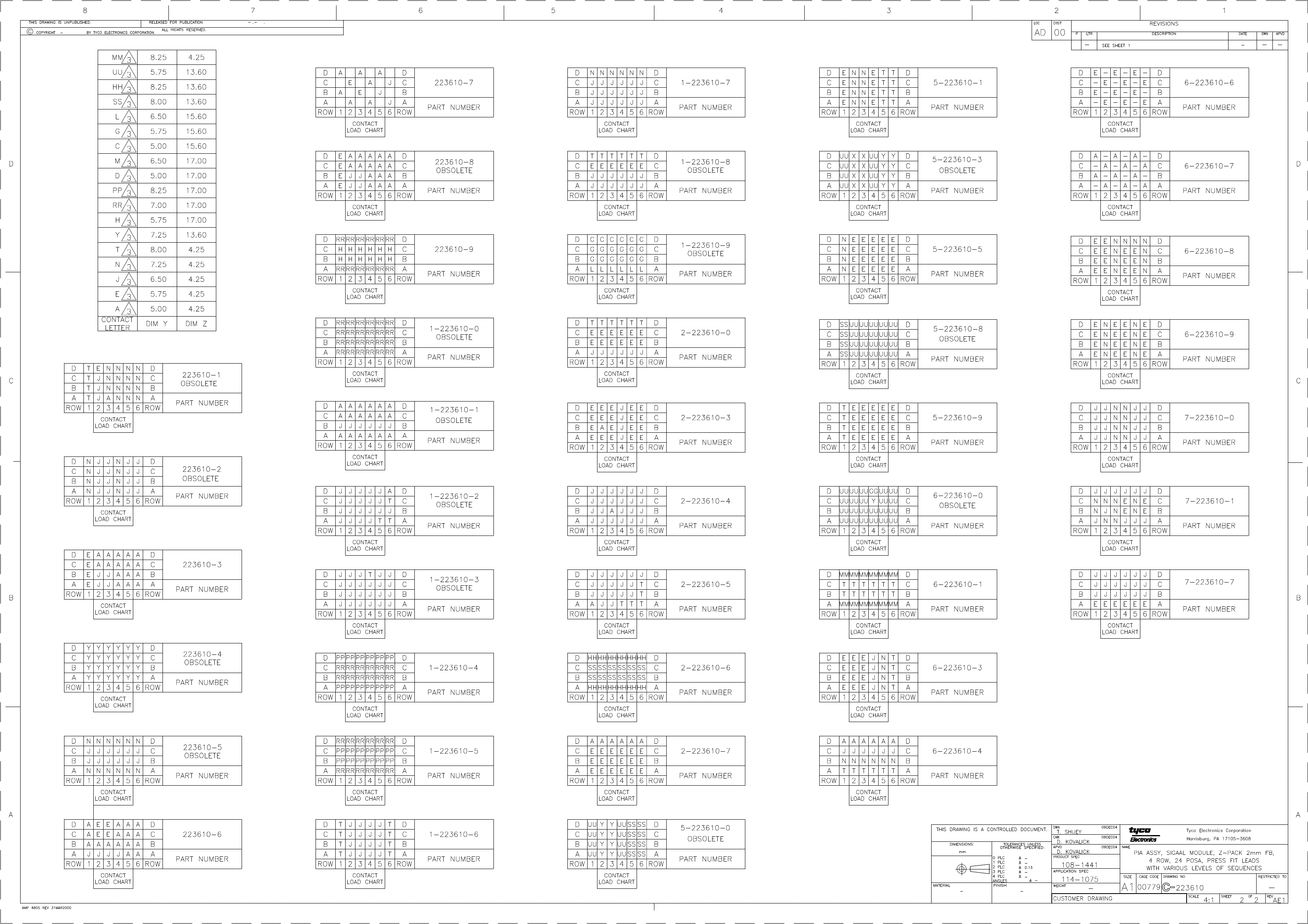

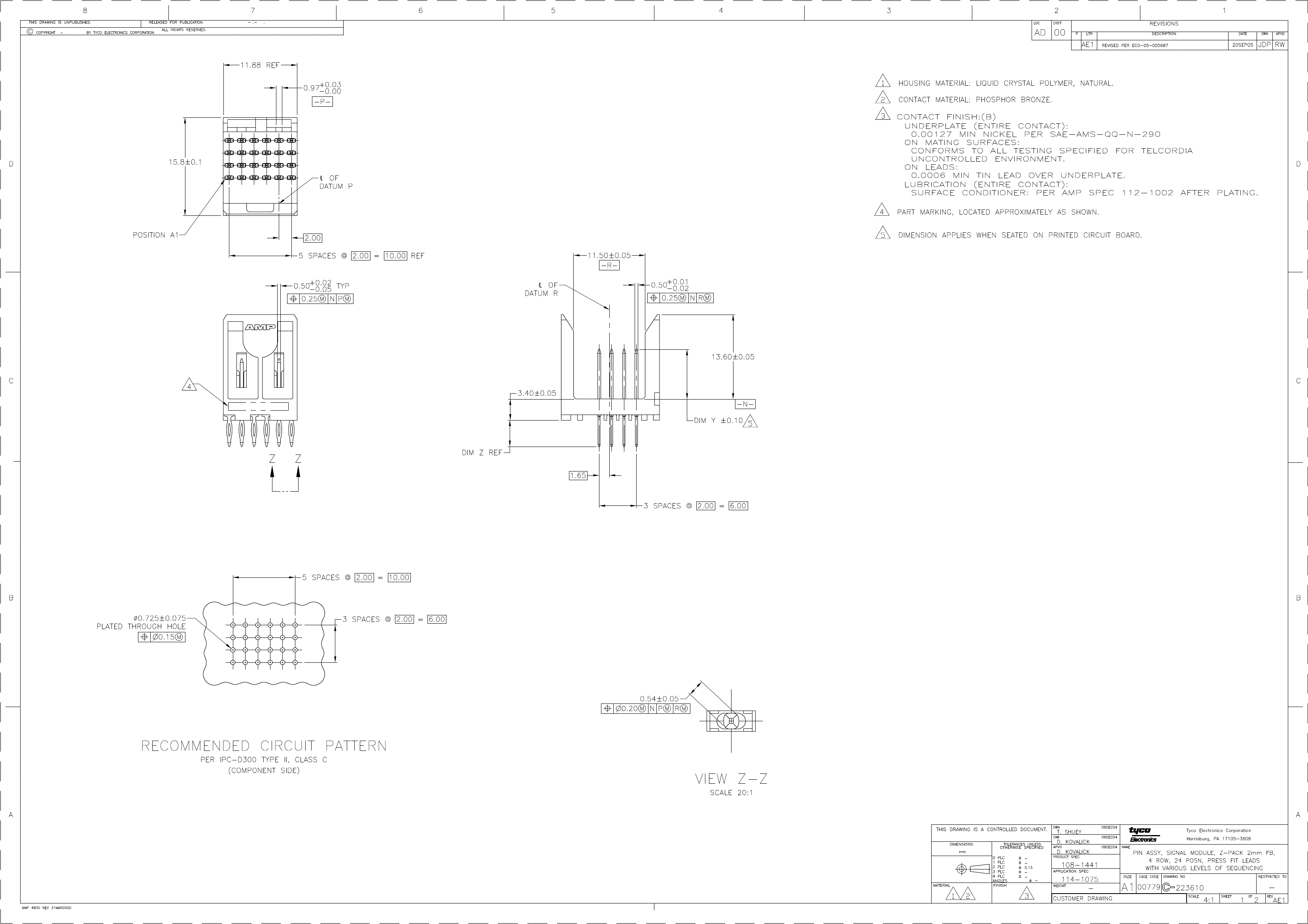

Preview

Download Datasheet

View All

2-223610-4 Related Products

	2-223610-4	1-223610-2	1-223610-3	1-223610-4	1-223610-5	1-223610-9
Description	HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.079 PITCH,WRAP POST TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.079 PITCH,WRAP POST TERMINAL,LOCKING,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.079 PITCH,WRAP POST TERMINAL,LOCKING,NATURAL
Reach Compliance Code	compliant	unknow	unknow	compli	unknown	unknown
body width	0.622 inch	0.622 inch	0.622 inch	0.622 inch	0.622 inch	0.622 inch
subject depth	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch
body length	0.468 inch	0.468 inch	0.468 inch	0.468 inch	0.468 inch	0.468 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
maximum insertion force	.695 N	.695 N	.695 N	.695 N	.695 N	.695 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223610	223610	223610	223610	223610	223610
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4	4	4
Number of rows loaded	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Rated current (signal)	4.5 A	4.5 A	4.5 A	4.5 A	4.5 A	4.5 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	24	24	24	24	24	24
Evacuation force-minimum value	.1112 N	.1112 N	.1112 N	.1112 N	.1112 N	.1112 N
Terminal length	-	0.167 inch	0.167 inch	0.669 inch	0.669 inch	0.614 inch
