PLCC4 ChipLED
HT-T368FCH
Harvatek Surface Mount CHIP LED Data Sheet
HT-T368FCH
Official Product
Tentative Product
HT Part No. HT-T368FCH
****************
Customer Part No.
****************
10/03/2011
Version 1.0
Data Sheet No.
Specifications are subject to change without notice. Data and
drawings herein are copyrighted.
Page
1/13
PLCC4 ChipLED
HT-T368FCH
DISCLAIMER ......................................................................................................................................... 3
PRODUCT SPECIFICATIONS............................................................................................................. 4
ATTENTION: E
LECTROSTATIC
D
ISCHARGE
(ESD)
PROTECTION
................................................ 4
LABEL SPECIFICATIONS ................................................................................................................... 5
PRODUCT FEATURES ......................................................................................................................... 7
E
LECTRO
-O
PTICAL
C
HARACTERISTICS
...................................................................................... 7
P
ACKAGE
O
UTLINE
D
IMENSION AND
R
ECOMMENDED
S
OLDERING
P
ATTERN FOR
R
EFLOW
S
OLDERING
............................................................................................................................. 7
A
BSOLUTE
M
AXIMUM
R
ATINGS
................................................................................................. 7
C
HARACTERISTICS
C
URVES
...................................................................................................... 8
PACKAGING .......................................................................................................................................... 9
T
APE
D
IMENSION
..................................................................................................................... 9
R
EEL
D
IMENSION
................................................................................................................... 10
P
ACKING
............................................................................................................................... 10
DRY PACK............................................................................................................................................. 11
PRECAUTIONS .................................................................................................................................... 11
REFLOW SOLDERING ...................................................................................................................... 12
R
EWORKING
.......................................................................................................................... 12
C
LEANING
............................................................................................................................. 12
R
EVISE
H
ISTORY
.................................................................................................................... 13
Official Product
Tentative Product
HT Part No. HT-T368FCH
****************
Customer Part No.
****************
10/03/2011
Version 1.0
Data Sheet No.
Specifications are subject to change without notice. Data and
drawings herein are copyrighted.
Page
2/13
PLCC4 ChipLED
HT-T368FCH
DISCLAIMER
HARVATEK reserves the right to make changes without further notice to any products herein to
improve reliability, function or design. HARVATEK does not assume any liability arising out of
the application or use of any product or circuit described herein; neither does it convey any
license under its patent rights, nor the rights of others.
LIFE SUPPORT POLICY
HARVATEK’s products are not authorized for use as critical components in life support devices
or systems without the express written approval of the President of HARVATEK or HARVATEK
INTERNATIONAL. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical
implant into the body, or (b) support or sustain life, and (c) whose failure to perform when
properly used in accordance with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of the user.
2. A critical component in any component of a life support device or system whose failure to
perform can be reasonably expected to cause the failure of the life support device or system, or
to affect its safety or effectiveness.
Official Product
Tentative Product
HT Part No. HT-T368FCH
****************
Customer Part No.
****************
10/03/2011
Version 1.0
Data Sheet No.
Specifications are subject to change without notice. Data and
drawings herein are copyrighted.
Page
3/13
PLCC4 ChipLED
HT-T368FCH
Product Specifications
Specification
Iv
Red :360~715mcd
Green : 715~1440 mcd
Blue : 180~450 mcd
@20mA/ Ta= 25 ;
Tolerance: + 10%
lambda(λ
D
)
Red : 615 - 630nm
Green : 515 - 535nm
Blue : 460 - 480nm
@20mA/ Ta= 25 C;
Tolerance: + 0.1%
Vf
Red :
Green :
Blue :
2.4 V maximum
3.9 V maximum
3.9 V maximum
O
O
O
Material
Quantity
@20mA/ Ta= 25 C ;
Tolerance: + 0.05V
Resin
Carrier tape
Reel
Label
Packing bag
Carton
Resin
Others:
Each immediate box consists of 5 reels. The 5 reels may not necessarily have the same lot number or the same bin
combinations of Iv,
λ
D
and Vf. Each reel has a label identifying its specification; the immediate box consists of a product
label as well.
Water clear
EIA 481-1A specs
EIA 481-1A specs
HT standard
220x240mm
HT standard
Water clear
Silicon resin
Conductive black tape
Conductive black
Paper
Aluminum laminated bag/ no-zipper
Paper
Epoxy resin
One reel per bag
Non-specified
2000pcs per reel
ATTENTION: Electrostatic Discharge (ESD) protection
The symbol to the left denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based
chips is necessary even though they are relatively safe in the presence of low static-electric discharge. Parts
built with AlInGaP, GaN, or/and InGaN based chips are
STATIC SENSITIVE devices.
ESD precaution must
be taken during design and assembly.
If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process.
Official Product
Tentative Product
HT Part No. HT-T368FCH
****************
Customer Part No.
****************
10/03/2011
Version 1.0
Data Sheet No.
Specifications are subject to change without notice. Data and
drawings herein are copyrighted.
Page
4/13
PLCC4 ChipLED
HT-T368FCH

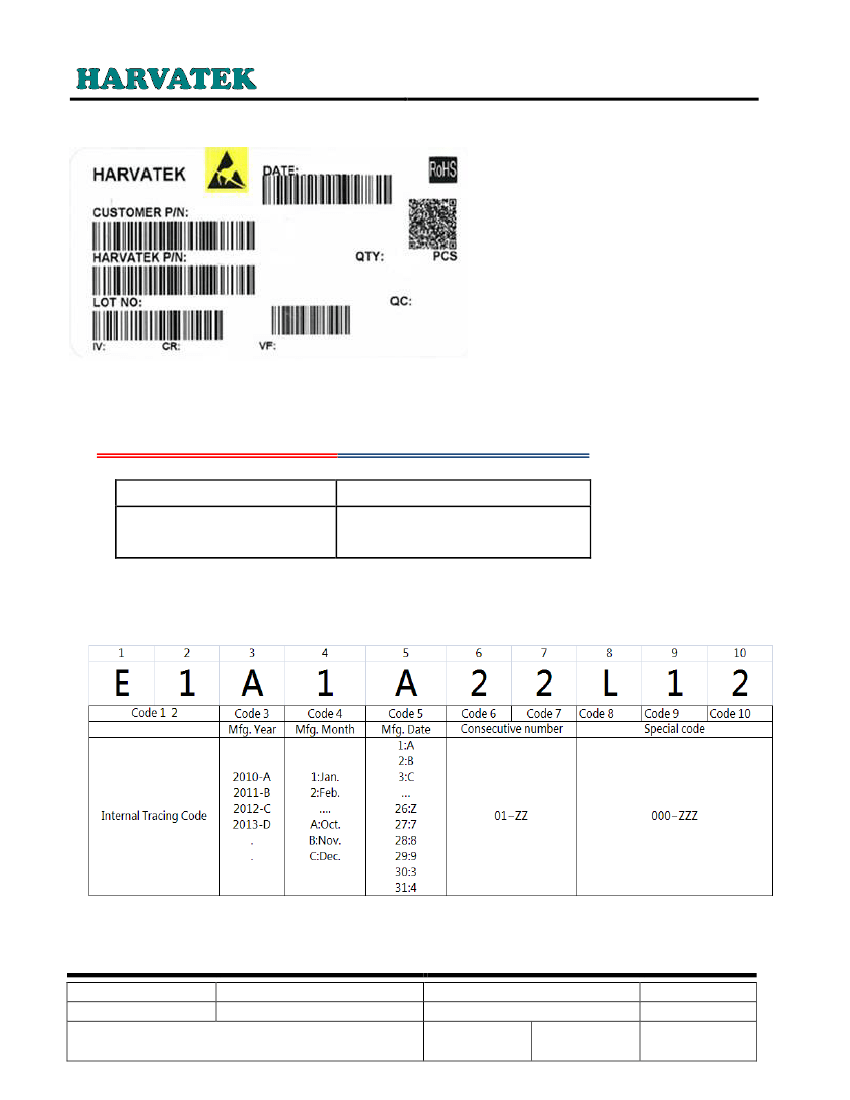

Label Specifications
▓Customer
P/N: To Be Defined
▓
Harvatek P/N:
HT- T368
Series Name
HT-T368
3.5(L)x2.8(W)x1.9(H) mm
-
F C H
Emitting Color
FCH
RGB (Full Color) @ 20mA
▓
Lot No.:
Official Product
Tentative Product
HT Part No. HT-T368FCH
****************
Customer Part No.
****************
10/03/2011
Version 1.0
Data Sheet No.
Specifications are subject to change without notice. Data and
drawings herein are copyrighted.
Page
5/13
