MC14069UBDG

Description
Logic Output Optocouplers Optocoupler LC Schmitt Trigger
Categorylogic    logic
File Size101KB,6 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

MC14069UBDG Online Shopping

Suppliers Part Number Price MOQ In stock
MC14069UBDG - - View Buy Now

MC14069UBDG Overview

Logic Output Optocouplers Optocoupler LC Schmitt Trigger

MC14069UBDG Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerON Semiconductor
Parts packaging codeSOIC
package instructionLEAD FREE, SOIC-14
Contacts14
Manufacturer packaging code751A-03
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time1 week
Is SamacsysN
series4000/14000/40000
JESD-30 codeR-PDSO-G14
JESD-609 codee3
length8.65 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeINVERTER
Humidity sensitivity level1
Number of functions6
Number of entries1
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP14,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
method of packingRAIL
Peak Reflow Temperature (Celsius)260
power supply5/15 V
Prop。Delay @ Nom-Sup125 ns
propagation delay (tpd)125 ns
Certification statusNot Qualified
Schmitt triggerNO
Maximum seat height1.75 mm
Maximum supply voltage (Vsup)18 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
width3.9 mm
Base Number Matches1

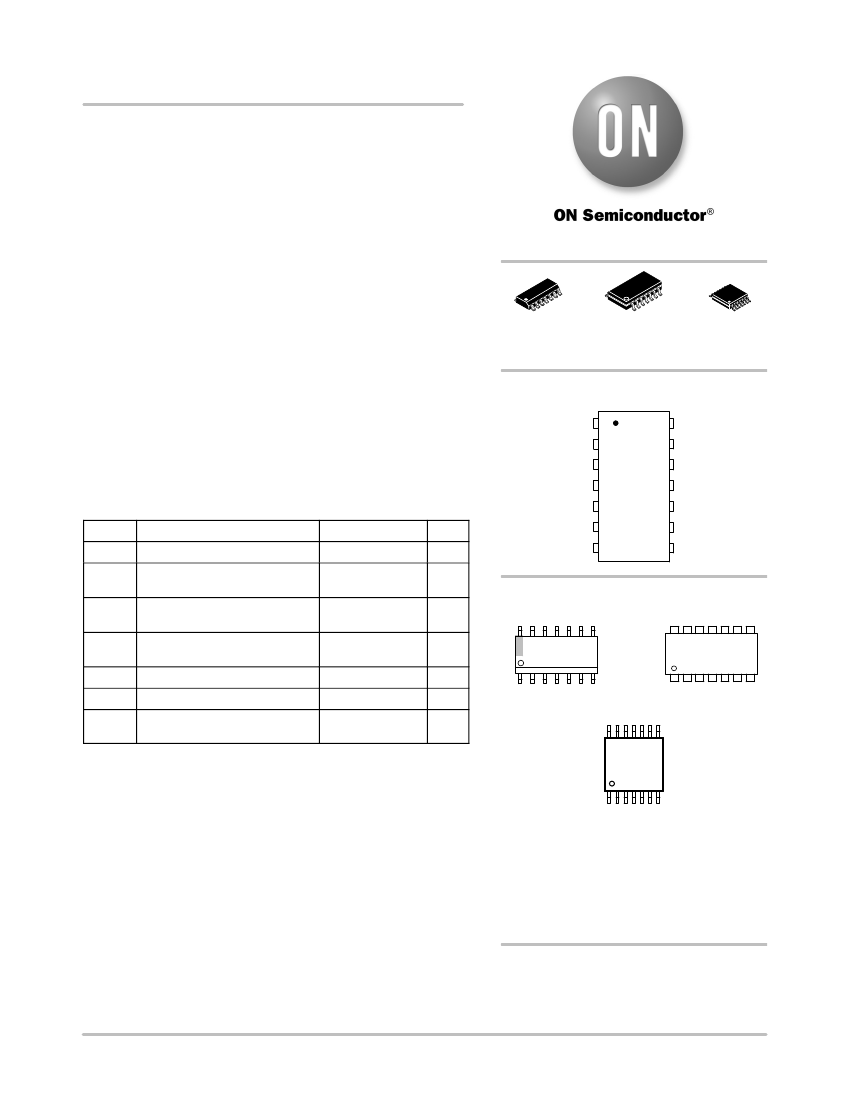

MC14069UB
Hex Inverter
The MC14069UB hex inverter is constructed with MOS P−channel
and N−channel enhancement mode devices in a single monolithic
structure. These inverters find primary use where low power
dissipation and/or high noise immunity is desired. Each of the six
inverters is a single stage to minimize propagation delays.
Features
http://onsemi.com
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Capable of Driving Two Low−Power TTL Loads or One
Low−Power Schottky TTL Load Over the Rated Temperature
Range
Triple Diode Protection on All Inputs
Pin−for−Pin Replacement for CD4069UB
Meets JEDEC UB Specifications
NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
These Devices are Pb−Free and are RoHS Compliant
SOIC−14
D SUFFIX
CASE 751A
SOEIAJ−14
F SUFFIX
CASE 965
TSSOP−14
DT SUFFIX
CASE 948G
PIN ASSIGNMENT
IN 1
OUT 1
IN 2
OUT 2
IN 3
1
2
3
4
5
6
7
14
13
12
11
10
9
8
V
DD
IN 6
OUT 6
IN 5
OUT 5
IN 4
OUT 4
MAXIMUM RATINGS
(Voltages Referenced to V
SS
)
Symbol
V
DD
V
in
, V
out
I
in
, I
out
P
D
T
A
T
stg
T
L
Parameter
DC Supply Voltage Range
Input or Output Voltage Range
(DC or Transient)
Input or Output Current
(DC or Transient) per Pin
Power Dissipation, per Package
(Note 1)
Ambient Temperature Range
Storage Temperature Range
Lead Temperature
(8−Second Soldering)
Value
−0.5 to +18.0
−0.5 to V
DD
+ 0.5
±10
500
−55 to +125
−65 to +150
260
Unit
V
V
OUT 3
V
SS
MARKING DIAGRAMS
mA
14
mW
°C
°C
°C
14
14
069U
ALYWG
G
1
TSSOP−14
A
WL, L
YY, Y
WW, W
G or
G
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
14069UG
AWLYWW
1
SOIC−14
1
SOEIAJ−14
14
MC14069UB
ALYWG
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. Temperature Derating: “D/DW” Packages: –7.0 mW/_C From 65_C To 125_C
This device contains protection circuitry to guard against damage due to high
static voltages or electric fields. However, precautions must be taken to avoid
applications of any voltage higher than maximum rated voltages to this
high−impedance circuit. For proper operation, V
in
and V
out
should be constrained
to the range V
SS
(V
in
or V
out
)
V
DD
.
Unused inputs must always be tied to an appropriate logic voltage level
(e.g., either V
SS
or V
DD
). Unused outputs must be left open.
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
©
Semiconductor Components Industries, LLC, 2014
1
August, 2014 − Rev. 11
Publication Order Number:
MC14069UB/D
