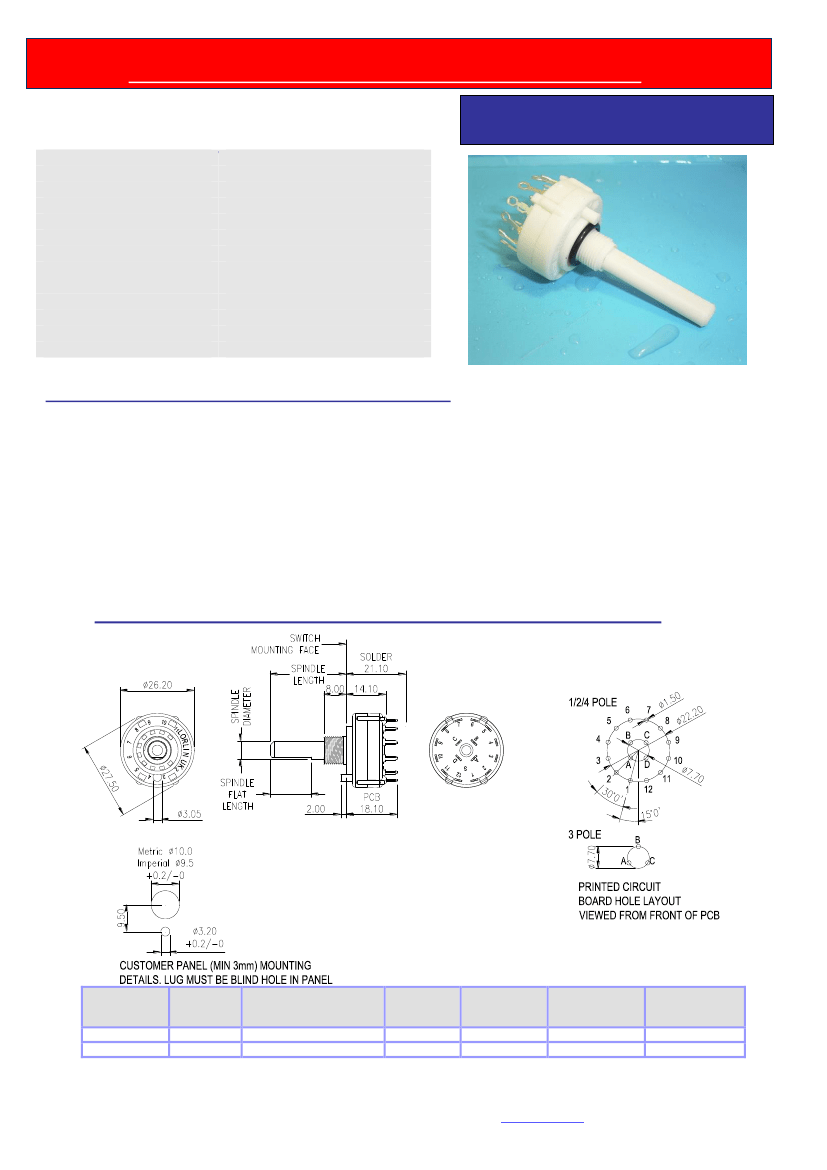

CKF SEALED ROTARY SWITCH

GENERAL ELECTRICAL &

MECHANICAL SPECIFICATION

Switch Rating:

Life:

Operating Temperature:

Proof Voltage:

Insulation Resistance:

Contact Resistance:

Operating Torque (nominal)

End Stop Torque (nominal):

Moulding Material:

Contact/Terminal Material:

RoHS COMPLIANT

150mA @ 250V ac/dc

1A @ 24V dc

>10,000 Cycles

-30ºC to +85 ºC

1,500Vac (Initial)

>999 MΩ at 500Vdc (Initial)

<20 mΩ

(initial)

Standard 10.5 ± 1 N cm

Light Action 5.5 ± 0.5 N cm

0.80 Nm

Polyamide 6.6 G.F. V0 RATED

Brass CZ108 Ag Plated

GENERAL FEATURES & OPTIONS

Made in UK

Cost effective single wafer

switch

Moulded 27.5mm diameter

Standard 30º indexing

Solder or Printed Circuit

Board Terminals

Up to 4 poles per switch

Maximum 12 positions

Moulded in UL94 V0 material.

Optional reinforcement ring.

Shorting (make before break 30º

indexing only) or non shorting

(break before make) contacts.

Special options: 60ºor 90º indexing,

continuous rotation. Fixed stop,

gold flash or gold plated contacts,

and spindles with special flats.

CKF same form, fit & function to

the CK range

Dampened indexing & reduced

shaft play gives smooth feel.

Front panel sealed to IP65

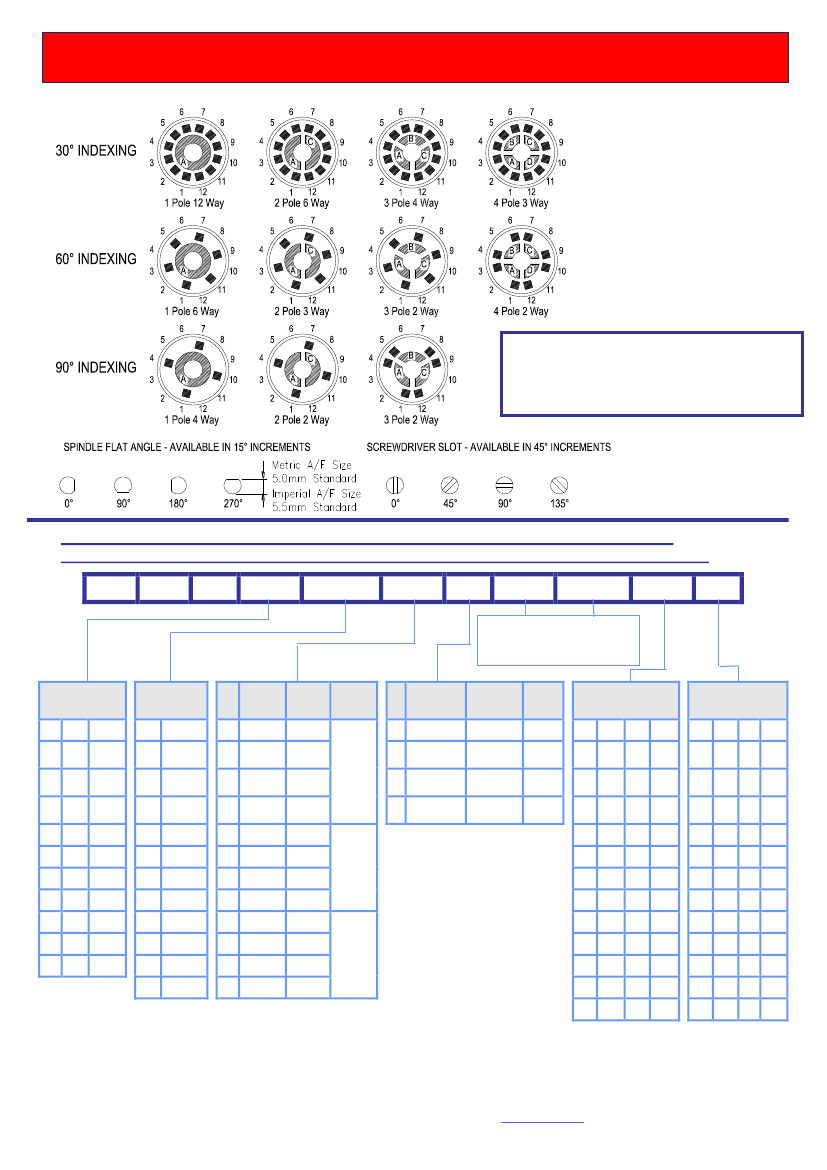

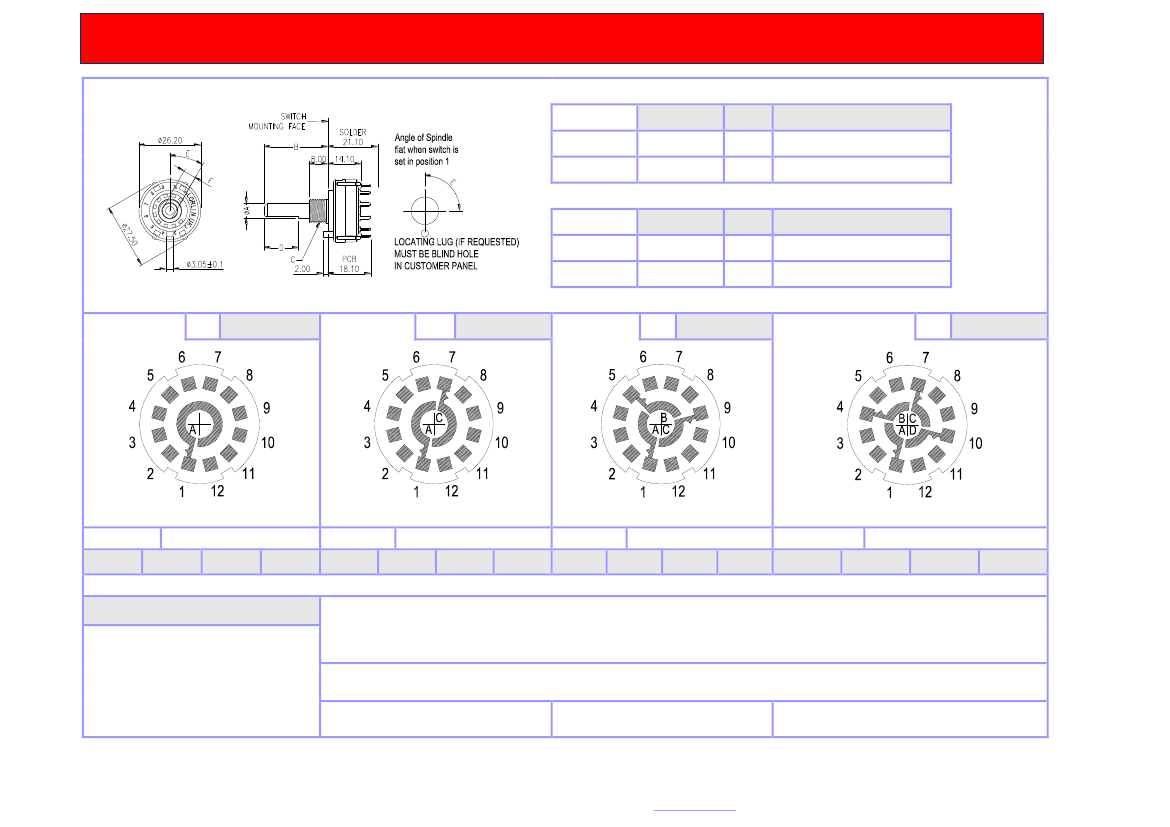

CKF ROTARY SWITCH SPECIFICATION SHEET

BASIC TYPES

IMPERIAL

METRIC

SPINDLE

DIAMETER

6.35mm

6.00mm

SPINDLE LENGTH

FROM MOUNTING FACE

38mm

50mm

8mm LONG

BUSH

9.52 x 32TPI

M10 x 0.75

SPINDLE

FLAT

LENGTH

30mm

No Flat

ANGLE OF

SPINDLE FLAT

90º

---

SPINDLE FLAT

THICKNESS

5.5mm

---

Lorlin Electronics Ltd, Harwood Industrial Estate, Harwood rd, Littlehampton, W. Sussex BN17 7AT England

Tel (+44) 01903 725121 Fax (+44) 01903 726808 E-mail

sales@lorlin.co.uk
