IEEE 1394 Connection System
for Harsh Environments
Description

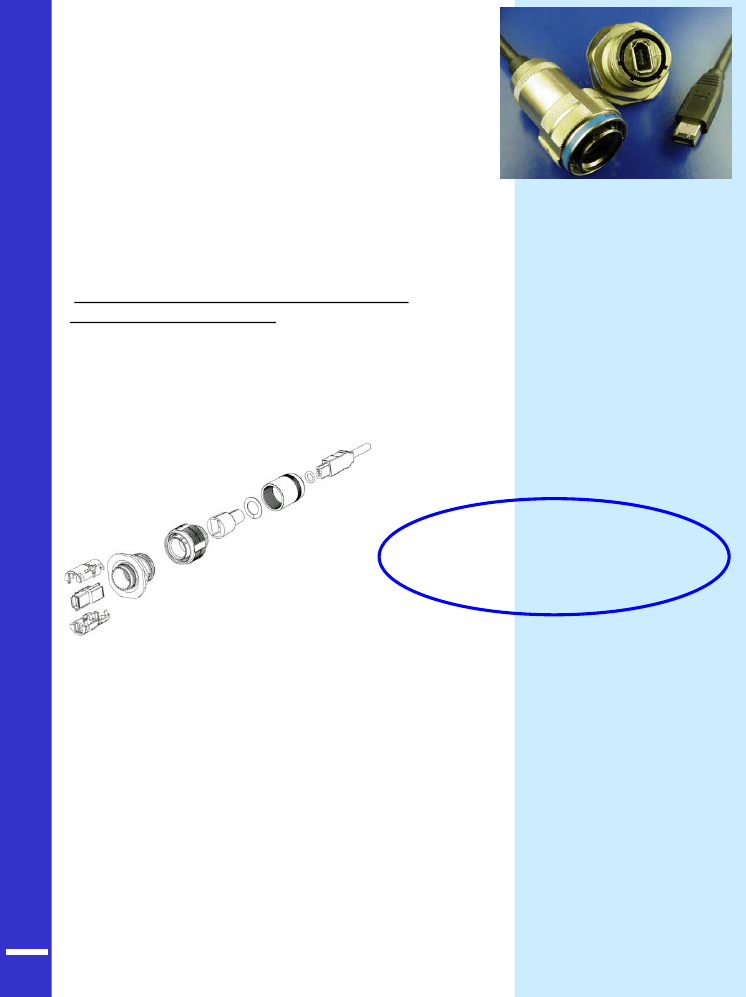

FW Field allows you to use a standard IEEE1394 connection
in harsh environments:
• Sealed against fluids and dusts (IP67)
• Shock, vibration and traction resistant
• No timely in-field cabling operation necessary
• No assembly tools required
• Improved EMI protection
With FW Field, you can insert most
standard IEEE 1394
cordsets
into our metallic plug shell to protect it from
shocks, dust and fluids.
No hazardous in-field cabling and grounding required!
FW FIELD TV
Transform your IEEE 1394
cordset into a Harsh
Environment Connector !
The metallic plug connects into the receptacle using a
Tri-Start Thread coupling mechanism (MIL-DTL-38999
series III type) with an anti-decoupling device for high
vibrations.
On the receptacle side, an IEEE 1394 receptacle is
soldered onto a PCB with the following back
terminations:
• another IEEE 1394 receptacle
• solder board with 6 tined holes to solder your wires
Standard cordset shielding is transmitted to the IEEE
1394 receptacle through grounding fingers.
For added EMI protection, the shells are conductively
plated (Ni, Cd) and have metallized receptacle inserts
which transmit the shielding to the connector shells and
then the panel.
Amphenol Pcd
–
2 Technology Drive – Peabody – Massachussetts – 01960 USA
Tel. :+ 1 978-532-8800 x273
Fax : + 1 978-532-680
Applications
• Embedded Computers
• Data
Acquisition and
Transmission in harsh
environments
For :
• Railways
• Battelfield Communication
Systems
• Naval & Shipboard Systems
• Robotics & Automation
• Process Control
• Rugged Communications
Amphenol
®
Amphenol
®
1
DOC-000051-ANG REV-D Nov. 2004
Main Characteristics
Data Transmission
•
IEEE 1394a –
2000
Environmental Protection
•
Sealing (mated) : IP67 (Temporary immersion - 1M up to 30
minutes)
•
Salt Spray :
48 hr with Nickel plating
500 hr with Olive Drab Cadmium
•
Fire Retardant / Low Smoke : UL94 V0 and NF F 16 101 & 16 102
•
Vibrations : 10 – 500 Hz, 10 g, 3 axes : no discontinuity > 1micro s
•
Shocks : IK06 : weight of 250 g drop from 40 cm [15.75 in] onto
connectors (mated pair)
•
Humidity : 21 days, 43°C, 98% humidity
•
Temperature Range : - 55°C / +85°C
Data rate
400 Mbits/second over 4.5 meters
Mechanical
•
Tri-start thread coupling mechanism (MIL-DTL-38999
series III type) with anti-decoupling device
•FW
plug retention in the receptacle : 100 N in the axis
•
Mating cycles : 500 to 1500 times
Can be used with most IEEE 1394 cordset brands : No tools required!

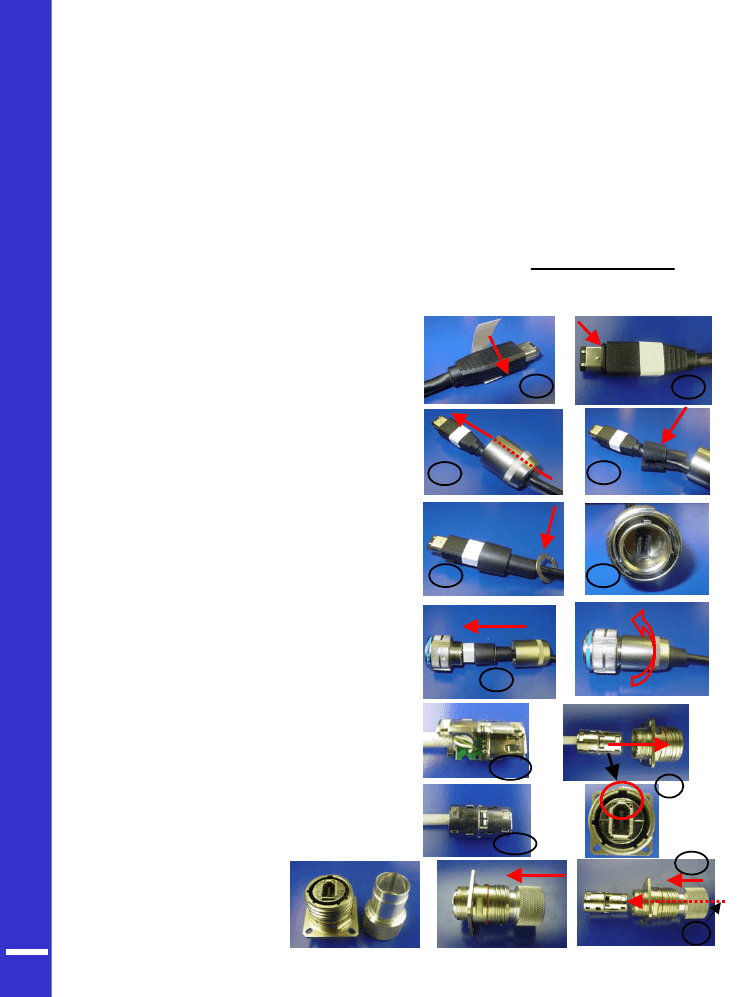

Assembly Instructions
Plug Assembly
1.
If a fully sealed (IP67) assembly is required: Install the
white tape around the plug to cover the 4 holes of the
overmolding. If there are no holes omit this step.
Insert the black O Ring around the front face of the IEEE
1394 plug. This O Ring will ensure the seal.
Insert the IEEE 1394 cordset into the metallic backshell.
Insert laterally onto the cable the retention spacer (this
spacer is soft so as to adapt to various overmolding styles)
and slide the IEEE 1394 plug into this retention spacer.
Insert the friction ring laterally onto the cable cordset.
Insert the IEEE 1394 plug into the metallic circular shell.
Note at this step that the main key is used for polarization.
Screw the backshell on the plug body. A spanner may be
required to fully close the backshell to the circular shell.
1
2
2.
3.
4.
3
4
5.
6.
7.
5
6
Important Note
: The sealing of the connector is not done by the
black retention spacers which are sloted, but rather by the
front face O-Ring (Fig 2).
7
Receptacle Assembly
(For Solder back-termination Styles only)
To Solder your cable onto the PCB :
1.
2.
Attach the 2 metallized plastic inserts around the PCB
(Fig 1a & 1b).
Insert the IEEE 1394 module from the rear of the
connector.
1a
2
1b
Removing Modules
1.
2.
Insert the removal tool
FWF
ODE
from the front
Push the module back with
thumb.
1
2
Amphenol Pcd
–
2 Technology Drive – Peabody – Massachussetts – 01960 USA
Tel. :+ 1 978-532-8800 x273
Fax : + 1 978-532-680
Amphenol
2
®

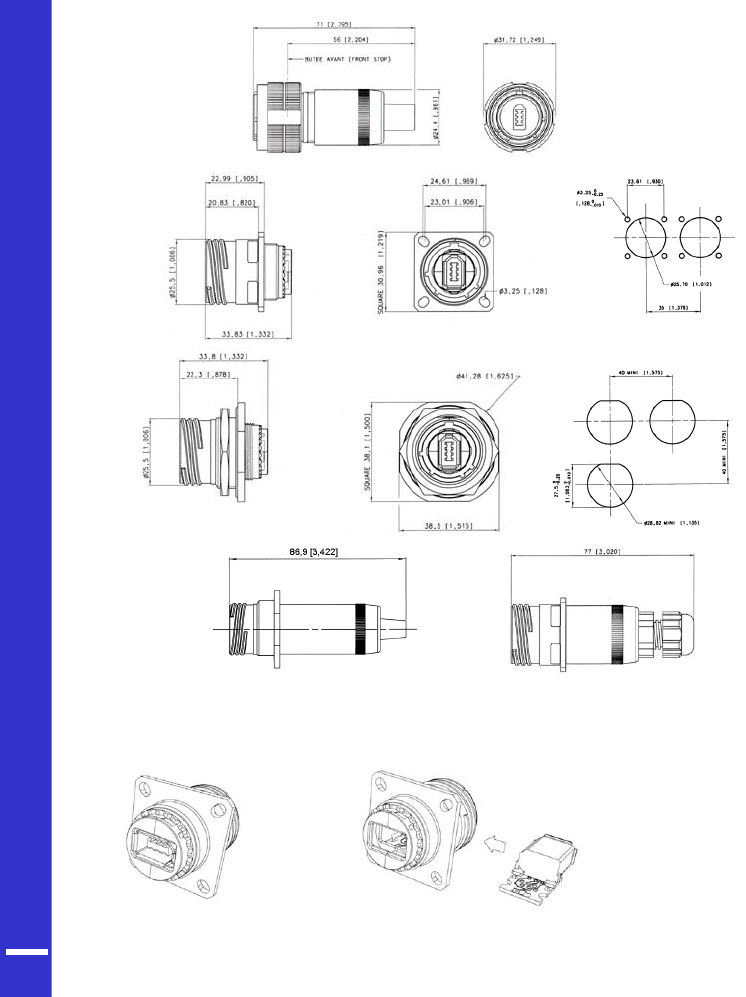

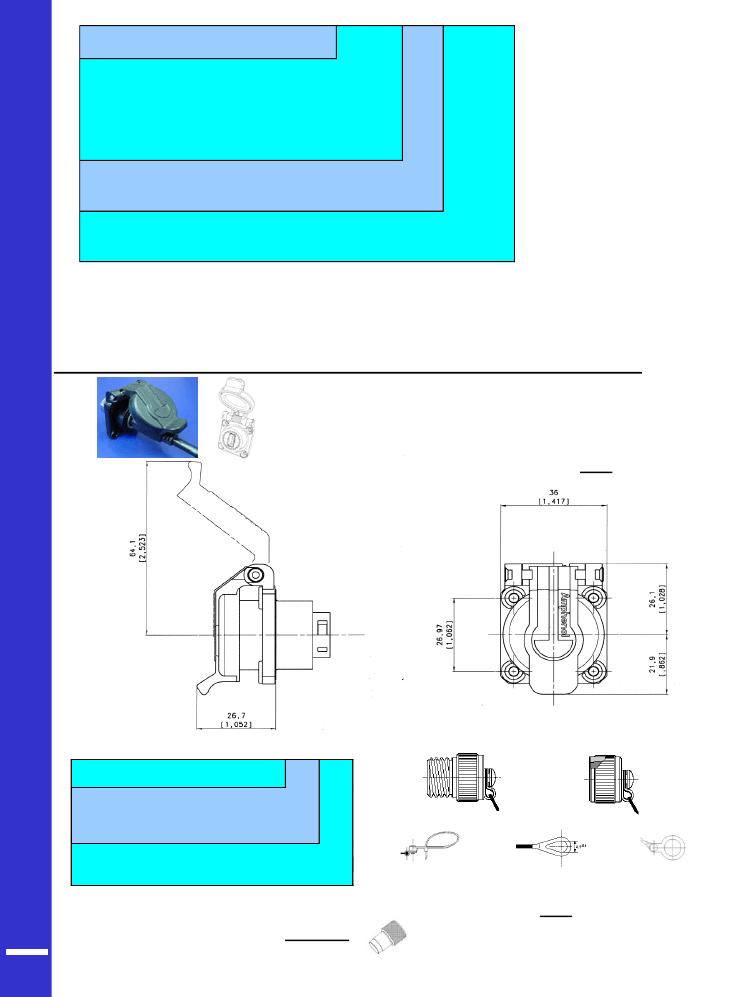

Plug :
« 6 » Shell
Receptacles :
« 2 » Shell
Square
Flange
Panel Drilling
« 7 » Shell
Jam Nut
Panel Drilling
« 2PE » and « 7PE »
Shells
with Backshell to protect
the termination from dust,
shocks and vibration.
Backshell used with IEEE 1394 Receptacle
with back-termination - (Type 1)
Non sealed version
Backshell used with PCB Receptacle back-
termination - (Type 2)
Sealed
version – IP67
Back Terminations :
View of the PCB
Type 2
version -
with 6 tined holes
for solder
termination
Front
3
Type 1 : IEEE 1394 Receptacle
Type 2 : Solder
6 Tined holes for soldering
Back
Amphenol Pcd
–
2 Technology Drive – Peabody – Massachussetts – 01960 USA
Tel. :+ 1 978-532-8800 x273
Fax : + 1 978-532-680
Amphenol
®
Part Number Code
FW F TV
IEEE 1394 Field TV
Shell Type
6 :
Plug
2 :
Square Flange Receptacle
2PE :
Square Flange Receptacle with backshell
7 :
Jam Nut Receptacle
7PE :
Jam Nut Receptacle with backshell
Back Terminations (Receptacles only)
1 :
IEEE 1394 receptacle
2 :
Solder
Board
(6 tined holes)
Shell Plating
N :
Nickel
G :
Olive Drab Cadmium
Examples :
- Olive Drab Cadmium Plug :
FWF TV 6G
- Olive Drab Cadmium Square Flange Receptacle, IEEE 1394
front & back
:
FWF TV 21G
- Olive Drab Cadmium Jam Nut Receptacle, IEEE 1394
front and back
:
FWF TV 71G
- Nickel Jam Nut Receptacle, solder
board
termination :
FWF TV 72N
2
1
G
Square flange receptacle with Self Closing Cap (cap with a spring inside) :
ew!
N
FWF 21N SCC (*)
Nickel and metallized inserts (EMI)
(*) This P/N includes the square flange
FWF 21B SCC (*)
Black and blank insert
receptacle and the self closing cap
Note :
Panel gasket to use with this version only :
JE18
Accessories
•
Metallic Caps
FWF TVC
Connector Type
6 :
Plug
2 :
Square Flange Receptacle
7 :
Jam Nut Receptacle
Shell plating
N :
Nickel
G :
Olive Drab Cadmium
2
G
Plug Cap
Receptacle Cap
Plug Cap end
Square flange
receptacle cap end
Jam Nut receptacle
cap end
•
Panel Gasket for square flange receptacle (Thickness : 0,8 mm [.031]) : JE15
4
•
Receptacle Insert removal tool : FWF ODE
Amphenol Pcd
–
2 Technology Drive – Peabody – Massachussetts – 01960 USA
Tel. :+ 1 978-532-8800 x273
Fax : + 1 978-532-680
Amphenol
®
