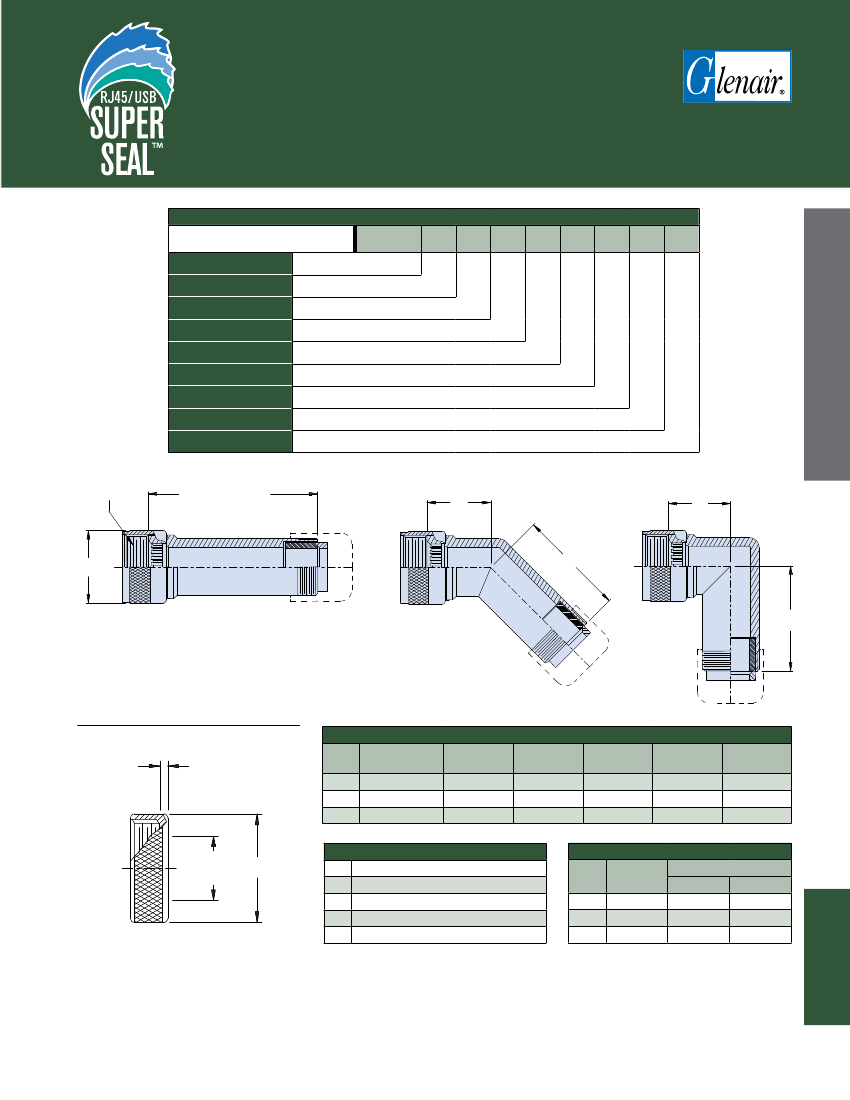

370-007 Cable Sealing Backshell with Rotatable
Coupling for 28840 Type Connectors
How To Order
Sample Part Number
Series/Basic Part No.
Connector Designator
Angular Function
Basic Part No.
Finish
Shell Size
Dash No.
Strain Relief Style
Length
370
- low Profile
G
= 28840
J
= 90°
007
370
G
S
007
M
17
03
D
1.5
H
= 45°
S
= Straight
See Material and Finish Table
15, 17, 19
See Dash Number Table
D
= Nut
1/2 inch increments (e.g. 6 = 3 inches); Straight only
Straight (S)
A Thread
Length ± .060 (1.52)
Min. Order Length 1.5 Inch
(See Note 1)
45° (H)
E
90° (J)
G
C Typ.
F
H
STRAIN RELIEF STYLE D
.135 (3.4)
Max
Dimensions
Shell
Size
15
17
19
A Thread
M22 X 1 -- 6H
M25 X 1 -- 6H
M28 X 1 -- 6H
C Typ.
1.07 (27.2)
1.21 (30.7)
1.36 (34.5)
E Max
.645 (16.4)
.738 (18.7)
.926 (23.5)
F Max
2.359 (59.9)
2.469 (62.7)
2.659 (67.5)
G Max
.700 (17.8)
.885 (22.5)
.975 (24.8)
H Max
2.369 (60.2)
2.459 (62.5)
2.629 (66.8)
Cable
Range
Z
NF
M
Materials and Finishes
Aluminum/ Cadmium, olive drab
Aluminum/ Electroless nickel
Dash
No.
03
04
06
Dash Number
Cable Range
Z Max
Min.
Max.
.630 (16.0)
.755 (19.2)
.942 (23.9)
.250 (6.4)
.312 (7.9)
.438 (11.1)
.250 (6.4)
.312 (7.9)
.438 (11.1)
MT
Aluminum/ Nickel PTFE
ZR
Aluminum/ Zinc-nickel black
Z1
Stainless Steel/ Passivate
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperSeal™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
M-17
MIL-DTL-28840 Type
