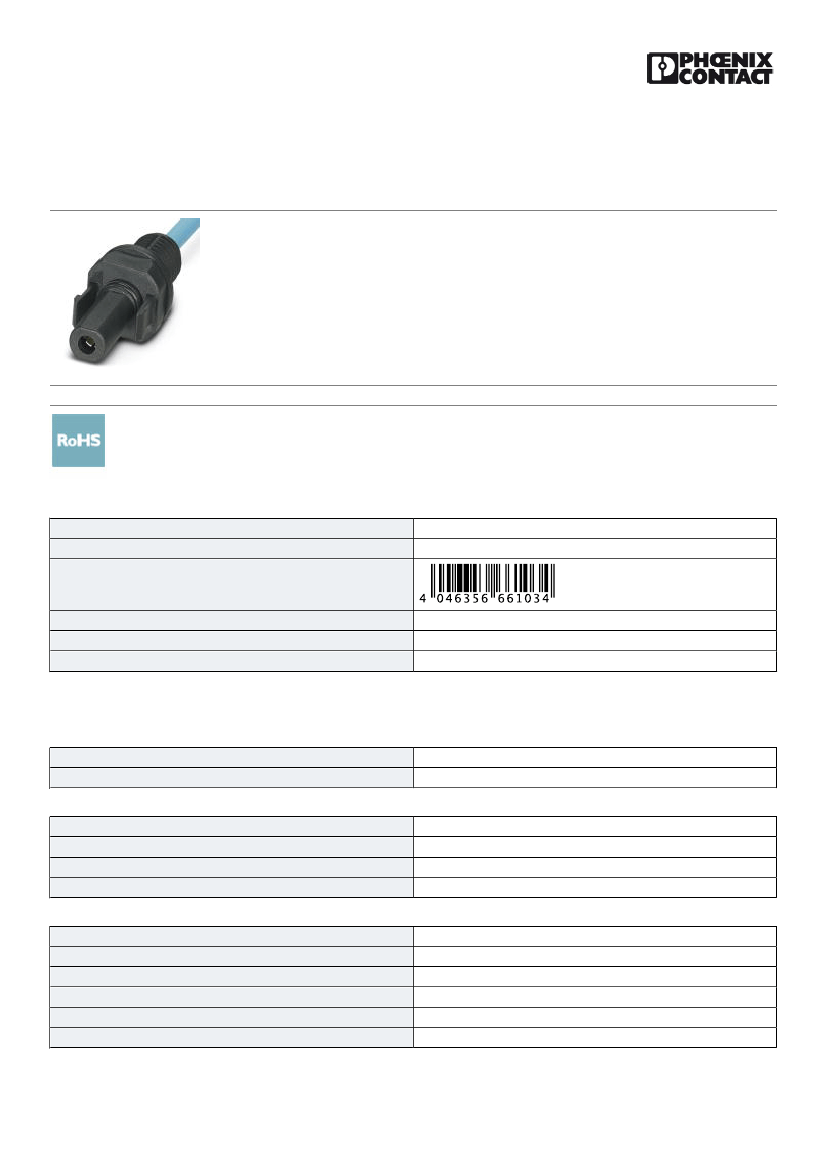

Photovoltaic connector - PV-FT-CF-C-2,5-235-BU-FE - 1804097
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Photovoltaic connector, Nominal current: 27 A, Nom. voltage: 1500 V, Connection type: Crimp, Color: black,
Can only be released using a tool
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356661034
85359000
Made to Order (non-returnable)
50 STK
100 STK
Technical data
Dimensions
Fixed cable length
External cable diameter
235 mm
4.25 mm ±0.15 mm
Ambient conditions
Degree of protection (when plugged in)
Degree of protection (not plugged in)
Ambient temperature (operation)
Ambient temperature (assembly)
IP66 / IP68 (2 m / 24 h)
IP65
-40 °C ... 85 °C
-25 °C ... 50 °C
General
Design
Tightening torque nut
Insertion force
Disconnect force
Pull-out force of cable >= disconnect force
Rated voltage
Socket
1.8 Nm ±0.1 Nm
45 N ±10 N
250 N ±50 N
> 80 N
1500 V
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1804097
Photovoltaic connector - PV-FT-CF-C-2,5-235-BU-FE - 1804097
Technical data
General
Rated current (2.5 mm²)
Nominal cross section
Protection class
27 A
2.5 mm²
II
Material
Color
Insulating material
Contact material
Contact surface material
Flammability rating according to UL 94
black
mPPE
Cu
Ag
V0
Connection data
Connection method
Connection capacity
Contact resistance with connected conductor
Cable type
Crimp
2.5 mm²
0.45 mΩ
S01
Conductor
Outer sheath, material
External sheath, color
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
PE-X
blue
21.25 mm
42.5 mm
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Dimensional drawing
±0,05
Dimensional drawing
43,2
c
a
Ø12,1
Ø1,2
±0,1
±0,05
5,2
5,7
±0,05
b
c
x
Dimension x = cable length
c: panel thickness - plastic: 2 - 6 mm; metal: 2 - 5 mm
Ø18,6
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1804097
Photovoltaic connector - PV-FT-CF-C-2,5-235-BU-FE - 1804097
Approvals
Approvals
Approvals
VDE Zeichengenehmigung / EAC
Ex Approvals
Approval details
VDE Zeichengenehmigung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-Search.aspx 40031807
2.5
27 A
1500 V
EAC B.01742
Phoenix Contact 2016 © - all rights reserved
