MR5002L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MR5002L

MR5002L: DescriptionAUTOMOTIVE RECTIFIER DIODES; CategoryDiscrete semiconductor diode; File Size17KB，2 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric Compare View All

MR5002L Overview

AUTOMOTIVE RECTIFIER DIODES

MR5002L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	500 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	50 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	5 µA
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

MR5000L - MR5010L

PRV : 50 - 1000 Volts

Io : 50 Amperes

FEATURES :

High current capability

High surge current capability

High reliability

Low reverse current

Low forward voltage drop

AUTOMOTIVE

RECTIFIER DIODES

MR - L

0.053 (1.35)

0.050 (1.27)

0.246 (6.25)

0.234 (5.94)

0.342 (8.69)

0.332 (8.43)

1.00 (25.4)

MIN.

MECHANICAL DATA :

* Case : Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Lead : Axial lead solderable per MIL-STD-202,

Method 208 guaranteed

* Polarity : Cathode polarity band

* Mounting position : Any

* Weight : 2.69 grams

Dimensions in inches and ( millimeter )

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

RATING

Maximum Repetitive Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Average Rectified Forward Current Tc = 150°C

Peak Forward Surge Current Single half sine

wave superimposed on rated load (JEDEC Method)

Maximum Forward Voltage at I

= 50 Amps.

Maximum DC Reverse Current

at rated DC Blocking Voltage

Thermal Resistance (Note 1)

Junction Temperature Range

Storage Temperature Range

Ta = 25

°C

Ta = 100

°C

SYMBOL

RRM

RMS

F(AV)

5000L 5001L 5002L 5004L 5006L 5008L 5010L

100

200

400

600

800

1000

100

140

200

280

400

420

600

560

800

700

1000

UNIT

Volts

Amps.

FSM

R(H)

STG

500

1.1

5.0

1.0

0.8

- 65 to + 175

Amps.

Volts

µA

°C/W

°C

Note

: (1) Thermal resistance from junction to case.

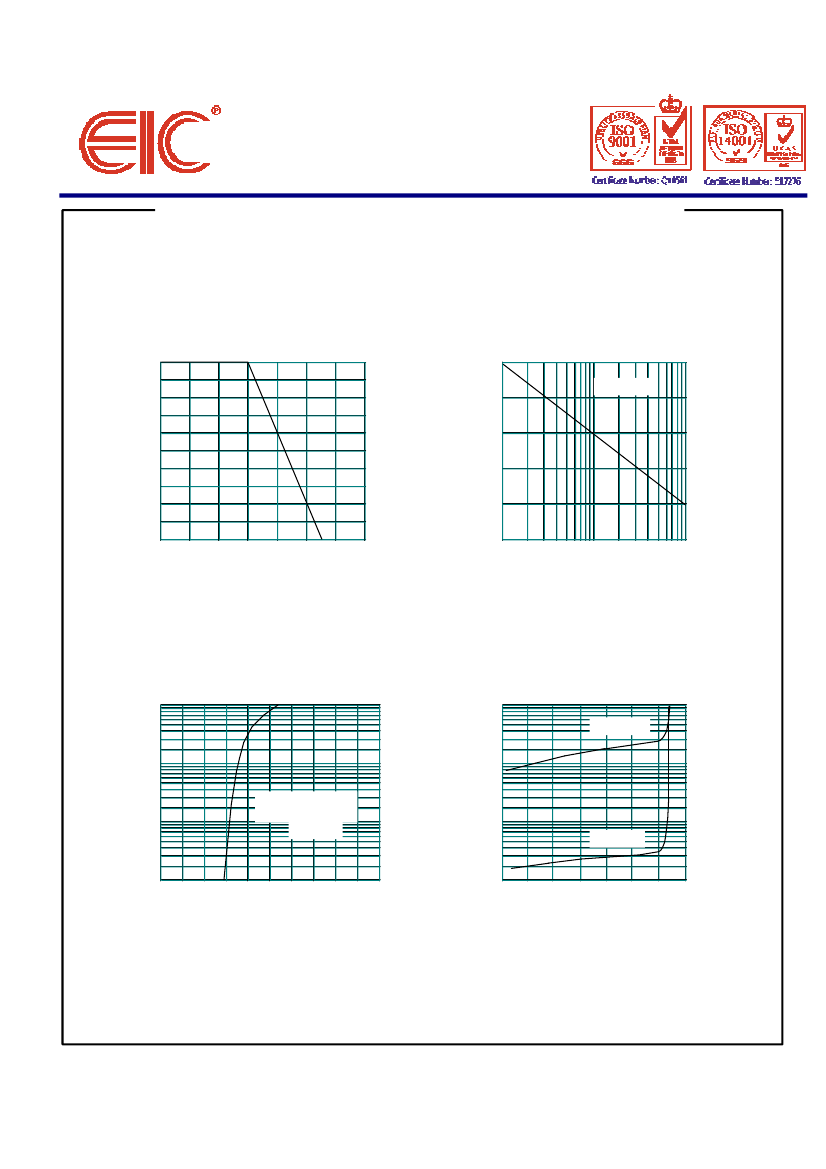

UPDATE : APRIL 23, 1998
