MBRH120150 thru MBRH120200R
Silicon Power
Schottky Diode

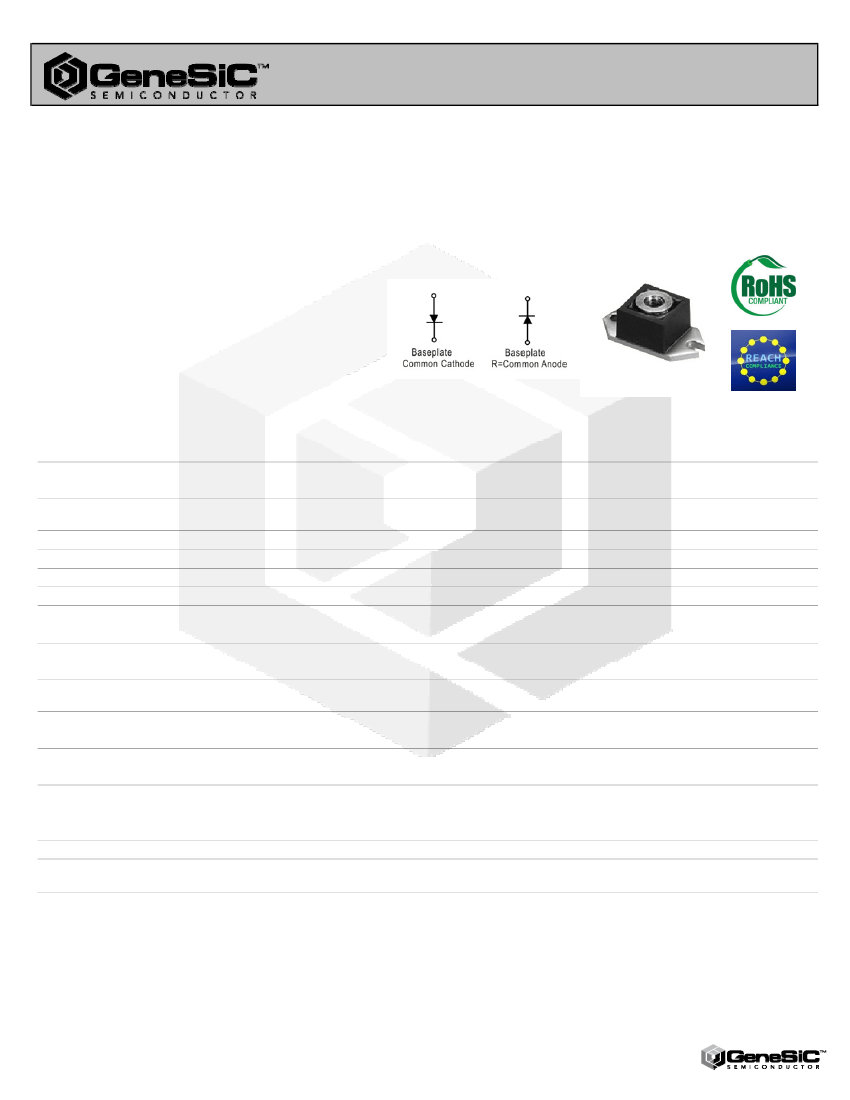

Features
• High Surge Capability
• Types from 150 V to 200 V V
RRM
• Not ESD Sensitive
D-67 Package
V
RRM
= 150 V - 200 V
I
F(AV)
= 120 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive peak reverse
voltage
RMS reverse voltage
DC blocking voltage
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
T
j
T
stg
Conditions
MBRH120150(R)
150
106
150
-55 to 150
-55 to 150
MBRH120200(R)
200
141
150
-55 to 150
-55 to 150
Unit
V
V
V
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Average forward current (per
pkg)
Peak forward surge current
Maximum instantaneous
forward voltage
Maximum instantaneous
reverse current at rated DC
blocking voltage
Symbol
I
F(AV)
I
FSM
V
F
I
R
Conditions
T
C
= 125 °C
t
p
= 8.3 ms, half sine
I
FM
= 120 A, T
j
= 25 °C
T
j
= 25 °C
T
j
= 100 °C
T
j
= 150 °C
MBRH120150(R)
120
2000
0.88
1
10
30
0.48
MBRH120200(R)
120
2000
0.92
1
10
30
0.48
Unit
A
A
V
mA
Thermal characteristics
Thermal resistance, junction-
case
R
ΘJC
°C/W
www.genesicsemi.com/silicon-products/schottky-rectifiers/
1

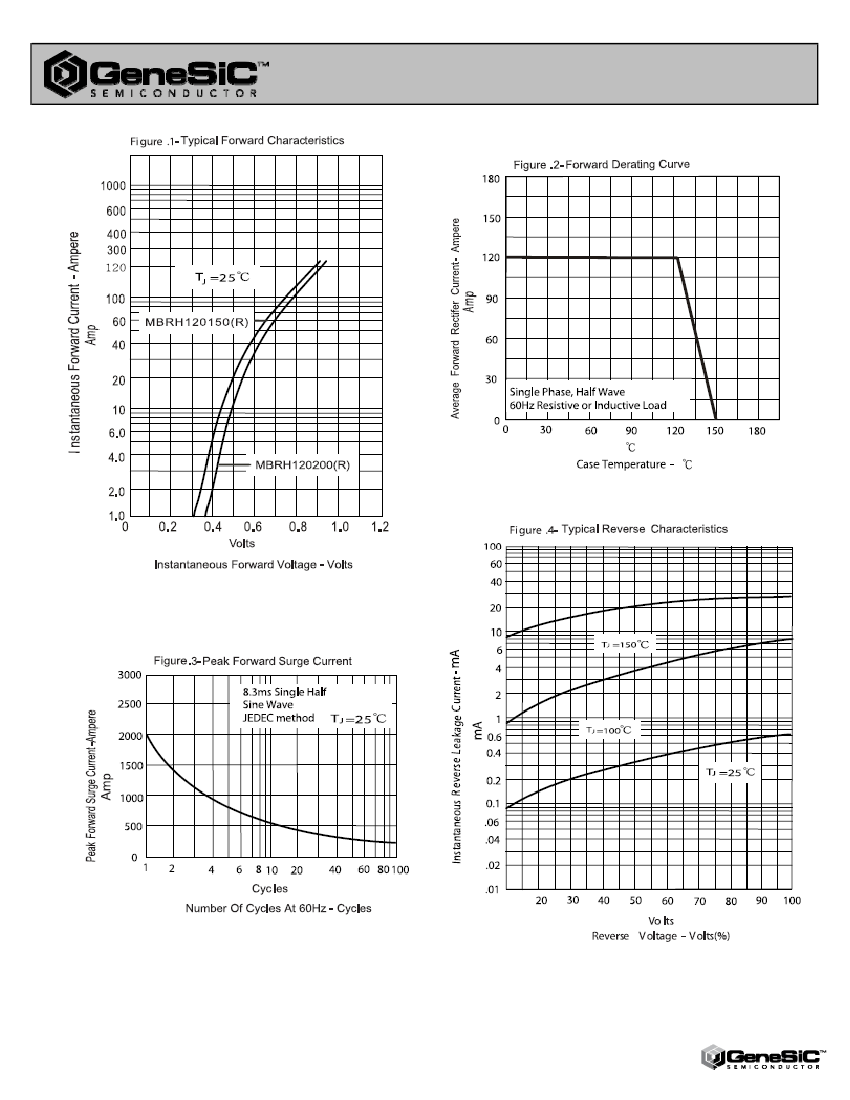

MBRH120150 thru MBRH120200R

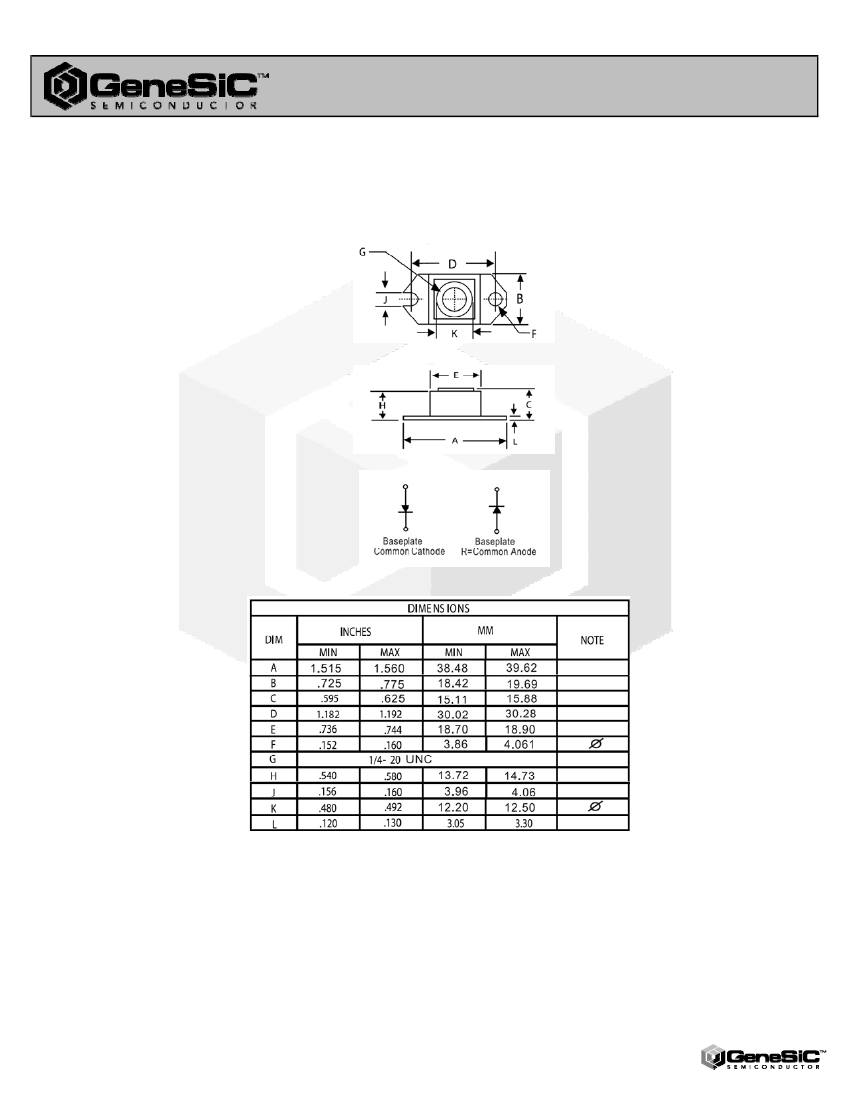

Package dimensions and terminal configuration
