DDTC
(LO-R1)
E

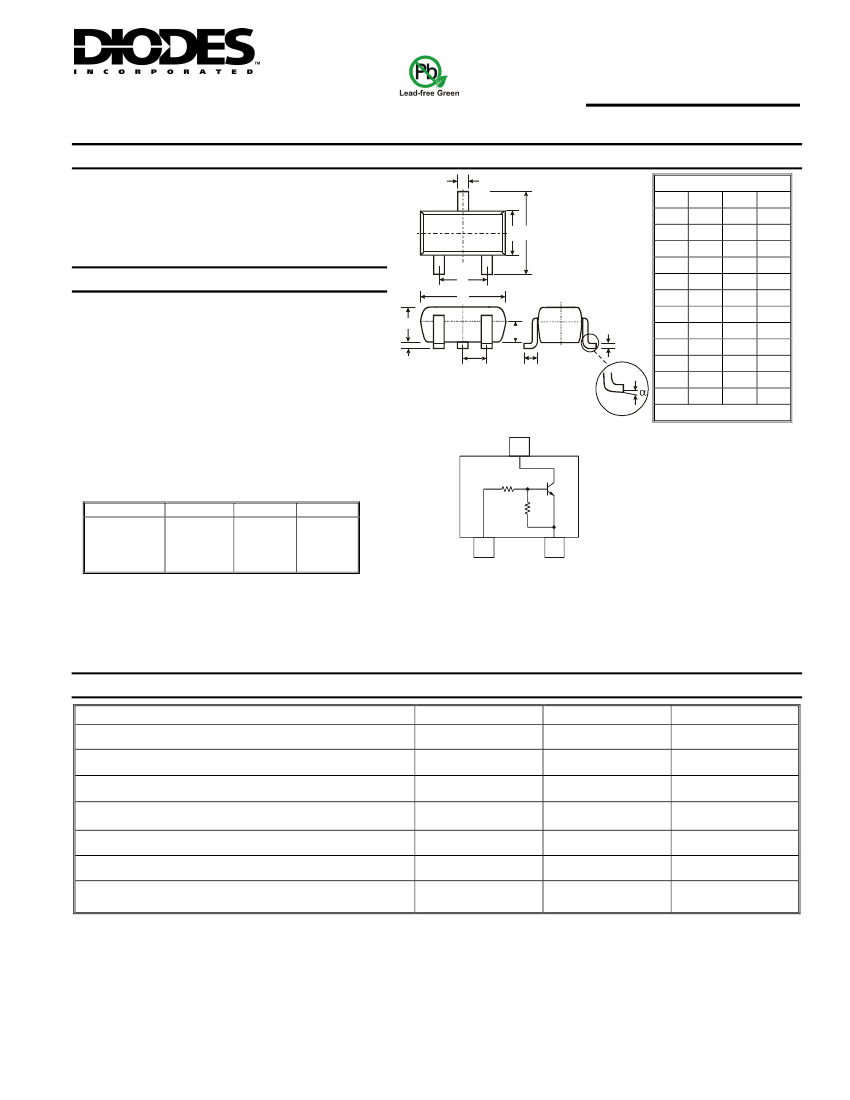

NPN PRE-BIASED 100 mA SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary PNP Types Available (DDTA)
Built-In Biasing Resistors
Lead Free/RoHS Compliant (Note 2)
"Green" Device (Note 3 and 4)
A
TOP VIEW
B C
Mechanical Data
•
•
•
•
•
•
•
•
•
Case: SOT-523
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Solderable per MIL-STD-202,
Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy
42 leadframe)
Terminal Connections: See Diagram
Marking Information: See Table Below & Page 3
Ordering Information: See Page 3
Weight: 0.002 grams (approximate)
K
G
H
M
N
J
D
L
Dim
A
B
C
D
G
H
J
K
L
M
N
SOT-523
Min Max
0.15 0.30
0.75 0.85
1.45 1.75
⎯
0.90
1.50
0.00
0.60
0.10
0.10
0.45
⎯
1.10
1.70
0.10
0.80
0.30
0.20
0.65
Typ
0.22
0.80
1.60
0.50
1.00
1.60
0.05
0.75
0.22
0.12
0.50
0°
8°
α
⎯
All Dimensions in mm
OUT
3
C
B
R1
R2
P/N
DDTC122LE
DDTC142JE
DDTC122TE
DDTC142TE
R1 (NOM)
0.22KΩ
0.47KΩ
0.22KΩ
0.47KΩ
R2 (NOM) MARKING
10KΩ
N81
N82
10KΩ
N83
OPEN
N84
OPEN
E
1
IN
2
GND(0)
Schematic and Pin Diagram
Maximum Ratings
Supply Voltage, (3) to (2)
Input Voltage, (1) to (2)
Input Voltage, (2) to (1)
Output Current
Power Dissipation
@T
A
= 25°C unless otherwise specified
Symbol
V
CC
DDTC122LE
DDTC142JE
DDTC122TE
DDTC142TE
All
(Note 1)
(Note 1)
V
IN
V
EBO (MAX)
I
C
P
d
R
θ
JA
T
j
, T
STG
Value
50
-5 to +6
-5 to +6
5
100
150
625
-55 to +150
Unit
V
V
V
mA
mW
°C/W
°C
Characteristic
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
Note:
1.
2.
3.
4.
Mounted on FR4 PC Board with recommended pad layout at http://www.diodes.com/datasheets/ap02001.pdf.
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
DS30404 Rev. 6 - 2
1 of 3
www.diodes.com
DDTC (LO-R1) E
© Diodes Incorporated
Electrical Characteristics
Characteristic
Input Voltage
@T
A
= 25°C unless otherwise specified
Symbol
DDTC122LE
DDTC142JE
DDTC122LE
DDTC142JE
V
l(off)
V
l(on)
V
O(on)
DDTC122LE
DDTC142JE
I
l
I
O(off)
DDTC122LE
DDTC142JE
G
l
f
T
Min
0.3
0.3
⎯
⎯
⎯
⎯
56
56
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
200
R1, R2 Types
Max
⎯
2.0
2.0
0.3V
28
13
0.5
⎯
⎯
Unit
V
V
V
mA
μA
⎯
Test Condition
V
CC
= 5V, I
O
= 100μA
V
O
= 0.3V, I
O
= 20mA
V
O
= 0.3V, I
O
= 20mA
I
O
/I
l
= 5mA/0.25mA
V
I
= 5V
V
CC
= 50V, V
I
= 0V
V
O
= 5V, I
O
= 10mA
Output Voltage
Input Current
Output Current
DC Current Gain
Gain-Bandwidth Product*
* Transistor - For Reference Only
MHz V
CE
= 10V, I
E
= 5mA, f = 100MHz
Electrical Characteristics
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
Collector-Emitter Saturation Voltage
DC Current Transfer Ratio
Gain-Bandwidth Product*
* Transistor - For Reference Only
@T
A
= 25°C unless otherwise specified
Symbol
BV
CBO
BV
CEO
DDTC122TE
DDTC142TE
BV
EBO
I
CBO
DDTC122TE
DDTC142TE
I
EBO
V
CE(sat)
DDTC122TE
DDTC142TE
h
FE
f
T
Min
50
40
5
⎯
⎯
⎯
⎯
100
100
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
250
250
200
R1-Only Types
Max
⎯
⎯
⎯
0.5
0.5
0.5
0.3
600
600
⎯
Unit
V
V
V
μA
μA
V
⎯
I
C
= 50μA
I
C
= 1mA
I
E
= 50μA
I
E
= 50μA
V
CB
= 50V
V
EB
= 4V
I
C
= 5mA, I
B
= 0.25mA
I
C
= 1mA, V
CE
= 5V
Test Condition
MHz V
CE
= 10V, I
E
= -5mA, f = 100MHz
250
P
d
, POWER DISSIPATION (mW)
200
150
100
50
0
-50
0
50
100
150
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 1 Power Derating Curve
DS30404 Rev. 6 - 2
2 of 3
www.diodes.com
DDTC (LO-R1) E
© Diodes Incorporated
Ordering Information
(Note 5)
Device
DDTC122LE-7-F
DDTC142JE-7-F
DDTC122TE-7-F
DDTC142TE-7-F
Notes:
5.
Packaging
SOT-523
SOT-523
SOT-523
SOT-523
Shipping
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
NXXYM
Nxx = Product Type Marking Code (See Page 1)
YM = Date Code Marking
Y = Year ex: T = 2006
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
2002
N
Jan
1
2003
P
Feb
2
2004
R
Mar
3
2005
S
Apr
4
2006
T
May
5
Jun
6
2007
U
Jul
7
2008
V
Aug
8
2009
W
Sep
9
2010
X
Oct
O
2011
Y
Nov
N
2012
Z
Dec
D
