ATMEGA649V-8AUR datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ATMEGA649V-8AUR

ATMEGA649V-8AUR: Description8-bit Microcontrollers - MCU AVR 64KB FL 2KB EE 4B SRAM LCD8MHz 1.8V; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，393 Pages; ManufacturerAtmel (Microchip); Environmental Compliance

Download Datasheet Parametric View All

ATMEGA649V-8AUR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATMEGA649V-8AUR	-	-	View	Buy Now

ATMEGA649V-8AUR Overview

8-bit Microcontrollers - MCU AVR 64KB FL 2KB EE 4B SRAM LCD8MHz 1.8V

ATMEGA649V-8AUR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Atmel (Microchip)
Parts packaging code	QFP
package instruction	TQFP, TQFP64,.63SQ,32
Contacts	64
Reach Compliance Code	compliant
ECCN code	EAR99
core architecture	AVR
Device core	AVR
clock speed	16
Memory	4
flash memory	64
were able	0
Adc channel	8
ADC resolution	10
Has ADC	YES
Other features	ALSO OPERATES AT 1.8V SUPPLY AT 4 MHZ
Address bus width
bit size	8
CPU series	AVR RISC
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
JESD-609 code	e3
length	14 mm
Humidity sensitivity level	3
Number of I/O lines	53
Number of terminals	64
On-chip program ROM width	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Encapsulate equivalent code	TQFP64,.63SQ,32
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	2/5 V
Certification status	Not Qualified
RAM (bytes)	4096
rom(word)	32768
ROM programmability	FLASH
Maximum seat height	1.2 mm
speed	8 MHz
Maximum slew rate	12 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

Features

•

High Performance, Low Power Atmel

AVR

8-Bit Microcontroller

•

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16MHz

– On-Chip 2-cycle Multiplier

High Endurance Non-volatile Memory Segments

– In-System Self-programmable Flash Program Memory

• 32KBytes (ATmega329/ATmega3290)

• 64KBytes (ATmega649/ATmega6490)

– EEPROM

• 1Kbytes (ATmega329/ATmega3290)

• 2Kbytes (ATmega649/ATmega6490)

– Internal SRAM

• 2Kbytes (ATmega329/ATmega3290)

• 4Kbytes (ATmega649/ATmega6490)

– Write/Erase Cycles: 10,000 Flash/ 100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C

(1)

– Optional Boot Code Section with Independent Lock Bits

• In-System Programming by On-chip Boot Program

• True Read-While-Write Operation

– Programming Lock for Software Security

JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features

– 4 x 25 Segment LCD Driver (ATmega329/ATmega649)

– 4 x 40 Segment LCD Driver (ATmega3290/ATmega6490)

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Universal Serial Interface with Start Condition Detector

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Interrupt and Wake-up on Pin Change

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and

Standby

I/O and Packages

– 53/68 Programmable I/O Lines

– 64-lead TQFP, 64-pad QFN/MLF, and 100-lead TQFP

Speed Grade:

– ATmega329V/ATmega3290V/ATmega649V/ATmega6490V:

– 0 - 4MHz @ 1.8 - 5.5V, 0 - 8MHz @ 2.7 - 5.5V

– ATmega329/3290/649/6490:

– 0 - 8MHz @ 2.7 - 5.5V, 0 - 16MHz @ 4.5 - 5.5V

Temperature range:

– -40°C to 85°C Industrial

Ultra-Low Power Consumption

– Active Mode:

• 1MHz, 1.8V: 350µA

• 32kHz, 1.8V: 20µA (including Oscillator)

• 32kHz, 1.8V: 40µA (including Oscillator and LCD)

– Power-down Mode:

• 100nA at 1.8V

•

8-bit Atmel

Microcontroller

with In-System

Programmable

Flash

ATmega329/V

ATmega3290/V

ATmega649/V

ATmega6490/V

•

2552K–AVR–04/11

ATmega329/3290/649/6490

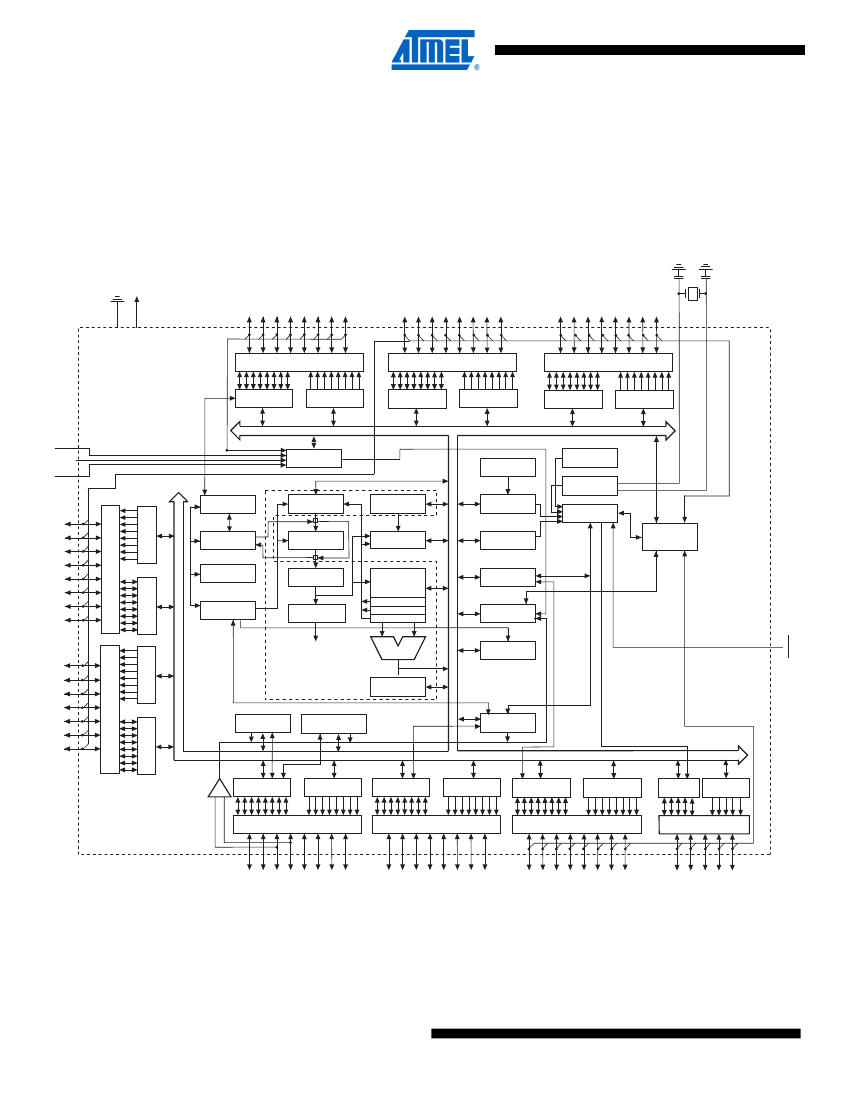

The Atmel

AVR

core combines a rich instruction set with 32 general purpose working regis-

ters. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two

independent registers to be accessed in one single instruction executed in one clock cycle. The

resulting architecture is more code efficient while achieving throughputs up to ten times faster

than conventional CISC microcontrollers.

The Atmel ATmega329/3290/649/6490 provides the following features: 32/64K bytes of In-Sys-

tem Programmable Flash with Read-While-Write capabilities, 1/2K bytes EEPROM, 2/4K byte

SRAM, 54/69 general purpose I/O lines, 32 general purpose working registers, a JTAG interface

for Boundary-scan, On-chip Debugging support and programming, a complete On-chip LCD

controller with internal contrast control, three flexible Timer/Counters with compare modes, inter-

nal and external interrupts, a serial programmable USART, Universal Serial Interface with Start

Condition Detector, an

8-channel,

10-bit ADC, a programmable Watchdog Timer with internal

Oscillator, an SPI serial port, and five software selectable power saving modes. The Idle mode

stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system to con-

tinue functioning. The Power-down mode saves the register contents but freezes the Oscillator,

disabling all other chip functions until the next interrupt or hardware reset. In Power-save mode,

the asynchronous timer and the LCD controller continues to run, allowing the user to maintain a

timer base and operate the LCD display while the rest of the device is sleeping. The ADC

Noise

Reduction mode stops the CPU and all I/O modules except asynchronous timer, LCD controller

and ADC, to minimize switching noise during ADC conversions. In Standby mode, the crys-

tal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast

start-up combined with low-power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The

On-chip In-System re-Programmable (ISP) Flash allows the program memory to be repro-

grammed In-System through an SPI serial interface, by a conventional non-volatile memory

programmer, or by an On-chip Boot program running on the AVR core. The Boot program can

use any interface to download the application program in the Application Flash memory. Soft-

ware in the Boot Flash section will continue to run while the Application Flash section is updated,

providing true Read-While-Write operation. By combining an

8-bit

RISC CPU with In-System

Self-Programmable Flash on a monolithic chip, the Atmel ATmega329/3290/649/6490 is a pow-

erful microcontroller that provides a highly flexible and cost effective solution to many embedded

control applications.

The Atmel ATmega329/3290/649/6490 is supported with a full suite of program and system

development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators,

In-Circuit Emulators, and Evaluation kits.

2552K–AVR–04/11
