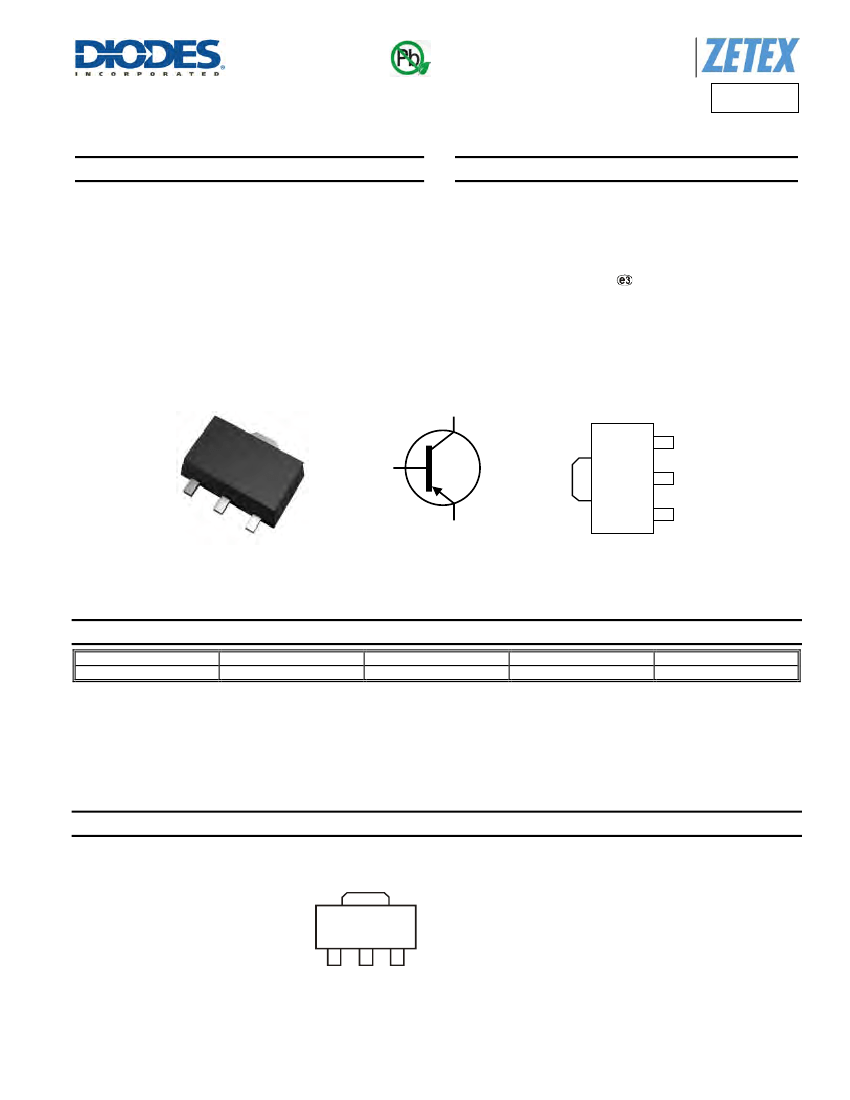

150V PNP HIGH VOLTAGE SWITCHING TRANSISTOR IN SOT89
Features
•
•
•
•
•
•
•
•
BV
CEO
> -150V
BV
CEV
> -180V
I
C
= -700mA high Continuous Collector Current
Low saturation voltage V
CE(sat)
< -300mV @ -100mA
Complementary NPN type: FCX495
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOT89
Case material: molded plastic. “Green” molding compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.052 grams (Approximate)
SOT89
C
E
B
C
C
B
Top View
Pin Out
E
Top View
Device Symbol
Ordering Information
(Note 4)
Product
FCX555TA
Notes:
Marking
555
Reel size (inches)
7
Tape width (mm)
12
Quantity per reel
1,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
