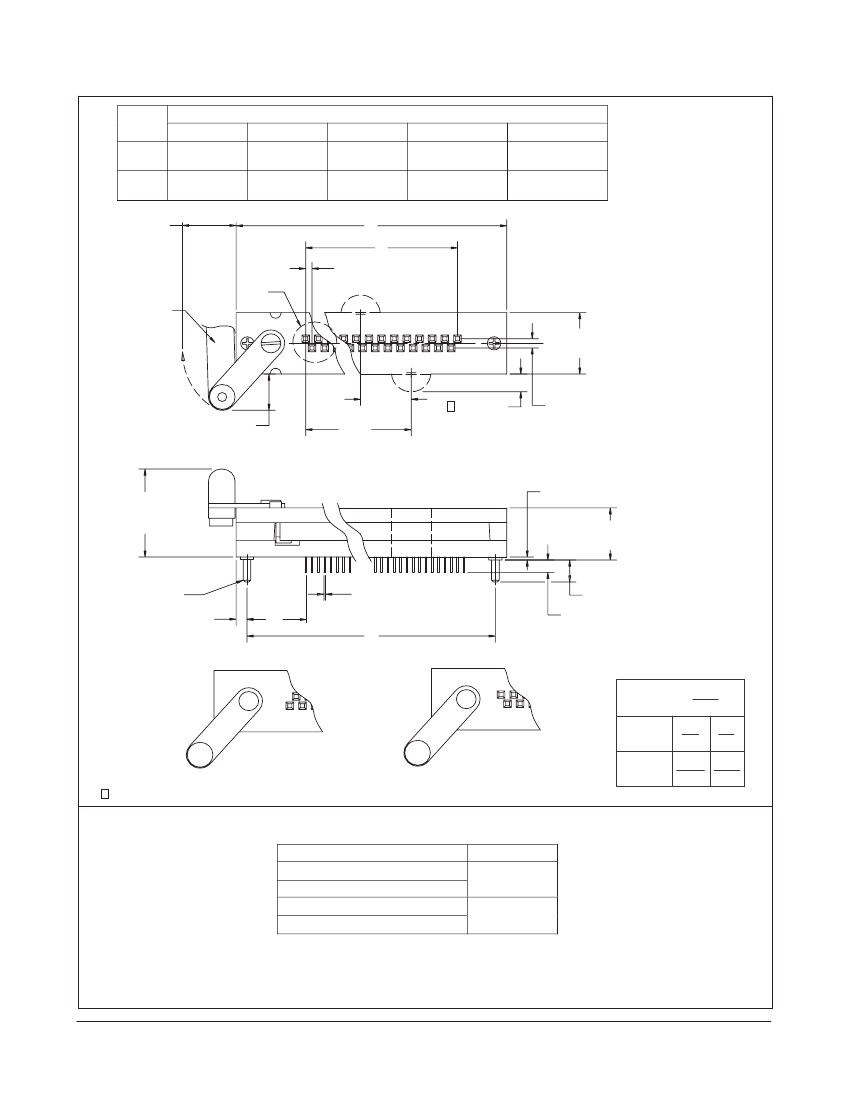

.050" (1.27 mm) x .075
"
(1.90 mm)

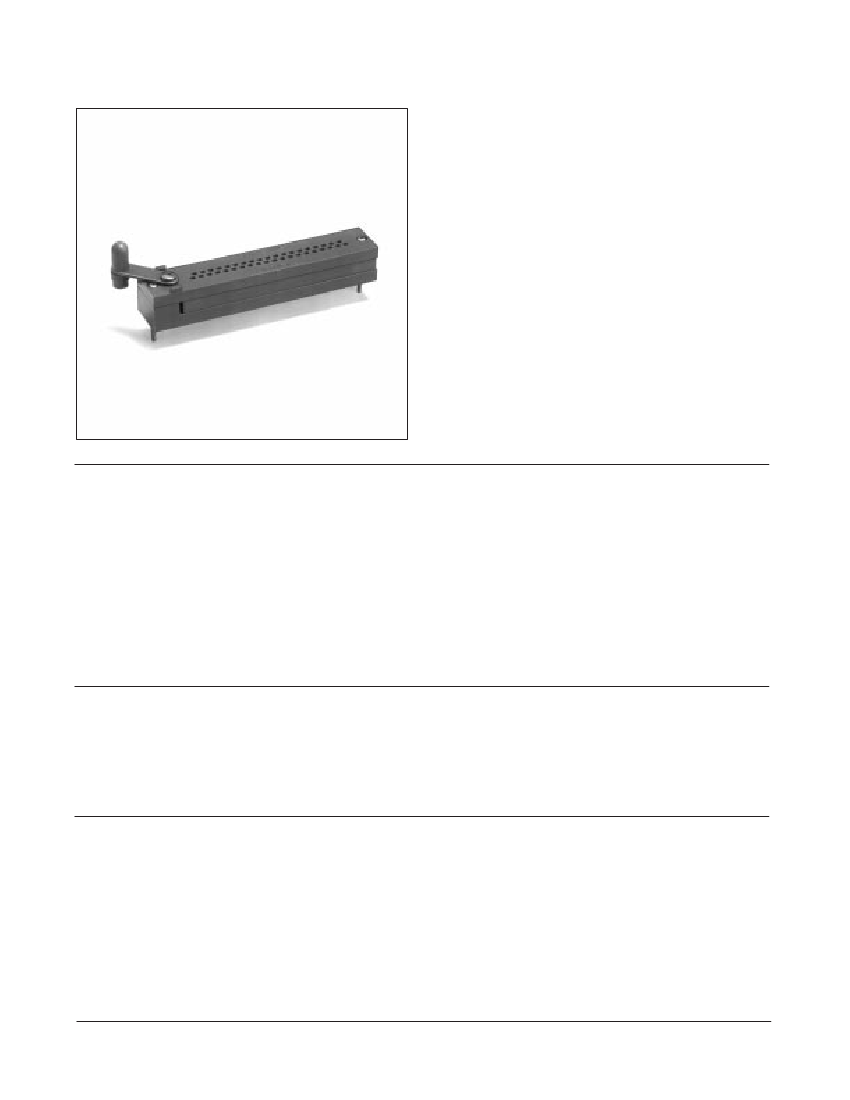

Staggered ZIP Strip Sockets
• For devices with .050" (1.27 mm) lead centers
formed in staggered rows with .100" (2.54 mm)
between centers (in same rows) and
.075" (1.90 mm) between rows
• Frequently used in pairs to handle devices with
staggered leads on opposite sides of the package
• Order left and right hand strips to obtain a
complete pair
• Lever actuated zero insertion force mechanism
Date Issued: February 20, 2001
23
TS-0453-09
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Marking:
Contact
Material:
Plating:
Glass Filled Polysulfone
UL 94V-0
Green
3M Logo & Part Identification
Beryllium Copper
30
m
" (0.76
m
m) Gold over 50
m
" (1.3
m
m) Nickel
Electrical
Current Rating:
1 Amp
Insulation Resistance:
> 1
¥
10
9
W
at 500 Vdc
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Operating Temperature Rating:
- 55° to +150°C
∞C
∞
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
.050" (1.27 mm) x .075
"
(1.90 mm)
Staggered ZIP Strip Sockets
Contact
Quantity
Dimensions
A
2.77
[ 70.3 ]
4.00
[ 101.6 ]
B
1.900
[ 48.26 ]
2.700
[ 68.58 ]
C
.460
[ 11.68]
.677
[ 17.20 ]
A
B
.050 Typ
[ 1.27 ]
D
2.59
[ 65.8 ]
3.80
[ 96.5 ]
E
.20
[ 5.1 ]
.23
[ 5.8 ]
39
55
.43 Max
[ 10.9 ]
Ganging Bar
See
Details
.500
C
L [ 12.70 ]
.400
[ 24.99 ]
.36 Max
[ 9.7 ]
.984
[ 24.99 ]
1 .156 Typ
[ 3.96 ]
.075
[ 1.90 ]
.025
[ 0.64 ] Standoffs
.76 Max
[ 19.3 ]
.43
[ 10.8 ]
2X #0-80
Mounting Screw
.09
[ 2.3 ]
C
.011 x .029
[ 0.28 ] [ 0.74 ]
Contact Tails
D
E
.100
[ 2.54 ] Contact Tail Length
Tolerance
Dimension
-01 Pattern
Notes:
1 Stabilizing ears are present only on the 55 position.
-02 Pattern
Tolerance
inch
(mm)
.000
(.00)
.00
(.0)
±
.010
±
.005
(±
.25)
(±
.13)
Ordering Information
Socket Part Number
Contact Quantity
239-5605-01-0602
239-5605-02-0602
255-7322-01-0602
255-7322-02-0602
39
55
TS-0453-09
Sheet 2 of 2
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
