0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact,
Back-Flip actuator Flexible Printed Circuit ZIF Connectors
FH35 Series
qSmall
size (35 pos. shown)
0.9mm
12.1
mm(
35 c
ondu
ctors
)
3.
m
2m

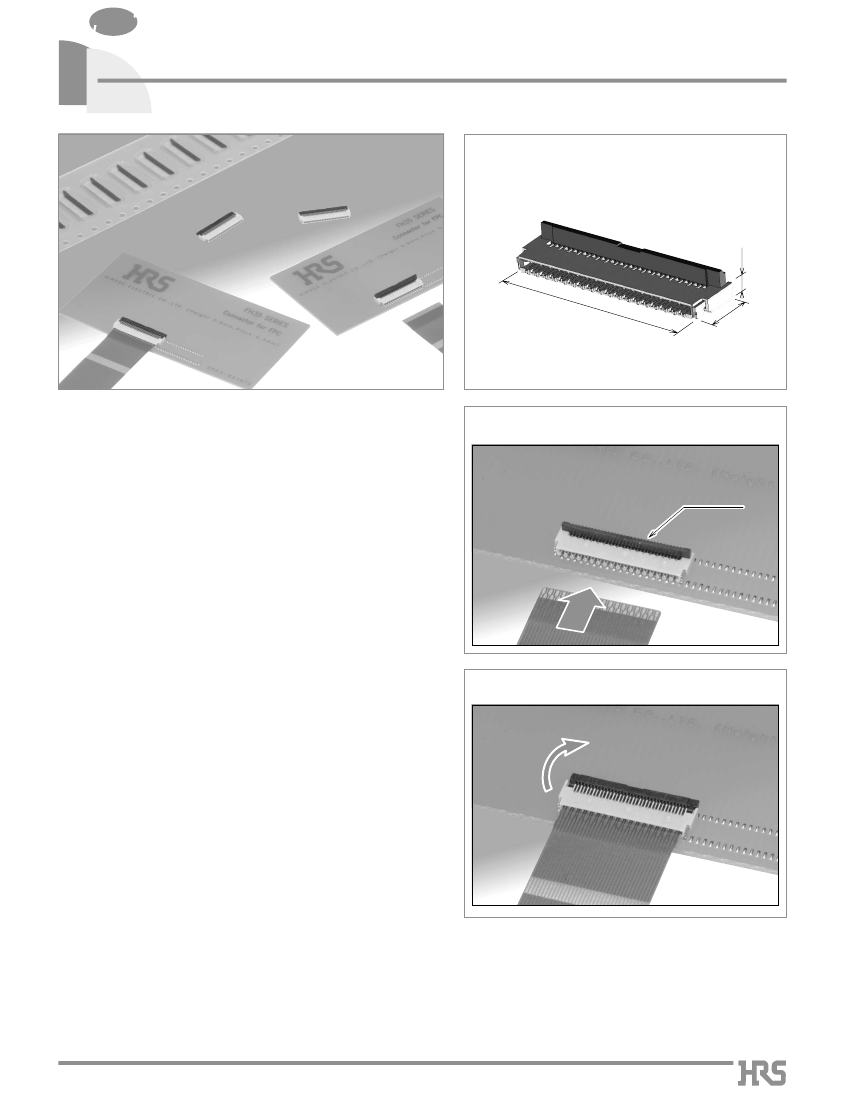

sFeatures
1. Low-profile
With the 0.9 mm above the board and width of 3.2 mm the
connectors are used in a space saving applications.
qEasy
FPC insertion
2. Unique Back-Flip rotating actuator
The rotating actuator opens from the back of the connector,
assuring reliable electrical and mechanical connection.
Actuator
3. Delivered with the actuator open
FPC can be immediately inserted without the need for the
opening of the actuator.
4. Easy FPC insertion
Entry chamfers at all sides of the FPC insertion slot assure
correct insertion and positioning of the FPC.
FPC
5. Accepts standard FPC thickness
0.2mm thick standard Flexible Printed Circuit (FPC) can be
used. This is the only ultra-low profile ZIF connector using
standard FPC.
qCompletely
locked
6. Conductive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
7. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate
vacuum pick-up and placement. Standard reel packaging
contains 5000 connectors.
8. Halogen-free *
(FH35J,FH35RW,FH35W series)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
9. Optional 500 piece reel packaging
Standard packaging is 5,000 pieces per reel; however, 500
piece reels are possible.
(Emboss reel external diameter is 180mm.)
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH35 Seriesq0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
sSpecifications
Current rating 0.2 A (Note 1)
Rating
Voltage rating 30 Vrms AC
Recommended FPC
Operating
-55 to +85°C (Note 2)
temperature range
Operating
Relative humidity 90%
humidity range
max. (No condensation)
Storage
-10 to +50°C (Note 3)
temperature range
Storage
Relative humidity 90%
humidity range
max. (No condensation)
Thickness: 0.2±0.03, gold plated contact pads
Item
Specification
Conditions
1.Insulation resistance 50 Mø min
100 V DC
2.Withstanding voltage No flashover or insulation breakdown
90 Vrms AC / one minute
100 mø max.
1 mA AC
3.Contact resistance
* Including FPC conductor resistance
Contact resistance: 100 mø max.
10 cycles
4.Durability
No damage, cracks, or parts dislocation
No electrical discontinuity of 1 µs or longer
Frequency: 10 to 55 Hz,
Contact resistance: 100 mø max.
single amplitude of 0.75 mm,
5.Vibration
No damage, cracks, or parts dislocation
10 cycles in each of the 3 axial directions
No electrical discontinuity of 1 µs or longer
Acceleration: 981 m/s
2
, 6 ms duration,
Contact resistance: 100 mø max.
6.Shock
sine half-wave, 3 cycles in each of the 3 axis
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
7.Humidity
Insulation resistance: 50 Mø min.
96 hours at 40ç and humidity of 90 to 95%
(Steady state)
No damage, cracks, or parts looseness
Contact resistance: 100 mø max.
Temperature:-55ç➝+15ç to +35ç➝+85ç➝+15ç to +35ç
Insulation resistance: 50 Mø min.
8.Temperature cycle
Time: 30➝ 2 to 3
➝
30➝ 2 to 3 minutes
No damage, cracks, or parts dislocation
5 cycles
9.Resistance to
Reflow: At the recommended temperature profile
No deformation of components affecting performance Manual soldering: 350 ±10°C for 5 seconds
soldering heat
Note 1: When passing the current through all of the contacts, use 70% of the rated current.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of connectors after board mounting.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH35 Seriesq0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors

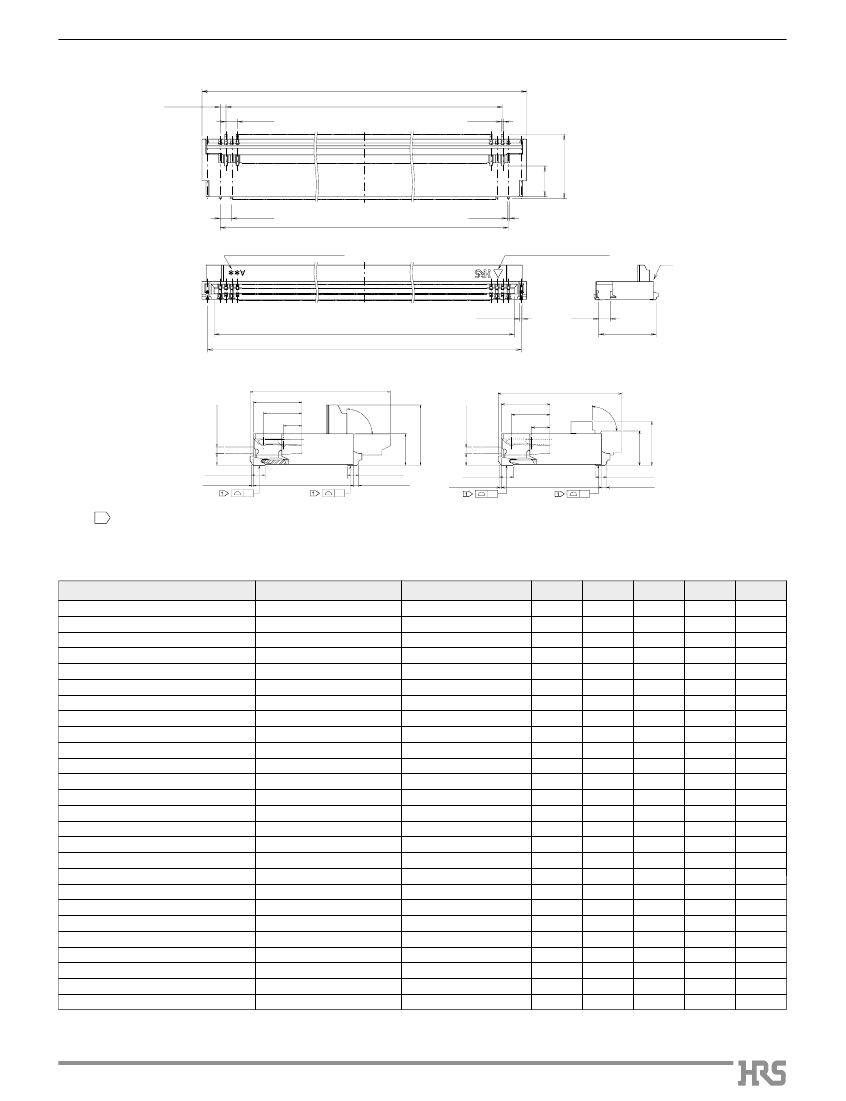

sConnector
Dimensions
A
0.3±0.1
0.6±0.1
B
(0.12)
0.6±0.1
C
Number of contacts indicator
(0.12)
Polarizing mark indicator
B
(0.15)
(D: FPC insertion slot dimension)
E
(1.6)
3.35
(0.6)
(3)
(3.7)
B
(0.35) FPC:t0.2
(1.45)
(1.15)
(0.55)
(4.2)
(9
B(FH35B Series)
(0.35) FPC:t0.2
(1.45)
(1.15)
(0.55)
(9
)
0˚
0.9±0.1
(1.8)
0.4±0.1
0.05±0.15
0.1
3±0.15
0.1
0.33±0.1
0.15±0.15
0.4±0.1
0.05±0.15
0.1
3±0.15
0.1
0.33±0.1
0.15±0.15
Note
Note
Note
Note
1
2
3
4
:
:
:
:
The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
Packaged on tape and reel only. Check packaging specification.
Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
CL No.
580-1502-3-**
580-1504-9-**
580-1515-5-**
580-1514-2-**
580-1503-6-**
580-1501-0-**
580-1512-7-**
580-1520-5-**
580-1505-1-**
580-1513-0-**
580-1506-4-**
580-1524-6-**
580-1507-7-**
580-1509-2-**
580-1510-1-**
580-1525-9-**
580-2904-2-**
580-2905-5-**
580-2903-0-**
580-2902-7-**
580-1521-8-**
580-1522-0-**
580-1508-0-**
580-1511-4-**
580-1526-1-**
580-1516-8-**
Part Number
FH35-19S-0.3SHW(**)
FH35-25S-0.3SHW(**)
FH35-27S-0.3SHW(**)
FH35-31S-0.3SHW(**)
FH35-33S-0.3SHW(**)
FH35-35S-0.3SHW(**)
FH35-39S-0.3SHW(**)
FH35-41S-0.3SHW(**)
FH35-45S-0.3SHW(**)
FH35-49S-0.3SHW(**)
FH35-51S-0.3SHW(**)
FH35B-15S-0.3SHW(**)
FH35B-19S-0.3SHW(**)
FH35B-25S-0.3SHW(**)
FH35B-27S-0.3SHW(**)
FH35J-25S-0.3SHW(**)
FH35R-41S-0.3SHW(**)
FH35R-51S-0.3SHW(**)
FH35RW-21S-0.3SHW(**)
FH35RW-25S-0.3SHW(**)
FH35W-11S-0.3SHW(**)
FH35W-21S-0.3SHW(**)
FH35W-25S-0.3SHW(**)
FH35W-31S-0.3SHW(**)
FH35W-35S-0.3SHW(**)
FH35W-51S-0.3SHW(**)
Number of contacts
19
25
27
31
33
35
39
41
45
49
51
15
19
25
27
25
41
51
21
25
11
21
25
31
35
51
A
7.3
9.1
9.7
10.9
11.5
12.1
13.3
13.9
15.1
16.3
16.9
6.1
7.3
9.1
9.7
9.1
13.9
16.9
7.9
9.1
4.9
7.9
9.1
10.9
12.1
16.9
B
4.8
6.6
7.2
8.4
9
9.6
10.8
11.4
12.6
13.8
14.4
3.6
4.8
6.6
7.2
6.6
11.4
14.4
5.4
6.6
2.4
5.4
6.6
8.4
9.6
14.4
1±0.1
(1.3)
0˚
)
C
5.4
7.2
7.8
9
9.6
10.2
11.4
12
13.2
14.4
15
4.2
5.4
7.2
7.8
7.2
12
15
6
7.2
3
6
7.2
9
10.2
15
D
6.03
7.83
8.43
9.63
10.23
10.83
12.03
12.63
13.83
15.03
15.63
4.83
6.03
7.83
8.43
7.83
12.63
15.63
6.63
7.83
3.63
6.63
7.83
9.63
10.83
15.63
E
6.73
8.53
9.13
10.33
10.93
11.53
12.73
13.33
14.53
15.73
16.33
5.53
6.73
8.53
9.13
8.53
13.33
16.33
7.33
8.53
4.33
7.33
8.53
10.33
11.53
16.33
Tape and reel packaging (5,000 pieces/reel).
Order by number of reels.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH35 Seriesq0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
sRecommended
PCB mounting pattern and metal mask dimensions
0.65±0.05
(0.55:Metal mask)
(Recommended metal mask thickness: t=0.1)
0.3±0.03
(0.23:Metal mask)
0.6±0.05
(0.2)
(0.35)
B±0.05
(3.6)
2.15±0.05
0.3±0.05
0.8±0.05
(0.65:Metal mask)
sRecommended
FPC Dimensions
AX
(0.5)(1.25)
R0
(0.07)
0.6±0.07
0.1±0.02
(0.2)
B±0.03
0.3
+0.04
– 0.03
0.6±0.07
πStiffener dimension should be 2.75mm min., and M dimension should be 0.5mm for
improved flexibility of FPC.
M
Check mark for
Press misalignment
2.75 MIN. Stiffener
.2
0.2±0.1
M
0.6±0.02
0.3±0.02
0.3
+0.04
– 0.03
0.75±0.1
0.85±0.1
0.3±0.07
F±0.05
C±0.03
0.3±0.07
0.2±0.05
0.3±0.03
(0.23:Metal mask)
C±0.05
0.6±0.05
(0.3:Metal mask)
0.4±0.05
0.5±0.05
(0.7:Metal mask)
0.95±0.05
0.2±0.03
1.75±0.3
2.1±0.1
2.25±0.1
All dimensions: mm
Part Number
FH35-19S-0.3SHW(**)
FH35-25S-0.3SHW(**)
FH35-27S-0.3SHW(**)
FH35-31S-0.3SHW(**)
FH35-33S-0.3SHW(**)
FH35-35S-0.3SHW(**)
FH35-39S-0.3SHW(**)
FH35-41S-0.3SHW(**)
FH35-45S-0.3SHW(**)
FH35-49S-0.3SHW(**)
FH35-51S-0.3SHW(**)
FH35B-15S-0.3SHW(**)
FH35B-19S-0.3SHW(**)
FH35B-25S-0.3SHW(**)
FH35B-27S-0.3SHW(**)
FH35J-25S-0.3SHW(**)
FH35R-41S-0.3SHW(**)
FH35R-51S-0.3SHW(**)
FH35RW-21S-0.3SHW(**)
FH35RW-25S-0.3SHW(**)
FH35W-11S-0.3SHW(**)
FH35W-21S-0.3SHW(**)
FH35W-25S-0.3SHW(**)
FH35W-31S-0.3SHW(**)
FH35W-35S-0.3SHW(**)
FH35W-51S-0.3SHW(**)
CL No.
580-1502-3-**
580-1504-9-**
580-1515-5-**
580-1514-2-**
580-1503-6-**
580-1501-0-**
580-1512-7-**
580-1520-5-**
580-1505-1-**
580-1513-0-**
580-1506-4-**
580-1524-6-**
580-1507-7-**
580-1509-2-**
580-1510-1-**
580-1525-9-**
580-2904-2-**
580-2905-5-**
580-2903-0-**
580-2902-7-**
580-1521-8-**
580-1522-0-**
580-1508-0-**
580-1511-4-**
580-1526-1-**
580-1516-8-**
Number of contacts
19
25
27
31
33
35
39
41
45
49
51
15
19
25
27
25
41
51
21
25
11
21
25
31
35
51
B
4.8
6.6
7.2
8.4
9
9.6
10.8
11.4
12.6
13.8
14.4
3.6
4.8
6.6
7.2
6.6
11.4
14.4
5.4
6.6
2.4
5.4
6.6
8.4
9.6
14.4
C
5.4
7.2
7.8
9
9.6
10.2
11.4
12
13.2
14.4
15
4.2
5.4
7.2
7.8
7.2
12
15
6
7.2
3
6
7.2
9
10.2
15
F
6
7.8
8.4
9.6
10.2
10.8
12
12.6
13.8
15
15.6
4.8
6
7.8
8.4
7.8
12.6
15.6
6.6
7.8
3.6
6.6
7.8
9.6
10.8
15.6
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH35 Seriesq0.3 mm Pitch, 0.9 mm above the board, Top and bottom Contact, Back-Flip actuator Flexible Printed Circuit ZIF Connectors
sRecommended

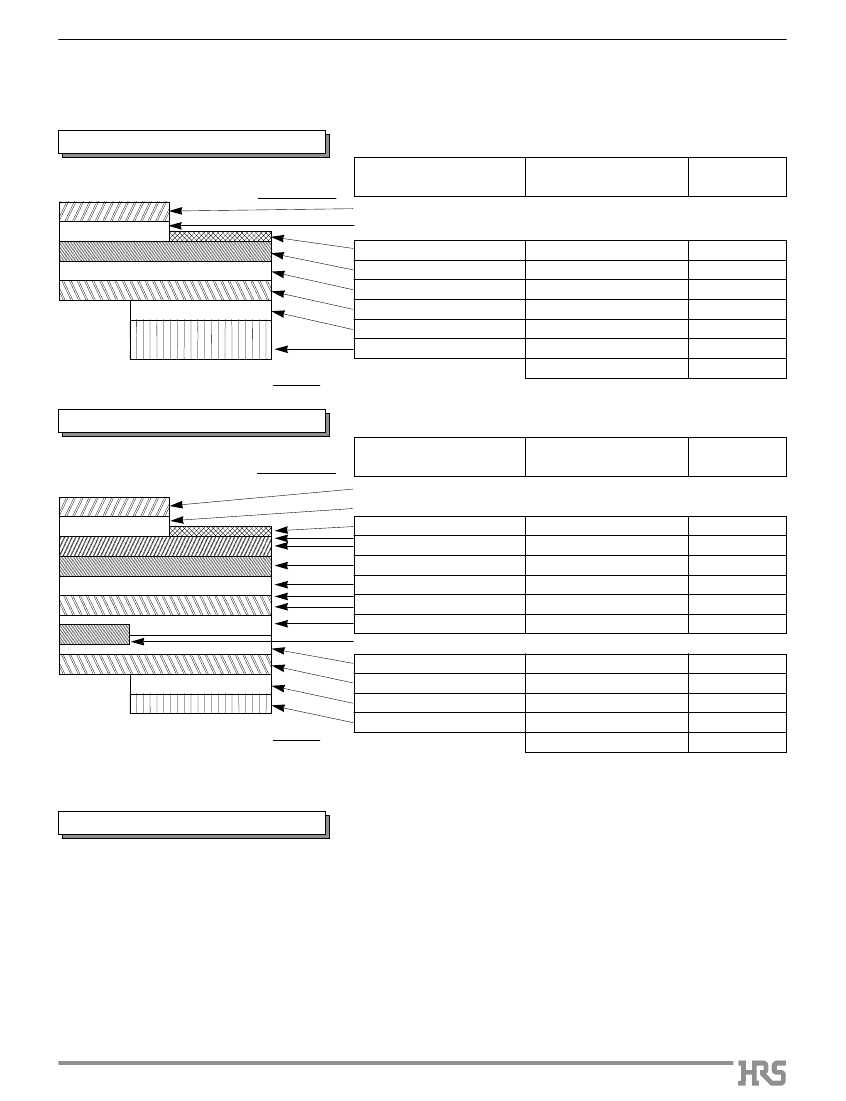

FPC construction
qContact
FPC manufacturer for specific details
1. Using Single-sided FPC
Connecting side
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Stiffener
0.2µm thick gold plated over 1 to 5µm
nickel underplating
Material
Polyimide
1 mil thick.
Material Thickness
(µm)
(25)
(25)
3
35
25
25
40
75
203
Cu
Polyimide
1oz
1 mil thick
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
Polyimide 3 mil thick
Total
Back side
2. Using Double-sided FPC
Connecting side
FPC : Flexible Printed Circuit
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Stiffener
0.2µm thick gold plated over 1 to 5µm
nickel underplating
Material
Polyimide
1 mil thick
Material Thickness
(µm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
25
25
197
Cu
Cu
Polyimide
Cu
Polyimide
Polyimide
Total
1/2oz
1 mil thick
1/2oz
1 mil thick
1 mil thick
Thermosetting adhesive
Thermosetting adhesive
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
Back side
* To prevent release of the FPC due to its bending, use of the double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Precautions
1. This specification is a recommendation for the construction of the FH35 Series FPC (t=0.2 ±0.03).
2. For details about the construction, please contact the FPC/FFC manufacturers.
The user's guide says thatAfter a PUC, MCLK and SMCLK are sourced from DCOCLK at ~1.1 MHz (seethe device-specific data sheet for parameters) and ACLK is sourced fromLFXT1CLK in LF mode with an interna...
I have been debugging the hardware for my graduation project recently. I encountered the problem mentioned in the title. The connection method of MAX is the one in the textbook. I have checked it seve...
[list] [*][size=4]Board A:[/size][size=4]Programmer chip is LPC3154 BGA package[/size][size=4]Target chip: LPC1227 Only two left 120 free shipping[/size] [*][size=4] [/size] [*][size=4]Board B:[size=4...
I have a question when looking at differential amplifier circuits. Differential amplifiers eliminate temperature drift based on the symmetry of the circuit. Wouldn't it be meaningless if it were a sin...
Can I use the I2C interface with other sensors after turning on DMP for mpu6050? Will there be conflicts if they are shared? Note: I use the 6050 with DMP turned on to enable the pedometer function. W...
At present, the development of wireless power supply technology for electric vehicles (EVs) is becoming more and more active. In 2012, Volvo of Sweden established Volvo Technology Japan in Tokyo as...[Details]
At present, the traffic congestion in cities is quite serious. According to relevant news reports: In China, the traffic congestion has expanded from megacities such as Beijing, Shanghai, and Guang...[Details]
China's new energy vehicles are in a transition period from research and development to real industrial development. In 2012, with the intensive launch of new energy vehicle policy planning, the de...[Details]
Automotive applications are particularly sensitive to EMI events, which are unavoidable in a noisy electrical environment consisting of a central battery, bundled wiring harnesses, various inductiv...[Details]
The Portable Digital Data Acquisition System (PDDAS) uses LabVIEW Real-Time and PXI to control the wind tunnel test and record air pressure data from 128 different channels.
"The LabVIEW Real-...[Details]
In order to highlight the concept of "energy saving and environmental protection" of intelligent buildings, solar street lights are designed for intelligent communities. The inclination and capacit...[Details]
My colleague and I spent the day chatting in the hotel bar. We had met with several customers. We were both wondering how come these engineers we were meeting knew almost nothing about analog techn...[Details]
Although it is relatively easy to check the stability of a simple amplifier at lower frequencies, it may be much more difficult to evaluate the stability of a more complex circuit. This artic...[Details]
5. Identifiers and keywords of C language
A complete PIC microcontroller C language program usually consists of six parts: include files (i.e. header files 1, variable definitions, variable de...[Details]
In the analysis of electronic circuits, static analysis (also known as DC analysis) is the basis of circuit analysis. However, it is well known that electronic components are nonlinear, so the anal...[Details]
RS-422 and RS-485 are both serial data interface standards, which were developed and published by the Electronic Industries Association (EIA). RS-422 defines a balanced communication interface with a ...[Details]
Describe how to meet the challenges of complexity with a modern wiring design toolset. Option codes and expressions can simulate the variables of an automotive project. A full-featured tool suite c...[Details]
Abstract: In recent years, with the establishment and grid-connected power generation of a large number of solar photovoltaic power stations at home and abroad, photovoltaic grid-connected inverter...[Details]
LED lighting: Basic circuit design can be completed in as little as one day
Semiconductor manufacturers are also getting involved in the LED lighting business. The power circuit of LED req...[Details]
introduction
At present, measuring instruments are developing towards networking, and each individual embedded instrument will become a node on the Internet. This system realizes the network...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
