380HD007NF1305L datasheet, PDF

Datasheet> All Categories > The connector> 380HD007NF1305L

380HD007NF1305L: DescriptionCircular MIL Spec Backshells NON ENV STRN RLF RC SPLIT 90DEG LT DUTY; CategoryThe connector; File Size52KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

380HD007NF1305L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380HD007NF1305L	-	-	View	Buy Now

380HD007NF1305L Overview

Circular MIL Spec Backshells NON ENV STRN RLF RC SPLIT 90DEG LT DUTY

380HD007NF1305L Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
RoHS	No
MIL Type	MIL-DTL-38999 III, IV
Factory Pack Quantity	1

Preview

Download Datasheet

View All

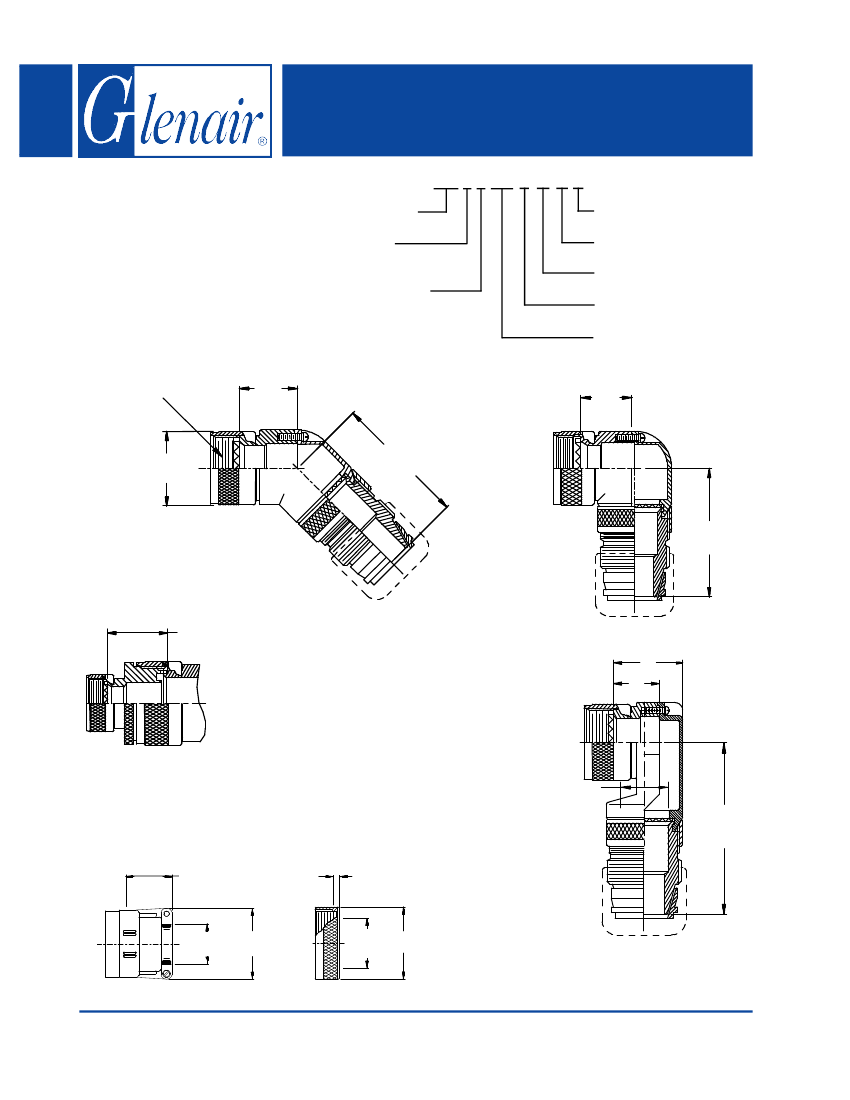

380-007

EMI/RFI Non-Environmental Backshell

Light-Duty with Strain Relief

Type C - Rotatable Coupling - Split Shell

CONNECTOR

DESIGNATORS

380 F D 007 M 16 05 L

Product Series

Connector

Designator

Angle and Profile

C = Ultra-Low Split 90

D = Split 90

F = Split 45

Strain Relief Style (L, G)

Cable Entry (Tables IV, V)

Shell Size (Table I)

Finish (Table II)

Basic Part No.

A-F-H-L-S

ROTATABLE

COUPLING

TYPE C OVERALL

SHIELD TERMINATION

A Thread

(Table I)

(Table III)

C Typ.

(Table I)

F (Table III)

Split 45°

Split 90°

(Table III)

.88 (22.4)

Max

(Table III)

STYLE 2

(See Note 1)

Max Wire

Bundle

(Table III,

Note 1)

STYLE L

Light Duty

(Table IV)

.850 (21.6)

Max

STYLE G

Light Duty

(Table V)

.072 (1.8)

Max

Cable

Entry

(Table III)

Cable

Range

Ultra Low-

Profile Split

90°

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 36
