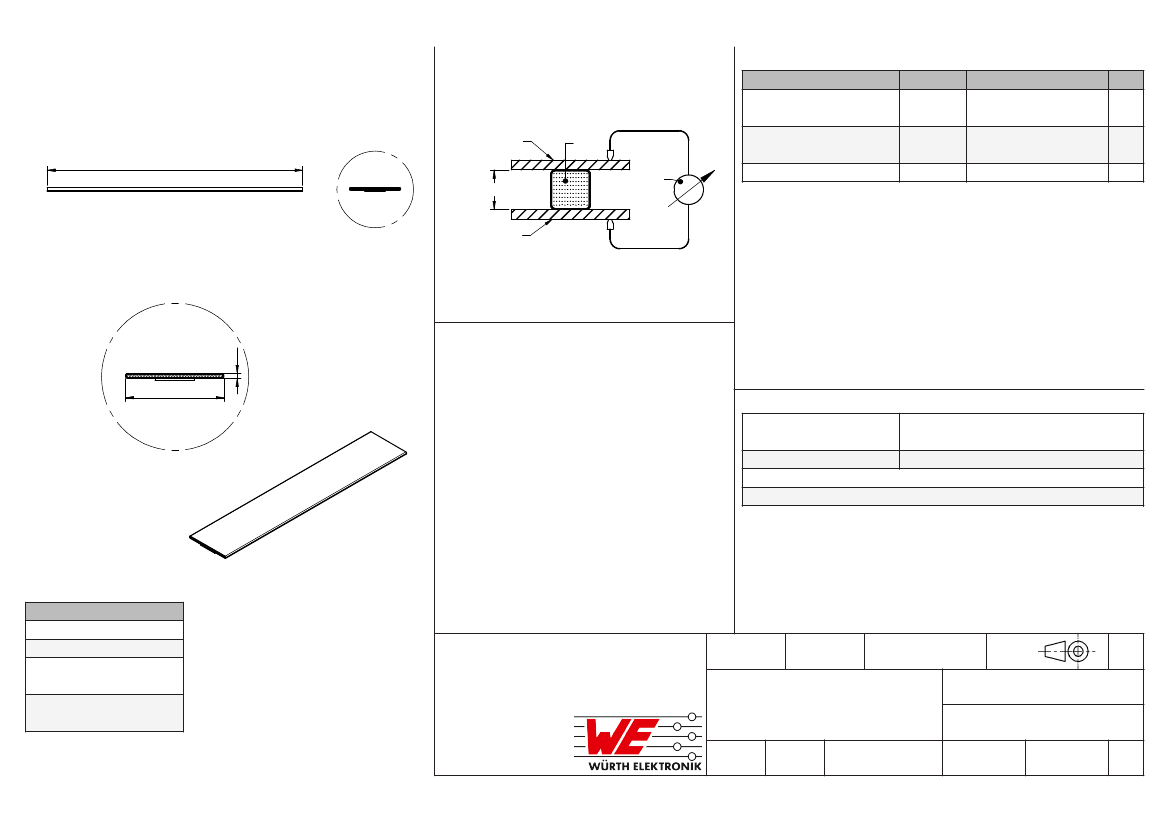

Dimensions: [mm]
Surface Resistance vs. Compression:
Electrical Properties:
Properties
Shielding Effectiveness @ 100
MHz
1)
Shielding
Effectiveness
@ 100 MHz
Shielding
Effectiveness
@ 1 GHz
R
S
Value
80
86
0.08
Unit
dB
dB
Ω/cm²
A
~ 1000
Copper Plate
WE-LTx
Ohm Meter
Shielding Effectiveness @ 1 GHz
2)
Surface Resistance
3)
1)
based on MIL-STD-225
2)
based on MIL-STD-225
3)
Measurement equipment: Loresta
Compression
AX MCP-T370
Copper Plate
detail A
10
0,5
General Information:
Storage Temperature (in original
packaging)
Operating Temperature
-40 °C up to +85 °C
-40 °C up to +85 °C
Flammability: UL94 V-0 (File Number E474708)
Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently
Scale - 1,3:1
Material
Metallized Fiber
Polyether Urethane Foam
Rayon Paper with acrylic
adhesive
Reactive Polyurethane Hotmelt
Adhesive
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-LT Conductive Shielding
Gasket
SIZE
REVISION
STATUS
ORDER CODE
30210005
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
Square
005.001
Valid
2017-03-30
eiSos
1/3
