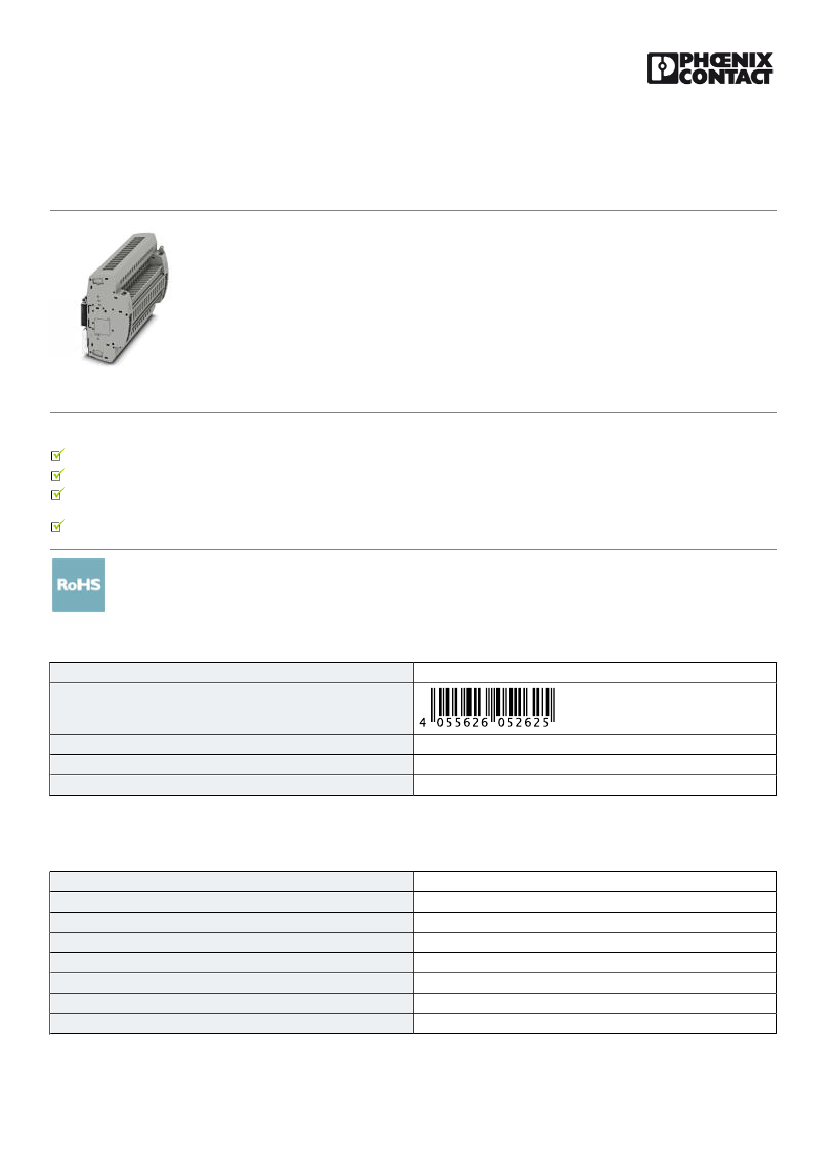

Test terminal strip - UTRE 6-2/8 - 3069809
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Test terminal strip, Connection method: Screw connection, Number of positions: 8, Cross section: 0.2
mm² - 10 mm², AWG: 24 - 8, Width: 97.8 mm, Height: 58.6 mm, Color: gray, Mounting type: DIN rail mounting
The illustration shows the 15-
position product version
Why buy this product
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Space saving, thanks to compact, modular test terminal strips
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the
transmission of signal currents, even after multiple actuations
Maximum safety with leading and automatic transformer short circuit
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626052625
85369010
Made to Order (non-returnable)
1 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
8
1
16
8
6 mm²
gray
PA
V0
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3069809
Test terminal strip - UTRE 6-2/8 - 3069809
Technical data
General
Rated surge voltage
Overvoltage category
Insulating material group
Maximum load current
Current I
th
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
4 kV
III
I
30 A (with 10 mm² conductor cross section)
24 A
400 V AC/DC
No
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
Height NS 35/7,5
Height NS 35/15
Pitch
97.8 mm
100 mm
58.6 mm
61.8 mm
69.3 mm
8.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Screw connection
IEC 60947-7-1
0.2 mm²
10 mm²
24
8
0.2 mm²
10 mm²
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3069809
Test terminal strip - UTRE 6-2/8 - 3069809
Technical data
Connection data
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
24
8
0.25 mm²
0.25 mm²
6 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.5 mm²
2.5 mm²
0.25 mm²
1.5 mm²
10 mm
A5
M4
1.5 Nm
1.8 Nm
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
Assembly
Mounting type
DIN rail mounting
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Drawings
Circuit diagram
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3069809
Test terminal strip - UTRE 6-2/8 - 3069809
Approvals
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
D
24-8
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
D
24-8
10 A
300 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
