Cable - CABLE-D-37SUB/F/OE/0,25/S/20M - 2906219
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

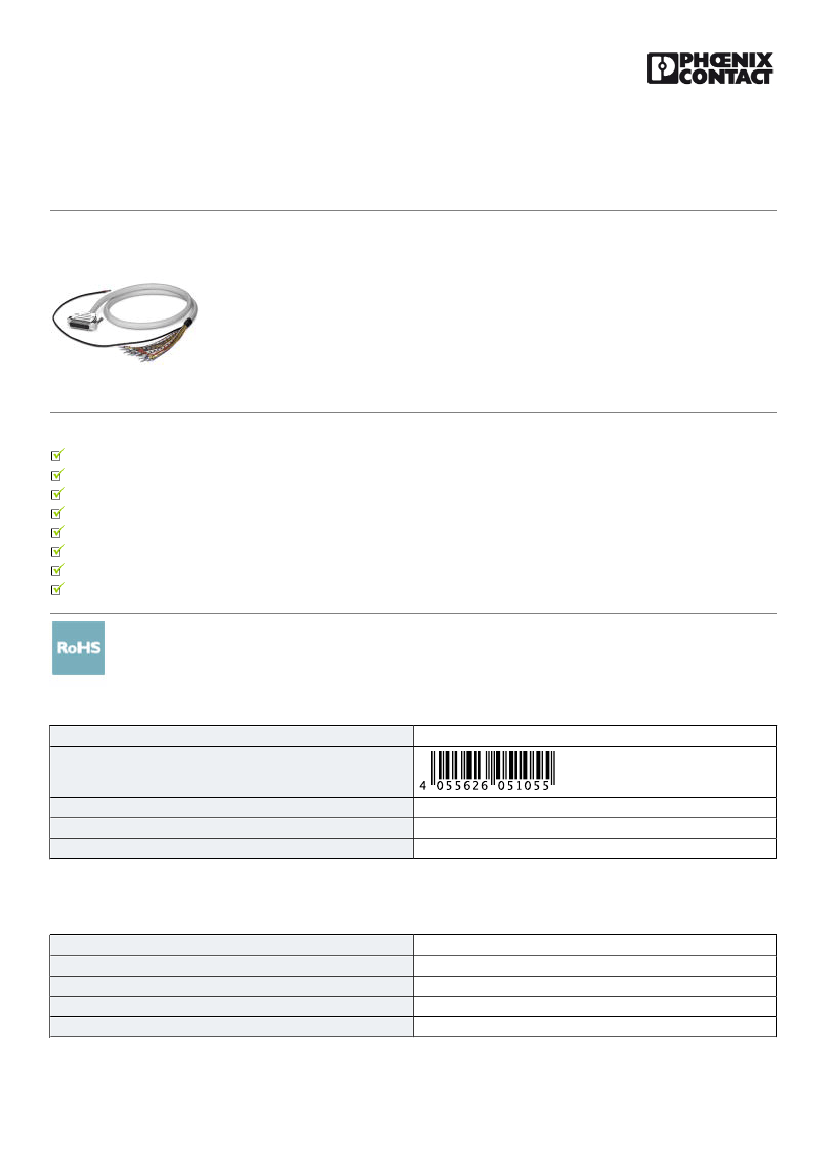

Assembled shielded round cable with Single wires (37-position) (The wires are marked and fitted with ferrules.
The braided shield is routed to a separate cable end.) on 1 x D-SUB socket strip (37-position), Cable length:
20 m
The figure shows the 25-pos.
version
Why buy this product
Individual wire marking: 1, 2, 3, 4, etc.
Individual wires fitted with ferrules
Connector according to IEC 60807-2/DIN 41652
Shield connection: H05V-K 1 mm² cable, black, 0.5 m in length
Open end at one end
D-SUB socket or pin strip at one end
Screw connection: 2 UNC 4-40 screws
1:1 connection
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626051055
85444290
Made to Order (non-returnable)
1 STK
Technical data
General
Nominal voltage U
N
Max. current carrying capacity per path
Max. conductor resistance
Length of cable
Single wire, cross section
125 V AC/DC
2A
≤ 0.09 Ω/m
20 m
0.25 mm²
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/2906219
Cable - CABLE-D-37SUB/F/OE/0,25/S/20M - 2906219
Technical data
General
Single wire, cross section [AWG]
External diameter
Shielding
Insertion/withdrawal cycles
24
12 mm
yes
Tinned copper-braided shield, approx. 85% covering
> 200
Environmental conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Flame resistance
-20 °C ... 50 °C
-20 °C ... 70 °C
IEC 60332-1
DIN VDE 0482 Part 332-1
Connector, module side
Connection name
Connection method
Number of connections
Number of positions
Field level
D-SUB socket strip
1
37
Connector, controller side
Connection name
Connection method
Number of positions
Note
Controller level
Single wires
37
The wires are marked and fitted with ferrules. The braided shield is
routed to a separate cable end.
Supported controller
Controller
universal
Standards and Regulations
Flame resistance
IEC 60332-1
DIN VDE 0482 Part 332-1
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / CSA / cULus Recognized
Ex Approvals
Approval details
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/2906219
Cable - CABLE-D-37SUB/F/OE/0,25/S/20M - 2906219
Approvals
UL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 238705
2A
125 V
cUL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 238705
2A
125 V
EAC RU C-DE.A*30.B00767
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 70002966
1A
125 V
Nominal current IN
Nominal voltage UN
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
