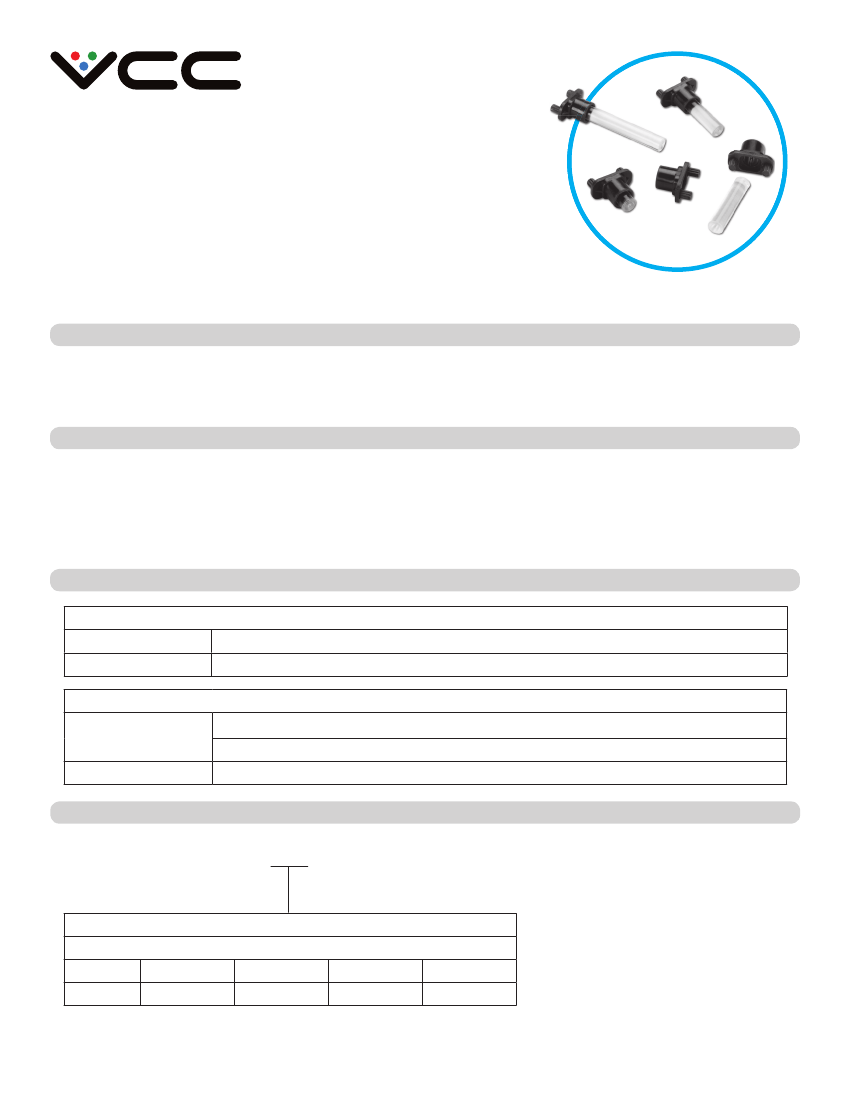

Low Profile, Panel Flush
Light Pipe
Light pipe transmits from SMD LED to the front of a panel
Applications
•
security cameras
•
entertainment systems
•
telephone systems
•
panel and cabinet illumination
•
medical devices
Key features
•
allows easy panel removal
• low profile, panel flush design blends in until light is
emitted
•
mates to any PCB using SMD 4 (sold separately)
•
optical grade acrylic for maximum light transmission
•
•
•
•
efficient production assembly
available in standard lengths of .300” to 1.20”
custom lengths available upon request
RoHS compliant
Product specifications
LPCM (litepipe)
SMD 4 (PCB mount)
Materials
clear optical grade acrylic, UL rating 94-HB
nylon, (black) UL rating 94-V2

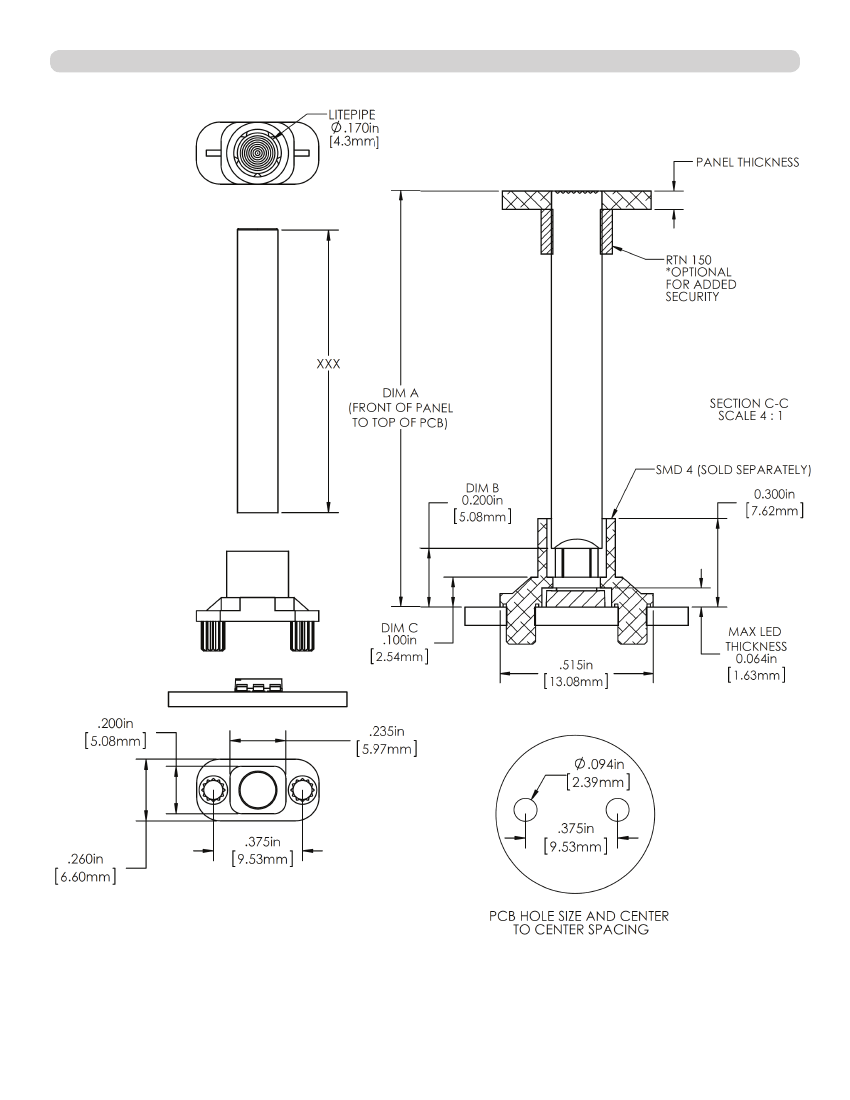

Installation specification
.173” [4.4mm] min to .183” [4.6mm] max without retaining ring RTN 150
.173” [4.4mm] min to .200” [5.1mm] max with retaining ring RTN 150
MAX : DIM A - .300” [7.62mm]
mounting hole
panel thickness
Ordering data
LPCM lightpipe
ordering code (example)
LPCM XXX CTP
(Min 030 =. 300”) (Max 120 = 1.20”)
LITEPIPE ORDERING CALCULATIONS:
DIM A - DIM B (.200” [5.1mm]) = MIN LIGHTPIPE LENGTH
DIM A - DIM C (.100” [2.5mm]) = MAX LIGHTPIPE LENGTH
030
080
040
090
XXX = length in inches
Standard sizes*
050
060
100
110
070
120
1.800.522.5546
*Custom Lengths Available Upon Request
engineered to light up your design
www.vcclite.com
