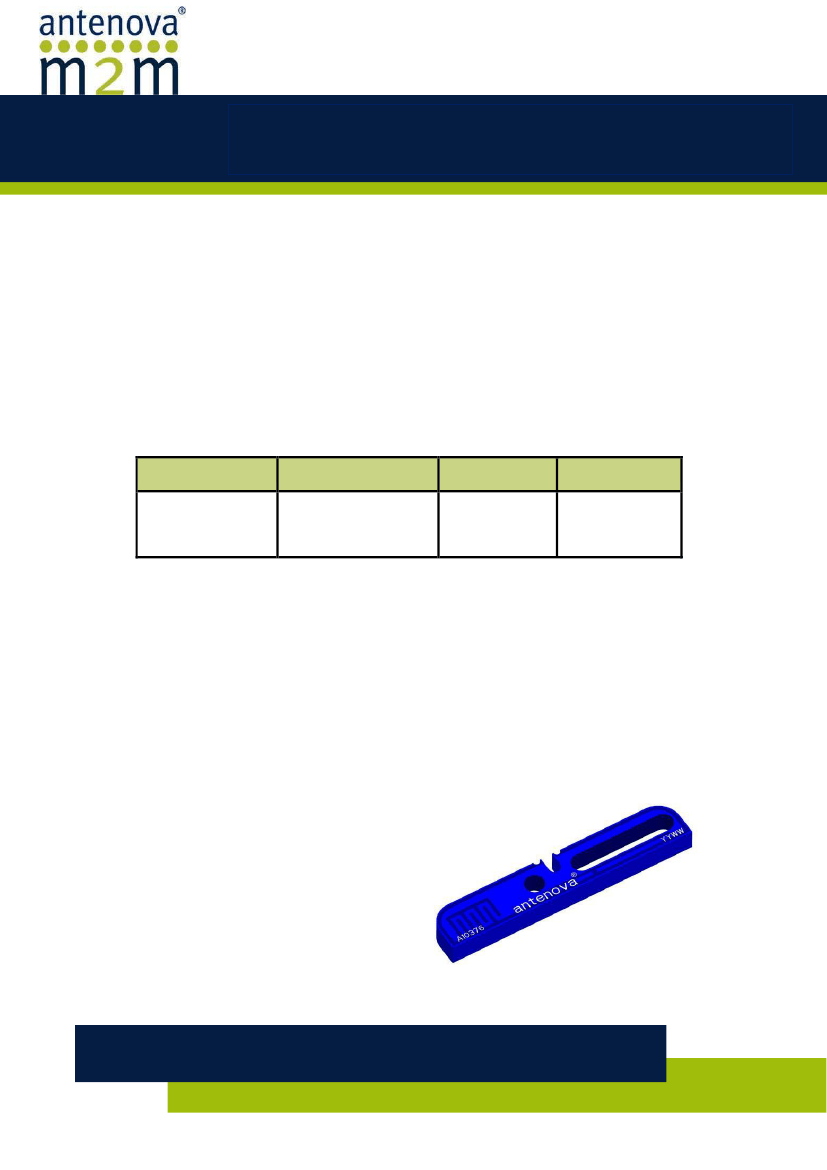

Amia Cellular SMD Antenna
Part No. A10376
gigaNOVA®
Product Specification
1 Features
GSM/UMTS antenna supporting 4-5 frequency bands
MDA antenna technology provides resistance to de-tuning
High efficiency
Easy to integrate
Intended for SMD mounting
Supplied in tape on reel
Amia supports the following communication standards:
GSM/GPRS/EDGE
GSM850
(E)GSM900
GSM1800 (DCS)
GSM1900 (PCS)
CDMA200
1XRTT/EV-DO/EV-DV
Band Classes:
1,2,3,4,6,8,9,12,14,15
UMTS
WCDMA/HSPA
Bands I – VI
Bands VIII - X
Other Standards
Korean PCS
DECT
TD-SCDMA
AWS
2 Description
Amia A10376 uses a ground plane in order to radiate efficiently, but this ground plane must
not extend underneath the antenna itself.
The antenna uses a matching circuit to achieve optimized results for the specific frequency
bands that are required. This product specification shows the performance of the antenna
when optimized to cover a typical quad-band reception: GSM850/900/1800/1900.
3 Applications
Mobile handsets
Femto / Pico base stations
Tracker devices
Machine-to-machine communication
Remote monitoring
Antennas for Wireless M2M Applications
1
Product Specification Amia A10376-PS-1.2
Amia Cellular SMD Antenna
Part No. A10376
4 Part number
Amia: A10376

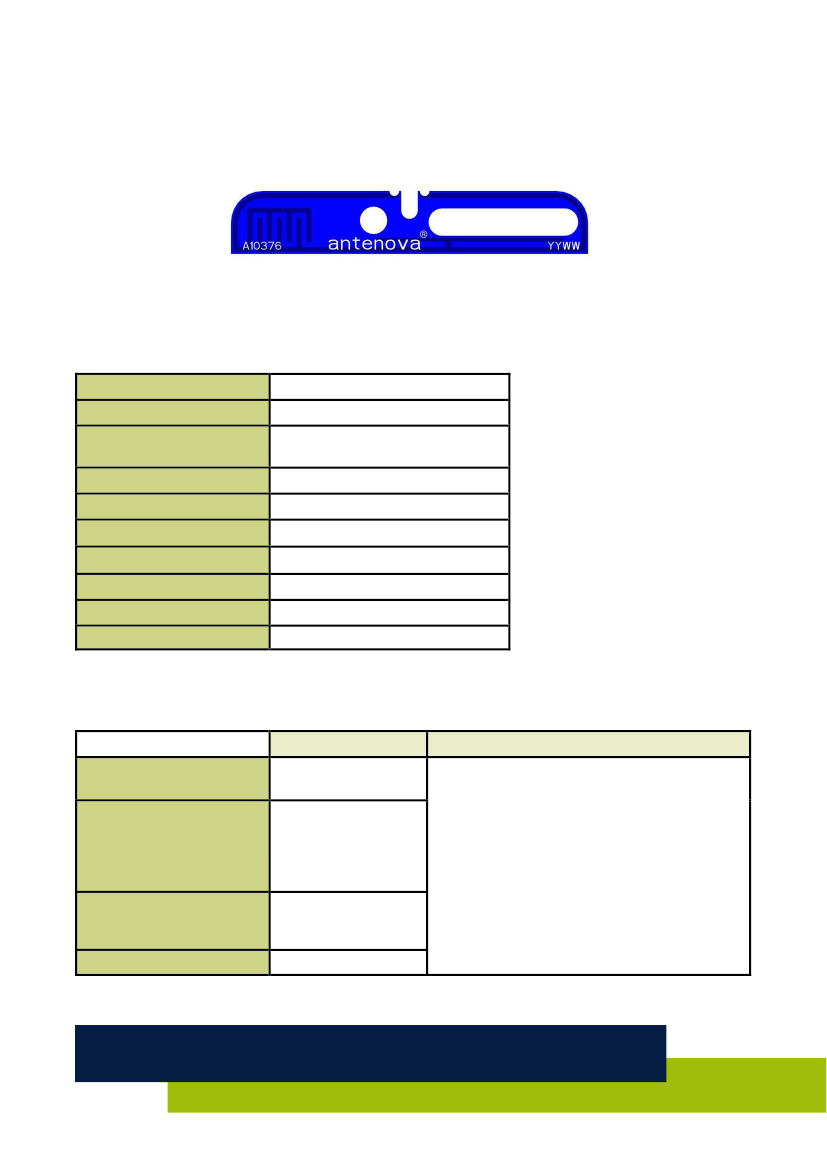

5 General data
Product name
Part Number
Frequency
Polarization
Operating temperature
Amia
A10376
824 – 960 MHz
1710 – 1990 MHz
Linear
-40 ºC to +140 ºC
Environmental condition test
ISO16750-4 5.1.1.1/5.1.2.1/5.3.2
Impedance with matching
Weight
Antenna type
Dimensions
50
Ω
1.14 g
SMD
36.4 x 6.4 x 3.2 [mm]
6 Electrical characteristics
Typical performance
Peak gain
-1.2dBi @ 960 MHz
-1.9dBi @ 1740 MHz
-1.6dBi
824-960 MHz
Average gain (Linear)
-2.4dBi
1710-1990 MHz
Minimum efficiency
824-960 MHz
1710-217 MHz
Minimum Return Loss
>60%
>50%
6.8 dB
All data measured on Antenova’s reference board,
part number
A10376-U1
Data given for the 824MHz-960MHz and
1710MHz - 1990MHz frequency ranges
Conditions
Antennas for Wireless M2M Applications
2
Product Specification Amia A10376-PS-1.2
Amia Cellular SMD Antenna
Part No. A10376
7 Electrical performance
7-1 Return Loss
0
[dB]
mtool5
-5
1
-10
2
4
3
-15
-20
800
[MHz]
1000
1200
1400
MHz
1: 824
2: 960
dB
-7.60
-6.84
1600
1800
2000
MHz
3: 1710
4: 1990
dB
-13.02
-8.32
2200
2400
MARKERS:
Am ia QB.S1P
Antennas for Wireless M2M Applications
3
Product Specification Amia A10376-PS-1.2
Amia Cellular SMD Antenna
Part No. A10376

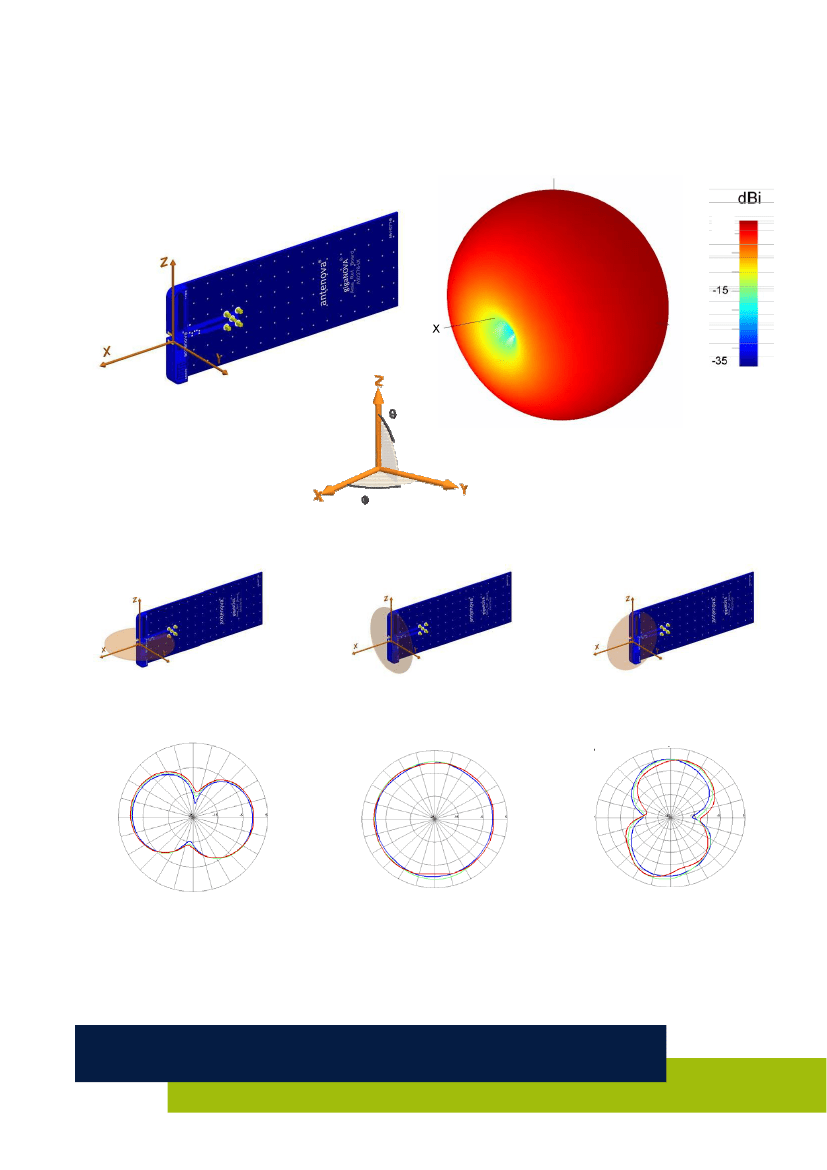

7-2 Antenna patterns 824-960 MHz
Z
1
Y
Legend
———824.00(MHz)
———892.00(MHz)
———960.00(MHz)
0º
0º
0º
90º
270º
90º
270º
90º
270º
180º
180º
180º
XY plane
ZY plane
XZ plane
Patterns show combined polarisations measured on reference
board A10376-U1. 3D Pattern measured at 890MHz
Antennas for Wireless M2M Applications
4
Product Specification Amia A10376-PS-1.2
Amia Cellular SMD Antenna
Part No. A10376

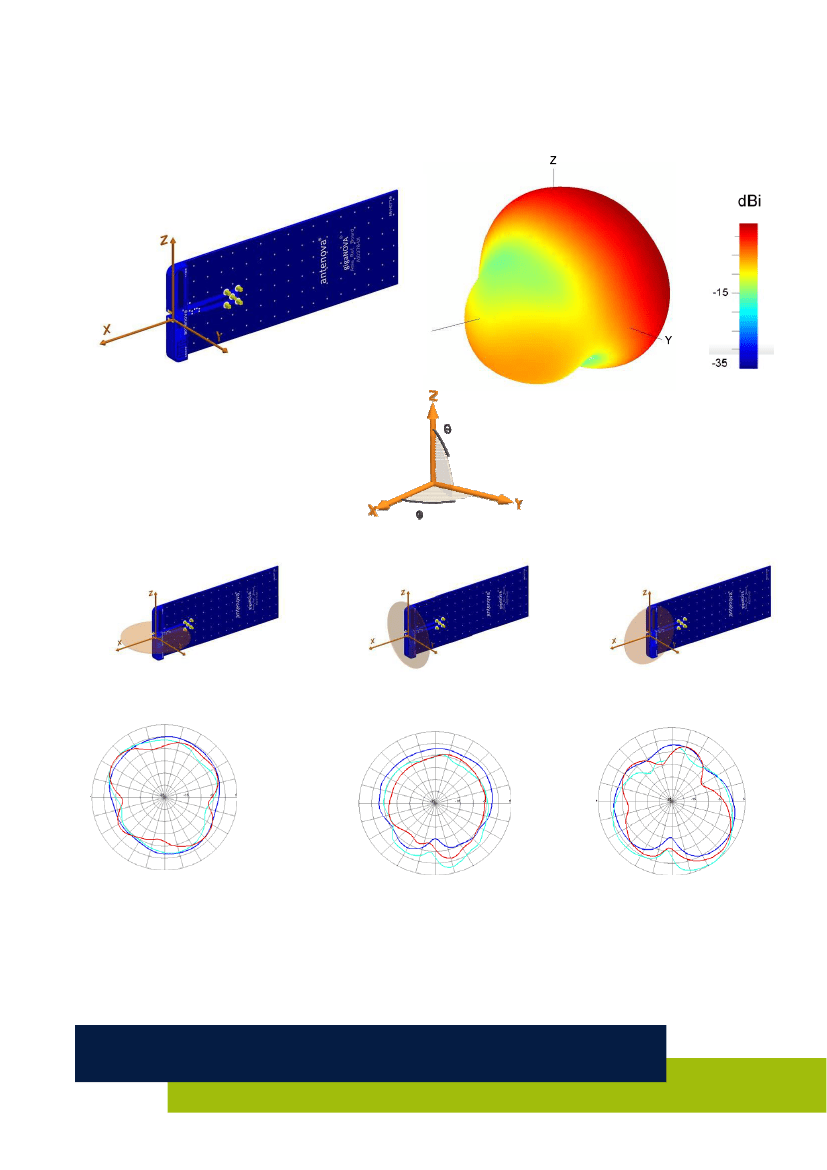

7-3 Antenna patterns 1710 – 1990 MHz
3
X
0º
Legend
———1710.00(MHz)
———1850.00(MHz)
———1990.00(MHz)
0º
0º
90º
270º
90º
270º
90º
270º
180º
180º
180º
XY plane
ZY plane
XZ plane
Patterns show combined polarisations measured on reference
board A10376-U1M. 3D Pattern measured at 1850MHz
Antennas for Wireless M2M Applications
5
Product Specification Amia A10376-PS-1.2
