Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> MAX420CTV

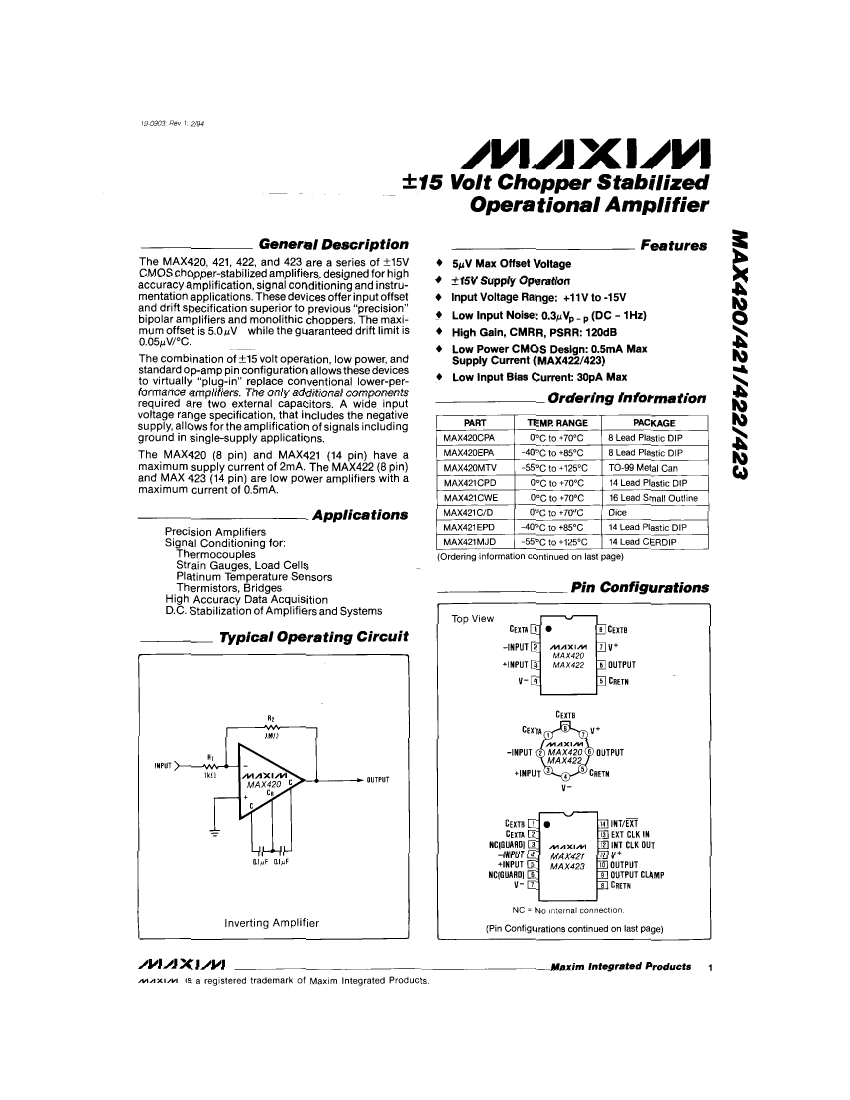

Preview

MAX420CTV: DescriptionOperational Amplifiers - Op Amps; CategoryAnalog mixed-signal IC Amplifier circuit; File Size438KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX420CTV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAX420CTV	-	-	View	Buy Now

MAX420CTV Overview

Operational Amplifiers - Op Amps

MAX420CTV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	TO-99
package instruction	METAL CAN, TO-99, 8 PIN
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	1 week
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	CHOPPER-STAB
Maximum average bias current (IIB)	0.0001 µA
Maximum bias current (IIB) at 25C	0.0001 µA
Nominal Common Mode Rejection Ratio	140 dB
frequency compensation	YES
Maximum input offset voltage	20 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-bias	YES
low-dissonance	YES
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	245
power supply	+-15 V
Certification status	Not Qualified
Nominal slew rate	0.5 V/us
Maximum slew rate	3.5 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	125 kHz
Minimum voltage gain	1000000

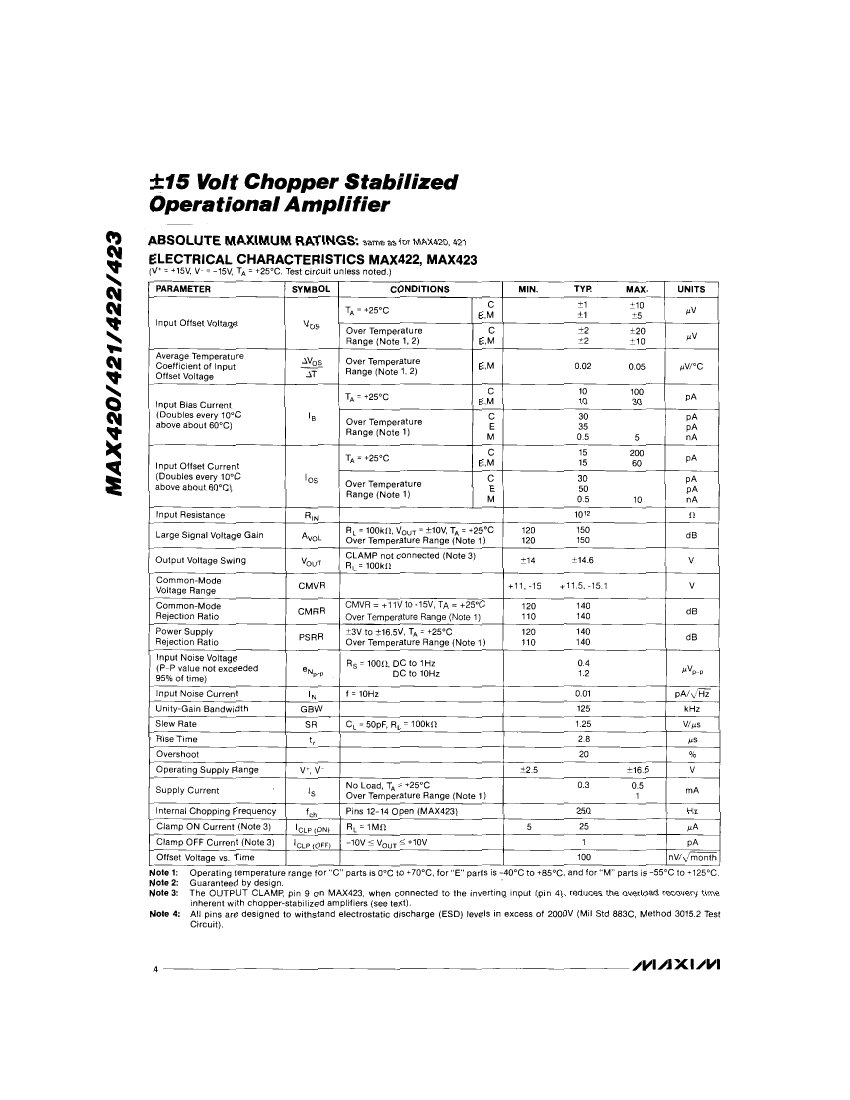

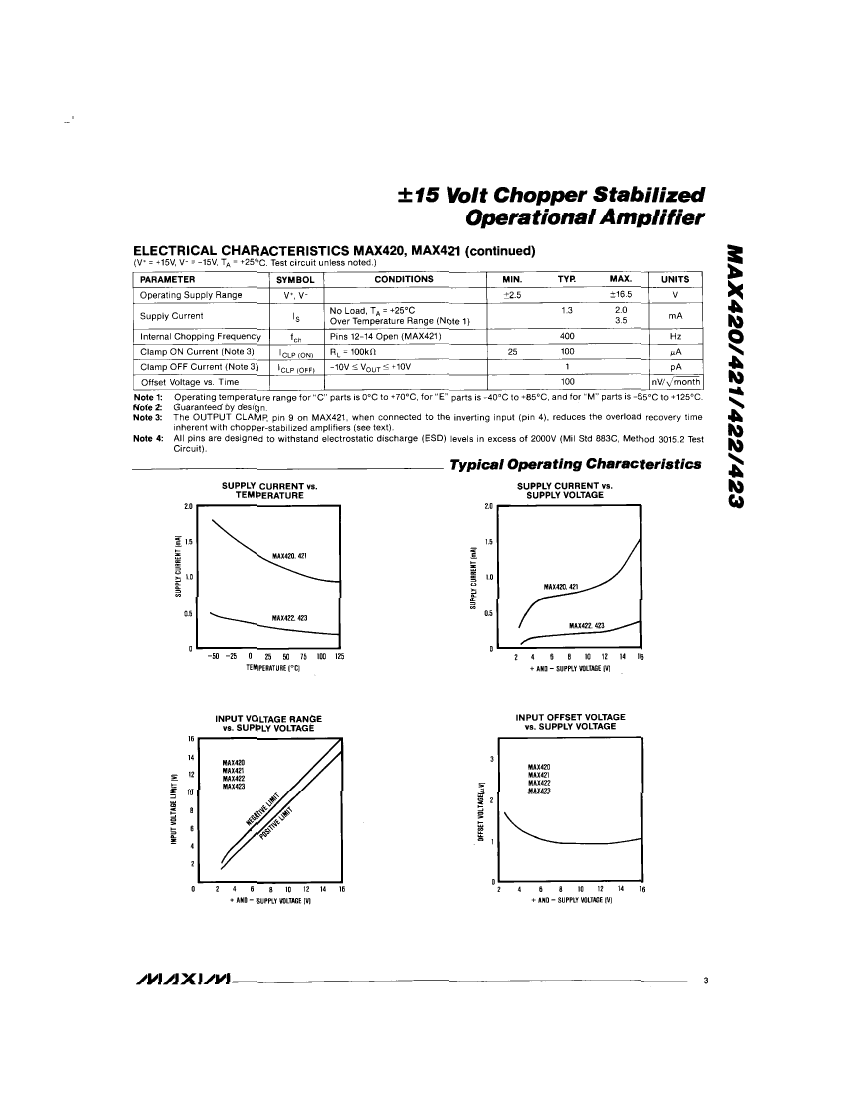

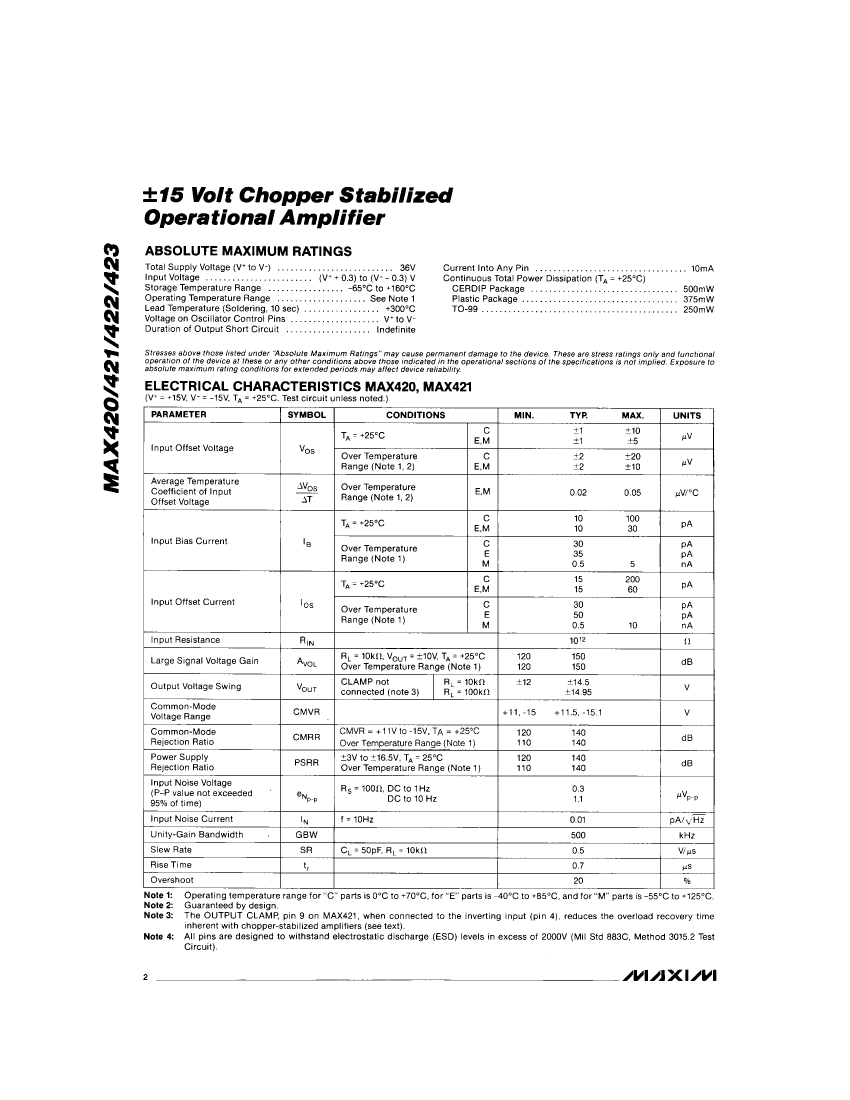

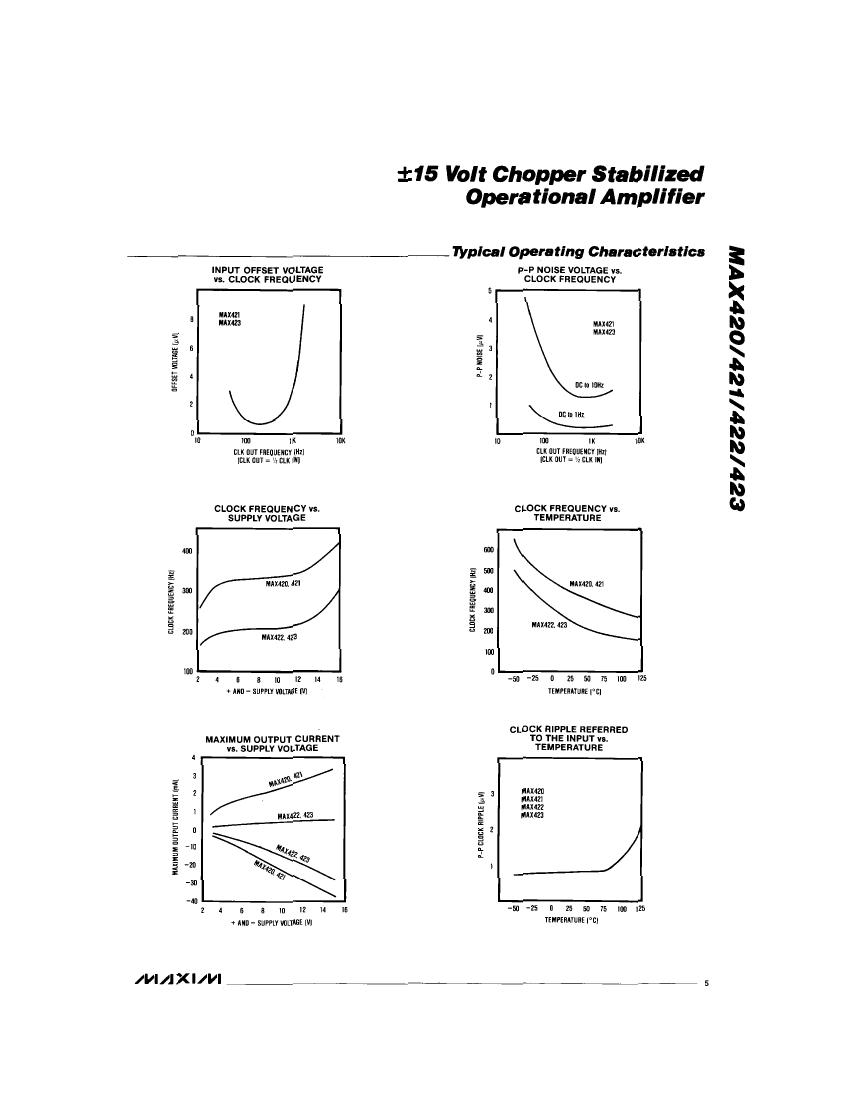

Preview

Download Datasheet

View All

MAX420CTV Related Products

	MAX420CTV	MAX423CWE	MAX421CWE	MAX420CPA-	MAX421EPD-
Description	Operational Amplifiers - Op Amps		Operational Amplifiers - Op Amps	Operational Amplifiers - Op Amps Chopper Stabilized	Operational Amplifiers - Op Amps
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-
Maker	Maxim	Maxim	Maxim	-	-
Parts packaging code	TO-99	SOIC	SOIC	-	-
package instruction	METAL CAN, TO-99, 8 PIN	SOP, SOP16,.4	SOP, SOP16,.4	-	-
Contacts	8	16	16	-	-
Reach Compliance Code	not_compliant	not_compliant	not_compliant	-	-
ECCN code	EAR99	EAR99	EAR99	-	-
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	-	-
Architecture	CHOPPER-STAB	CHOPPER-STAB	CHOPPER-STAB	-	-
Maximum average bias current (IIB)	0.0001 µA	0.0001 µA	0.0001 µA	-	-
Maximum bias current (IIB) at 25C	0.0001 µA	0.0001 µA	0.0001 µA	-	-
Nominal Common Mode Rejection Ratio	140 dB	140 dB	140 dB	-	-
frequency compensation	YES	YES	YES	-	-
Maximum input offset voltage	20 µV	20 µV	20 µV	-	-
JESD-30 code	O-MBCY-W8	R-PDSO-G16	R-PDSO-G16	-	-
JESD-609 code	e0	e0	e0	-	-
low-bias	YES	YES	YES	-	-
low-dissonance	YES	YES	YES	-	-
Humidity sensitivity level	1	1	1	-	-
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-	-
Number of functions	1	1	1	-	-
Number of terminals	8	16	16	-	-
Maximum operating temperature	70 °C	70 °C	70 °C	-	-
Package body material	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-
Encapsulate equivalent code	CAN8,.2	SOP16,.4	SOP16,.4	-	-
Package shape	ROUND	RECTANGULAR	RECTANGULAR	-	-
Package form	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE	-	-
Peak Reflow Temperature (Celsius)	245	240	240	-	-
power supply	+-15 V	+-15 V	+-15 V	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-
Nominal slew rate	0.5 V/us	1.25 V/us	0.5 V/us	-	-
Maximum slew rate	3.5 mA	1 mA	3.5 mA	-	-
Supply voltage upper limit	18 V	18 V	18 V	-	-
Nominal supply voltage (Vsup)	15 V	15 V	15 V	-	-
surface mount	NO	YES	YES	-	-
technology	CMOS	CMOS	CMOS	-	-
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	-	-
Terminal form	WIRE	GULL WING	GULL WING	-	-
Terminal location	BOTTOM	DUAL	DUAL	-	-
Maximum time at peak reflow temperature	NOT SPECIFIED	20	20	-	-
Nominal Uniform Gain Bandwidth	125 kHz	125 kHz	500 kHz	-	-
Minimum voltage gain	1000000	1000000	1000000	-	-
