MIC2544-2YM

Description
ESD Suppressors / TVS Diodes 400W ASYMMETRICAL TVS 7V,12V
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size1MB,15 Pages
ManufacturerMicrochip
Websitehttps://www.microchip.com
Environmental Compliance
Download Datasheet Download user manual Parametric Compare View All

MIC2544-2YM Online Shopping

Suppliers Part Number Price MOQ In stock
MIC2544-2YM - - View Buy Now

MIC2544-2YM Overview

ESD Suppressors / TVS Diodes 400W ASYMMETRICAL TVS 7V,12V

MIC2544-2YM Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionSOP,
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
Built-in protectionOVER CURRENT; THERMAL
Interface integrated circuit typeBUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 codeR-PDSO-G8
JESD-609 codee4
length4.9 mm
Humidity sensitivity level1
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output current flow directionSINK
Nominal output peak current0.1 A
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum seat height1.879 mm
Maximum supply voltage5.5 V
Minimum supply voltage2.7 V
Nominal supply voltage5 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal surfaceNickel/Palladium/Gold (Ni/Pd/Au)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
connection time5000 µs
width3.9 mm
Base Number Matches1

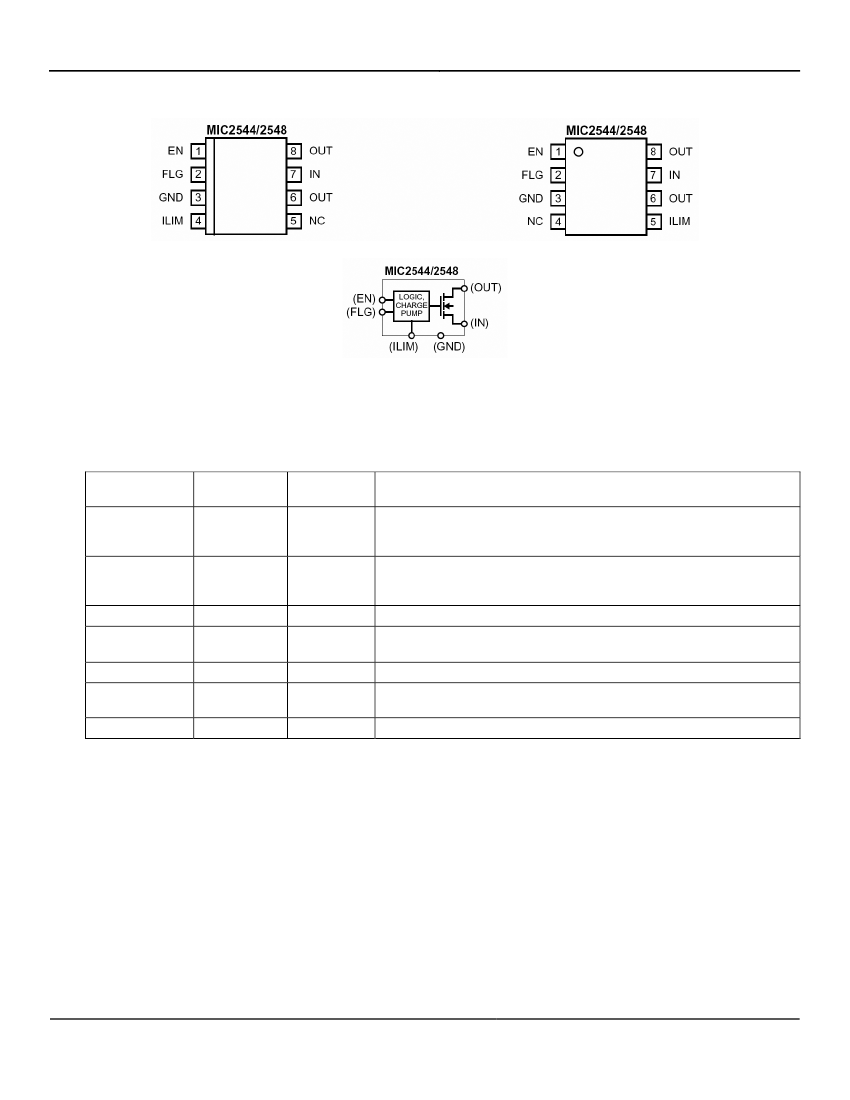

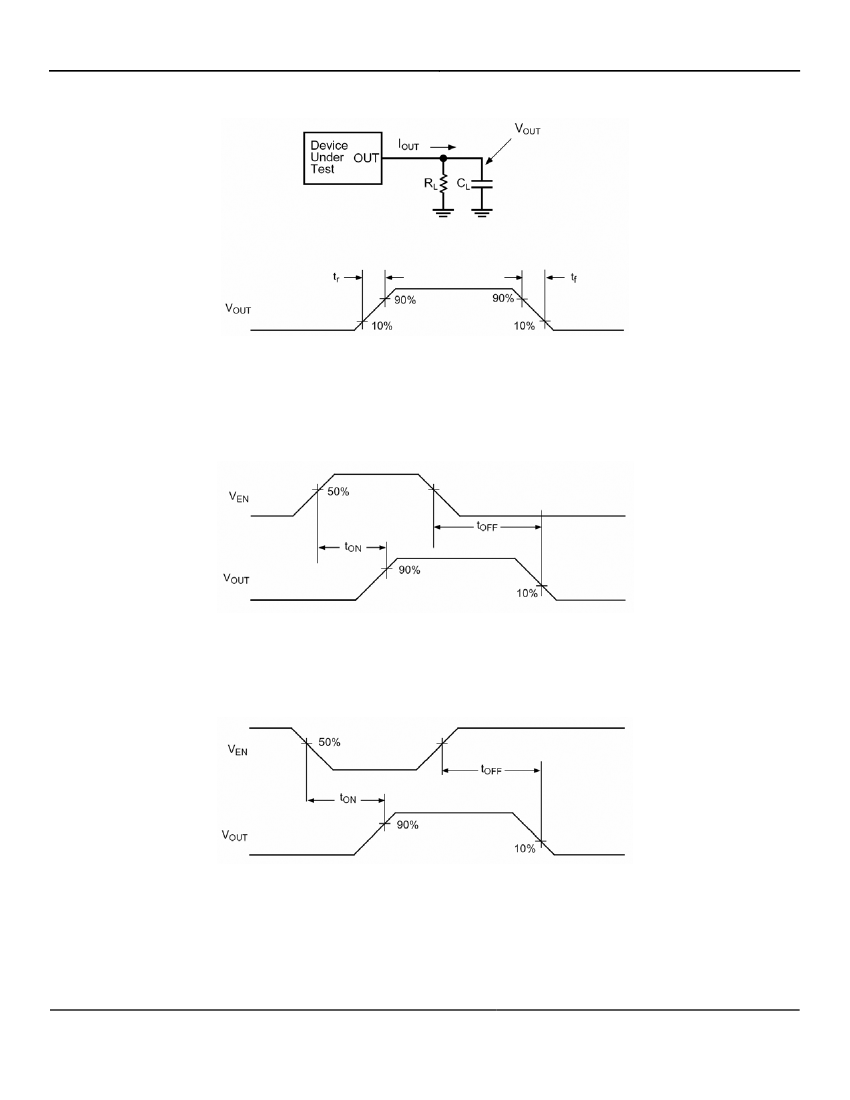

MIC2544/2548
Programmable Current Limit
High-Side Switch
General Description
The MIC2544 and MIC2548 are integrated, high-side
power switches optimized for low loss DC power switching
and other power management applications, including
Advanced Configuration and Power Interface (ACPI).
The MIC2544/48 is a cost-effective, highly integrated
solution that requires few external components to satisfy
USB and ACPI requirements.
Load current management features include a precision
resistor-programmable output current-limit and a soft-start
circuit which minimizes inrush current when the switch is
enabled. Thermal shutdown, along with current-limit,
protects the switch and the attached device.
The MIC2544/48’s open-drain flag output is used to
indicate current-limiting or thermal shutdown to a local
controller. The MIC2548 has an additional internal latch
which turns the output off upon thermal shutdown
providing robust fault control. The enable signal is
compatible with both 3V and 5V logic, and is also used as
the thermal shutdown latch reset for the MIC2548.
The MIC2544 and MIC2548 are available in active-high
and active-low enable versions in the 8-pin SOIC
(small-outline integrated circuit) and 8-pin MSOP (micro-
small-outline package).
Features
2.7V to 5.5V input
Adjustable current-limit up to 1.5A
Reverse current flow blocking (no “body diode”)
75μA typical on-state supply current
1μA typical off-state supply current
120mΩ maximum on-resistance
Open-drain fault flag
Thermal shutdown
Thermal shutdown output latch (MIC2548)
2ms (slow) turn-on and fast turnoff
Available with active-high or active-low enable
Applications
USB power distribution
PCI bus power switching
Notebook PC
ACPI power distribution
PC card hot swap applications
Inrush current-limiting
_________________________________________________________________________________________________________
Typical Application

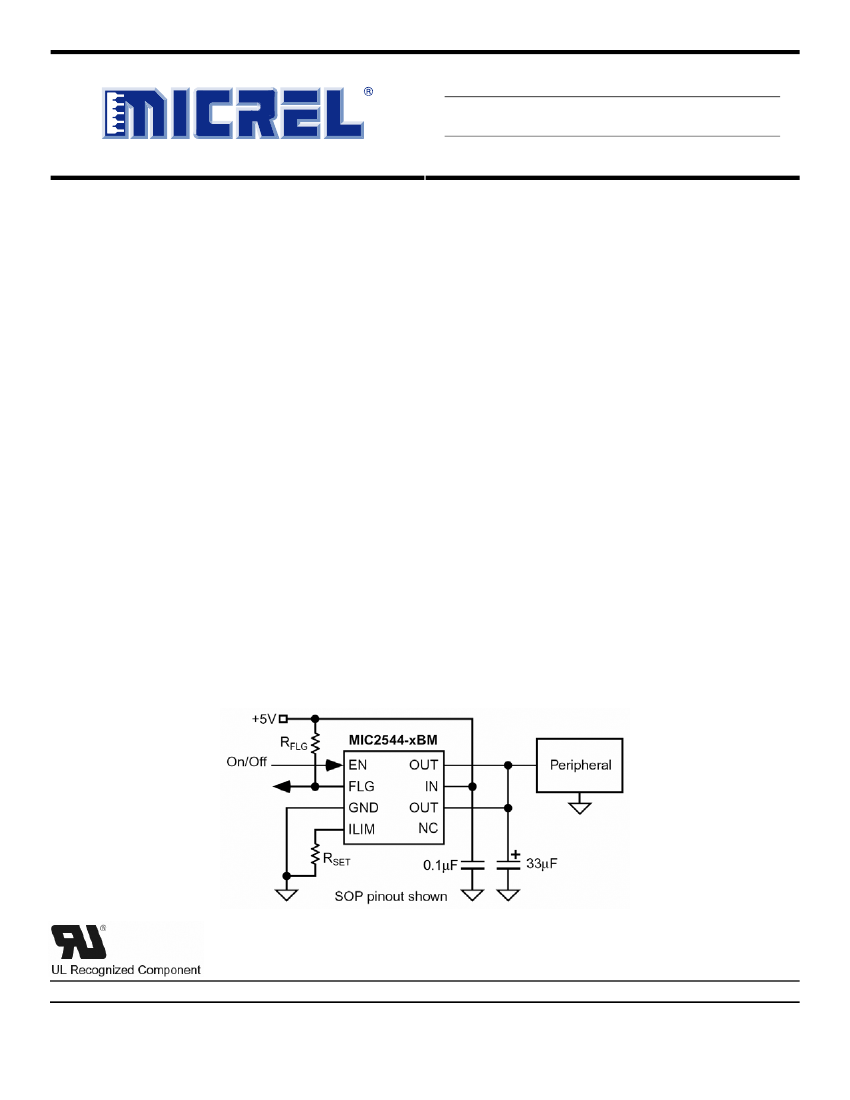

Typical Advanced Configuration and Power Interface (ACPI) Application
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (
408
) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
April 2010
M9999-043010

MIC2544-2YM Related Products

MIC2544-2YM MIC2548-1YM-TR MIC2548-2YM MIC2548-2YMM-TR MIC2548-2YMM MIC2544-1YM-TR MIC2548-1YMM-TR
Description ESD Suppressors / TVS Diodes 400W ASYMMETRICAL TVS 7V,12V Power Switch ICs - Power Distribution Linear Voltage Regulators 5.0V 0.1A Positive Power Switch ICs - Power Distribution Non-Isolated DC/DC Converters 0.5A 5V OUT SIP VERT RS-422/RS-485 Interface IC 3-5.5V 1uA Tcvr Multiprotocol USB Interface IC USB to Serial UART Enhanced IC SSOP-28
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
package instruction SOP, SOP, SOP, TSSOP, TSSOP, SOP, TSSOP,
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Factory Lead Time 10 weeks 10 weeks 10 weeks 10 weeks 6 weeks 6 weeks 10 weeks
Built-in protection OVER CURRENT; THERMAL OVER CURRENT; THERMAL OVER CURRENT; THERMAL OVER CURRENT; THERMAL OVER CURRENT; THERMAL OVER CURRENT; THERMAL OVER CURRENT; THERMAL
Interface integrated circuit type BUFFER OR INVERTER BASED PERIPHERAL DRIVER BUFFER OR INVERTER BASED PERIPHERAL DRIVER BUFFER OR INVERTER BASED PERIPHERAL DRIVER BUFFER OR INVERTER BASED PERIPHERAL DRIVER BUFFER OR INVERTER BASED PERIPHERAL DRIVER BUFFER OR INVERTER BASED PERIPHERAL DRIVER BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 R-PDSO-G8
JESD-609 code e4 e4 e4 e4 e4 e4 e4
length 4.9 mm 4.9 mm 4.9 mm 3 mm 3 mm 4.9 mm 3 mm
Humidity sensitivity level 1 3 3 1 1 1 1
Number of functions 1 1 1 1 1 1 1
Number of terminals 8 8 8 8 8 8 8
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Output current flow direction SINK SINK SINK SINK SINK SINK SINK
Nominal output peak current 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP TSSOP TSSOP SOP TSSOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) 260 260 260 260 260 260 260
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 1.879 mm 1.879 mm 1.879 mm 1.09 mm 1.09 mm 1.879 mm 1.09 mm
Maximum supply voltage 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V
Nominal supply voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount YES YES YES YES YES YES YES
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface Nickel/Palladium/Gold (Ni/Pd/Au) Nickel/Palladium/Gold (Ni/Pd/Au) Nickel/Palladium/Gold (Ni/Pd/Au) NICKEL PALLADIUM GOLD Nickel/Palladium/Gold (Ni/Pd/Au) Nickel/Palladium/Gold (Ni/Pd/Au) Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 0.65 mm 0.65 mm 1.27 mm 0.65 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 40 40 40 40 40 40 40
connection time 5000 µs 5000 µs 5000 µs 5000 µs 5000 µs 5000 µs 5000 µs
width 3.9 mm 3.9 mm 3.9 mm 2.97 mm 2.97 mm 3.9 mm 2.97 mm
Base Number Matches 1 - 1 - 1 1 -
