INN21x3-21x5
InnoSwitch-CE
Family
Off-Line CV/CC Flyback Switcher IC with Integrated 650 V MOSFET,
Sync-Rect and Feedback with High Output Current (>2 A) Capability
Product Highlights
Highly Integrated, Compact Footprint
•
Incorporates flyback controller, 650 V MOSFET, secondary-side
FWD
sensing and synchronous rectification driver
•
FluxLink™ integrated, HIPOT-isolated, feedback link
•
Exceptional CV accuracy, tolerant of transformer and board
component variances
•
Adjustable accurate output current
SR FET
GND
EcoSmart
™
– Energy Efficient
BPS
SR
•
<10 mW no-load at 230 VAC when supplied by transformer bias
InnoSwitch-CE
Primary FET
and Controller
D
V
FB
VOUT
winding
•
Easily meets all global energy efficiency regulations
Advanced Protection / Safety Features
•
•
•
•
•
S
BPP
IS
Primary sensed output OVP
Secondary sensed output overshoot clamp
Secondary sensed output OCP to zero output voltage
Hysteretic thermal shutdown
Input voltage monitor with accurate brown-in/brown-out and
overvoltage protection
Secondary
Control IC
Current
Sense
PI-7719-121415
Figure 1.
Typical Application/Performance.
Full Safety and Regulatory Compliance
•
•
•
•
•
100% production HIPOT compliance testing equivalent to
6 kV DC/1 sec
Reinforced insulation
Isolation voltage >3,500 VAC
UL1577 and TUV (EN60950) safety approved
EN61000-4-8 (100 A/m) and EN61000-4-9 (1000 A/m) compliant
Green Package
Applications
Figure 2.
High Creepage, Safety-Compliant eSOP Package.
•
Halogen free and RoHS compliant
•
High current charger and adapters for mobile devices
•
Consumer electronics − set top boxes, networking, gaming, LED
Description
The InnoSwitch
™
-CE family of ICs dramatically simplify the development
and manufacturing of low-voltage, high current power supplies,
particularly those in compact enclosures or with high efficiency require-
ments. The InnoSwitch-CE architecture is revolutionary in that the
devices incorporate both primary and secondary controllers, with sense
elements and a safety-rated feedback mechanism into a single IC.
Close component proximity and innovative use of the integrated
communication link permit accurate control of both a secondary-side
synchronous rectification MOSFET and optimization of primary-side
MOSFET switching. This improves system reliability, maximizes
efficiency across the power range from full load to low-power standby.
Output Power Table
85-265 VAC
Product
4
INN21x3K
INN21x4K
INN21x5K
3
3
3
Adapter
1
12 W
15 W
20 W
Peak or
Open Frame
1,2
15 W
20 W
25 W
Table 1. Output Power Table.
Notes:
1. Minimum continuous power in a typical non-ventilated enclosed typical size
adapter measured at 40 °C ambient. Max output power is dependent on the
design. With condition that package temperature must be < = 125
°C.
2. Minimum peak power capability.
3. x = 0 (no cable compensation), x = 2 (300 mV cable compensation).
4. Package: K: eSOP-R16B.
www.power.com
February 2016
This Product is Covered by Patents and/or Pending Patent Applications.
INN21x3-21x5
PRIMARY BYPASS
(BPP)
REGULATOR
5.95 V
DRAIN
(D)
INPUT VOLTAGE
MONITOR (V)
FAULT
PRESENT
LINE-SENSE
UV
OV
AUTO-
RESTART
COUNTER
RESET
+
BYPASS PIN
UNDERVOLTAGE
BYPASS
-
CAPACITOR
SELECT AND 5.95 V
CURRENT 5.39 V
LIMIT STATE
MACHINE
V
I
LIMIT
CURRENT LIMIT
COMPARATOR
-
+
JITTER
CLOCK
DCMAX
FROM
FEEDBACK
DRIVER
PRI/SEC
RECEIVER
CONTROLLER
OSCILLATOR
THERMAL
SHUTDOWN
S
Q
PULSE
DCMAX
S
6.4 V
OVP
LATCH
20
Ω
R
Q
LEADING
EDGE
BLANKING
PI-7453-121114
SOURCE
(S)

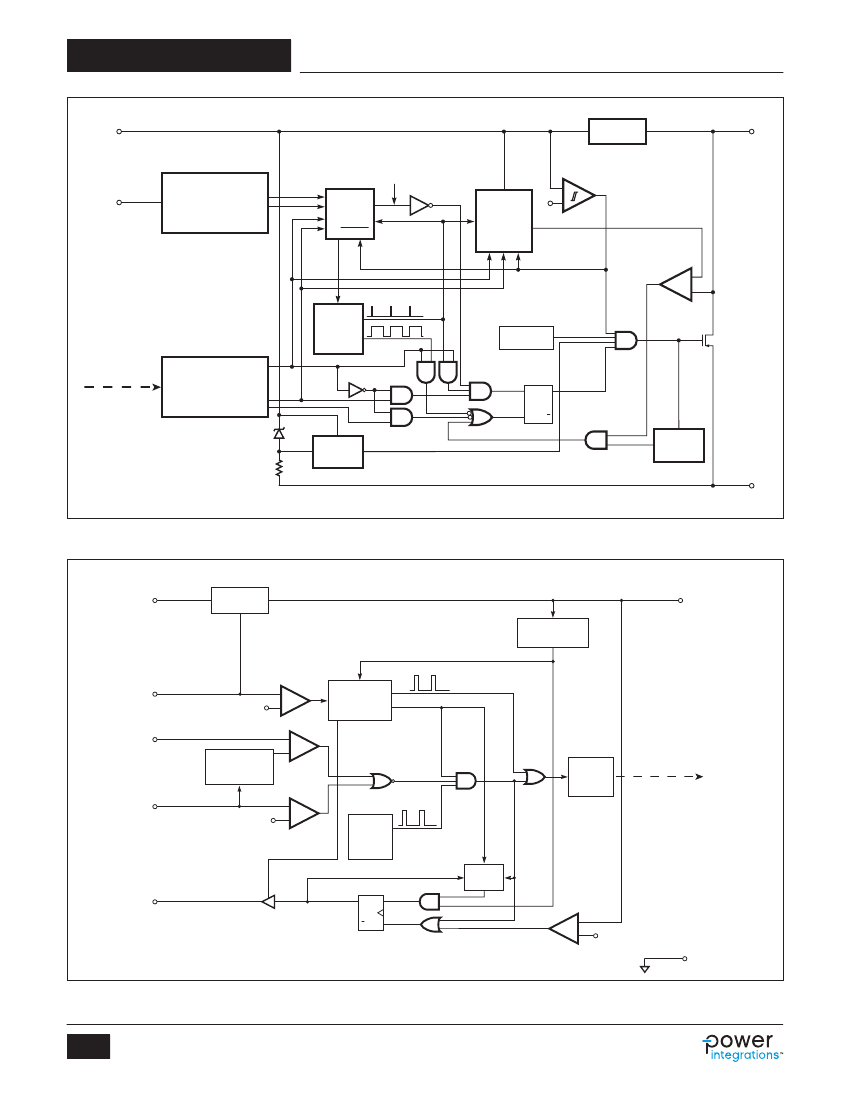

Figure 3.
Primary-Side Controller Block Diagram.
OUTPUT
VOLTAGE
(V
O
)
REGULATOR
4.45 V
FORWARD
(FWD)
DETECTOR
SCONDARY
BYPASS
(BPS)
4.45 V
3.80 V
FEEDBACK
(FB)
+
-
HAND SHAKE
PULSES
CONTROL
+
-
CABLE
COMPENSATION
ISENSE
(IS)
IS THRESHOLD
FEEDBACK
DRIVER
+
-
TO
RECEIVER
CLOCK
OSCILLATOR
SYNC RECT
(SR)
ENABLE
SR
ENB
Q
S
Q
R
+
-
SR
THESHOLD
SECONDARY
GROUND
(GND)
PI-7813-120215
Figure 4.
Secondary-Side Controller Block Diagram.
2
Rev. A 02/16
www.power.com
INN21x3-21x5
Pin Functional Description
DRAIN (D) Pin (Pin 1)
This pin is the power MOSFET drain connection.
SOURCE (S) Pin (Pin 3-6)
This pin is the power MOSFET source connection. It is also the
ground reference for the PRIMARY BYPASS pin.
PRIMARY BYPASS (BPP) Pin (Pin 7)
It is the connection point for an external bypass capacitor for the
primary-side controller IC supply.
INPUT VOLTAGE MONITOR (V) Pin (Pin 8)
A 8 MW resistor is tied between the pin and the input bulk capacitor
to provide input under and overvoltage protection.
FORWARD (FWD) Pin (Pin 10)
The connection point to the switching node of the transformer output
winding for sensing and other functions.
OUTPUT VOLTAGE (VOUT) Pin (Pin 11)
This pin is connected directly to the output voltage of the power
supply to provide bias to the secondary IC.
SYNCHRONOUS RECTIFIER DRIVE (SR) Pin (Pin 12)
Connection to external SR FET gate terminal.
SECONDARY BYPASS (BPS) Pin (Pin 13)
It is the connection point for an external bypass capacitor for the
secondary-side controller supply.
FEEDBACK (FB) Pin (Pin 14)
This pin connects to an external resistor divider to set the power
supply CV voltage regulation threshold.
SECONDARY GROUND (GND) (Pin 15)
Ground connection for the secondary IC.
ISENSE (IS) Pin (Pin 16)
Connection to the power supply output terminals. An external
current sense resistor is connected between this pin and the SECOND-
ARY GROUND pin.
If secondary current sense is not required, the ISENSE pin should be
connected to the SECONDARY GROUND pin.
InnoSwitch-CE Functional Description
The InnoSwitch-CE combines a high-voltage power MOSFET switch,
along with both primary-side and secondary-side controllers in one
device. It has a novel inductive coupling feedback scheme using the
package leadframe and bond wires to provide a reliable and low-cost
means to provide accurate direct sensing of the output voltage and
output current on the secondary to communicate information to the
primary IC. Unlike conventional PWM (pulse width modulated)
controllers, it uses a simple ON/OFF control to regulate the output
voltage and current. The primary controller consists of an oscillator, a
receiver circuit magnetically coupled to the secondary controller, current
limit state machine, 5.95 V regulator on the PRIMARY BYPASS pin,
overvoltage circuit, current limit selection circuitry, over temperature
protection, leading edge blanking and a 650 V power MOSFET. The
InnoSwitch-CE secondary controller consists of a transmitter circuit that
is magnetically coupled to the primary receiver, constant voltage (CV)
and constant current (CC) control circuitry, a 4.4 V regulator on the
SECONDARY BYPASS pin, synchronous rectifier MOSFET driver,
frequency jitter oscillator and a host of integrated protection features.
Figures 3 and 4 show the functional block diagrams of the primary and
secondary controllers with the most important features.
PRIMARY BYPASS Pin Regulator
The PRIMARY BYPASS pin has an internal regulator that charges the
PRIMARY BYPASS pin capacitor to V
BPP
by drawing current from the
voltage on the DRAIN pin whenever the power MOSFET is off. The
PRIMARY BYPASS pin is the internal supply voltage node. When the
power MOSFET is on, the device operates from the energy stored in
the PRIMARY BYPASS pin capacitor. Extremely low power consump-
tion of the internal circuitry allows the InnoSwitch-CE to operate
continuously from current it takes from the DRAIN pin.
In addition, there is a shunt regulator clamping the PRIMARY BYPASS
pin voltage to V
SHUNT
when current is provided to the PRIMARY BYPASS
pin through an external resistor. This facilitates powering the
InnoSwitch-CE externally through a bias winding to decrease the
no-load consumption to less than 10 mW (5V output design).
PRIMARY BYPASS Pin Capacitor Selection
The PRIMARY BYPASS pin can use a ceramic capacitor as small as
0.1
mF
for decoupling the internal power supply of the device.
A larger capacitor size can be used to adjust the current limit. A 1
mF
capacitor on the PRIMARY BYPASS pin will select a higher current limit
equal to the standard current of the next larger device. A 10
mF
capacitor on the PRIMARY BYPASS pin selects a lower current limit
equal to the standard current limit of the next smaller device.
PRIMARY BYPASS Pin Undervoltage Threshold
The PRIMARY BYPASS pin undervoltage circuitry disables the power
MOSFET when the PRIMARY BYPASS pin voltage drops below
V
BPP
-V
BPP(H)
in steady-state operation. Once the PRIMARY BYPASS pin
voltage falls below this threshold, it must rise back to V
BPP
to enable
(turn-on) the power MOSFET.
PRIMARY BYPASS Pin Output Overvoltage Latching Function
The PRIMARY BYPASS pin has an OV protection latching feature.
A Zener diode in parallel to the resistor in series with the PRIMARY
BYPASS pin capacitor is typically used to detect an overvoltage on the
primary bias winding to activate this protection mechanism. In the
event the current into the PRIMARY BYPASS pin exceeds (I
SD
) the
device will disable the power MOSFET switching. The latching
condition is reset by bringing the primary bypass below the reset
threshold voltage (V
BPP(RESET)
).
D1
S 3-6
BPP 7
V8
16 IS
15 GND
14 FB
13 BPS
12 SR
11 VOUT
10 FWD
9 NC
PI-7454-082715
Figure 5.
Pin Configuration.
3
www.power.com
Rev. A 02/16
INN21x3-21x5
Over-Temperature Protection
The thermal shutdown circuitry senses the primary die temperature.
This threshold is typically set to 142 °C with 75 °C hysteresis. When
the die temperature rises above this threshold the power MOSFET is
disabled and remains disabled until the die temperature falls by 75 °C,
at which point it is re-enabled. A large hysteresis of 75 °C is provided
to prevent over-heating of the PC board due to continuous fault
condition.
Current Limit Operation
The current limit circuit senses the current in the power MOSFET.
When this current exceeds the internal threshold (I
LIMIT
), the power
MOSFET is turned off for the remainder of that switch cycle. The
current limit state-machine reduces the current limit threshold by
discrete amounts under medium and light loads.
The leading edge blanking circuit inhibits the current limit comparator
for a short time (t
LEB
) after the power MOSFET is turned-on. This
leading edge blanking time has been set so that current spikes
caused by capacitance and secondary-side rectifier reverse recovery
time will not cause premature termination of the switching pulse.
Each switching cycle is terminated when the Drain current of the
primary power MOSFET reaches the current limit of the device.
Auto-Restart
In the event of a fault condition such as output overload, output
short-circuit or external component/pin fault, the InnoSwitch-CE
enters into auto-restart (AR) operation. In auto-restart operation the
power MOSFET switching is disabled for t
AR(OFF)
. There are 2 ways to
enter auto-restart:
the primary goes into auto-restart and repeats. However under
normal conditions, the secondary chip will power-up through the
FORWARD pin or directly from VOUT and then take over control.
From then onwards the secondary is in control of demanding
switching cycles when required.
The handshake flowchart is shown in Figure 6 below.
In the event the primary stops switching or does not respond to cycle
requests from the secondary during normal operation when the
secondary has control, the handshake protocol is initiated to ensure
that the secondary is ready to assume control once the primary
begins switching again. This protocol for an additional handshake is
also invoked in the event the secondary detects that the primary is
providing more cycles than were requested.
Start
P: Powered Up, Switching
S: Powering Up
P: Primary Chip
S: Secondary Chip
P: Auto-Restart
S: Powering Up
1.
Continuous switching requests from the secondary for time period
2.
No requests for switching cycles from the secondary for a time
period exceeding t
AR(SK)
.
The first condition corresponds to a condition wherein the secondary
controller makes continuous cycle requests without a skipped-cycle
for more than t
AR
time period. The second method was included to
ensure that if communication is lost, the primary tries to restart
again. Although this should never be the case in normal operation,
this can be useful in the case of system ESD events for example
where a loss of communication due to noise disturbing the secondary
controller, is resolved when the primary restarts after an auto-restart
off time.
The auto-restart alternately enables and disables the switching of the
power MOSFET until the fault is removed. The auto-restart counter is
gated by the switch oscillator in SOA mode the auto-restart off timer
may appear to be longer.
The auto-restart counter is reset once the primary PRIMARY BYPASS
pin falls below the undervoltage threshold V
BPP
-V
BPP(HYS)
.
Safe-Operating-Area (SOA) Protection
In the event there are two consecutive cycles where the primary
power MOSFET switch current reaches current limit (I
LIM
) within the
blanking (t
LEB
) and current limit (t
ILD
) delay time, the controller will
skip approximately 2.5 cycles or ~25
msec.
This provides sufficient
time for reset of the transformer without sacrificing start-up time into
large capacitive load. Auto-restart timing is increased when the
device is operating in SOA-mode.
Primary-Secondary Handshake Protocol
At start-up, the primary initially switches without any feedback
information (this is very similar to the operation of a standard
TOPSwitch™, TinySwitch™ or LinkSwitch™ controllers). If no
feedback signals are received during the auto-restart on-time,
exceeding t
AR
.
S: Has powered
up within 64 ms?
No
2s
P: Goes to Auto-Restart Off
S: Bypass Discharging
Yes
P: Switching
S: Sends Handshaking Pulses
64 ms
P: Has Received
Handshaking
Pulses
Yes
P: Stops Switching, Hands
Over Control to Secondary
No
P: Continuous Switching
S: Doesn’t Take Control
S: Has Taken
Control?
No
P: Not Switching
S: Doesn’t Take Control
Yes
End of Handshaking,
Secondary Control Mode
PI-7416-102814
Figure 6.
Primary –Secondary Handshake Flowchart.
4
Rev. A 02/16
www.power.com
INN21x3-21x5
The most likely event that could require an additional handshake is
when the primary stops switching resulting from a momentary line
drop-out or brown-out event. When the primary resumes operation,
it will default into a start-up condition and attempt to detect hand-
shake pulses from the secondary.
In the event the secondary does not detect that the primary responds
to requests for 6 consecutive cycles, or if the secondary detects that
the primary is switching without cycle requests for 6 or more
consecutive cycles, the secondary controller will initiate a second
handshake sequence.
This protection mode also provides additional protection against
cross-conduction of the SR MOSFET while the primary is switching.
This protection mode also prevents output overvoltage in the event
the primary is reset while the secondary is still in control and light/
medium load conditions exist.
Line Voltage Monitor
The VOLTAGE MONITOR pin is used for input under and overvoltage
sensing and protection function.
A 8 MW resistor is tied between the high voltage bulk DC capacitor
after the bridge or connected through a set of diodes from the AC
side of bridge and small high-voltage capacitor and bleed resistor
(for fast AC reset) and VOLTAGE MONITOR pin to enable this function.
To disable this function the VOLTAGE MONITOR pin should be tied to
the PRIMARY BYPASS pin.
At power-up after the BPP is charged and the I
LIM
is latched, prior to
switching the state of VOLTAGE MONITOR pin current is checked to
determine that it is above brown-in (I
UV+
) And below the overvoltage
shutdown threshold (I
OV+
) To proceed with start-up.
If during normal operation the VOLTAGE MONITOR pin current falls
below the brown-out (I
UV-
) threshold and remains below brown-in
(I
UV+
) for longer than t
UV-
the controller enters into auto-restart with
a short auto-restart off-time (~200 ms). Switching will only resume
once the VOLTAGE MONITOR pin current is above the brown-in
threshold (I
UV+
) for a time period exceeding ~150 ms.
In the event during normal operation the VOLTAGE MONITOR pin
current is above the overvoltage threshold (I
OV+
) for longer than t
OV
,
the controller will enter auto-restart with a short auto-restart off-time
(~200 ms). Switching will only resume once the VOLTAGE MONITOR
pin current fall below (I
OV-
) for a time period exceeding ~150 ms.
Secondary Controller
Once the device enters the short auto-restart OFF-time, the PRIMARY
BYPASS pin will activate an internal bleed to discharge the input bulk
capacitor. The feedback driver block is the drive to the FluxLink
communication loop transferring switching pulse requests to the
primary IC.
As shown in the block diagram in Figure 4, the secondary controller
is powered through a 4.45 V Regulator block by either VOUT or
FORWARD pin connections to the SECONDARY BYPASS pin. The
SECONDARY BYPASS pin is connected to an external decoupling
capacitor and fed internally from the regulator block.
The FORWARD pin also connects to the negative edge detection
block used for both handshaking and timing to turn on the synchro-
nous rectifier MOSFET (SR FET) connected to the SYNCHRONOUS
RECTIFIER DRIVE pin. The FORWARD pin is also used to sense when
to turn off the SR FET in discontinuous mode operation when the
voltage across the FET on resistance drops below V
SR(TH)
.
In continuous mode operation the SR FET is turned off when the
pulse request is sent to demand the next switching cycle, providing
excellent synchronization free of any overlap for the FET turn-off
while operating in continuous mode.
The mid-point of an external resistor divider network between the
VOUT and SECONDARY GROUND pins is tied to the FEEDBACK pin
to regulate the output voltage. The internal voltage comparator
reference voltage is V
REF
(1.265 V).
The external current sense resistor connected between IS and
SECONDARY GROUND pins is used to regulate the output current in
constant current regulator mode. The internal current sense
comparator threshold is IS
VTH
used to determine the value at which
the power supply output current is regulated.
Secondary Controller Oscillator
The typical oscillator frequency is internally set to an average
frequency of 100 kHz.
The oscillator incorporates circuitry that introduces a small amount of
frequency jitter, typically 6 kHz peak-to-peak, to minimize EMI
emission. The modulation rate of the frequency jitter is set to 1 kHz
to optimize EMI reduction for both average and quasi-peak emissions.
Output Overvoltage Protection
In the event the sensed voltage on the FEEDBACK pin is 2% higher
than the regulation threshold, a bleed current of ~10 mA is applied on
the VOUT pin. This bleed current increases to ~140 mA in the event
the FEEDBACK pin voltage is raised to beyond ~20% of the internal
FEEDBACK pin reference voltage. The current sink on the VOUT pin
is intended to discharge the output voltage for momentary overshoot
events. The secondary does not relinquish control to the primary
during this mode of operation.
FEEDBACK Pin Short Detection
In the event the FEEDBACK pin voltage is below the V
FB(OFF)
threshold
at start-up, the secondary will complete the primary/secondary hand-
shake and will stop requesting pulses to initiate an auto-restart. The
secondary will stop requesting cycles for t
AR(SK)
, to begin primary-side
auto-restart of t
AR(OFF)SH
. In this condition, the total apparent AR
off-time is t
AR(SK)
+ t
AR(OFF)SH
. During normal operation, the secondary
will stop requesting pulses from the primary to initiate an auto-restart
cycle when the FEEDBACK pin voltage falls below V
FB(OFF)
threshold.
The deglitch filter on the V
FB(OFF)
is less than 10
msec.
The secondary
will relinquish control after detecting the FEEDBACK pin is shorted to
ground.
Cable Drop Compensation (CDC)
The amount of cable drop compensation is a function of the load with
respect to the constant current regulation threshold as illustrated in
Figure 7.
V
OUT
+
φ
CD
Output Voltage
End of PCB
Cable Drop
Compensation
V
OUT
No-Load
Load Current
Onset of CC
Regulation
PI-7863-010516
Figure 7.
Cable Drop Compensation Characteristics.
The lower feedback pin resistor must be tied to the SECONDARY
GROUND pin (not ISENSE pin) to have output cable drop compensa-
tion enabled.
5
www.power.com
Rev. A 02/16
LED Zone
京公网安备 11010802033920号
EEWORLD
