Ordering number:EN3287
FC133
PNP Epitaxial Planar Silicon Composite Transistor
Switching Applications
(with Bias Resistance)
Features
· On-chip bias resistances (R1=10kΩ, R2=47kΩ)).
· Composite type with 2 transistors contained in the
CP package currently in use, improving the mount-
ing efficiency greatly.
· The FC133 is formed with two chips, being equiva-
lent to the 2SA1563, placed in one package.
· Excellent in thermal equilibrium and pair capability.
Electrical Connection
C1:Collector 1
C2:Collector 2
B2:Base 2
EC:Emitter Common
B1:Base 1
C1:Collector 1
C2:Collector 2
B2:Base 2
EC:Emitter Common
B1:Base 1
SANYO:CP5
Package Dimensions
unit:mm
2066
[FC133]
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Peak Collector Current
Collector Dissipation
Total Power Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
PT
Tj
Tstg
1 unit
Conditions
Ratings
–50
–50
–6
–100
–200
200
300
150
–55 to +150
Unit
V
V
V
mA
mA
mW
mW
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Collector Cutoff Current
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
C-E Saturation Voltage
C-B Breakdown Voltage
C-E Breakdown Voltage
Input OFF-State Voltage
Input ON-State Voltage
Input Resistance
Resistacne Ratio
Symbol
ICBO
ICEO
IEBO
hFE
fT
Cob
VCB=–40V, IE=0
VCB=–40V, IB=0
VEB=–5V, IC=0
VCE=–5V, IC=–5mA
VCE=–10V, IC=–5mA
VCB=–10V, f=1MHz
–50
–50
–0.5
–0.7
7
0.193
–0.7
–1.0
10
0.213
–0.9
–2.0
13
0.234
–67
70
200
5.1
–0.1
–0.3
MHz
pF
V
V
V
V
V
kΩ
–88
Conditons
Ratings
min
typ
max
–0.1
–0.5
–125
Unit
µA
µA
µA
VCE(sat) IC=–10mA, IB=–0.5mA
V(BR)CBO IC=–10µA, IE=0
V(BR)CEO IC=–100µA, RBE=∞
VI(off)
VI(on)
R1
R1/R2
VCE=–5V, IC=–100µA
VCE=–0.2V, IC=–5mA
Note:The specifications shown above are for each individual transistor.
Marking:133
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
52098HA (KT)/2190MO, TS No.3287-1/2

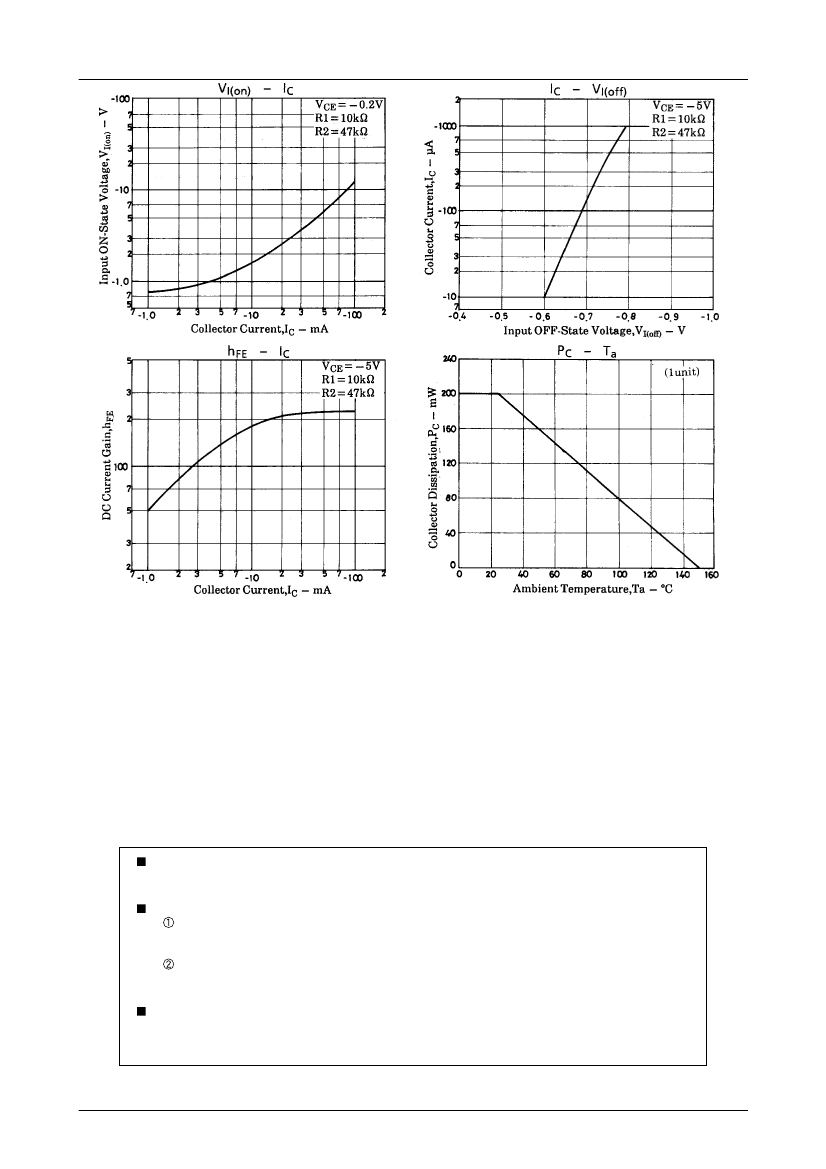

FC133
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of May, 1998. Specifications and information herein are subject to
change without notice.
PS No.3287-2/2
