L78M06ABDT-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > L78M06ABDT-TR

L78M06ABDT-TR: DescriptionStandard Regulator Pos 6V 0.5A 3-Pin(2+Tab) DPAK T/R; File Size1MB，45 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

L78M06ABDT-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L78M06ABDT-TR	-	-	View	Buy Now

L78M06ABDT-TR Overview

Standard Regulator Pos 6V 0.5A 3-Pin(2+Tab) DPAK T/R

L78M06ABDT-TR Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Type	Standard
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	6
Maximum Output Current (A)	0.5
Maximum Input Voltage (V)	35
Line Regulation	100mV
Load Regulation	120mV
Maximum Quiescent Current (mA)	6
Junction to Ambient	100°C/W
Junction to Case	8°C/W
Special Features	Short Circuit Protection\|Thermal Shutdown Protection\|Safe Area Protection\|Current Limit
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Extended
Packaging	Tape and Reel
Supplier Package	DPAK
Pin Count	3
Standard Package Name	TO-252
Mounting	Surface Mount
Package Height	2.4(Max)
Package Length	6.6(Max)
Package Width	6.2(Max)
PCB changed	2
Tab	Tab
Lead Shape	Gull-wing

Preview

Download Datasheet

View All

L78M

Datasheet

Precision 500 mA regulators

Features

•

Output current to 0.5 A

Output voltages of 5; 6; 8; 9; 10; 12; 15; 24 V

Thermal overload protection

Short circuit protection

Output transition SOA protection

Output voltage tolerance: 2 % (AB and AC versions) or 4 % (C version)

Guaranteed in extended temperature range

TO-220

TO-220FP

DPAK

IPAK

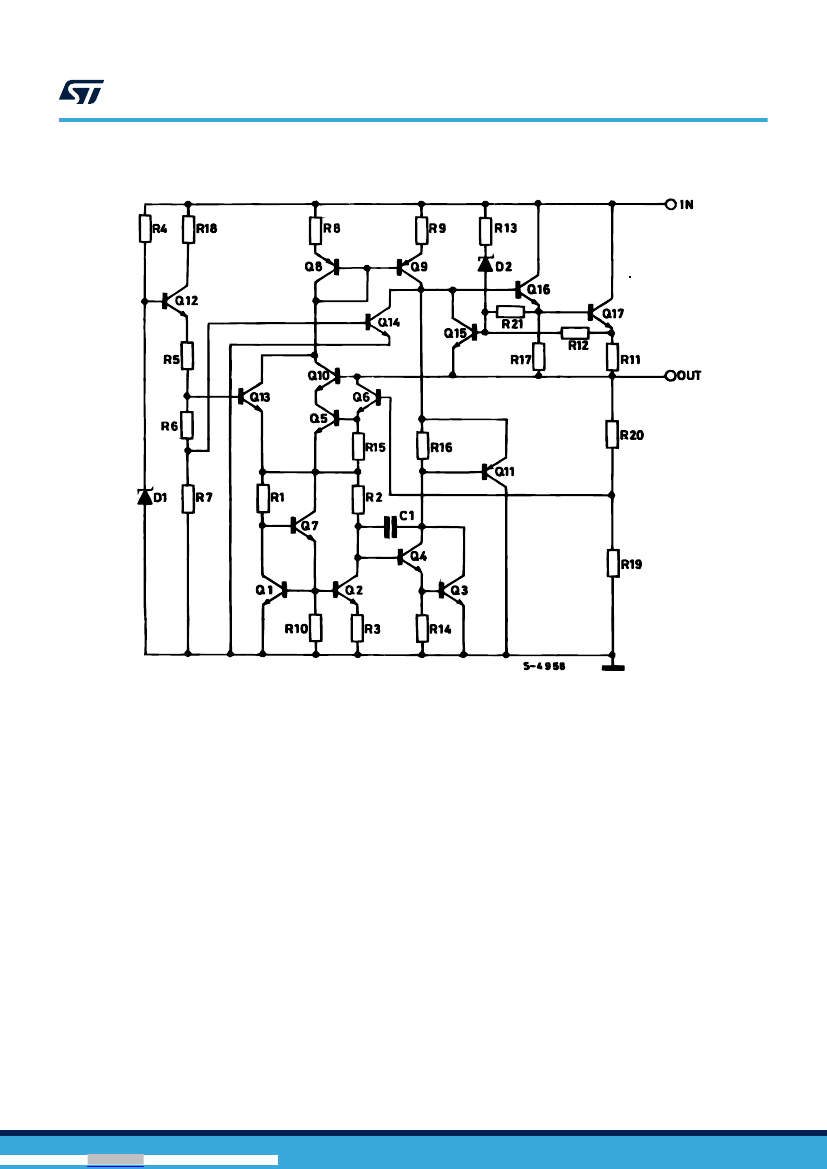

Description

The

L78M

series of three-terminal positive regulators is available in TO-220,

TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making

it useful in a wide range of applications. These regulators can provide local on-card

regulation, eliminating the distribution problems associated with single point

regulation. Each type employs internal current limiting, thermal shutdown and safe

area protection, resulting it essentially indestructible. If adequate heat sinking is

provided, they can deliver over 0.5 A output current. Although designed primarily as

fixed voltage regulators, these devices can be used with external components to

obtain adjustable voltage and currents.

Maturity status link

L78M

DS0425

Rev 24

September 2020

For further information contact your local STMicroelectronics sales office.

www.st.com
