FEATURES
§
§
§
§
§
§
www. maximintegrated.com
Two digitally controlled, 256-position
potentiometers
Serial port provides means for setting and
reading both potentiometers
Resistors can be connected in series to
provide increased total resistance
20-pin TSSOP and 16-pin SO packages are
available
Resistive elements are temperature
compensated to
±0.3
LSB relative linearity
Standard resistance values:
- DS1868B-10
~10kW
- DS1868B-50
~50kW
- DS1868B-100
~100kW
+5V or ±3V operation
Operating temperature range:
Industrial: -40°C to +85°C
- Low End of Resistor
- High End of Resistor
- Wiper Terminal of Resistor
- Stacked Configuration Output
- Serial Port Reset Input
- Serial Port Data Input
- Serial Port Clock Input
- Cascade Port Output
- +5 Volt Supply
- Ground Connections
- No Internal Connection
- Substrate Bias Voltage
- Do Not Connect
DS1868B
Dual Digital Potentiometer
PIN ASSIGNMENT
V
B
DNC
H1
L1
W1
RST
CLK
DNC
DNC
GND
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CC
DNC
DNC
S
OUT
W0
H0
L0
C
OUT
DNC
DQ
20-Pin TSSOP (173-mil)
V
B
NC
H1
L1
W1
RST
CLK
GND
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
CC
NC
S
OUT
W0
H0
L0
C
OUT
DQ
§
§
PIN DESCRIPTION
L0, L1
H0, H1
W0, W1
S
OUT
DQ
CLK
C
OUT
V
CC
GND
NC
V
B
DNC
RST
DS1868BS 16-Pin SO (300-mil)
PART NO.
DS1868BE-010+
DS1868BE-050+
DS1868BE-100+
DS1868BS-010+
DS1868BS-050+
DS1868BS-100+
PIN-
PACKAGE
20 TSSOP
20 TSSOP
20 TSSOP
16 SO
16 SO
16 SO
*All GND pins must be connected to ground.
END-TO-END
RESISTANCE
(kΩ)
10
50
100
10
50
100
19-6593; Rev 1; 1/14
Maxim Integrated
1
The DS1868B Dual Digital Potentiometer Chip consists of two digitally controlled solid-state
potentiometers. Each potentiometer is composed of 256 resistive sections. Between each resistive section
and both ends of the potentiometer are tap points which are accessible to the wiper. The position of the
wiper on the resistor array is set by an 8-bit value that controls which tap point is connected to the wiper
output. Communication and control of the device is accomplished via a 3-wire serial port interface. This
interface allows the device wiper position to be read or written.
Both potentiometers can be connected in series (or stacked) for an increased total resistance with the same
resolution. For multiple-device, single-processor environments, the DS1868B can be cascaded or daisy
chained. This feature provides for control of multiple devices over a single 3-wire bus.
The DS1868B is offered in three standard resistance values which include 10kΩ, 50kΩ, and 100kΩ
versions. The part is available in 16-pin SO (300-mil) and 20-pin (173-mil) TSSOP packages.
DESCRIPTION
DS1868B
The DS1868B contains two 256-position potentiometers whose wiper positions are set by an 8-bit value.
These two 8-bit values are written to a 17-bit I/O shift register which is used to store the two wiper
positions and the stack select bit when the device is powered. A block diagram of the DS1868B is
presented in Figure 1.
Communication and control of the DS1868B is accomplished through a 3-wire serial port interface that
drives an internal control logic unit. The 3-wire serial interface consists of the three input signals:
RST
,
CLK, and DQ.
The
RST
control signal is used to enable the 3-wire serial port operation of the device. The
RST
signal is
an active-high input and is required to begin any communication to the DS1868B. The CLK signal input
is used to provide timing synchronization for data input and output. The DQ signal line is used to transmit
potentiometer wiper settings and the stack select bit configuration to the 17-bit I/O shift register of the
DS1868B.
Figure 9(a) presents the 3-wire serial port protocol. As shown, the 3-wire port is inactive when the
RST
signal input is low. Communication with the DS1868B requires the transition of the
RST
input from a
low state to a high state. Once the 3-wire port has been activated, data is entered into the part on the low
to high transition of the CLK signal inputs. Three-wire serial timing requirements are provided in the
timing diagrams of Figure 9(b),(c).
Data written to the DS1868B over the 3-wire serial interface is stored in the 17-bit I/O shift register (see
Figure 2). The 17-bit I/O shift register contains both 8-bit potentiometer wiper position values and the
stack select bit. The composition of the I/O shift register is presented in Figure 2. Bit 0 of the I/O shift
register contains the stack select bit. This bit will be discussed in the section entitled Stacked
Configuration. Bits 1 through 8 of the I/O shift register contain the potentiometer-1 wiper position value.
Bit 1 will contain the MSB of the wiper setting for potentiometer-1 and bit 8 the LSB for the wiper
setting. Bits 9 through 16 of the I/O shift register contain the value of the potentiometer-0 wiper position
with the MSB for the wiper position occupying bit 9 and the LSB bit 16.
OPERATION
Maxim Integrated .............................................................................................................................................................................................
2

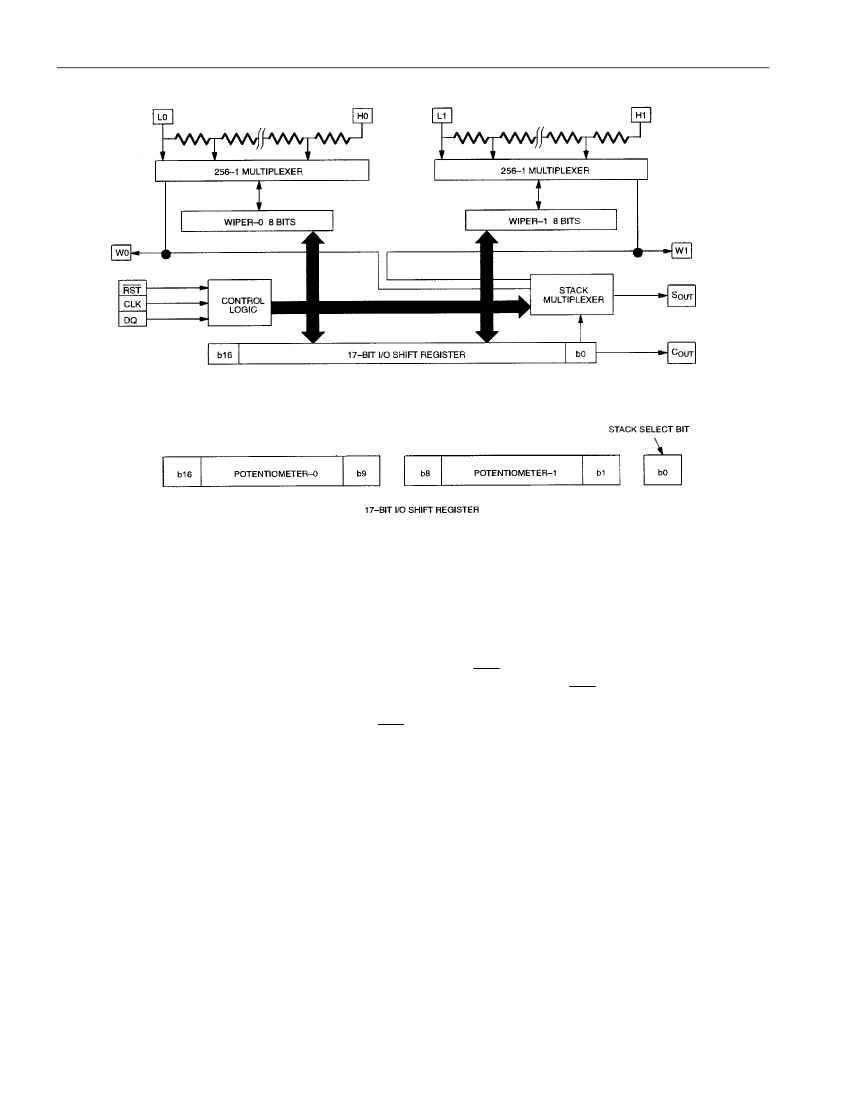

DS1868B BLOCK DIAGRAM
Figure 1
DS1868B
I/O SHIFT REGISTER
Figure 2
Transmission of data always begins with the stack select bit followed by the potentiometer-1 wiper
position value and lastly the potentiometer-0 wiper position value.
When wiper position data is to be written to the DS1868B, 17 bits (or some integer multiple) of data
should always be transmitted. Transactions which do not send a complete 17 bits (or multiple) will leave
the register incomplete and possibly an error in the desired wiper positions.
After a communication transaction has been completed the
RST
signal input should be taken to a low
state to prevent any inadvertent changes to the device shift register. Once
RST
has reached a low state,
the contents of the I/O shift register are loaded into the respective multiplexers for setting wiper position.
A new wiper position will only engage after a
RST
transition to the inactive state. On device power-up,
wiper position will be random.
STACKED CONFIGURATION
The potentiometers of the DS1868B can be connected in series as shown in Figure 3. This is referred to as
the stacked configuration and allows the user to double the total end-to-end resistance of the part. The
resolution of the combined potentiometers will remain the same as a single potentiometer but with a total
of 512 wiper positions available. Device resolution is defined as R
TOT
/256 (per potentiometer); where
R
TOT
equals the total potentiometer resistance.
The wiper output for the combined stacked potentiometer will be taken at the S
OUT
pin, which is the
multiplexed output of the wiper of potentiometer-0 (W0) or potentiometer-1 (W1). The potentiometer
wiper selected at the S
OUT
output is governed by the setting of the stack select bit (bit 0) of the 17-bit I/O
shift register. If the stack select bit has value 0, the multiplexed output, S
OUT
, will be that of the
potentiometer-0 wiper. If the stack select bit has value 1, the multiplexed output, S
OUT
, will be that of the
potentiometer-1 wiper.
Maxim Integrated .............................................................................................................................................................................................
3
STACKED CONFIGURATION
Figure 3
DS1868B
CASCADE OPERATION
A feature of the DS1868B is the ability to control multiple devices from a single processor. Multiple
DS1868Bs can be linked or daisy-chained as shown in Figure 4. As a data bit is entered into the I/O shift
register of the DS1868B a bit will appear at the C
OUT
output after a minimum delay of 50ns. The stack
select bit of the DS1868B will always be the first out of the part at the beginning of a transaction. The
C
OUT
pin will always have the value of the stack select bit (b0) when
RST
is inactive.
CASCADING MULTIPLE DEVICES
Figure 4
The C
OUT
output of the DS1868B can be used to drive the DQ input of another DS1868B. When
connecting multiple devices, the total number of bits transmitted is always 17 times the number of
DS1868Bs in the daisy chain.
An optional feedback resistor can be placed between the C
OUT
terminal of the last device and the first
DS1868B DQ, input thus allowing the controlling processor to read, as well as, write data, or circularly
clock data through the daisy chain. The value of the feedback or isolation resistor should be in the range
from 2Ω to 10kΩ.
When reading data via the C
OUT
pin and isolation resistor, the DQ line is left floating by the reading
device. When
RST
is driven high, bit 17 is present on the C
OUT
pin, which is fed back to the input DQ pin
through the isolation resistor. When the CLK input transitions low to high, bit 17 is loaded into the first
position of the I/O shift register and bit 16 becomes present on C
OUT
and DQ of the next device. After 17
bits (or 17 times the number of DS1868Bs in the daisy chain), the data has shifted completely around and
back to its original position. When
RST
transitions to the low state to end data transfer, the value (the
same as before the read occurred) is loaded into the wiper-0, wiper-1, and stack select bit I/O register.
Maxim Integrated .............................................................................................................................................................................................
4
ABSOLUTE AND RELATIVE LINEARITY
DS1868B
Absolute linearity, also known as Integral Nonlinearity, is defined as the difference between the actual
measured output voltage and the expected output voltage. Figure 5 presents the test circuit used to
measure absolute linearity. Absolute linearity is given in terms of a minimum increment or expected
output when the wiper is moved one position. In the case of the test circuit, a minimum increment (MI) or
one LSB would equal 5/256V. The equation for absolute linearity is given as follows:
(1)
ABSOLUTE LINEARITY (INL)
AL={V
O
(actual) - V
O
(expected)}/MI
Relative linearity, also known as Differential Nonlinearity, is a measure of error between two adjacent
wiper position points and is given in terms of MI by equation (2).
(2)
RELATIVE LINEARITY (DNL)
RL={V
O
(n+1) - V
O
(n)}/MI
Figure 6 is a plot of absolute linearity and relative linearity versus wiper position for the DS1868B at
25°C. The specification for absolute linearity of the DS1868B is
±0.75
MI typical. The specification for
relative linearity of the DS1868B is
±0.3
MI typical.
LINEARITY MEASUREMENT CONFIGURATION
Figure 5
Maxim Integrated .............................................................................................................................................................................................
5
