BAT68E6327HTSA1

Description
Schottky Diodes u0026 Rectifiers Silicon Schottky Diodes 8V 130mA
CategoryDiscrete semiconductor    diode
File Size896KB,12 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BAT68E6327HTSA1 Online Shopping

Suppliers Part Number Price MOQ In stock
BAT68E6327HTSA1 - - View Buy Now

BAT68E6327HTSA1 Overview

Schottky Diodes u0026 Rectifiers Silicon Schottky Diodes 8V 130mA

BAT68E6327HTSA1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionR-PDSO-G3
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE
Maximum diode capacitance1 pF
Diode component materialsSILICON
Diode typeMIXER DIODE
frequency bandVERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.15 W
Certification statusNot Qualified
surface mountYES
technologySCHOTTKY
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

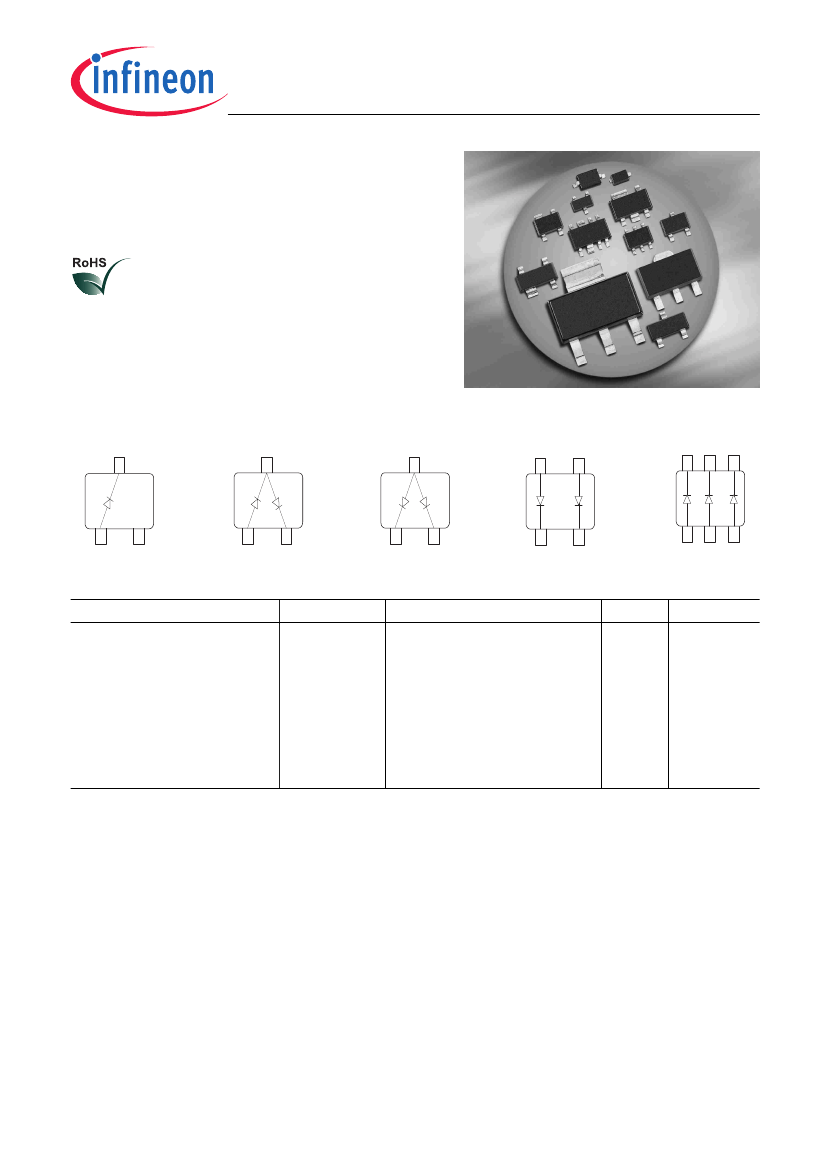

BAT68...
Silicon Schottky Diodes
For mixer applications in the VHF / UHF range
For high-speed switching applications
Pb-free (RoHS compliant) package
BAT68
!
BAT68-04
BAT68-04W
!
BAT68-06
BAT68-06W
!
BAT68-07W
BAT68-08S
$
#
"
"
!
,
,
,
,
,
,
,
,
, !





!
ESD
(
E
lectro
s
tatic
d
ischarge) sensitive device, observe handling precaution!
Type
BAT68
BAT68-04
BAT68-04W
BAT68-06
BAT68-06W
BAT68-07W
BAT68-08S
Package
SOT23
SOT23
SOT323
SOT23
SOT323
SOT343
SOT363
Configuration
single
series
series
common anode
common anode
parallel pair
parallel triple
L
S
(nH)
1.8
1.8
1.4
1.8
1.4
1.6
1.4
Marking
83s
84s
84s
86s
86s
87s
83s
1
2011-06-15
