AS4C16M32MD1-5BCNTR datasheet, PDF

Datasheet> All Categories > storage> AS4C16M32MD1-5BCNTR

AS4C16M32MD1-5BCNTR: Categorystorage; File Size2MB，58 Pages; ManufacturerAlliance Memory

Download Datasheet Parametric Compare View All

AS4C16M32MD1-5BCNTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AS4C16M32MD1-5BCNTR	-	-	View	Buy Now

AS4C16M32MD1-5BCNTR Parametric

Parameter Name	Attribute value
Product Category	DRAM
Manufacturer	Alliance Memory
RoHS	Details
Type	SDRAM Mobile - LPDDR1
Organization	16 M x 16
Packaging	Reel
Moisture Sensitive	Yes
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

AS4C16M32MD1

512M (16M x32 bit) Mobile DDR SDRAM

Confidential

(Rev. 1.0, July. /2014)

LPDDR MEMORY

512M (16Mx32bit)

Mobile DDR SDRAM

Revision History

Revision No

1.0

Initial Release

Description

Date

2014/07/18

AS4C16M32MD1

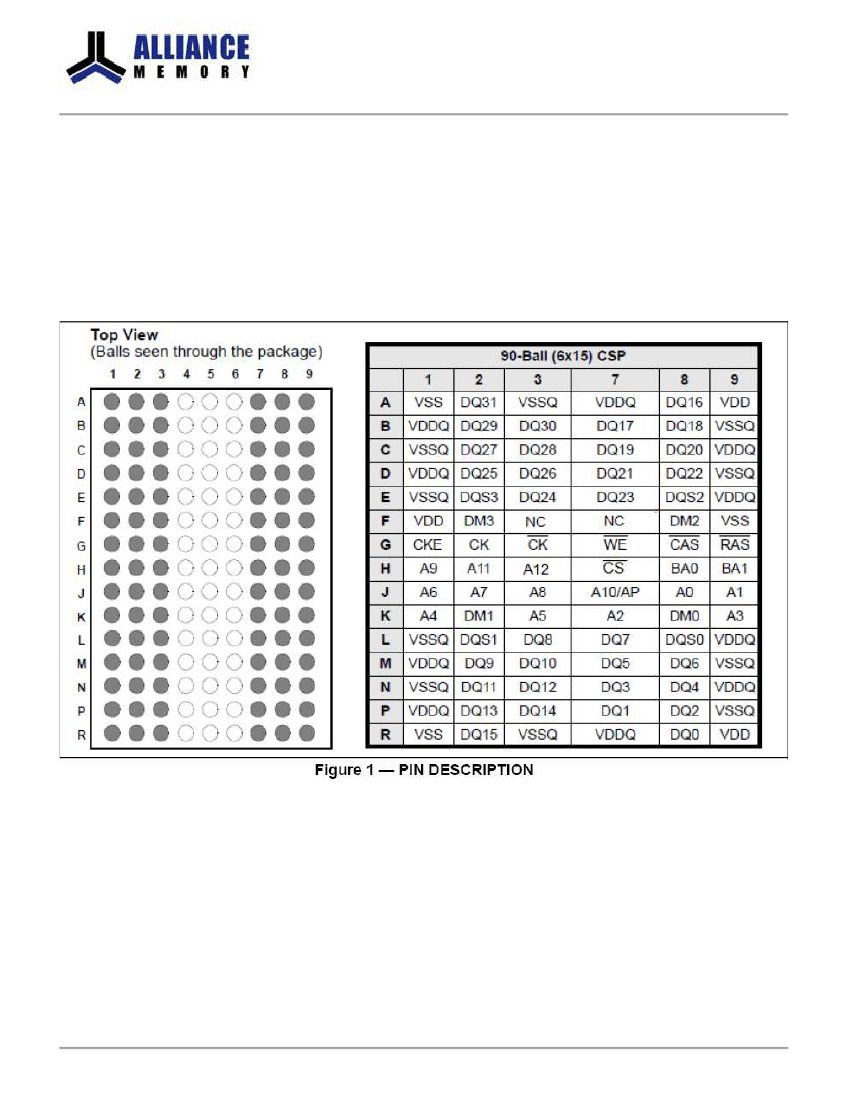

2.3 Pin Description

CK, CK# (input pins)

Clock: The CK and the CK# are the differential clock inputs. All address and control input signals are

samples on the crossing of the positive edge of CK and negative edge of CK. Input and output data

is referenced to the cross of CK and CK# (both directions of crossing). Internal signals are derived

from CK/CK#.

CKE (Input pins)

Clock Enable: CKE HIGH activates and CKE LOW deactivates internal clock signals and device input

buffers and output drivers. Taking CKE LOW provides PRE-CHARGE POWER-DOWN and SELF

REFRESH operation (all banks idle), or ACTIVE POWER-DOWN (row ACTIVE in any bank). CKE is

synchronous for all functions except for SELF REFRESH EXIT, which is achieved asynchronously.

Input buffers, excluding CK, CK# and CKE are disabled during power-down and self-refresh mode

which are contrived for low standby power consumption.

CS# (input pin)

Chip Select: CS# enables (registered LOW) and disables (registered HIGH) the command decoder. All

commands are masked when CS# is registered HIGH. CS# provides for external bank selection on

systems with multiple banks. CS# is considered part of the command code.

RAS#, CAS#, and WE# (input pins)

Command Inputs: These pins define operating commands (read, write, etc.) depending on the

combinations of their voltage levels. See "Command operation".

LDM, UDM (input pins) for x32 DM0-DM3

Input Data Mask: Input Data Mask: DM is an input mask signal for write data. Input data is masked

when DM is sampled HIGH along with that input data during a WRITE access. DM is sampled on both

edges of DQS. Although DM pins are input-only, the DM loading matches the DQ and DQS loading.

For x32 devices, DM0 corresponds to the data on DQ0-DQ7, DM1

corresponds to the data on DQ8-DQ15, DM2 corresponds to the data on

DQ16-DQ23, and DM3 corresponds to the data on DQ24-DQ31.

BA0, BA1 (input pins)

Bank Address Inputs: BA0 and BA1 define to which bank an ACTIVE, READ, WRITE or PRECHARGE

command is being applied.

A0 [n:0] (input pins)

Address Inputs: provide the row address for ACTIVE commands, and the column address and AUTO

PRECHARGE bit for READ / WRITE commands, to select one location out of the memory array in the

respective bank. The address inputs also provide the op-code during a MODE REGISTER SET command.

Confidential

Rev. 1.0/July 2014

AS4C16M32MD1-5BCNTR Related Products

	AS4C16M32MD1-5BCNTR	AS4C16M32MD1-5BCN
Description		DRAM 512M, 1.8V, 200Mhz 16M x 32 Mobile DDR
Product Category	DRAM	DRAM
Manufacturer	Alliance Memory	Alliance Memory
RoHS	Details	Details
Type	SDRAM Mobile - LPDDR1	SDRAM Mobile - LPDDR1
Organization	16 M x 16	16 M x 16
Packaging	Reel	Tray
Moisture Sensitive	Yes	Yes
Factory Pack Quantity	1000	240
