CY7C1021BN-15VXET datasheet, PDF

Datasheet> All Categories > storage> CY7C1021BN-15VXET

CY7C1021BN-15VXET: DescriptionSRAM 64K x 16 ASYNC SRAM; Categorystorage; File Size456KB，16 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY7C1021BN-15VXET Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CY7C1021BN-15VXET	-	-	View	Buy Now

CY7C1021BN-15VXET Overview

SRAM 64K x 16 ASYNC SRAM

CY7C1021BN-15VXET Parametric

Parameter Name	Attribute value
Product Category	SRAM
Manufacturer	Cypress Semiconductor
RoHS	Details
Memory Size	1 Mbit
Organization	64 k x 16
Access Time	15 ns
Interface Type	Parallel
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Supply Current - Max	130 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SOJ-44
Packaging	Cut Tape
Packaging	Reel
Packaging	MouseReel
Data Rate	SDR
Memory Type	SDR
Moisture Sensitive	Yes
Number of Ports	1
Operating Temperature Range	- 40 C to + 125 C
Factory Pack Quantity	500
Type	Asynchronous

Preview

Download Datasheet

View All

CY7C1021BN

1-Mbit (64 K × 16) Static RAM

Features

■

Functional Description

The CY7C1021BN is a high performance CMOS static RAM

organized as 65,536 words by 16 bits. This device has an

automatic power down feature that significantly reduces power

consumption when deselected.

Writing to the device is accomplished by taking Chip Enable (CE)

and Write Enable (WE) inputs LOW. If Byte Low Enable (BLE) is

LOW, then data from the input/output (I/O) pins (I/O

through

I/O

), is written into the location specified on the address pins (A

through A

). If Byte High Enable (BHE) is LOW, then data from

I/O pins (I/O

through I/O

) is written into the location specified

on the address pins (A

through A

Reading from the device is accomplished by taking CE and

Output Enable (OE) LOW while forcing WE HIGH. If BLE is LOW,

then data from the memory location specified by the address pins

appears on I/O

to I/O

. If BHE is LOW, then data from memory

appears on I/O

to I/O

. See the

Truth Table on page 11

for a

complete description of read and write modes.

The I/O pins (I/O

through I/O

) are placed in a high impedance

state when the device is deselected (CE HIGH), the outputs are

disabled (OE HIGH), the BHE and BLE are disabled (BHE, BLE

HIGH), or during a write operation (CE LOW, WE LOW).

The CY7C1021BN is available in standard 44-pin TSOP type II

and 44-pin 400-mil-wide SOJ packages. Use part number

CY7C1021BN when ordering 15 ns t

For a complete list of related resources, click

here.

Temperature ranges

❐

Commercial: 0 °C to 70 °C

❐

Industrial: –40 °C to 85 °C

❐

Automotive-A: –40 °C to 85 °C

❐

Automotive-E: –40 °C to 125 °C

High speed

❐

= 15 ns (Automotive)

Complementary metal oxide semiconductor (CMOS) for

optimum speed/power

Low active power

❐

825 mW (maximum)

Automatic power down when deselected

Independent control of upper and lower bits

Available in Pb-free and non Pb-free 44-pin TSOP II and 44-pin

400-mil-wide SOJ

■

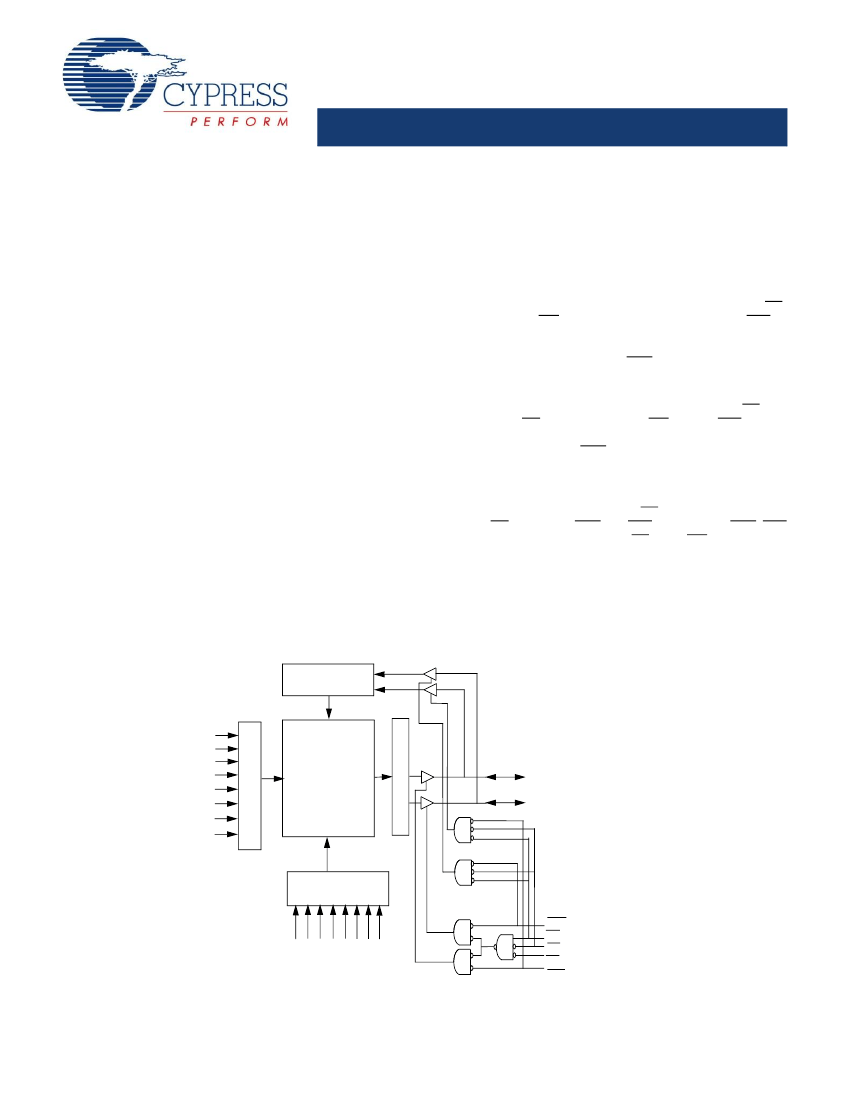

Logic Block Diagram

Data In Drivers

Row Decoder

64K x 16

RAM Array

512 X 2048

Sense Amps

I/O

–I/O

I/O

–I/O

Column Decoder

BHE

BLE

Cypress Semiconductor Corporation

Document Number: 001-06494 Rev. *I

•

198 Champion Court

•

San Jose

CA 95134-1709

•

408-943-2600

Revised October 23, 2015

CY7C1021BN

Contents

Selection Guide ................................................................ 3

Pin Configuration ............................................................. 3

Pin Definitions .................................................................. 4

Maximum Ratings ............................................................. 5

Operating Range ............................................................... 5

Electrical Characteristics ................................................. 5

Capacitance ...................................................................... 6

Thermal Resistance .......................................................... 6

AC Test Loads and Waveforms ....................................... 6

Switching Characteristics ................................................ 7

Switching Waveforms ...................................................... 8

Truth Table ...................................................................... 11

Ordering Information ...................................................... 12

Ordering Code Definitions ......................................... 12

Package Diagrams .......................................................... 13

Acronyms ........................................................................ 14

Document Conventions ................................................. 14

Units of Measure ....................................................... 14

Document History Page ................................................. 15

Sales, Solutions, and Legal Information ...................... 16

Worldwide Sales and Design Support ....................... 16

Products .................................................................... 16

PSoC® Solutions ...................................................... 16

Cypress Developer Community ................................. 16

Technical Support ..................................................... 16

Document Number: 001-06494 Rev. *I

Page 2 of 16
