FR40D05

Description
Rectifiers 200V 40A Fast Recovery
Categorysemiconductor    Discrete semiconductor
File Size683KB，4 Pages
ManufacturerGeneSiC
Websitehttp://www.genesicsemi.com/
Download Datasheet Parametric Compare View All

FR40D05 Online Shopping

Suppliers Part Number Price MOQ In stock
FR40D05 - - View Buy Now

FR40D05 Overview

Rectifiers 200V 40A Fast Recovery

FR40D05 Parametric

Parameter NameAttribute value
Product CategoryRectifiers
ManufacturerGeneSiC
RoHSDetails
Mounting StyleStud
Package / CaseDO-5
Vr - Reverse Voltage200 V
If - Forward Current40 A
TypeFast Recovery Rectifiers
Vf - Forward Voltage1.4 V
Max Surge Current500 A
Ir - Reverse Current25 uA
Recovery Time500 ns
PackagingBulk
ProductRectifiers
Factory Pack Quantity5
Unit Weight1.005308 oz

Preview

Download Datasheet

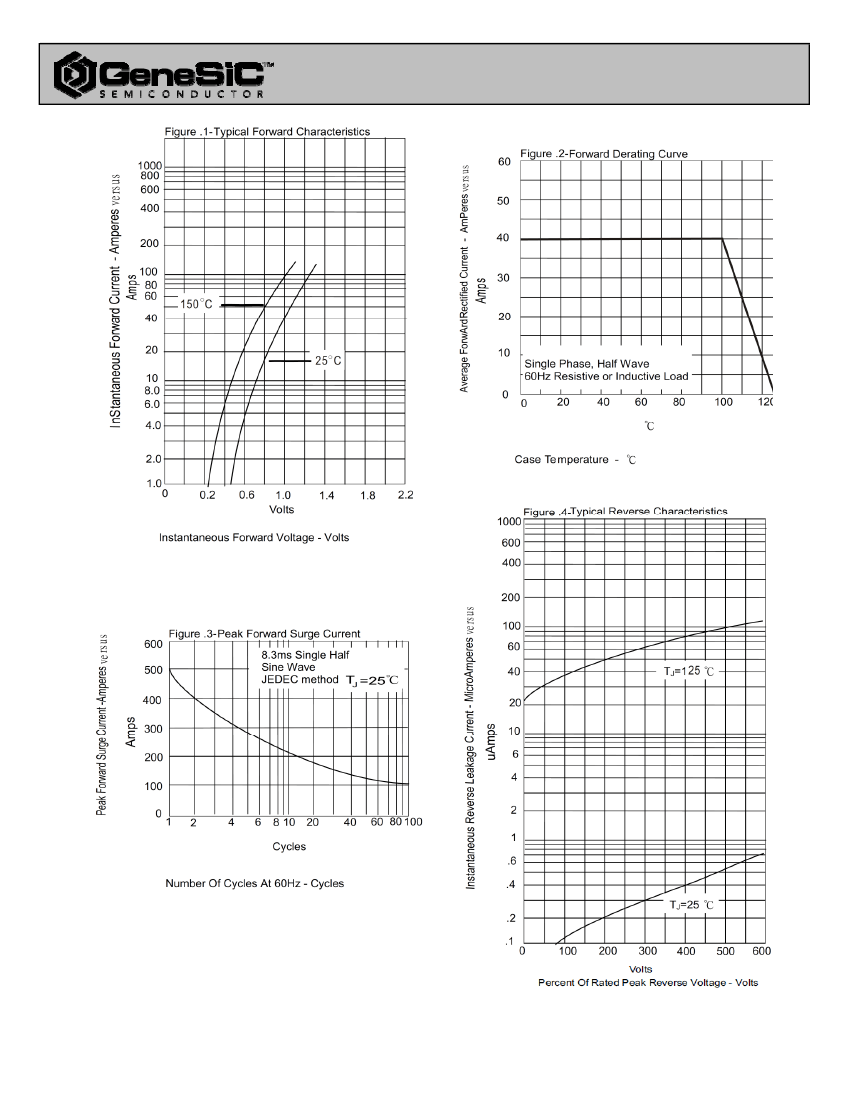

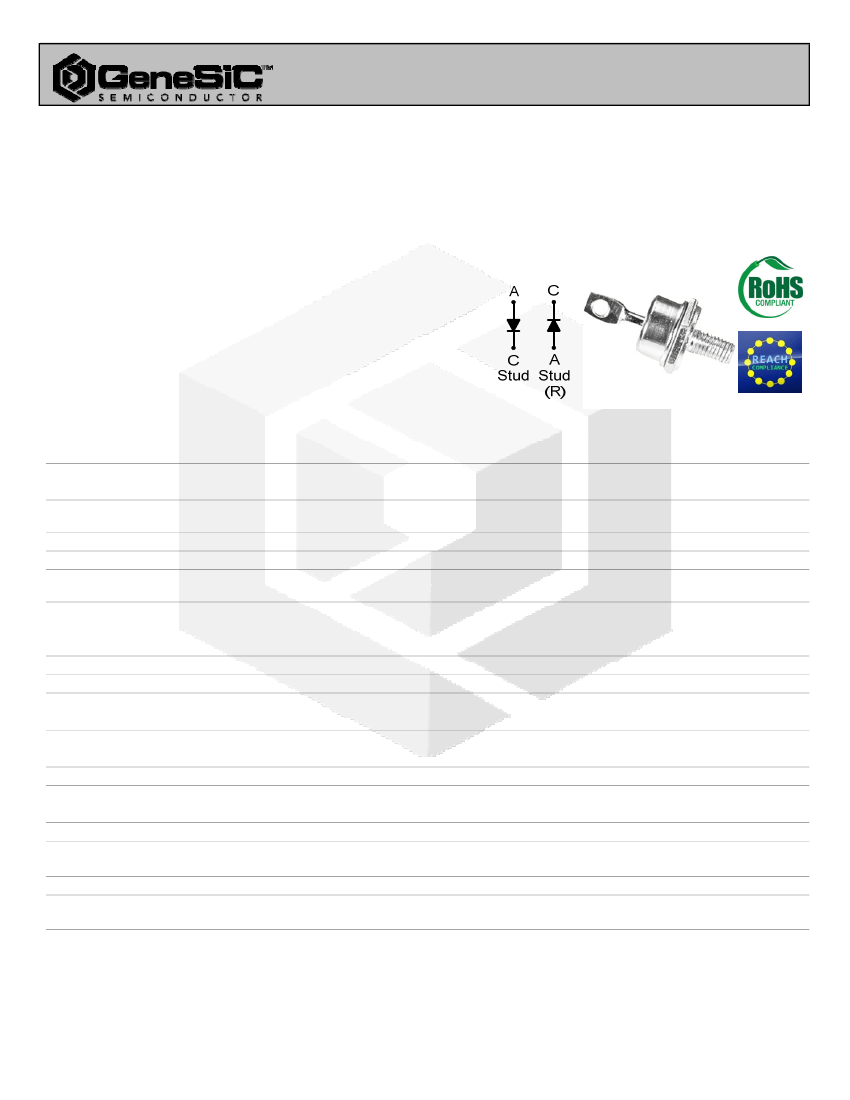

FR40B05 thru FR40JR05
Silicon Fast
Recovery Diode
Features
• High Surge Capability
• Types from 100 V to 600 V V
RRM
• Not ESD Sensitive
Note:
1. Standard polarity: Stud is cathode.
2. Reverse polarity (R): Stud is anode.
3. Stud is base.
DO-5 Package
V
RRM
= 100 V - 600 V
I
F
= 40 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive p
p
peak reverse
voltage
RMS reverse voltage
DC blocking voltage
Continuous forward current
Surge non-repetitive forward
current, Half Sine Wave
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
I
F
I
F,SM
T
j
T
stg
T
C
≤ 100 °C
T
C
= 25 °C, t
p
= 8.3 ms
Conditions
FR40B(R)05
100
70
100
40
500
-55 to 150
-55 to 150
FR40D(R)05
200
140
200
40
500
-55 to 150
-55 to 150
FR40G(R)05
400
280
400
40
500
-55 to 150
-55 to 150
FR40J(R)05
600
420
600
40
500
-55 to 150
-55 to 150
Unit
V
V
V
A
A
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Diode forward voltage
Reverse current
Symbol
V
F
I
R
Conditions
I
F
= 40 A, T
j
= 25 °C
V
R
= 100 V, T
j
= 25 °C
V
R
= 100 V, T
j
= 125 °C
I
F
=0.5 A, I
R
=1.0 A,
I
RR
= 0.25 A
FR40B(R)05
1.0
25
10
FR40D(R)05
1.0
25
10
FR40G(R)05
1.0
25
10
FR40J(R)05
1.0
25
10
Unit
V
μA
mA
Recovery Time
Maximum reverse recovery
time
T
RR
500
500
500
500
nS
Thermal characteristics
Thermal resistance, junction
- case
R
thJC
0.8
0.8
0.8
0.8
°C/W
Feb 2016
Latest version of this datasheet at: www.genesicsemi.com/silicon-products/fast-recovery-rectifiers/
1

FR40D05 Related Products

FR40D05 FR40J05 FR40G05 FR40JR05
Description Rectifiers 200V 40A Fast Recovery Rectifiers 600V 40A Fast Recovery Rectifiers 400V 40A Fast Recovery Rectifiers 600V 40A REV Leads Fast Recovery
Product Category Rectifiers Rectifiers Rectifiers Rectifiers
Manufacturer GeneSiC GeneSiC GeneSiC GeneSiC
RoHS Details Details Details Details
Mounting Style Stud Stud Stud Stud
Package / Case DO-5 DO-5 DO-5 DO-5
Vr - Reverse Voltage 200 V 600 V 400 V 600 V
If - Forward Current 40 A 40 A 40 A 40 A
Type Fast Recovery Rectifiers Fast Recovery Rectifiers Fast Recovery Rectifiers Fast Recovery Rectifiers
Vf - Forward Voltage 1.4 V 1.4 V 1.4 V 1.4 V
Max Surge Current 500 A 500 A 500 A 500 A
Ir - Reverse Current 25 uA 25 uA 25 uA 25 uA
Recovery Time 500 ns 500 ns 500 ns 500 ns
Packaging Bulk Bulk Bulk Bulk
Product Rectifiers Rectifiers Rectifiers Rectifiers
Factory Pack Quantity 5 5 5 5
Unit Weight 1.005308 oz 1.005308 oz 1.005308 oz 1.005308 oz

Recommended Resources

Active continuous audio filter

Circuit with combined application of thyristor and RLC

CW9300 series music integrated circuit

Single chip ZH9401 encoding circuit
